Total Solar Eclipse of 2088 Apr 21

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Total Solar Eclipse of 2088 Apr 21 is visible from the following geographic regions:

  • Partial Eclipse: North America, Africa, Europe, Asia
  • Total Eclipse: Mauritania, Western Sahara, Mali, Algeria, Tunisia, Greece, Turkey, Russia, Kazakhstan, China

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2088 Apr 21 at 10:31:49 TD (10:29:57 UT1). This is 1.7 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2045.

The eclipse belongs to Saros 130 and is number 56 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total solar eclipse of 2088 Apr 21 is followed two weeks later by a partial lunar eclipse on 2088 May 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 112.6 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Total Solar Eclipse of 2088 Apr 21 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

The Moon's umbral shadow appears as a small black disk and tracks along the path of totality (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while a total eclipse is visible inside the umbra.

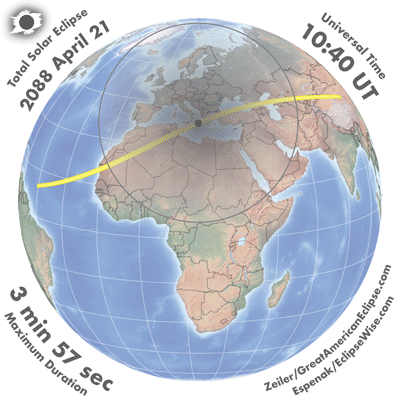

The map to the right shows a single frame from the medium size animation for the Total Solar Eclipse of 2088 Apr 21 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of totality. To the lower right is the credit for the animation.

Animations for the Total Solar Eclipse of 2088 Apr 21 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Total Solar Eclipse of 2088 Apr 21

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.04745
Eclipse Obscuration 1.09715
Gamma 0.41352
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2088 Apr 21 at 10:31:49.5 TD (10:29:56.9 UT1) 2483797.937464
Ecliptic Conjunction 2088 Apr 21 at 10:27:31.4 TD (10:25:38.9 UT1) 2483797.934478
Equatorial Conjunction 2088 Apr 21 at 10:42:59.9 TD (10:41:07.3 UT1) 2483797.945223
Geocentric Coordinates of Sun and Moon
2088 Apr 21 at 10:31:49.5 TD (10:29:56.9 UT1)
Coordinate Sun Moon
Right Ascension02h00m30.3s02h00m04.9s
Declination+12°16'07.2"+12°40'11.3"
Semi-Diameter 15'54.9" 16'25.1"
Eq. Hor. Parallax 08.8" 1°00'15.3"
Geocentric Libration of Moon
Angle Value
l -3.5°
b -0.5°
c -21.7°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 112.6 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 130 (56/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2088 Apr 21

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP107:56:26.307:54:33.701°06.1'N029°13.8'W
First Internal ContactP210:10:39.310:08:46.848°11.4'N076°37.1'W
Last Internal ContactP310:52:42.810:50:50.373°26.5'N153°57.0'E
Last External ContactP413:07:03.413:05:10.829°25.8'N080°24.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N110:01:45.109:59:52.556°07.7'N079°13.0'W
South Extreme Path Limit 1S108:42:10.008:40:17.521°05.0'S035°37.6'W
North Extreme Path Limit 2N211:01:33.910:59:41.377°23.2'N178°48.5'W
South Extreme Path Limit 2S212:21:31.612:19:39.007°19.4'N086°19.6'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2088 Apr 21

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU108:55:25.108:53:32.509°35.4'N045°50.5'W
First Internal ContactU208:57:16.508:55:23.910°00.2'N046°23.9'W
Last Internal ContactU312:06:12.112:04:19.538°13.6'N098°26.0'E
Last External ContactU412:08:07.412:06:14.837°48.4'N097°48.2'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N108:56:48.408:54:55.810°17.5'N046°20.7'W
South Extreme Path Limit 1S108:55:53.808:54:01.209°18.0'N045°53.7'W
North Extreme Path Limit 2N212:06:41.012:04:48.438°31.2'N098°25.1'E
South Extreme Path Limit 2S212:07:37.812:05:45.337°30.6'N097°49.4'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2088 Apr 21

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C108:56:20.708:54:28.109°47.7'N046°07.1'W
Extreme Central Line Limit 2C212:07:09.812:05:17.238°00.9'N098°07.1'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse10:31:49.510:29:56.935°59.8'N014°50.1'E 65.4° 162.6° 173.1 km03m57.83s
Greatest Duration10:35:01.410:33:08.836°31.2'N016°06.1'E 65.3° 167.6° 172.8 km03m57.96s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2088 Apr 21

Polynomial Besselian Elements
2088 Apr 21 at 11:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.15702 0.46747 12.2741 0.53791 -0.00820 345.3625
1 0.55414 0.14270 0.0136 -0.00010 -0.00010 15.0034
2 0.00003 -0.00010 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046525
Tan ƒ2 0.0046294

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Polynomial Besselian Elements
