Solar Eclipse Prime Page

Partial Solar Eclipse of 2011 Jun 01

Fred Espenak

Introduction


The Partial Solar Eclipse of 2011 Jun 01 is visible from the following geographic regions:

  • Partial Eclipse: east Asia, north North America, Iceland

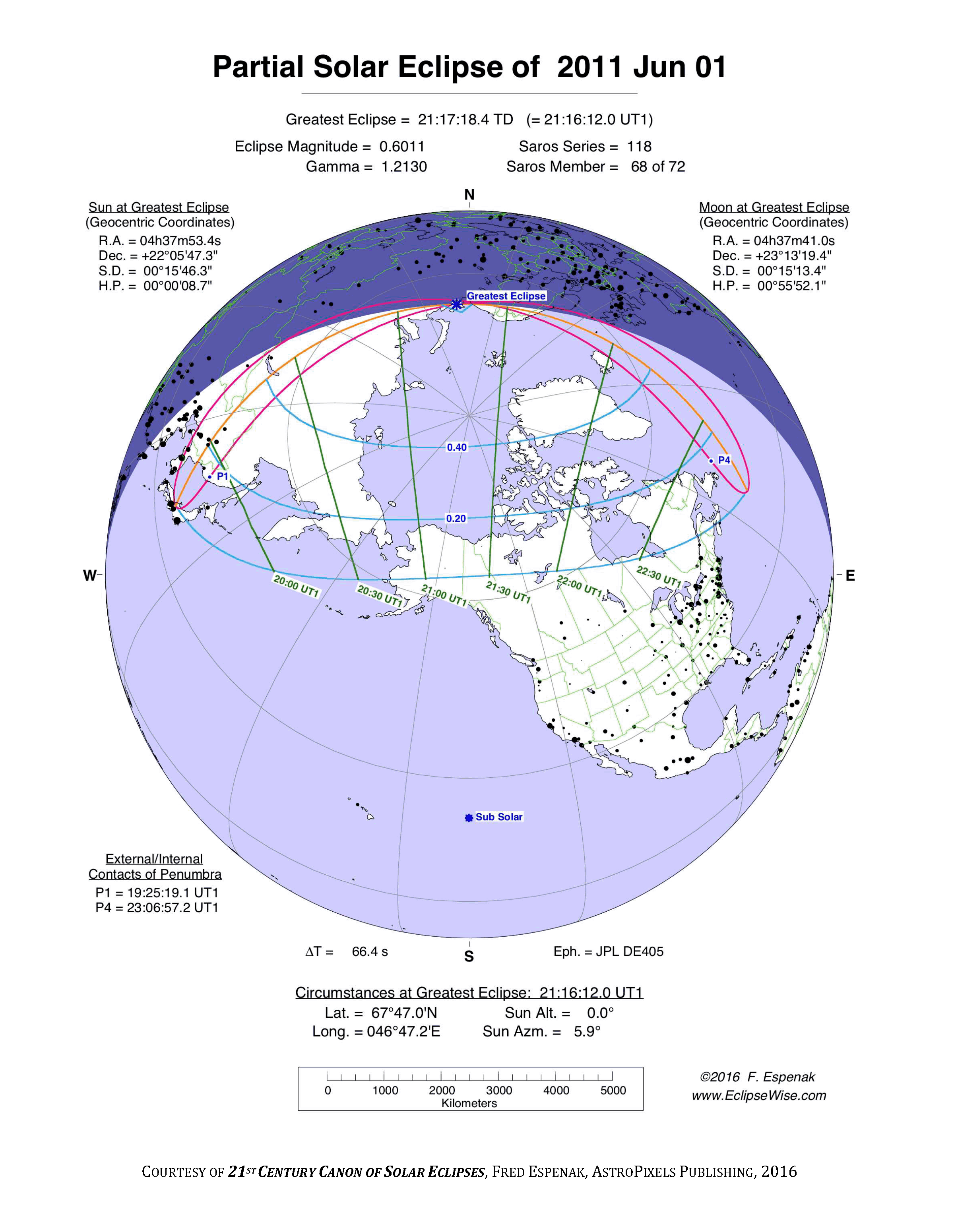

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2011 Jun 01 at 21:17:18 TD (21:16:12 UT1). This is 5.5 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1094.

The eclipse belongs to Saros 118 and is number 68 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.6011, while Gamma has a value of 1.2130.

The partial solar eclipse of 2011 Jun 01 is followed two weeks later by a total lunar eclipse on 2011 Jun 15.

Another solar eclipse occurs one synodic month after the 2011 Jun 01 eclipse. It is the partial solar eclipse of 2011 Jul 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 66.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2011 Jun 01 .


Eclipse Data: Partial Solar Eclipse of 2011 Jun 01

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.60107
Eclipse Obscuration 0.50014
Gamma 1.21300
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2011 Jun 01 at 21:17:18.4 TD (21:16:11.9 UT1) 2455714.386249
Ecliptic Conjunction 2011 Jun 01 at 21:03:42.9 TD (21:02:36.4 UT1) 2455714.376810
Equatorial Conjunction 2011 Jun 01 at 21:23:06.3 TD (21:21:59.8 UT1) 2455714.390275
Geocentric Coordinates of Sun and Moon
2011 Jun 01 at 21:17:18.4 TD (21:16:11.9 UT1)
Coordinate Sun Moon
Right Ascension04h37m53.4s04h37m41.0s
Declination+22°05'47.3"+23°13'19.4"
Semi-Diameter 15'46.3" 15'13.4"
Eq. Hor. Parallax 08.7" 0°55'52.1"
Geocentric Libration of Moon
Angle Value
l -4.7°
b -1.5°
c -9.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 66.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 118 (68/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2011 Jun 01

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP119:26:25.519:25:19.044°22.5'N134°44.7'E
Last External ContactP423:08:03.623:06:57.148°24.7'N050°02.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:43:57.819:42:51.335°49.1'N136°43.3'E
South Extreme Path Limit 1S122:50:32.322:49:25.840°04.2'N052°55.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2011 Jun 01

Polynomial Besselian Elements
2011 Jun 01 at 21:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.20266 1.20555 22.0920 0.55623 0.01003 135.5377
1 0.52627 0.02220 0.0055 -0.00010 -0.00010 14.9997
2 0.00003 -0.00019 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046112
Tan ƒ2 0.0045882

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 2011 Jun 01

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 2011 Jun 01 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 66.5 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
