Partial Solar Eclipse of 1906 Feb 23

Fred Espenak

Introduction


The Partial Solar Eclipse of 1906 Feb 23 is visible from the following geographic regions:

  • Partial Eclipse: Antarctica, Australia

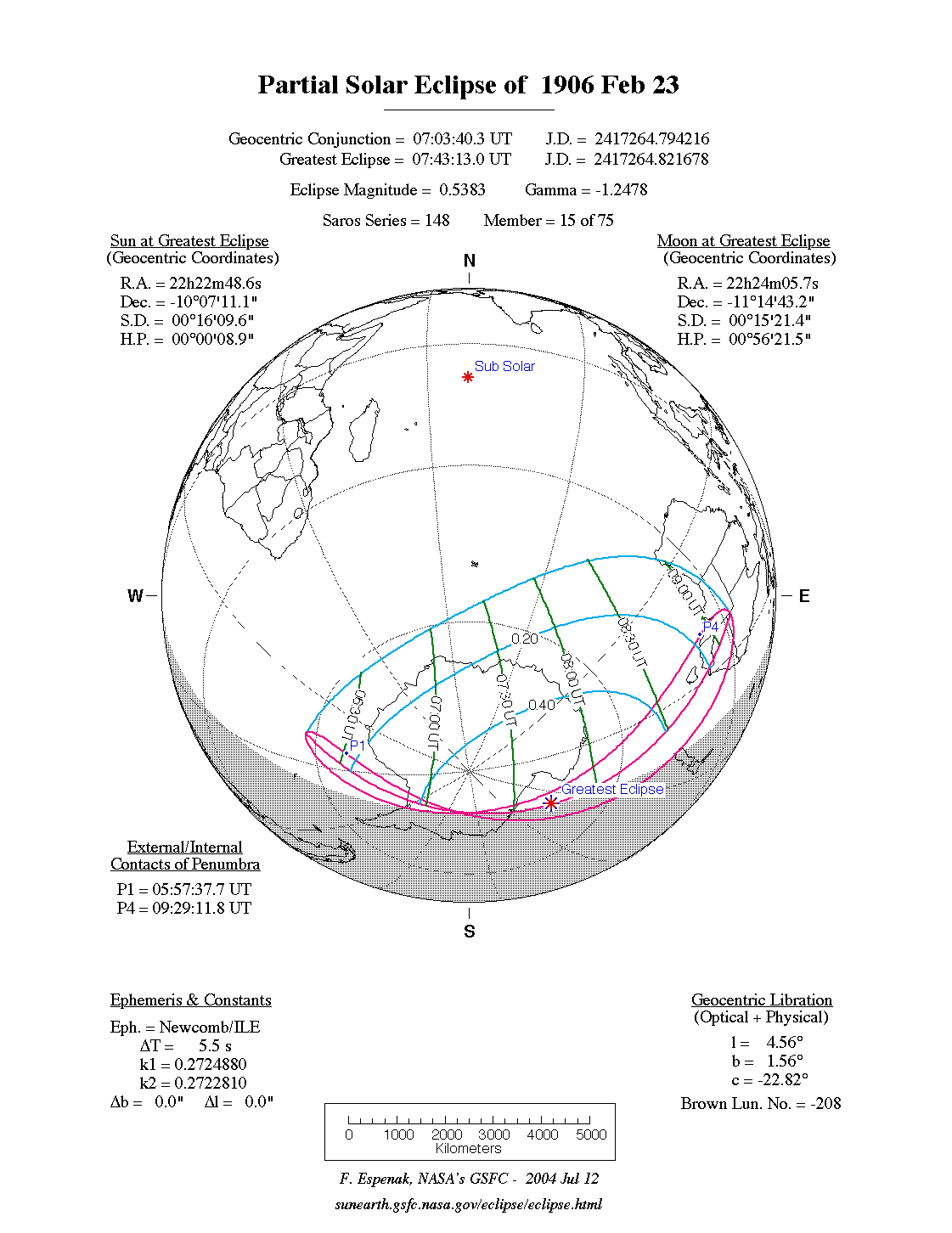

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1906 Feb 23 at 07:43:20 TD (07:43:15 UT1). This is 6.1 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -208.

The eclipse belongs to Saros 148 and is number 15 of 75 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.5386, while Gamma has a value of -1.2479.

The partial solar eclipse of 1906 Feb 23 is preceded two weeks earlier by a total lunar eclipse on 1906 Feb 09.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 5.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 1906 Feb 23 .


Eclipse Data: Partial Solar Eclipse of 1906 Feb 23

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.53864
Eclipse Obscuration 0.42720
Gamma-1.24788
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1906 Feb 23 at 07:43:20.4 TD (07:43:15.1 UT1) 2417264.821703
Ecliptic Conjunction 1906 Feb 23 at 07:57:15.8 TD (07:57:10.5 UT1) 2417264.831372
Equatorial Conjunction 1906 Feb 23 at 07:03:47.6 TD (07:03:42.3 UT1) 2417264.794240
Geocentric Coordinates of Sun and Moon
1906 Feb 23 at 07:43:20.4 TD (07:43:15.1 UT1)
Coordinate Sun Moon
Right Ascension22h22m48.6s22h24m05.7s
Declination-10°07'11.2"-11°14'43.4"
Semi-Diameter 16'09.6" 15'21.4"
Eq. Hor. Parallax 08.9" 0°56'21.5"
Geocentric Libration of Moon
Angle Value
l 4.5°
b 1.6°
c -22.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 5.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 148 (15/75)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 1906 Feb 23

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP105:57:45.105:57:39.866°45.7'S020°37.4'W
Last External ContactP409:29:19.309:29:14.036°58.6'S138°47.9'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N106:17:43.906:17:38.757°56.3'S017°35.0'W
South Extreme Path Limit 1S109:09:19.709:09:14.427°32.7'S141°25.5'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 1906 Feb 23

Polynomial Besselian Elements
1906 Feb 23 at 08:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.47812 -1.16199 -10.1127 0.56072 0.01449 296.5901
1 0.51034 0.14294 0.0149 0.00011 0.00011 15.0026
2 -0.00005 0.00011 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047251
Tan ƒ2 0.0047015

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 8.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 1906 Feb 23

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 1906 Feb 23 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 5.3 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
