Partial Lunar Eclipse of 1988 Aug 27

Fred Espenak

Introduction


The Partial Lunar Eclipse of 1988 Aug 27 is visible from the following geographic regions:

  • eastern Asia, Australia, Pacific, Americas

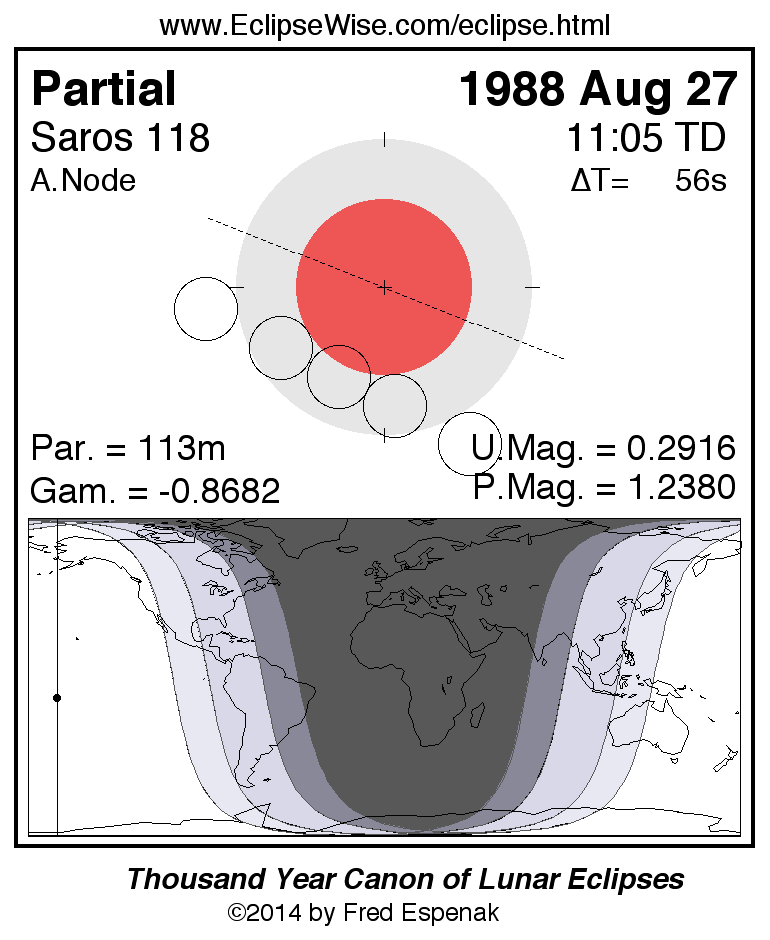

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1988 Aug 27 at 11:05:29 TD (11:04:33 UT1). This is 0.2 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 812.

The eclipse belongs to Saros 118 and is number 50 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The partial lunar eclipse of 1988 Aug 27 is followed two weeks later by a annular solar eclipse on 1988 Sep 11.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 56.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 1988 Aug 27 .


Eclipse Data: Partial Lunar Eclipse of 1988 Aug 27

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.23803
Umbral Magnitude 0.29159
Gamma-0.86816
Epsilon 0.8882°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1988 Aug 27 at 11:05:29.5 TD (11:04:33.4 UT1) 2447400.961497
Ecliptic Opposition 1988 Aug 27 at 10:56:46.9 TD (10:55:50.8 UT1) 2447400.955449
Equatorial Opposition 1988 Aug 27 at 10:20:07.4 TD (10:19:11.3 UT1) 2447400.929992
Geocentric Coordinates of Sun and Moon
1988 Aug 27 at 11:05:29.5 TD (11:04:33.4 UT1)
Coordinate Sun Moon
Right Ascension10h25m02.1s22h26m40.4s
Declination+09°54'10.9"-10°41'41.3"
Semi-Diameter 15'50.0" 16'43.7"
Eq. Hor. Parallax 08.7" 1°01'23.7"
Geocentric Libration of Moon
Angle Value
l -0.3°
b 1.2°
c -19.9°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2998°
Umbral Radius 0.7720°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 56.1 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 118 (50/73)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 1988 Aug 27

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP108:54:10.708:53:14.611°19.0'S133°43.3'W 208.9° 1.5784°
Partial BeginsU110:09:00.110:08:04.110°57.8'S151°45.3'W 185.4° 1.0508°
Greatest EclipseGreatest11:05:29.511:04:33.410°41.7'S165°22.3'W 153.1° 0.8882°
Partial EndsU412:01:59.912:01:03.810°25.5'S178°59.5'W 120.8° 1.0509°
Penumbral EndsP413:16:48.613:15:52.510°04.1'S162°58.4'E 97.3° 1.5787°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h22m37.9s
Partial (U4 - U1)01h52m59.7s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 1988 Aug 27

Polynomial Besselian Elements
1988 Aug 27 at 11:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.35349 -0.81669 0.1729 1.29977 0.77202 0.27881
1 0.53185 0.27004 -0.0003 0.00006 0.00006 0.00002
2 -0.00002 0.00013 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00001 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Besselian Elements

Links for the Partial Lunar Eclipse of 1988 Aug 27

Links to Additional Lunar Eclipse Information

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 1988 Aug 27 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 56.1 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
