Solar Eclipse Prime Page

Annular Solar Eclipse of 2048 Jun 11

Fred Espenak

Introduction


The Annular Solar Eclipse of 2048 Jun 11 is visible from the following geographic regions:

  • Partial Eclipse: North America, Caribbean, north Africa, Europe, west Asia
  • Annular Eclipse: midwest U.S., Quebec, Ontario, Greenland, Iceland, Norway, Sweden, Russia, Afganistan

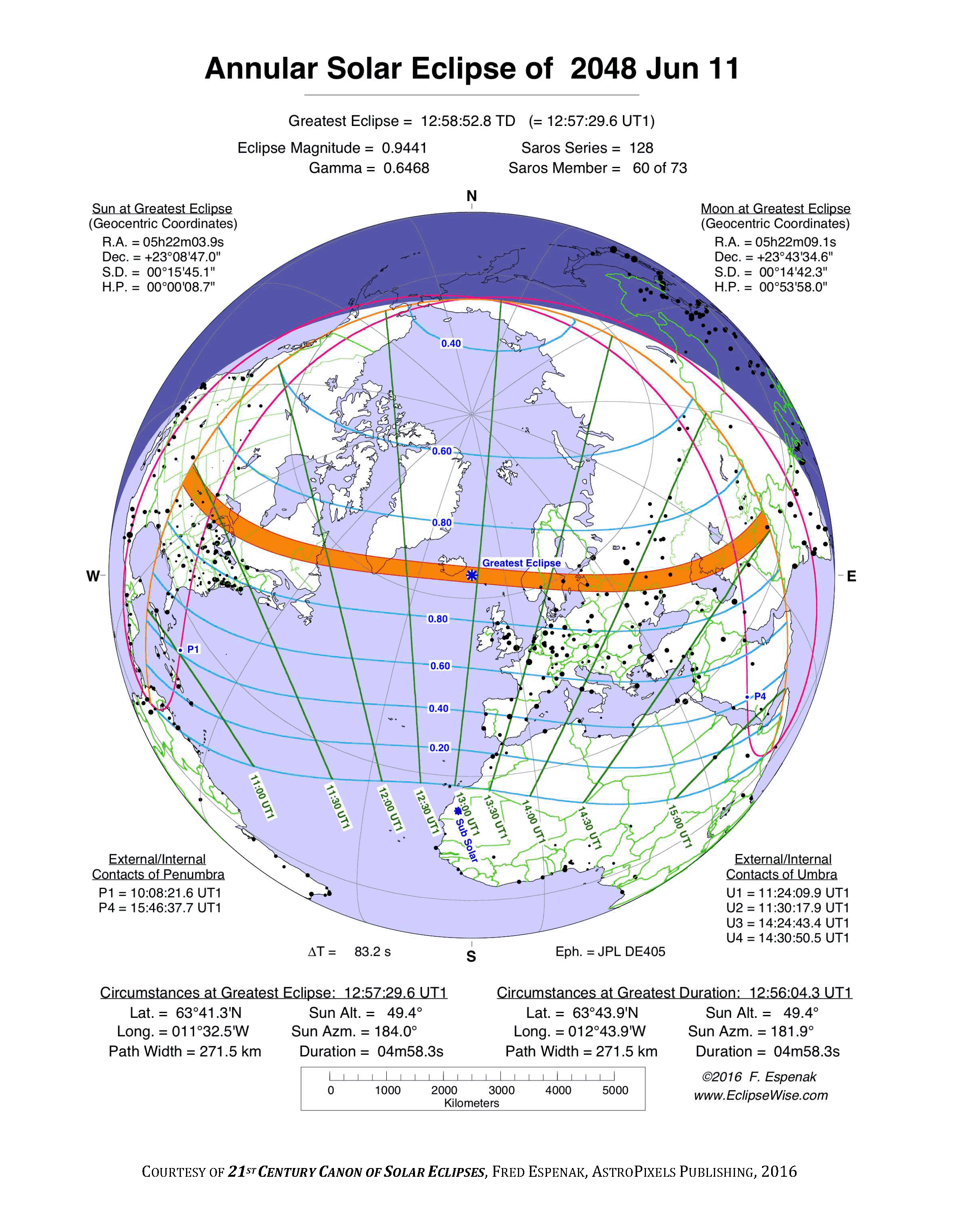

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2048 Jun 11 at 12:58:53 TD (12:57:29 UT1). This is 0.7 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1552.

The eclipse belongs to Saros 128 and is number 60 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2048 Jun 11 is followed two weeks later by a partial lunar eclipse on 2048 Jun 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 84.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2048 Jun 11 .


Eclipse Data: Annular Solar Eclipse of 2048 Jun 11

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94415
Eclipse Obscuration 0.89141
Gamma 0.64685
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2048 Jun 11 at 12:58:52.8 TD (12:57:28.6 UT1) 2469239.039915
Ecliptic Conjunction 2048 Jun 11 at 12:51:11.2 TD (12:49:47.0 UT1) 2469239.034572
Equatorial Conjunction 2048 Jun 11 at 12:56:14.7 TD (12:54:50.6 UT1) 2469239.038085
Geocentric Coordinates of Sun and Moon
2048 Jun 11 at 12:58:52.8 TD (12:57:28.6 UT1)
Coordinate Sun Moon
Right Ascension05h22m03.9s05h22m09.1s
Declination+23°08'47.0"+23°43'34.6"
Semi-Diameter 15'45.1" 14'42.3"
Eq. Hor. Parallax 08.7" 0°53'58.0"
Geocentric Libration of Moon
Angle Value
l -0.7°
b -0.7°
c -5.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 84.1 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 128 (60/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2048 Jun 11

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP110:09:44.810:08:20.724°10.8'N073°10.9'W
Last External ContactP415:48:00.915:46:36.820°36.1'N042°34.0'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N110:47:28.010:46:03.906°39.9'N074°24.8'W
South Extreme Path Limit 1S115:10:17.615:08:53.503°02.0'N044°02.7'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2048 Jun 11

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU111:25:33.111:24:09.037°34.0'N100°15.8'W
First Internal ContactU211:31:41.111:30:17.039°13.8'N103°01.7'W
Last Internal ContactU314:26:06.614:24:42.535°47.9'N071°45.0'E
Last External ContactU414:32:13.614:30:49.534°06.8'N069°05.8'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N111:30:55.711:29:31.639°39.6'N103°10.1'W
South Extreme Path Limit 1S111:26:20.811:24:56.737°07.0'N100°08.4'W
North Extreme Path Limit 2N214:26:51.914:25:27.836°14.1'N071°51.7'E
South Extreme Path Limit 2S214:31:26.114:30:02.033°39.5'N069°00.1'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2048 Jun 11

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C111:28:35.811:27:11.638°22.7'N101°37.0'W
Extreme Central Line Limit 2C214:29:11.514:27:47.434°56.1'N070°23.8'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse12:58:52.812:57:28.663°41.3'N011°53.4'W 49.4° 184.0° 271.5 km04m58.33s
Greatest Duration12:57:27.412:56:03.363°43.9'N012°43.7'W 49.4° 181.9° 271.5 km04m58.34s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2048 Jun 11

Polynomial Besselian Elements
2048 Jun 11 at 13:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.03165 0.64614 23.1449 0.56589 0.01964 15.0337
1 0.50563 -0.01737 0.0027 -0.00002 -0.00002 14.9992
2 -0.00000 -0.00017 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046056
Tan ƒ2 0.0045827

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 13.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2048 Jun 11

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2048 Jun 11 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 84.1 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
