Solar Eclipse Prime Page

Partial Solar Eclipse of 2040 May 11

Fred Espenak

Introduction


The Partial Solar Eclipse of 2040 May 11 is visible from the following geographic regions:

  • Partial Eclipse: Australia, New Zealand, Antarctica

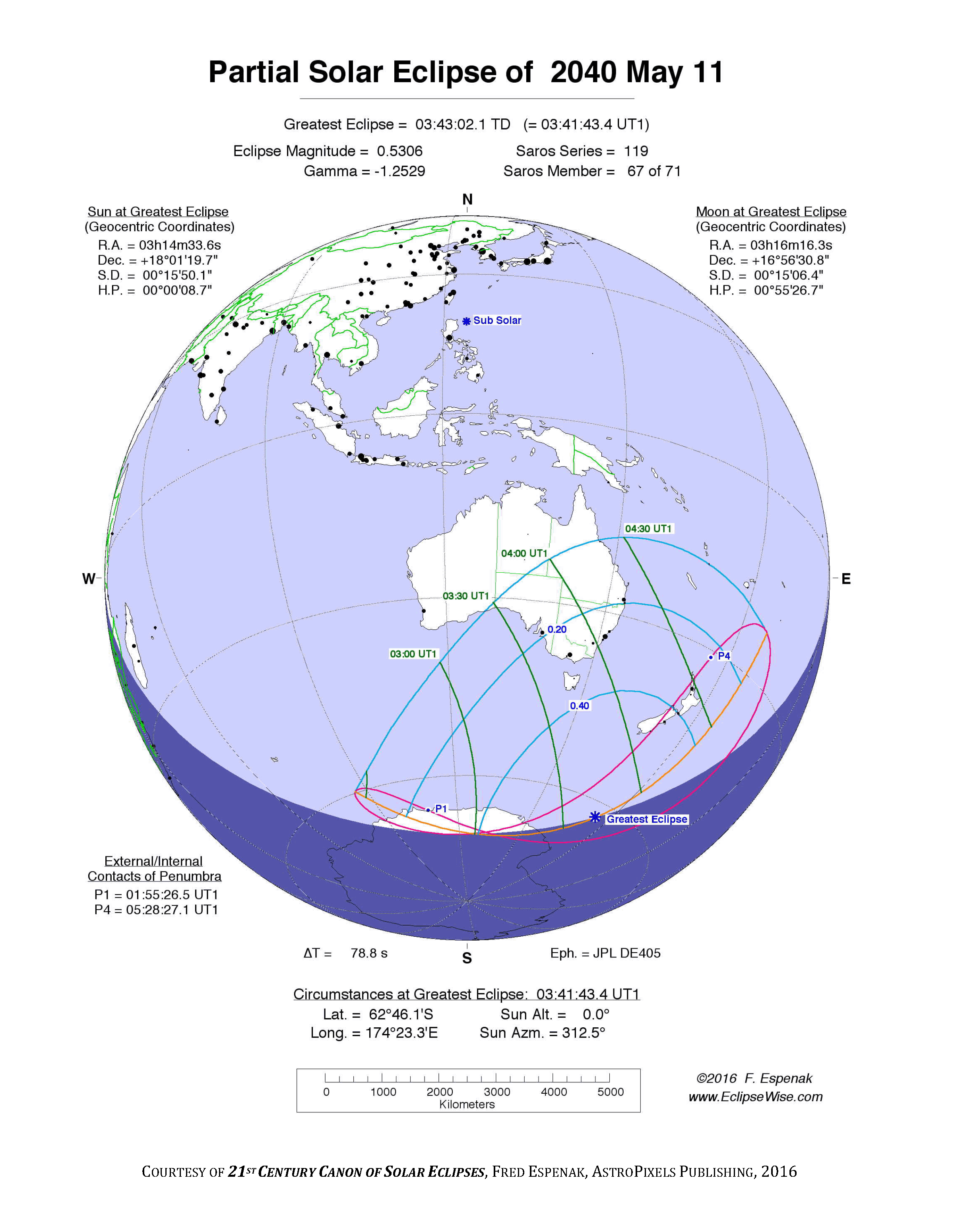

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2040 May 11 at 03:43:02 TD (03:41:43 UT1). This is 4.9 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1452.

The eclipse belongs to Saros 119 and is number 67 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.5306, while Gamma has a value of -1.2529.

The partial solar eclipse of 2040 May 11 is followed two weeks later by a total lunar eclipse on 2040 May 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 79.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2040 May 11 .


Eclipse Data: Partial Solar Eclipse of 2040 May 11

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.53064
Eclipse Obscuration 0.41890
Gamma-1.25291
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2040 May 11 at 03:43:02.1 TD (03:41:42.8 UT1) 2466285.653968
Ecliptic Conjunction 2040 May 11 at 03:29:05.2 TD (03:27:45.9 UT1) 2466285.644281
Equatorial Conjunction 2040 May 11 at 02:48:21.3 TD (02:47:02.0 UT1) 2466285.615996
Geocentric Coordinates of Sun and Moon
2040 May 11 at 03:43:02.1 TD (03:41:42.8 UT1)
Coordinate Sun Moon
Right Ascension03h14m33.6s03h16m16.3s
Declination+18°01'19.7"+16°56'30.8"
Semi-Diameter 15'50.1" 15'06.4"
Eq. Hor. Parallax 08.7" 0°55'26.7"
Geocentric Libration of Moon
Angle Value
l 4.2°
b 1.5°
c -13.6°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 79.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 119 (67/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2040 May 11

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:56:45.301:55:26.066°23.4'S108°17.1'E
Last External ContactP405:29:45.805:28:26.531°05.6'S175°39.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:28:53.702:27:34.459°45.5'S086°06.2'E
South Extreme Path Limit 1S104:57:35.504:56:16.222°23.7'S172°41.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2040 May 11

Polynomial Besselian Elements
2040 May 11 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.58198 -1.11929 18.0278 0.55956 0.01334 240.9055
1 0.48740 0.18476 0.0101 0.00009 0.00009 15.0014
2 0.00000 -0.00006 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046299
Tan ƒ2 0.0046068

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 2040 May 11

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 2040 May 11 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 79.3 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
