Solar Eclipse Prime Page

Total Solar Eclipse of 2012 Nov 13

Fred Espenak

Introduction


The Total Solar Eclipse of 2012 Nov 13 is visible from the following geographic regions:

  • Partial Eclipse: Australia, New Zealand, south Pacific, south South America
  • Total Eclipse: north Australia, south Pacific

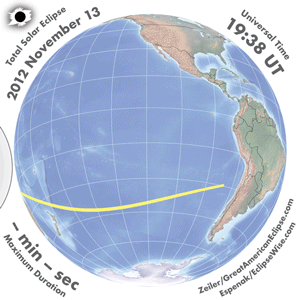

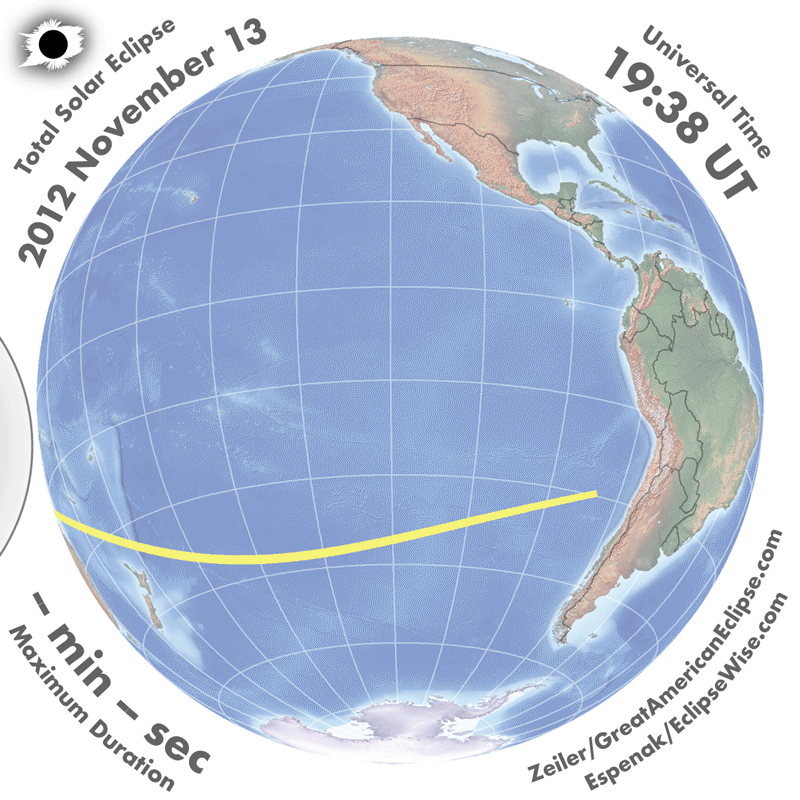

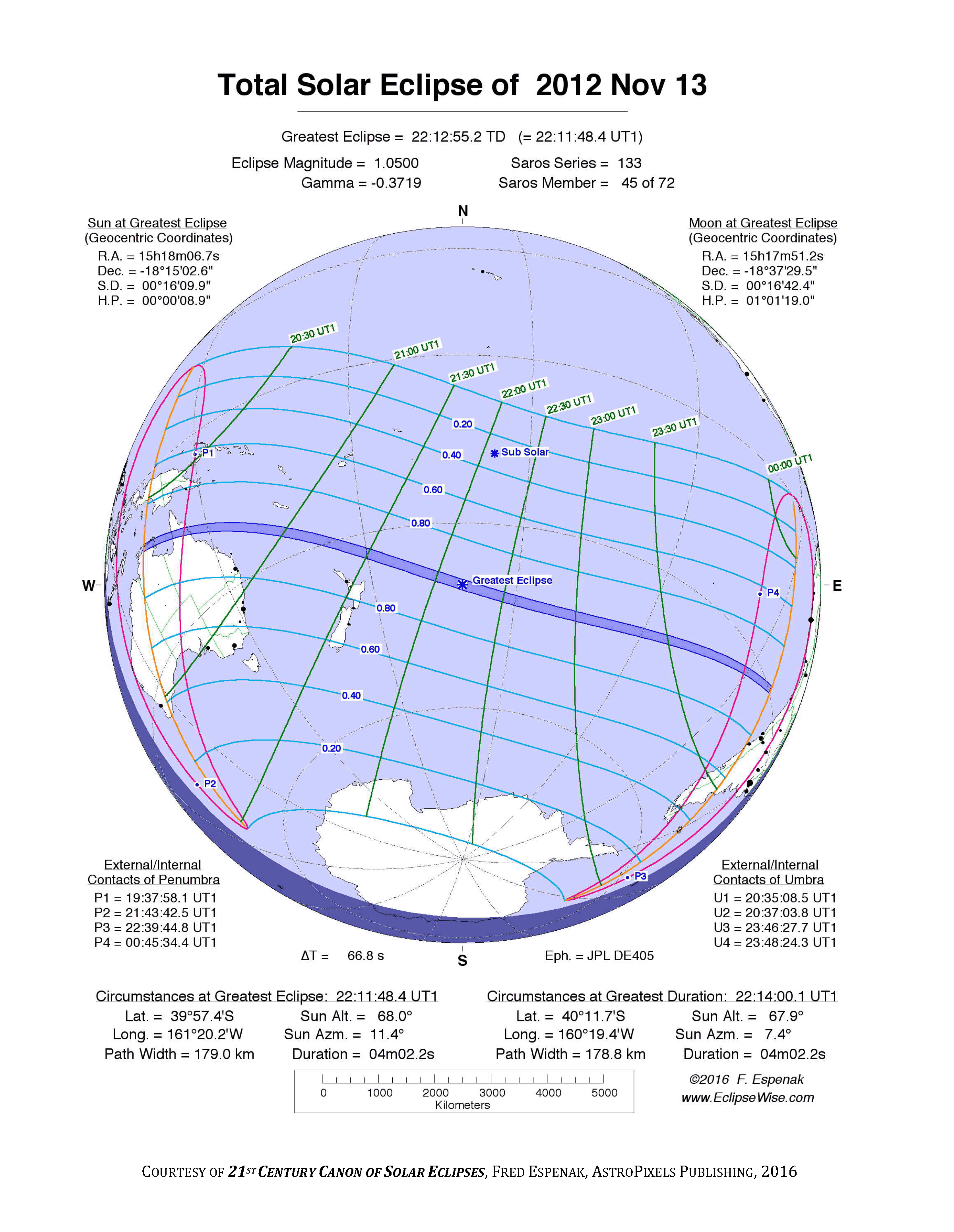

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2012 Nov 13 at 22:12:55 TD (22:11:48 UT1). This is 0.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1112.

The eclipse belongs to Saros 133 and is number 45 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2012 Nov 13 is a relatively long total eclipse with a duration at greatest eclipse of 04m02s. It has an eclipse magnitude of 1.0500.

The total solar eclipse of 2012 Nov 13 is followed two weeks later by a penumbral lunar eclipse on 2012 Nov 28.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 66.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2012 Nov 13 .


Eclipse Data: Total Solar Eclipse of 2012 Nov 13

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.05004
Eclipse Obscuration 1.10259
Gamma-0.37189
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2012 Nov 13 at 22:12:55.2 TD (22:11:48.2 UT1) 2456245.424864
Ecliptic Conjunction 2012 Nov 13 at 22:09:06.9 TD (22:07:59.9 UT1) 2456245.422221
Equatorial Conjunction 2012 Nov 13 at 22:19:11.7 TD (22:18:04.7 UT1) 2456245.429222
Geocentric Coordinates of Sun and Moon
2012 Nov 13 at 22:12:55.2 TD (22:11:48.2 UT1)
Coordinate Sun Moon
Right Ascension15h18m06.7s15h17m51.2s
Declination-18°15'02.6"-18°37'29.5"
Semi-Diameter 16'09.9" 16'42.4"
Eq. Hor. Parallax 08.9" 1°01'19.0"
Geocentric Libration of Moon
Angle Value
l -1.0°
b 0.5°
c 16.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 66.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 133 (45/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2012 Nov 13

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP119:39:04.919:37:58.004°27.4'S150°08.4'E
First Internal ContactP221:44:49.321:43:42.441°51.6'S102°59.8'E
Last Internal ContactP322:40:51.622:39:44.758°04.7'S041°51.8'W
Last External ContactP400:46:41.300:45:34.322°08.6'S097°34.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:23:14.120:22:07.217°40.4'N146°35.8'E
South Extreme Path Limit 1S121:33:11.621:32:04.652°19.2'S097°49.3'E
North Extreme Path Limit 2N200:02:39.100:01:32.200°03.8'S094°15.7'W
South Extreme Path Limit 2S222:52:27.122:51:20.266°33.7'S027°11.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2012 Nov 13

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU120:36:15.320:35:08.411°45.6'S133°23.1'E
First Internal ContactU220:38:10.620:37:03.612°08.4'S132°46.5'E
Last Internal ContactU323:47:34.623:46:27.629°43.7'S079°38.9'W
Last External ContactU423:49:31.123:48:24.229°21.1'S080°18.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:36:45.320:35:38.311°26.7'S133°22.2'E
South Extreme Path Limit 1S120:37:41.220:36:34.312°27.2'S132°47.3'E
North Extreme Path Limit 2N223:49:00.923:47:54.029°02.2'S080°18.8'W
South Extreme Path Limit 2S223:48:04.223:46:57.330°02.4'S079°37.9'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2012 Nov 13

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C120:37:12.920:36:06.011°56.9'S133°04.8'E
Extreme Central Line Limit 2C223:48:32.923:47:25.929°32.3'S079°58.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse22:12:55.222:11:48.239°57.4'S161°37.0'W 68.0° 11.4° 179.0 km04m02.19s
Greatest Duration22:15:06.922:13:59.940°11.7'S160°19.4'W 67.9° 7.4° 178.8 km04m02.25s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2012 Nov 13

Polynomial Besselian Elements
2012 Nov 13 at 22:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.18374 -0.34676 -18.2475 0.53746 -0.00865 153.8978
1 0.57434 -0.09407 -0.0106 -0.00002 -0.00002 14.9999
2 0.00004 0.00015 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047255
Tan ƒ2 0.0047020

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 22.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2012 Nov 13

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2012 Nov 13 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 66.9 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
