Solar Eclipse Prime Page
Partial Solar Eclipse of 2004 Apr 19
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Partial Solar Eclipse of 2004 Apr 19 is visible from the following geographic regions:
- Partial Eclipse: Antarctica, south Africa

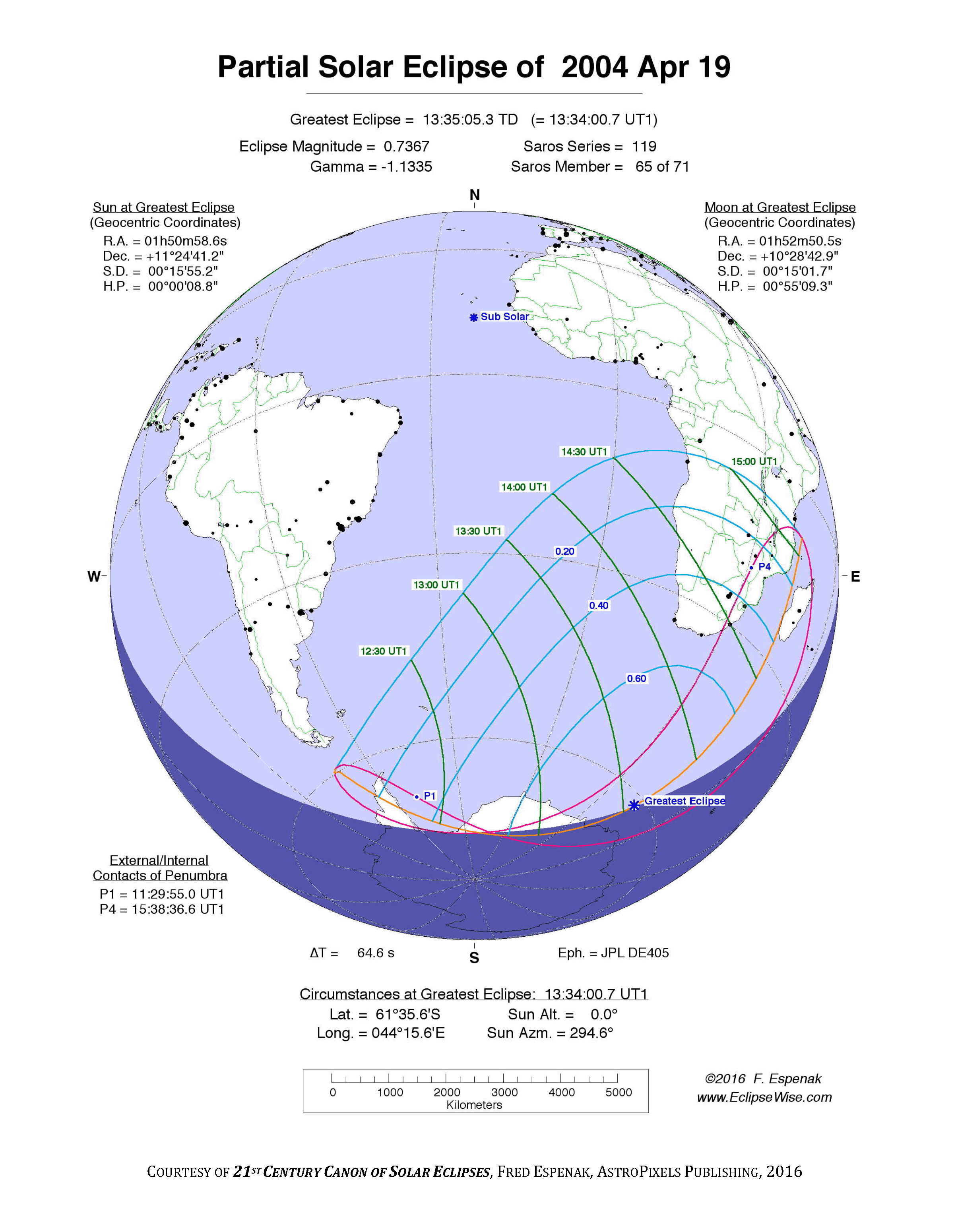

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 2004 Apr 19 at 13:35:05 TD (13:34:01 UT1). This is 4.5 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1006.
The eclipse belongs to Saros 119 and is number 65 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.
This is a very deep partial eclipse. It has an eclipse magnitude of 0.7367, while Gamma has a value of -1.1335.
The partial solar eclipse of 2004 Apr 19 is followed two weeks later by a total lunar eclipse on 2004 May 04.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 64.6 seconds for this eclipse.
The following links provide maps and data for the eclipse.
- Orthographic Map: Partial Solar Eclipse of 2004 Apr 19 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Partial Solar Eclipse of 2004 Apr 19 - interactive map of the eclipse path
- Circumstances Table: Partial Solar Eclipse of 2004 Apr 19 - eclipse times for hundreds of cities
- Saros 119 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Global Map Animation of Solar Eclipse
Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com
have created a series of eclipse animations - one for every solar eclipse during the 21st Century.
The animation of the Partial Solar Eclipse of 2004 Apr 19 shows the path of the Moon's penumbral shadow as it sweeps across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.
The Moon's large penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra.
The map to the right shows a single frame from the medium size animation for the Partial Solar Eclipse of 2004 Apr 19 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner is not used for partial solar eclipses. To the lower right is the credit for the animation.
Animations for the Partial Solar Eclipse of 2004 Apr 19 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:
- Small Animation (size 300 x 300 pixels)
- Medium Animation (size 400 x 400 pixels)
- Large Animation (size 800 x 800 pixels)
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by
Fred Espenak and Michael Zeiler
is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Based on work at EclipseWise.com
and GreatAmericanEclipse.com
Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".
- Global Map Animations of Solar Eclipsess: 2001 - 2100 - animations of every solar eclipse during the 21st Century
Eclipse Data: Partial Solar Eclipse of 2004 Apr 19
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 0.73674 |
| Eclipse Obscuration | 0.65501 |
| Gamma | -1.13345 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 2004 Apr 19 at 13:35:05.3 TD (13:34:00.7 UT1) | 2453115.065286 |
| Ecliptic Conjunction | 2004 Apr 19 at 13:22:15.9 TD (13:21:11.3 UT1) | 2453115.056381 |
| Equatorial Conjunction | 2004 Apr 19 at 12:30:29.4 TD (12:29:24.9 UT1) | 2453115.020427 |
| Geocentric Coordinates of Sun and Moon | ||
| 2004 Apr 19 at 13:35:05.3 TD (13:34:00.7 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 01h50m58.6s | 01h52m50.5s |
| Declination | +11°24'41.2" | +10°28'42.9" |
| Semi-Diameter | 15'55.2" | 15'01.7" |
| Eq. Hor. Parallax | 08.8" | 0°55'09.3" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | 3.8° |
| b | 1.4° |
| c | -19.0° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 64.6 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 119 (65/71) |
Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2004 Apr 19
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 11:30:59.6 | 11:29:55.0 | 69°34.0'S | 049°59.9'W |
| Last External Contact | P4 | 15:39:41.1 | 15:38:36.6 | 20°01.2'S | 030°52.0'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 12:06:02.9 | 12:04:58.3 | 59°24.2'S | 071°33.4'W |
| South Extreme Path Limit 1 | S1 | 15:04:33.4 | 15:03:28.8 | 08°38.2'S | 042°07.1'E |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Polynomial Besselian Elements: Partial Solar Eclipse of 2004 Apr 19
| Polynomial Besselian Elements | ||||||
| 2004 Apr 19 at 14:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | 0.69318 | -0.92220 | 11.4196 | 0.56265 | 0.01641 | 30.2473 |
| 1 | 0.46465 | 0.22852 | 0.0138 | 0.00008 | 0.00008 | 15.0034 |
| 2 | -0.00001 | -0.00003 | -0.0000 | -0.00001 | -0.00001 | -0.0000 |
| 3 | -0.00001 | -0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0046549 |
| Tan ƒ2 | 0.0046317 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 14.000
