Annular Solar Eclipse of 1998 Aug 22

Fred Espenak

Introduction

The Annular Solar Eclipse of 1998 Aug 22 is visible from the following geographic regions:

Partial Eclipse: Asia, Australia, New Zealand
Annular Eclipse: Sumatra, Borneo, Pacific

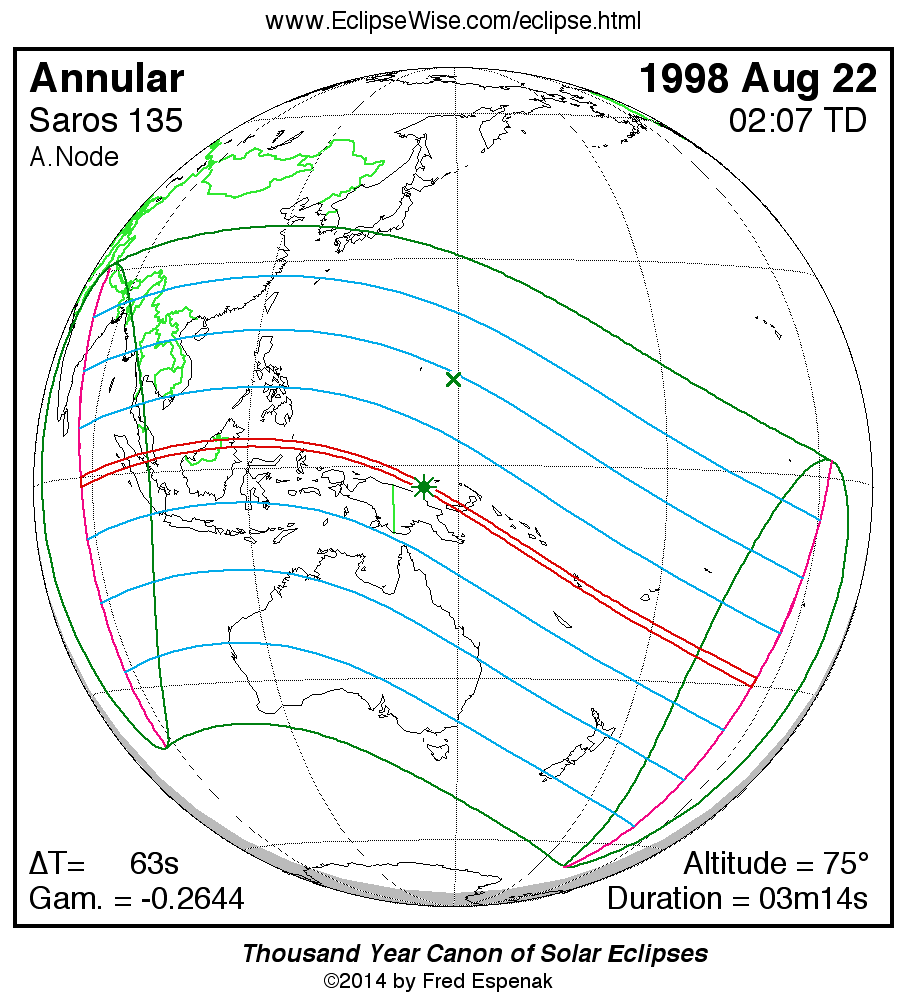

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1998 Aug 22 at 02:07:11 TD (02:06:07 UT1). This is 5.2 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 936.

The eclipse belongs to Saros 135 and is number 38 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 1998 Aug 22 is preceded two weeks earlier by a penumbral lunar eclipse on 1998 Aug 08, and it is followed two weeks later by a penumbral lunar eclipse on 1998 Sep 06.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 63.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

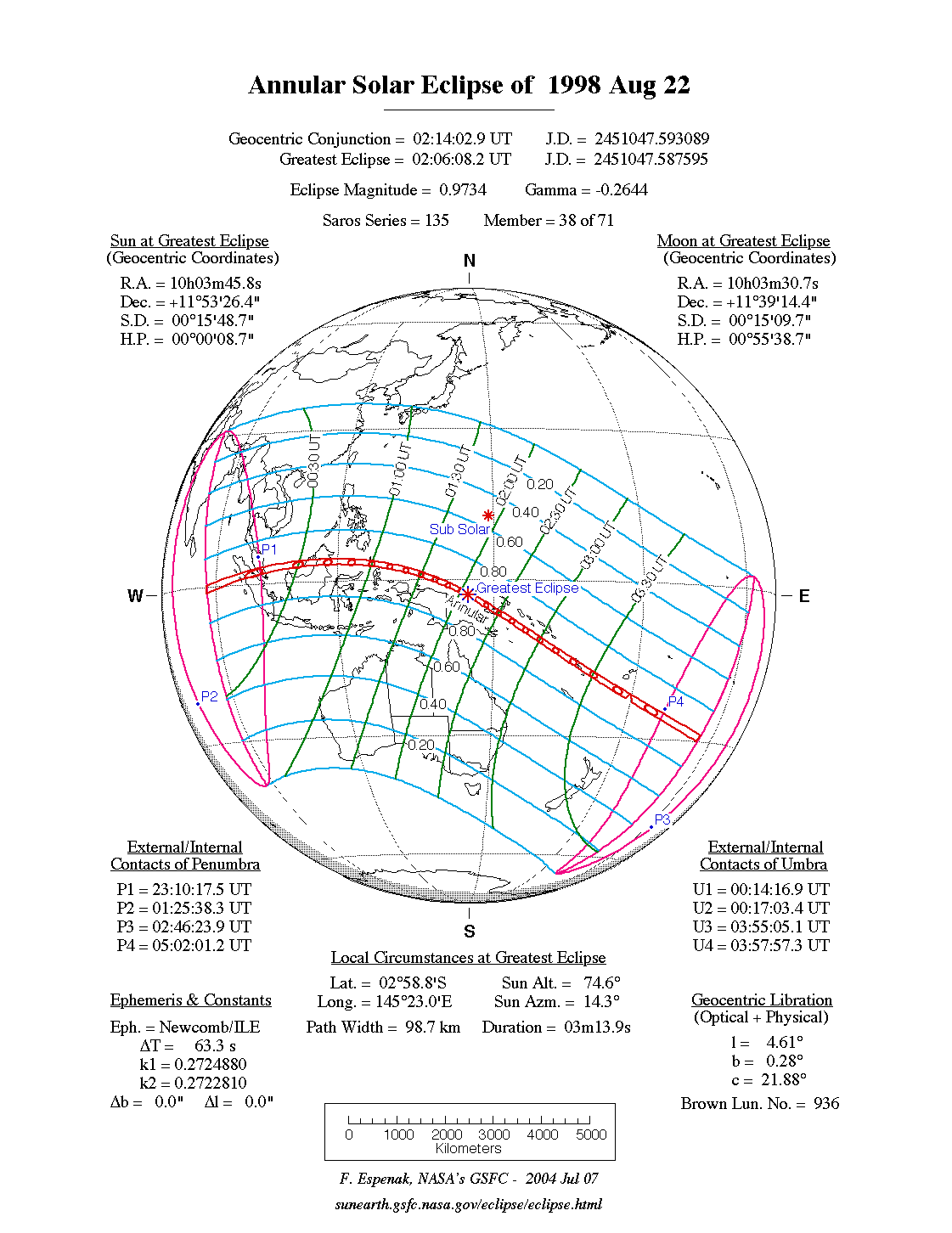

Orthographic Map: Annular Solar Eclipse of 1998 Aug 22 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1998 Aug 22 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1998 Aug 22 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1998 Aug 22 - eclipse times for hundreds of cities
Saros 135 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1998 Aug 22

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.97336
Eclipse Obscuration	0.94742
Gamma	-0.26441

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1998 Aug 22 at 02:07:10.5 TD (02:06:07.3 UT1)	2451047.587584
Ecliptic Conjunction	1998 Aug 22 at 02:04:08.9 TD (02:03:05.7 UT1)	2451047.585482
Equatorial Conjunction	1998 Aug 22 at 02:15:05.3 TD (02:14:02.0 UT1)	2451047.593079

Geocentric Coordinates of Sun and Moon
1998 Aug 22 at 02:07:10.5 TD (02:06:07.3 UT1)
Coordinate	Sun	Moon
Right Ascension	10h03m45.9s	10h03m30.7s
Declination	+11°53'26.2"	+11°39'14.3"
Semi-Diameter	15'48.7"	15'09.7"
Eq. Hor. Parallax	08.7"	0°55'38.7"

Geocentric Libration of Moon
Angle	Value
l	4.6°
b	0.3°
c	21.9°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	63.3 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	135 (38/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1998 Aug 22

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	23:11:19.7	23:10:16.5	04°46.4'N	102°11.2'E
First Internal Contact	P2	01:26:40.7	01:25:37.4	21°47.0'S	074°11.0'E
Last Internal Contact	P3	02:47:26.3	02:46:23.0	50°14.6'S	145°29.6'W
Last External Contact	P4	05:03:03.8	05:02:00.5	24°00.7'S	170°07.3'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	00:23:41.8	00:22:38.5	30°58.1'N	077°49.7'E
South Extreme Path Limit 1	S1	00:57:53.5	00:56:50.2	39°48.7'S	086°40.4'E
North Extreme Path Limit 2	N2	03:50:48.9	03:49:45.6	02°15.6'N	146°12.9'W
South Extreme Path Limit 2	S2	03:16:03.2	03:14:59.9	67°03.8'S	167°47.7'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1998 Aug 22

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	00:15:19.1	00:14:15.9	00°30.9'S	087°18.3'E
First Internal Contact	U2	00:18:05.7	00:17:02.4	00°52.6'S	086°41.3'E
Last Internal Contact	U3	03:56:07.6	03:55:04.3	29°38.0'S	154°53.0'W
Last External Contact	U4	03:58:59.8	03:57:56.5	29°15.8'S	155°29.9'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	00:16:29.0	00:15:25.7	00°00.9'S	086°54.3'E
South Extreme Path Limit 1	S1	00:16:56.4	00:15:53.2	01°22.5'S	087°04.9'E
North Extreme Path Limit 2	N2	03:57:47.8	03:56:44.5	28°45.0'S	155°03.4'W
South Extreme Path Limit 2	S2	03:57:18.8	03:56:15.6	30°08.6'S	155°19.5'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1998 Aug 22

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	00:16:42.3	00:15:39.1	00°41.6'S	086°59.8'E
Extreme Central Line Limit 2	C2	03:57:33.7	03:56:30.4	29°26.8'S	155°11.4'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	02:07:10.5	02:06:07.3	02°58.7'S	145°23.3'E	74.6°	14.3°	98.7 km	03m13.94s
Greatest Duration	01:59:47.4	01:58:44.1	02°04.9'S	143°38.6'E	74.2°	27.7°	99.1 km	03m14.05s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1998 Aug 22

Polynomial Besselian Elements
1998 Aug 22 at 02:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.12743	-0.24000	11.8929	0.55812	0.01190	209.2446
1	0.50677	-0.13236	-0.0136	0.00011	0.00011	15.0038
2	-0.00003	-0.00005	-0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046229
Tan ƒ2	0.0045999

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 2.000

Explanation of Polynomial Besselian Elements
