Annular Solar Eclipse of 1962 Jul 31

Fred Espenak

Introduction

The Annular Solar Eclipse of 1962 Jul 31 is visible from the following geographic regions:

Partial Eclipse: northeast South America, southwest Europe, Africa
Annular Eclipse: Venezuela, Guyana, French Guyana, Senegal, Mali, Burkina Faso, Togo, Benin, Nigeria, Cameroon, Congo, Dem. Rep. Congo, Tanzania, Madagascar,

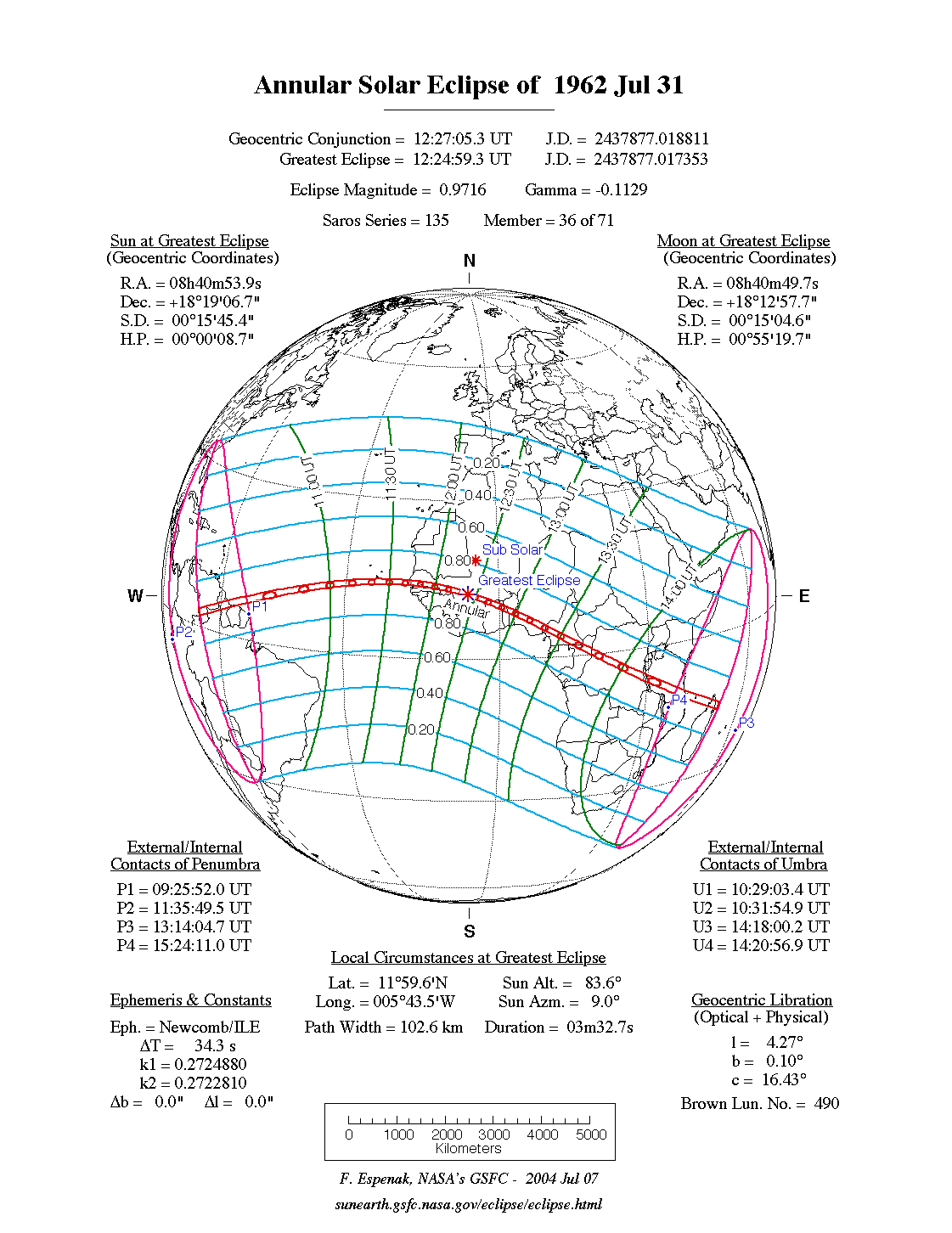

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1962 Jul 31 at 12:25:33 TD (12:24:58 UT1). This is 4.7 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of 490.

The eclipse belongs to Saros 135 and is number 36 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 1962 Jul 31 is preceded two weeks earlier by a penumbral lunar eclipse on 1962 Jul 17, and it is followed two weeks later by a penumbral lunar eclipse on 1962 Aug 15.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 34.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

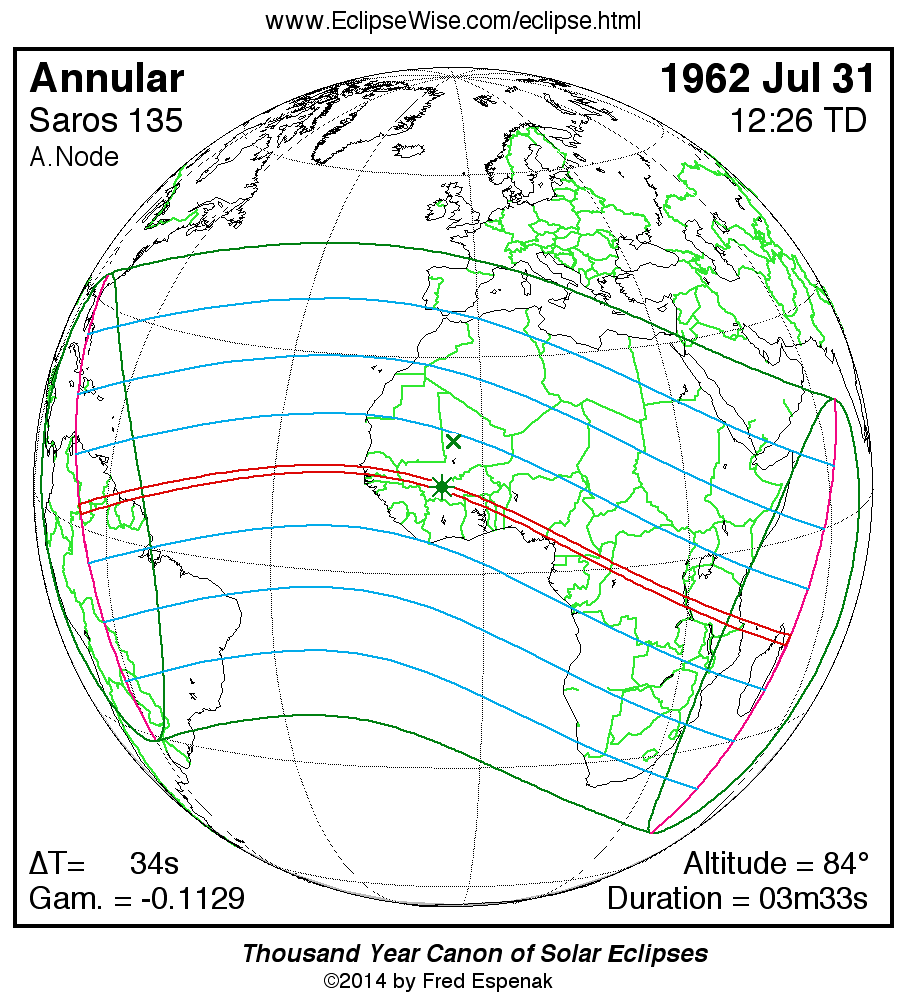

Orthographic Map: Annular Solar Eclipse of 1962 Jul 31 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1962 Jul 31 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1962 Jul 31 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1962 Jul 31 - eclipse times for hundreds of cities
Saros 135 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1962 Jul 31

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.97158
Eclipse Obscuration	0.94397
Gamma	-0.11296

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1962 Jul 31 at 12:25:32.5 TD (12:24:58.2 UT1)	2437877.017341
Ecliptic Conjunction	1962 Jul 31 at 12:24:14.3 TD (12:23:40.0 UT1)	2437877.016435
Equatorial Conjunction	1962 Jul 31 at 12:27:38.6 TD (12:27:04.3 UT1)	2437877.018800

Geocentric Coordinates of Sun and Moon
1962 Jul 31 at 12:25:32.5 TD (12:24:58.2 UT1)
Coordinate	Sun	Moon
Right Ascension	08h40m53.9s	08h40m49.8s
Declination	+18°19'06.7"	+18°12'57.5"
Semi-Diameter	15'45.4"	15'04.6"
Eq. Hor. Parallax	08.7"	0°55'19.7"

Geocentric Libration of Moon
Angle	Value
l	4.3°
b	0.1°
c	16.4°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	34.3 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	135 (36/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1962 Jul 31

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	09:26:25.2	09:25:50.9	04°45.0'N	051°27.5'W
First Internal Contact	P2	11:36:22.9	11:35:48.6	05°25.1'S	080°34.3'W
Last Internal Contact	P3	13:14:37.8	13:14:03.5	22°51.8'S	065°02.5'E
Last External Contact	P4	15:24:44.6	15:24:10.3	12°44.7'S	036°14.6'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	10:50:37.3	10:50:03.0	33°27.0'N	083°34.7'W
South Extreme Path Limit 1	S1	10:51:14.5	10:50:40.2	31°00.1'S	059°36.0'W
North Extreme Path Limit 2	N2	14:00:35.3	14:00:01.0	16°12.7'N	067°05.4'E
South Extreme Path Limit 2	S2	13:59:38.1	13:59:03.8	47°47.7'S	040°25.1'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1962 Jul 31

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	10:29:36.6	10:29:02.3	02°36.8'N	066°32.7'W
First Internal Contact	U2	10:32:28.1	10:31:53.8	02°27.7'N	067°12.5'W
Last Internal Contact	U3	14:18:33.6	14:17:59.3	15°01.8'S	051°59.0'E
Last External Contact	U4	14:21:30.3	14:20:56.0	14°52.4'S	051°18.2'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	10:31:06.6	10:30:32.4	03°12.5'N	067°07.1'W
South Extreme Path Limit 1	S1	10:30:58.7	10:30:24.4	01°52.1'N	066°38.4'W
North Extreme Path Limit 2	N2	14:19:57.7	14:19:23.4	14°15.8'S	051°54.3'E
South Extreme Path Limit 2	S2	14:20:05.5	14:19:31.2	15°38.2'S	051°23.0'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1962 Jul 31

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	10:31:02.3	10:30:28.0	02°32.3'N	066°52.6'W
Extreme Central Line Limit 2	C2	14:20:01.9	14:19:27.7	14°57.0'S	051°38.6'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	12:25:32.5	12:24:58.2	11°59.4'N	005°43.1'W	83.6°	9.0°	102.5 km	03m32.66s
Greatest Duration	12:19:39.3	12:19:05.0	12°25.3'N	007°12.6'W	82.9°	32.8°	102.6 km	03m32.77s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1962 Jul 31

Polynomial Besselian Elements
1962 Jul 31 at 12:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.23680	-0.07623	18.3231	0.55872	0.01250	358.4213
1	0.51399	-0.08285	-0.0100	0.00011	0.00010	15.0018
2	-0.00002	-0.00010	-0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046069
Tan ƒ2	0.0045840

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 12.000

Explanation of Polynomial Besselian Elements
