Solar Eclipse Prime Page

Annular Solar Eclipse of 1905 Mar 06

Fred Espenak

Introduction

The Annular Solar Eclipse of 1905 Mar 06 is visible from the following geographic regions:

Partial Eclipse: Australia, Antarctica, south Indies
Annular Eclipse: Australia

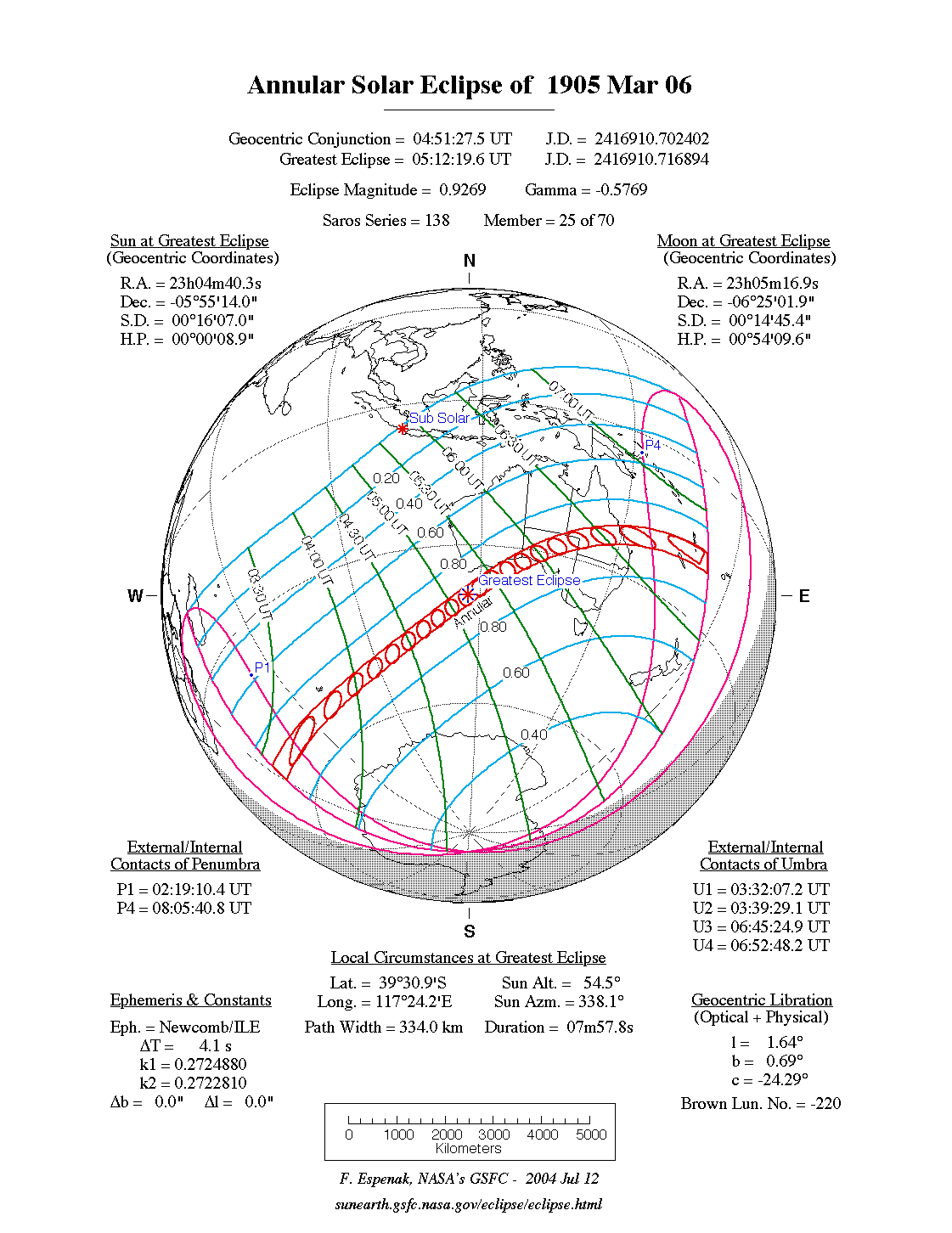

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1905 Mar 06 at 05:12:26 TD (05:12:22 UT1). This is 2.1 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -220.

The eclipse belongs to Saros 138 and is number 25 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1905 Mar 06 is a relatively long annular eclipse with a duration at greatest eclipse of 07m58s. It has an eclipse magnitude of 0.9269.

The annular solar eclipse of 1905 Mar 06 is preceded two weeks earlier by a partial lunar eclipse on 1905 Feb 19.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

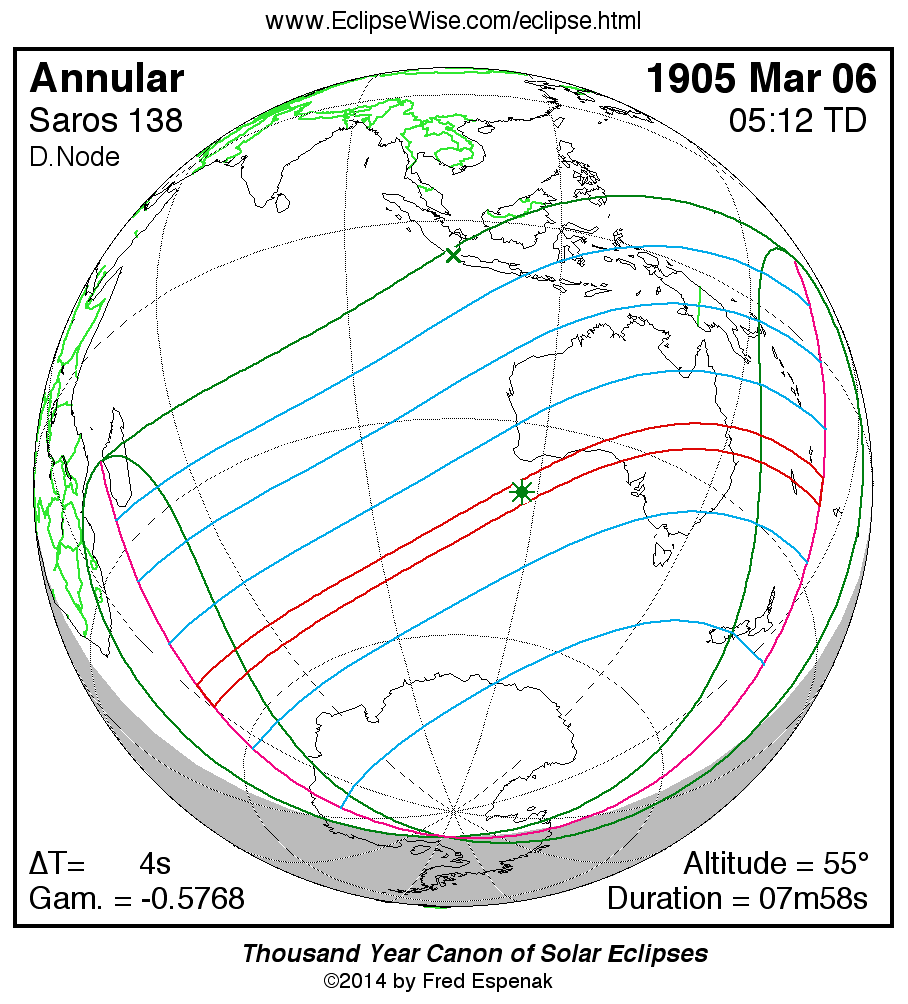

Orthographic Map: Annular Solar Eclipse of 1905 Mar 06 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1905 Mar 06 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1905 Mar 06 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1905 Mar 06 - eclipse times for hundreds of cities
Saros 138 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1905 Mar 06

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.92691
Eclipse Obscuration	0.85916
Gamma	-0.57684

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1905 Mar 06 at 05:12:25.7 TD (05:12:21.6 UT1)	2416910.716917
Ecliptic Conjunction	1905 Mar 06 at 05:19:19.8 TD (05:19:15.8 UT1)	2416910.721710
Equatorial Conjunction	1905 Mar 06 at 04:51:33.7 TD (04:51:29.6 UT1)	2416910.702426

Geocentric Coordinates of Sun and Moon
1905 Mar 06 at 05:12:25.7 TD (05:12:21.6 UT1)
Coordinate	Sun	Moon
Right Ascension	23h04m40.3s	23h05m16.9s
Declination	-05°55'14.1"	-06°25'02.0"
Semi-Diameter	16'07.0"	14'45.4"
Eq. Hor. Parallax	08.9"	0°54'09.6"

Geocentric Libration of Moon
Angle	Value
l	1.6°
b	0.7°
c	-24.3°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	4.1 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	138 (25/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1905 Mar 06

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	02:19:16.2	02:19:12.2	38°26.6'S	053°21.0'E
Last External Contact	P4	08:05:47.3	08:05:43.2	04°33.0'S	151°55.6'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	03:10:06.6	03:10:02.5	17°19.4'S	043°31.9'E
South Extreme Path Limit 1	S1	07:14:43.8	07:14:39.7	16°39.1'N	162°27.5'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1905 Mar 06

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	03:32:13.3	03:32:09.2	51°04.4'S	032°27.4'E
First Internal Contact	U2	03:39:35.1	03:39:31.0	53°06.3'S	030°03.1'E
Last Internal Contact	U3	06:45:31.2	06:45:27.1	19°20.3'S	173°36.4'E
Last External Contact	U4	06:52:54.4	06:52:50.3	17°16.6'S	171°31.3'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	03:33:40.7	03:33:36.6	50°19.4'S	032°17.4'E
South Extreme Path Limit 1	S1	03:38:12.4	03:38:08.3	53°49.7'S	030°10.9'E
North Extreme Path Limit 2	N2	06:51:26.3	06:51:22.2	16°30.7'S	171°48.2'E
South Extreme Path Limit 2	S2	06:46:54.7	06:46:50.6	20°04.6'S	173°20.6'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1905 Mar 06

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	03:35:52.7	03:35:48.7	52°03.4'S	031°16.6'E
Extreme Central Line Limit 2	C2	06:49:14.2	06:49:10.1	18°16.5'S	172°33.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	05:12:25.7	05:12:21.6	39°30.8'S	117°23.7'E	54.5°	338.1°	334.0 km	07m57.73s
Greatest Duration	05:10:13.7	05:10:09.6	39°54.8'S	116°40.0'E	54.5°	340.4°	333.1 km	07m57.78s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1905 Mar 06

Polynomial Besselian Elements
1905 Mar 06 at 05:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.06808	-0.58232	-5.9225	0.57164	0.02535	252.1014
1	0.48409	0.14770	0.0158	0.00004	0.00004	15.0036
2	-0.00002	0.00005	0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	-0.00000	-	-	-	-

Tan ƒ1	0.0047127
Tan ƒ2	0.0046892

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 5.000

Explanation of Polynomial Besselian Elements
