Total Lunar Eclipse of 1989 Aug 17

Fred Espenak

Introduction


The Total Lunar Eclipse of 1989 Aug 17 is visible from the following geographic regions:

  • Americas, Europe, Africa, western Asia

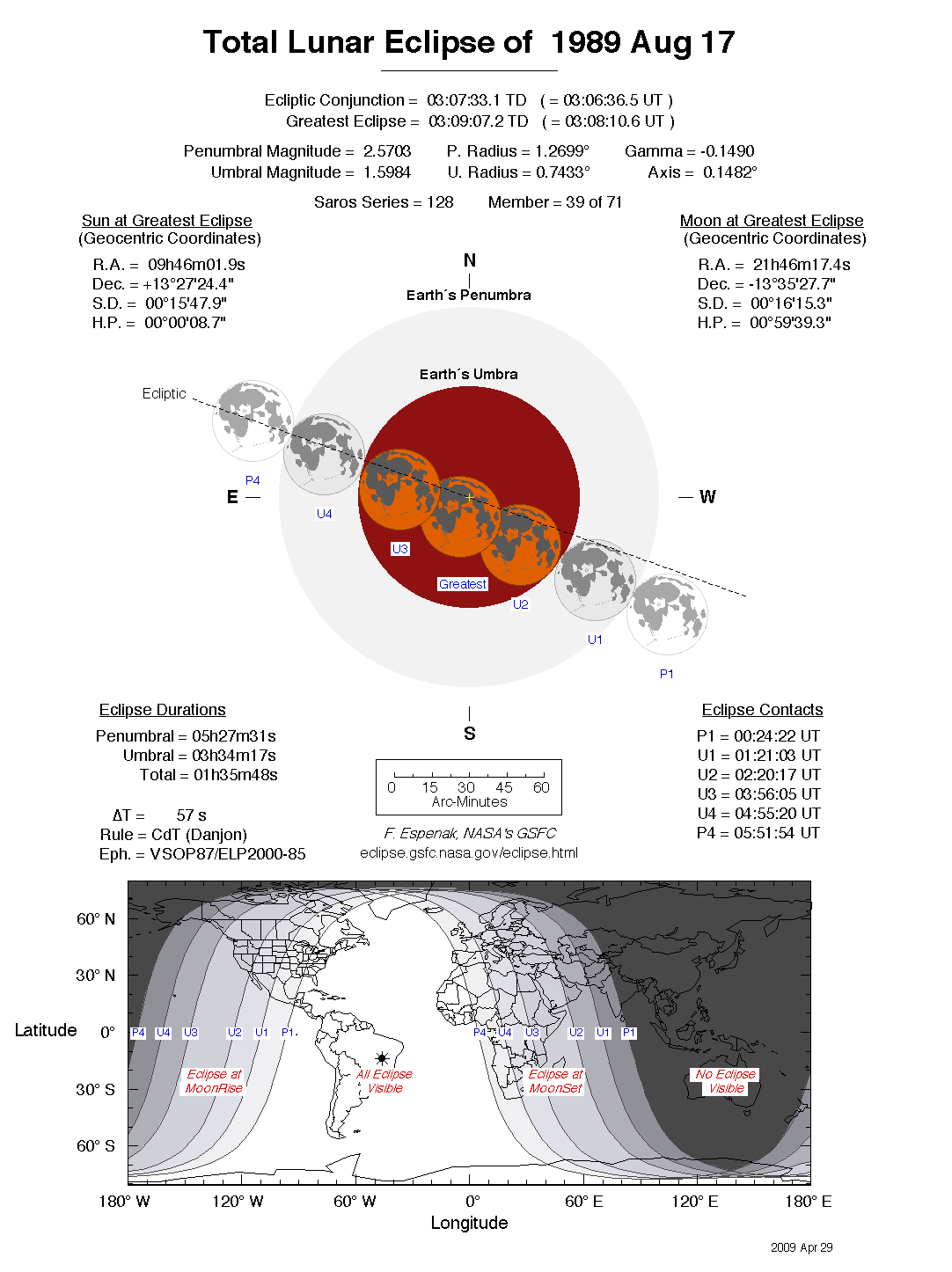

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1989 Aug 17 at 03:09:07 TD (03:08:11 UT1). This is 2.4 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 824.

The eclipse belongs to Saros 128 and is number 39 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This total eclipse is central meaning the Moon’s disk actually passes through the axis of Earth’s umbral shadow. It has an umbral eclipse magnitude of 1.5984, and Gamma has a value of -0.1491. Because they are so deep, such eclipses typically have the longest total phases. In this case, the duration of totality lasts 95.8 minutes.

The total lunar eclipse of 1989 Aug 17 is followed two weeks later by a partial solar eclipse on 1989 Aug 31.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 56.6 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 1989 Aug 17 .


Eclipse Data: Total Lunar Eclipse of 1989 Aug 17

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.57033
Umbral Magnitude 1.59838
Gamma-0.14905
Epsilon 0.1482°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1989 Aug 17 at 03:09:07.2 TD (03:08:10.6 UT1) 2447755.630678
Ecliptic Opposition 1989 Aug 17 at 03:07:32.9 TD (03:06:36.3 UT1) 2447755.629587
Equatorial Opposition 1989 Aug 17 at 03:01:43.8 TD (03:00:47.1 UT1) 2447755.625546
Geocentric Coordinates of Sun and Moon
1989 Aug 17 at 03:09:07.2 TD (03:08:10.6 UT1)
Coordinate Sun Moon
Right Ascension09h46m02.0s21h46m17.4s
Declination+13°27'24.4"-13°35'27.7"
Semi-Diameter 15'47.9" 16'15.3"
Eq. Hor. Parallax 08.7" 0°59'39.3"
Geocentric Libration of Moon
Angle Value
l -3.9°
b 0.2°
c -17.9°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2699°
Umbral Radius 0.7433°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 56.6 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 128 (39/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 1989 Aug 17

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP100:25:16.200:24:19.614°16.3'S006°24.9'W 239.5° 1.5395°
Partial BeginsU101:21:58.801:21:02.114°02.2'S020°05.8'W 236.6° 1.0133°
Total BeginsU202:21:13.602:20:16.913°47.5'S034°23.6'W 226.7° 0.4722°
Greatest EclipseGreatest03:09:07.203:08:10.613°35.5'S045°57.0'W 155.0° 0.1482°
Total EndsU303:57:02.003:56:05.313°23.4'S057°30.7'W 83.2° 0.4726°
Partial EndsU404:56:17.504:55:20.813°08.4'S071°48.8'W 73.3° 1.0150°
Penumbral EndsP405:52:53.605:51:56.912°54.0'S085°28.4'W 70.5° 1.5421°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h27m37.3s
Partial (U4 - U1)03h34m18.7s
Total (U3 - U2)01h35m48.4s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 1989 Aug 17

Polynomial Besselian Elements
1989 Aug 17 at 03:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.01467 -0.17039 0.2349 1.26985 0.74323 0.27089
1 0.50901 0.23770 -0.0002 0.00038 0.00038 0.00010
2 0.00017 0.00018 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 3.000

Explanation of Besselian Elements

Links for the Total Lunar Eclipse of 1989 Aug 17

Links to Additional Lunar Eclipse Information

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 1989 Aug 17 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 56.6 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
