Total Lunar Eclipse of 1957 May 13

Fred Espenak

Introduction


The Total Lunar Eclipse of 1957 May 13 is visible from the following geographic regions:

  • eastern North America, South America, Europe, Africa, Asia, Australia

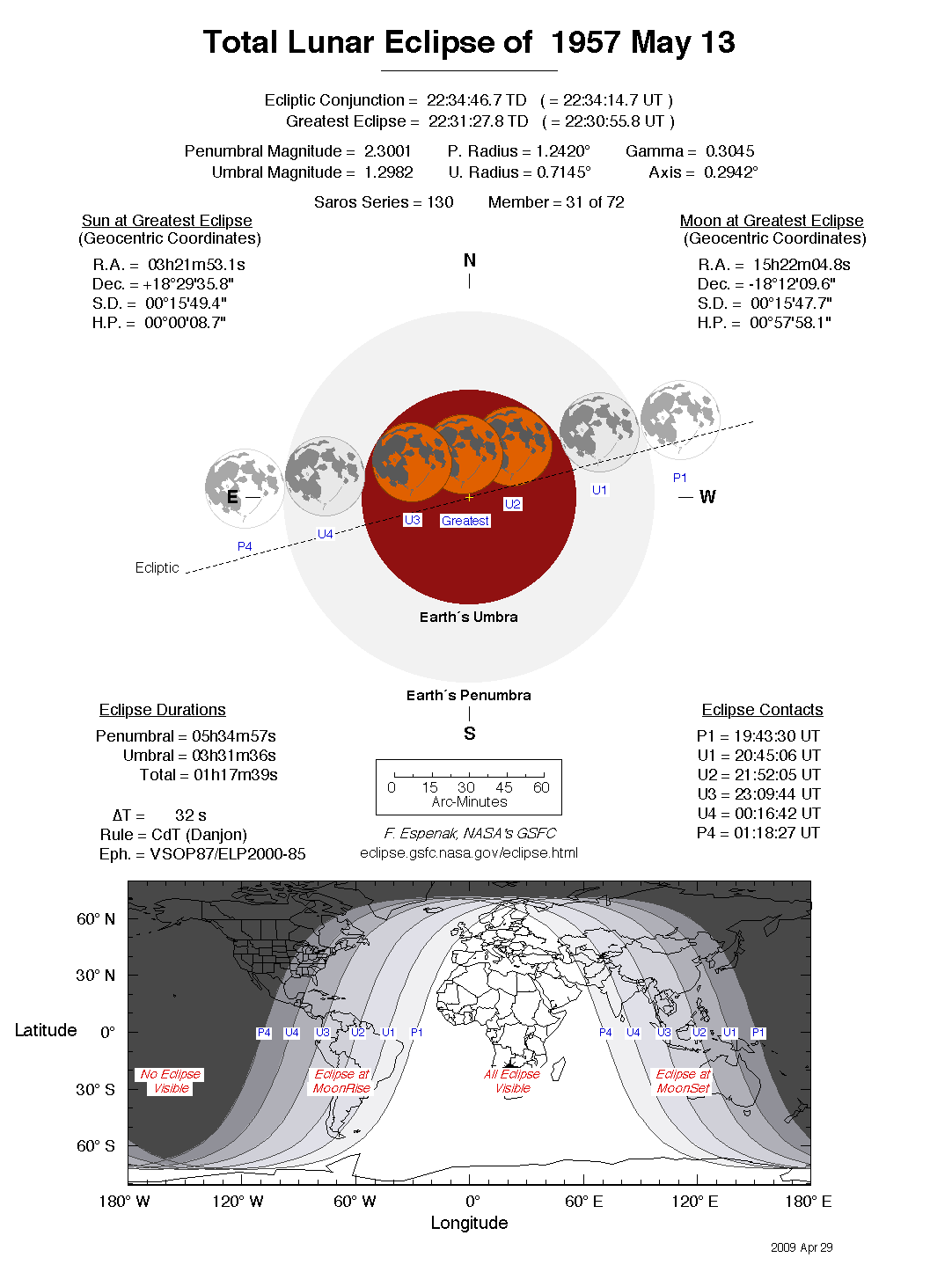

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1957 May 13 at 22:31:28 TD (22:30:56 UT1). This is 4.8 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 425.

The eclipse belongs to Saros 130 and is number 31 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total lunar eclipse of 1957 May 13 is preceded two weeks earlier by a annular solar eclipse on 1957 Apr 30.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 32.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 1957 May 13 .


Eclipse Data: Total Lunar Eclipse of 1957 May 13

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.30005
Umbral Magnitude 1.29822
Gamma 0.30457
Epsilon 0.2942°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1957 May 13 at 22:31:27.8 TD (22:30:55.8 UT1) 2435972.438145
Ecliptic Opposition 1957 May 13 at 22:34:46.9 TD (22:34:14.9 UT1) 2435972.440450
Equatorial Opposition 1957 May 13 at 22:26:10.7 TD (22:25:38.7 UT1) 2435972.434475
Geocentric Coordinates of Sun and Moon
1957 May 13 at 22:31:27.8 TD (22:30:55.8 UT1)
Coordinate Sun Moon
Right Ascension03h21m53.2s15h22m04.8s
Declination+18°29'35.8"-18°12'09.6"
Semi-Diameter 15'49.4" 15'47.7"
Eq. Hor. Parallax 08.7" 0°57'58.1"
Geocentric Libration of Moon
Angle Value
l 4.7°
b -0.4°
c 16.2°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2420°
Umbral Radius 0.7145°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 32.0 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 130 (31/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 1957 May 13

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP119:43:58.419:43:26.417°56.2'S061°43.2'E 290.3° 1.5067°
Partial BeginsU120:45:37.420:45:05.418°02.2'S046°52.3'E 296.5° 0.9787°
Total BeginsU221:52:37.321:52:05.318°08.5'S030°44.2'E 319.7° 0.4514°
Greatest EclipseGreatest22:31:27.822:30:55.818°12.2'S021°22.9'E 9.0° 0.2942°
Total EndsU323:10:16.123:09:44.118°15.7'S012°02.1'E 58.3° 0.4510°
Partial EndsU400:17:15.100:16:43.118°21.8'S004°05.8'W 81.4° 0.9768°
Penumbral EndsP401:19:02.301:18:30.318°27.2'S018°58.6'W 87.7° 1.5037°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h35m03.9s
Partial (U4 - U1)03h31m37.7s
Total (U3 - U2)01h17m38.8s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 1957 May 13

Polynomial Besselian Elements
1957 May 13 at 23:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.29430 0.25133 0.3229 1.24175 0.71429 0.26320
1 0.52195 -0.08251 0.0002 -0.00043 -0.00042 -0.00011
2 -0.00024 0.00015 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Besselian Elements

Links for the Total Lunar Eclipse of 1957 May 13

Links to Additional Lunar Eclipse Information

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 1957 May 13 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 32.0 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
