Penumbral Lunar Eclipse of 1948 Oct 18

Fred Espenak

Introduction


The Penumbral Lunar Eclipse of 1948 Oct 18 is visible from the following geographic regions:

  • Americas, Europe, Africa, western Asia

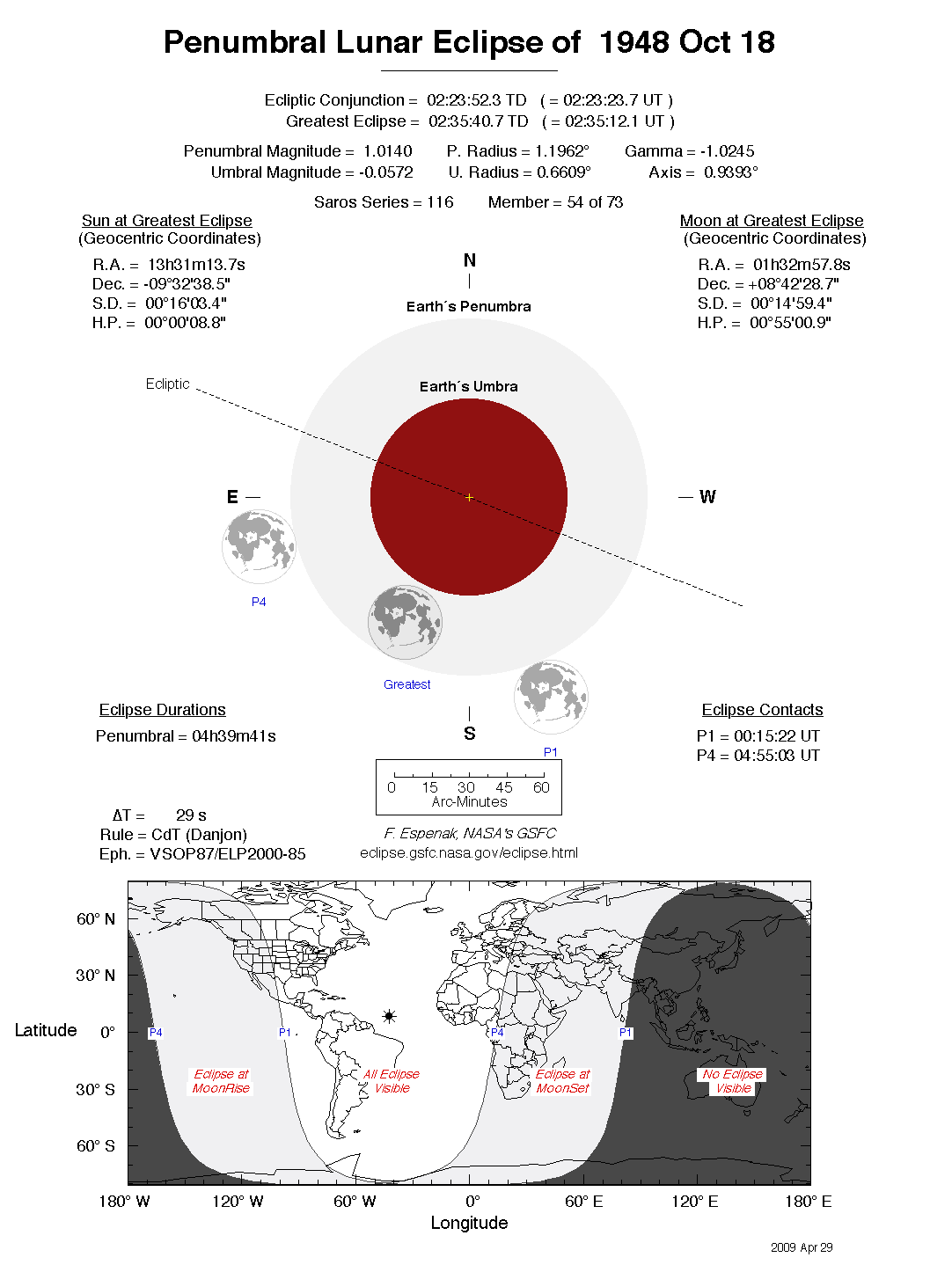

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1948 Oct 18 at 02:35:41 TD (02:35:13 UT1). This is 4.2 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 319.

The eclipse belongs to Saros 116 and is number 54 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This very deep penumbral eclipse is a rare total penumbral eclipse in which the entire disk of the Moon is immersed in the penumbral shadow. It has a penumbral eclipse magnitude of 1.0141 and a penumbral eclipse duration of 279.8 minutes. Gamma has a value of -1.0245.

The penumbral lunar eclipse of 1948 Oct 18 is followed two weeks later by a total solar eclipse on 1948 Nov 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 28.6 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 1948 Oct 18 .


Eclipse Data: Penumbral Lunar Eclipse of 1948 Oct 18

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.01405
Umbral Magnitude-0.05712
Gamma-1.02452
Epsilon 0.9393°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1948 Oct 18 at 02:35:41.5 TD (02:35:12.9 UT1) 2432842.607788
Ecliptic Opposition 1948 Oct 18 at 02:23:52.4 TD (02:23:23.8 UT1) 2432842.599581
Equatorial Opposition 1948 Oct 18 at 01:34:20.3 TD (01:33:51.7 UT1) 2432842.565182
Geocentric Coordinates of Sun and Moon
1948 Oct 18 at 02:35:41.5 TD (02:35:12.9 UT1)
Coordinate Sun Moon
Right Ascension13h31m13.7s01h32m57.9s
Declination-09°32'38.5"+08°42'28.9"
Semi-Diameter 16'03.4" 14'59.4"
Eq. Hor. Parallax 08.8" 0°55'00.9"
Geocentric Libration of Moon
Angle Value
l -3.4°
b 1.3°
c -19.9°
Earth's Shadows
Parameter Value
Penumbral Radius 1.1962°
Umbral Radius 0.6609°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 28.6 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 116 (54/73)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 1948 Oct 18

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP100:15:50.300:15:21.708°10.3'N008°04.8'W 202.3° 1.4452°
Greatest EclipseGreatest02:35:41.502:35:12.908°42.5'N042°03.6'W 152.8° 0.9393°
Penumbral EndsP404:55:36.404:55:07.909°14.6'N076°03.0'W 103.3° 1.4468°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h39m46.1s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 1948 Oct 18

Polynomial Besselian Elements
1948 Oct 18 at 03:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.59884 -0.74846 -0.1667 1.19628 0.66103 0.24987
1 0.41965 0.21533 -0.0003 0.00027 0.00027 0.00007
2 0.00013 0.00005 0.0000 0.00000 0.00000 0.00000
3 -0.00000 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 3.000

Explanation of Besselian Elements

Links for the Penumbral Lunar Eclipse of 1948 Oct 18

Links to Additional Lunar Eclipse Information

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 1948 Oct 18 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 28.6 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
