Annular Solar Eclipse of 2019 Dec 26

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Annular Solar Eclipse of 2019 Dec 26 is visible from the following geographic regions:

  • Partial Eclipse: Asia, Australia
  • Annular Eclipse: Saudi Arabia, India, Sumatra, Borneo

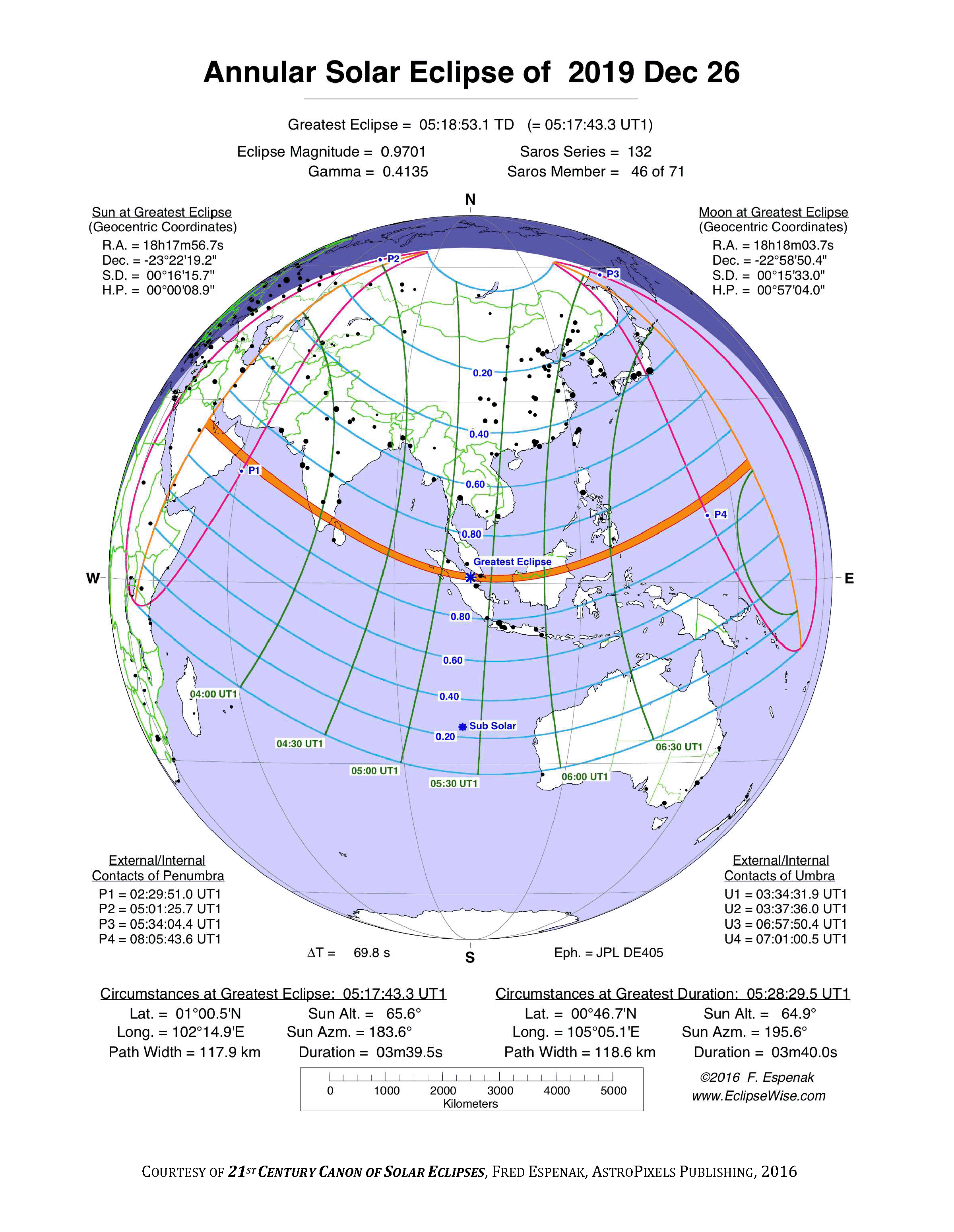

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2019 Dec 26 at 05:18:53 TD (05:17:43 UT1). This is 6.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1200.

The eclipse belongs to Saros 132 and is number 46 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2019 Dec 26 is followed two weeks later by a penumbral lunar eclipse on 2020 Jan 10.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 69.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Annular Solar Eclipse of 2019 Dec 26 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.

The Moon's antumbral shadow appears as a small black disk and tracks along the path of annularity (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while an annular eclipse is visible inside the antumbra. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

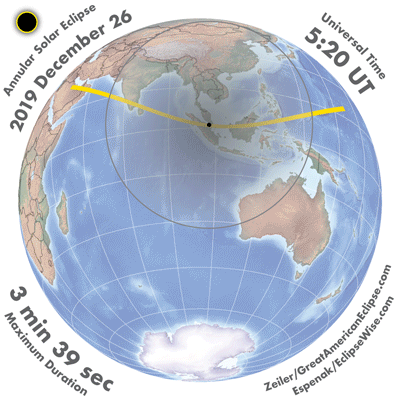

The map to the right shows a single frame from the medium size animation for the Annular Solar Eclipse of 2019 Dec 26 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of annularity. To the lower right is the credit for the animation.

Animations for the Annular Solar Eclipse of 2019 Dec 26 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Annular Solar Eclipse of 2019 Dec 26

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.97010
Eclipse Obscuration 0.94110
Gamma 0.41351
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2019 Dec 26 at 05:18:53.1 TD (05:17:43.3 UT1) 2458843.720640
Ecliptic Conjunction 2019 Dec 26 at 05:14:17.0 TD (05:13:07.1 UT1) 2458843.717444
Equatorial Conjunction 2019 Dec 26 at 05:15:43.8 TD (05:14:34.0 UT1) 2458843.718449
Geocentric Coordinates of Sun and Moon
2019 Dec 26 at 05:18:53.1 TD (05:17:43.3 UT1)
Coordinate Sun Moon
Right Ascension18h17m56.7s18h18m03.7s
Declination-23°22'19.2"-22°58'50.4"
Semi-Diameter 16'15.7" 15'33.0"
Eq. Hor. Parallax 08.9" 0°57'04.0"
Geocentric Libration of Moon
Angle Value
l 5.0°
b -0.5°
c -3.3°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 69.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 132 (46/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2019 Dec 26

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP102:31:00.802:29:51.017°47.3'N060°33.8'E
First Internal ContactP205:02:35.505:01:25.762°14.0'N069°52.8'E
Last Internal ContactP305:35:14.205:34:04.457°29.2'N143°51.5'E
Last External ContactP408:06:53.408:05:43.610°37.2'N143°59.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N104:50:25.004:49:15.265°01.4'N085°51.0'E
South Extreme Path Limit 1S103:39:33.703:38:23.903°34.7'S033°54.6'E
North Extreme Path Limit 2N205:47:27.505:46:17.761°27.9'N130°51.5'E
South Extreme Path Limit 2S206:58:13.106:57:03.310°48.0'S170°32.2'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2019 Dec 26

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU103:35:41.703:34:31.925°41.7'N048°25.8'E
First Internal ContactU203:38:45.803:37:36.026°16.9'N047°59.0'E
Last Internal ContactU306:59:00.206:57:50.419°12.6'N156°57.1'E
Last External ContactU407:02:10.407:01:00.518°35.9'N156°27.5'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N103:37:36.003:36:26.226°40.9'N048°29.7'E
South Extreme Path Limit 1S103:36:52.303:35:42.525°17.4'N047°54.9'E
North Extreme Path Limit 2N207:00:12.306:59:02.519°37.7'N156°26.7'E
South Extreme Path Limit 2S207:00:57.306:59:47.518°10.4'N156°58.1'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2019 Dec 26

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C103:37:13.603:36:03.825°59.1'N048°12.3'E
Extreme Central Line Limit 2C207:00:35.406:59:25.618°54.0'N156°42.4'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse05:18:53.105:17:43.301°00.5'N102°14.9'E 65.6° 183.6° 117.9 km03m39.48s
Greatest Duration05:29:39.405:28:29.600°46.7'N105°05.1'E 64.9° 195.6° 118.6 km03m39.99s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2019 Dec 26

Polynomial Besselian Elements
2019 Dec 26 at 05:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.14042 0.42407 -23.3735 0.55891 0.01268 254.9368
1 0.53561 -0.03666 0.0014 0.00013 0.00013 14.9963
2 -0.00000 0.00015 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047548
Tan ƒ2 0.0047311

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 5.000

Explanation of Polynomial Besselian Elements
