Solar Eclipse Prime Page
Total Solar Eclipse of 1957 Oct 23
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Total Solar Eclipse of 1957 Oct 23 is visible from the following geographic regions:
- Partial Eclipse: south Africa, Antarctica
- Total Eclipse: near Antarctica

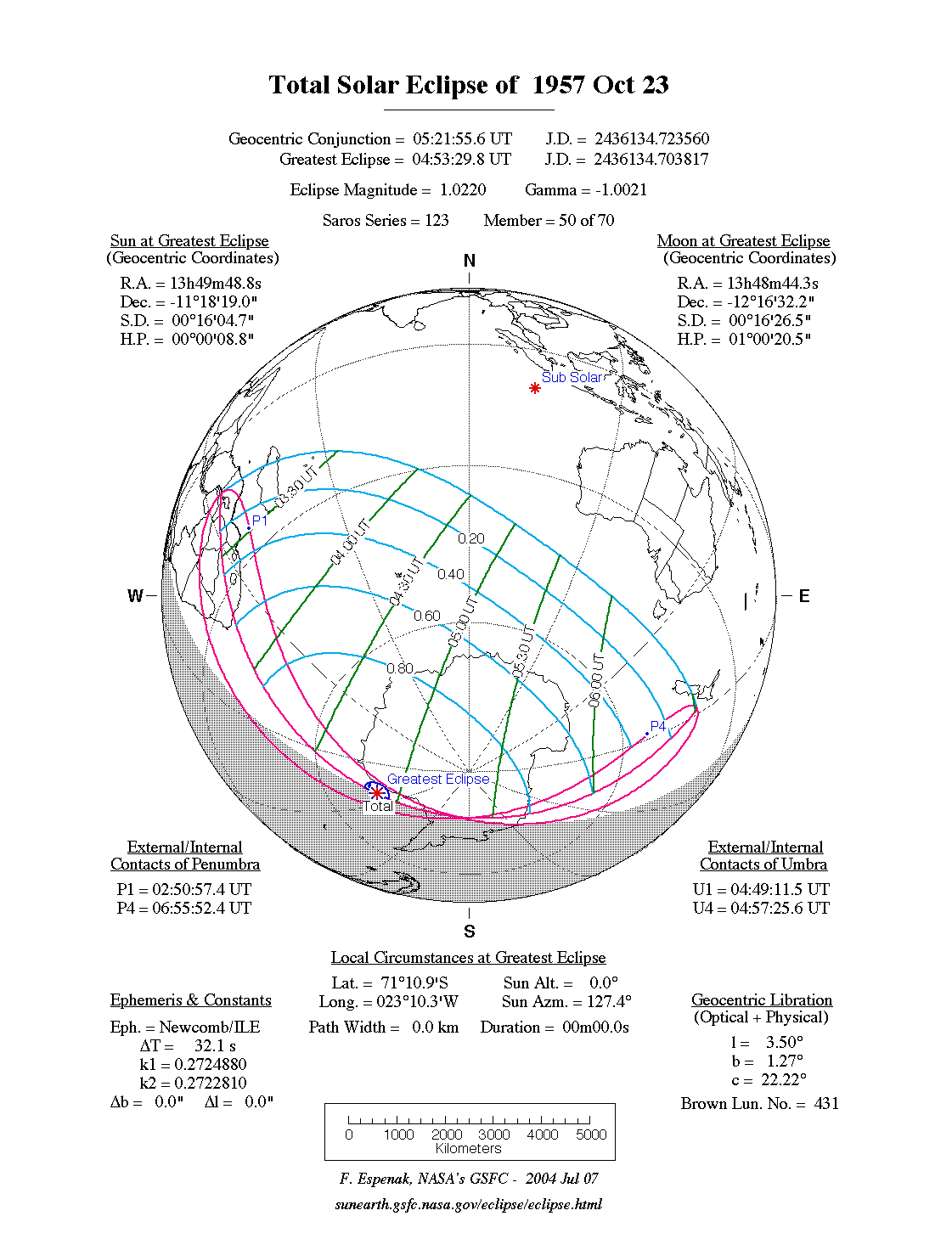

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 1957 Oct 23 at 04:54:02 TD (04:53:30 UT1). This is 1.7 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 431.
The eclipse belongs to Saros 123 and is number 50 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.
This total eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a southern path limit. Instead , over half of the umbral shadow falls off into space throughout the eclipse. Gamma has a value of -1.0022.
The total solar eclipse of 1957 Oct 23 is followed two weeks later by a total lunar eclipse on 1957 Nov 07.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 32.1 seconds for this eclipse.
The following links provide maps and data for the eclipse.

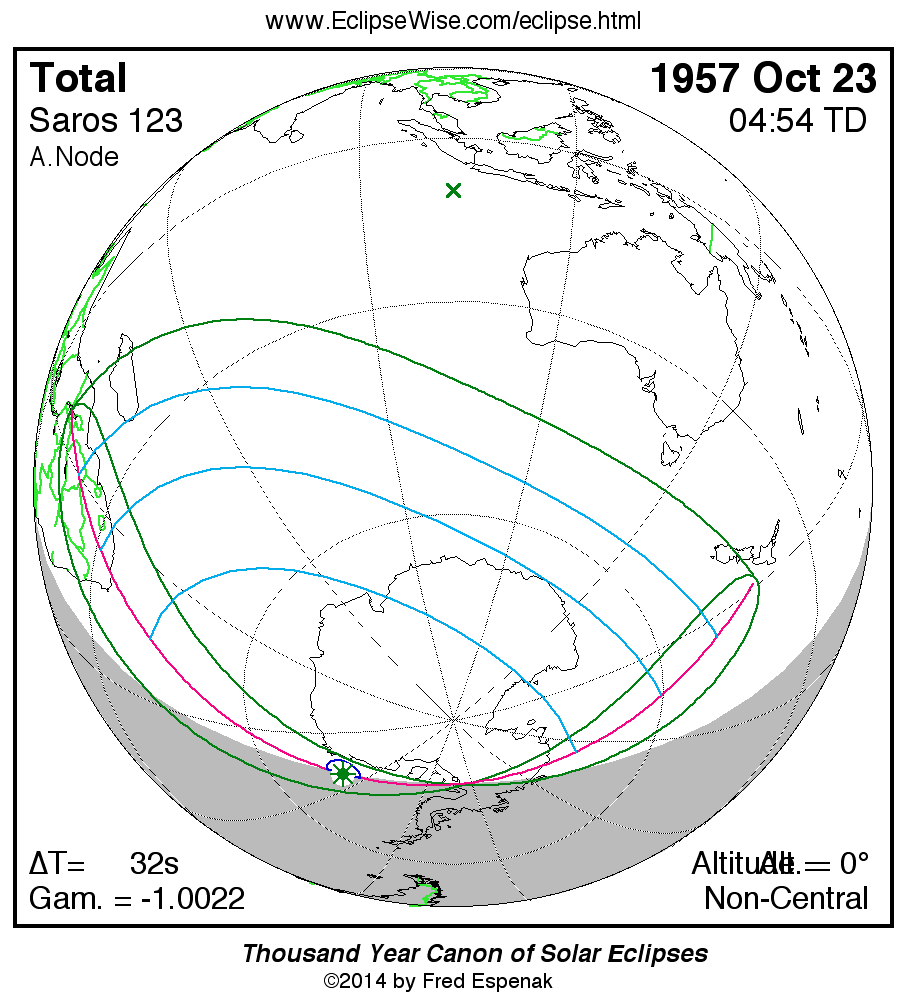

- Orthographic Map: Total Solar Eclipse of 1957 Oct 23 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Total Solar Eclipse of 1957 Oct 23 - interactive map of the eclipse path
- Circumstances Table: Total Solar Eclipse of 1957 Oct 23 - eclipse times for hundreds of cities
- Saros 123 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Eclipse Data: Total Solar Eclipse of 1957 Oct 23
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 1.00130 |
| Eclipse Obscuration | - |
| Gamma | -1.00218 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 1957 Oct 23 at 04:54:02.5 TD (04:53:30.4 UT1) | 2436134.703824 |
| Ecliptic Conjunction | 1957 Oct 23 at 04:43:52.2 TD (04:43:20.1 UT1) | 2436134.696760 |
| Equatorial Conjunction | 1957 Oct 23 at 05:22:28.4 TD (05:21:56.4 UT1) | 2436134.723569 |
| Geocentric Coordinates of Sun and Moon | ||
| 1957 Oct 23 at 04:54:02.5 TD (04:53:30.4 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 13h49m48.9s | 13h48m44.3s |
| Declination | -11°18'19.3" | -12°16'32.6" |
| Semi-Diameter | 16'04.7" | 16'26.5" |
| Eq. Hor. Parallax | 08.8" | 1°00'20.5" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | 3.5° |
| b | 1.3° |
| c | 22.2° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 32.1 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 123 (50/70) |
Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1957 Oct 23
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 02:51:30.3 | 02:50:58.3 | 25°03.6'S | 038°01.4'E |
| Last External Contact | P4 | 06:56:24.8 | 06:55:52.7 | 54°19.8'S | 178°20.7'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 03:16:44.3 | 03:16:12.2 | 12°17.9'S | 034°34.2'E |
| South Extreme Path Limit 1 | S1 | 06:31:12.5 | 06:30:40.4 | 41°56.0'S | 178°48.1'E |
Non-Central Total Solar Eclipse
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1957 Oct 23
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 04:49:55.5 | 04:49:23.4 | 69°26.6'S | 018°26.5'W |
| Last External Contact | U4 | 04:57:47.0 | 04:57:15.0 | 72°49.2'S | 028°29.0'W |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 04:52:23.2 | 04:51:51.1 | 72°26.0'S | 009°52.8'W |
| South Extreme Path Limit 1 | S1 | 04:55:21.1 | 04:54:49.0 | 73°51.6'S | 013°16.2'W |
Non-Central Total Solar Eclipse
Explanation of Umbral Shadow Contacts and Extremes Tables
Non-Central Total Solar Eclipse
Explanation of Central Line Extremes Table
Non-Central Total Solar Eclipse
Polynomial Besselian Elements: Total Solar Eclipse of 1957 Oct 23
| Polynomial Besselian Elements | ||||||
| 1957 Oct 23 at 05:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | -0.20697 | -0.98222 | -11.3044 | 0.54026 | -0.00587 | 258.8918 |
| 1 | 0.55254 | -0.14953 | -0.0143 | 0.00008 | 0.00008 | 15.0028 |
| 2 | 0.00002 | 0.00013 | 0.0000 | -0.00001 | -0.00001 | -0.0000 |
| 3 | -0.00001 | 0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0047001 |
| Tan ƒ2 | 0.0046767 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 5.000
