Solar Eclipse Prime Page

Annular Solar Eclipse of 1911 Oct 22

Fred Espenak

Introduction

The Annular Solar Eclipse of 1911 Oct 22 is visible from the following geographic regions:

Partial Eclipse: Asia, Indies, Australia
Annular Eclipse: Russia, China, Philippines, Indonesia, New Guinea

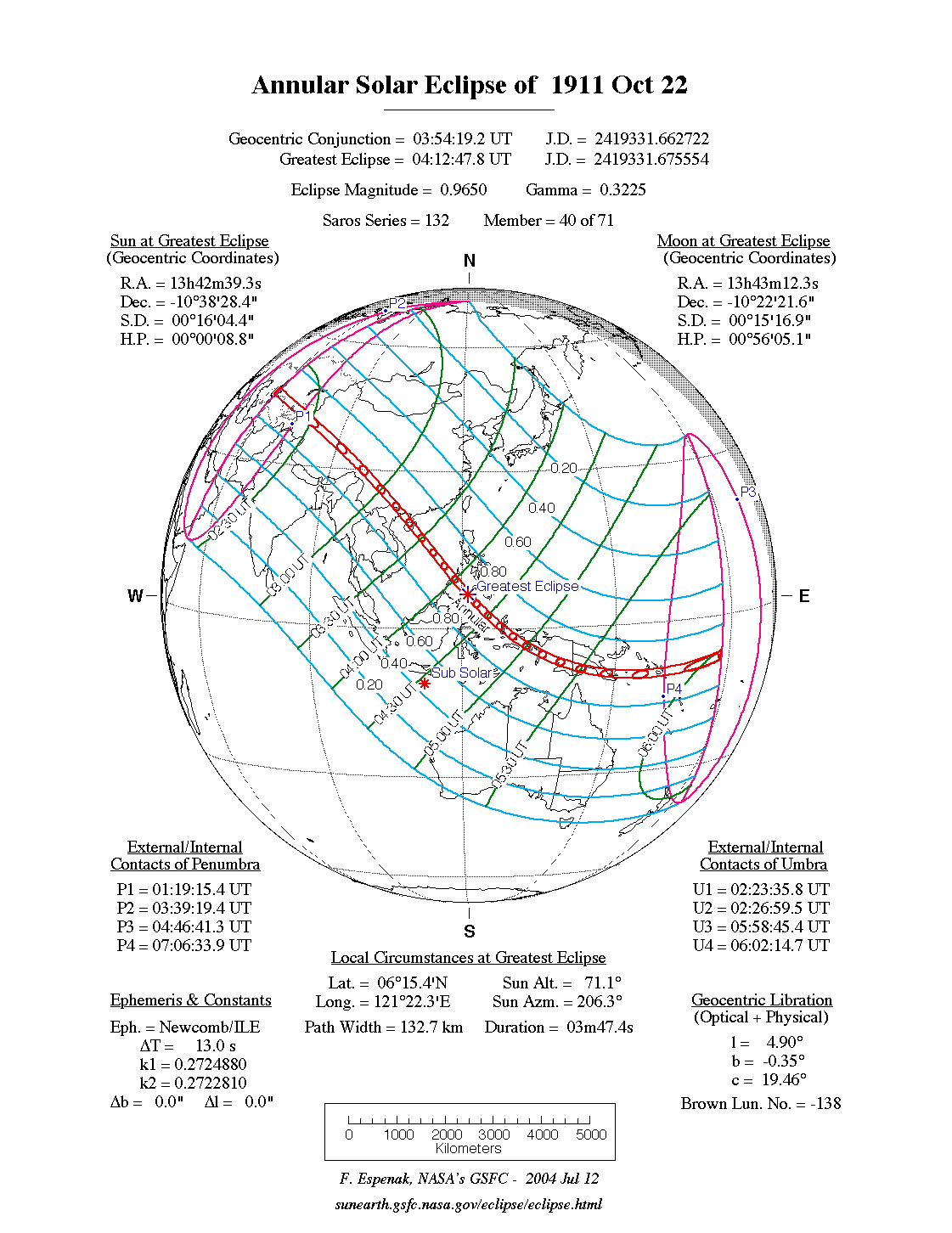

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1911 Oct 22 at 04:13:02 TD (04:12:49 UT1). This is 5.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -138.

The eclipse belongs to Saros 132 and is number 40 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 1911 Oct 22 is followed two weeks later by a penumbral lunar eclipse on 1911 Nov 06.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 13.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Annular Solar Eclipse of 1911 Oct 22 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1911 Oct 22 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1911 Oct 22 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1911 Oct 22 - eclipse times for hundreds of cities
Saros 132 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1911 Oct 22

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.96497
Eclipse Obscuration	0.93116
Gamma	0.32241

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1911 Oct 22 at 04:13:02.1 TD (04:12:49.1 UT1)	2419331.675568
Ecliptic Conjunction	1911 Oct 22 at 04:09:22.2 TD (04:09:09.2 UT1)	2419331.673023
Equatorial Conjunction	1911 Oct 22 at 03:54:33.7 TD (03:54:20.7 UT1)	2419331.662740

Geocentric Coordinates of Sun and Moon
1911 Oct 22 at 04:13:02.1 TD (04:12:49.1 UT1)
Coordinate	Sun	Moon
Right Ascension	13h42m39.4s	13h43m12.3s
Declination	-10°38'28.3"	-10°22'21.8"
Semi-Diameter	16'04.4"	15'16.9"
Eq. Hor. Parallax	08.8"	0°56'05.1"

Geocentric Libration of Moon
Angle	Value
l	4.9°
b	-0.3°
c	19.5°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	13.0 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	132 (40/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1911 Oct 22

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	01:19:29.5	01:19:16.5	38°04.6'N	074°48.2'E
First Internal Contact	P2	03:39:33.3	03:39:20.3	71°13.7'N	064°53.1'E
Last Internal Contact	P3	04:46:55.9	04:46:42.9	20°17.3'N	169°29.0'W
Last External Contact	P4	07:06:48.6	07:06:35.6	14°37.0'S	162°20.8'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	03:17:19.4	03:17:06.4	79°19.5'N	121°32.2'E
South Extreme Path Limit 1	S1	02:27:54.0	02:27:41.0	12°56.5'N	051°44.2'E
North Extreme Path Limit 2	N2	05:09:26.3	05:09:13.3	34°48.1'N	178°38.3'W
South Extreme Path Limit 2	S2	05:58:00.2	05:57:47.2	39°44.7'S	174°15.4'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1911 Oct 22

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	02:23:49.9	02:23:36.9	44°30.1'N	060°54.0'E
First Internal Contact	U2	02:27:13.6	02:27:00.6	45°02.1'N	060°15.2'E
Last Internal Contact	U3	05:59:00.0	05:58:47.0	07°32.2'S	177°54.6'E
Last External Contact	U4	06:02:29.3	06:02:16.3	08°05.7'S	177°08.7'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	02:25:56.9	02:25:43.9	45°35.4'N	060°47.2'E
South Extreme Path Limit 1	S1	02:25:07.8	02:24:54.8	43°56.6'N	060°22.1'E
North Extreme Path Limit 2	N2	06:00:19.4	06:00:06.5	06°57.2'S	177°28.1'E
South Extreme Path Limit 2	S2	06:01:08.8	06:00:55.8	08°40.9'S	177°35.7'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1911 Oct 22

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	02:25:31.6	02:25:18.7	44°45.9'N	060°34.5'E
Extreme Central Line Limit 2	C2	06:00:44.7	06:00:31.8	07°49.2'S	177°31.7'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	04:13:02.1	04:12:49.1	06°15.2'N	121°22.0'E	71.2°	206.3°	132.7 km	03m47.43s
Greatest Duration	04:53:44.9	04:53:31.9	02°08.4'S	130°30.1'E	61.2°	251.6°	143.9 km	03m51.07s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1911 Oct 22

Polynomial Besselian Elements
1911 Oct 22 at 04:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.04269	0.33948	-10.6388	0.56054	0.01432	243.8159
1	0.47095	-0.23716	-0.0143	0.00012	0.00012	15.0028
2	0.00001	0.00005	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046994
Tan ƒ2	0.0046760

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements
