Penumbral Lunar Eclipse of 2114 May 19

Fred Espenak

Introduction

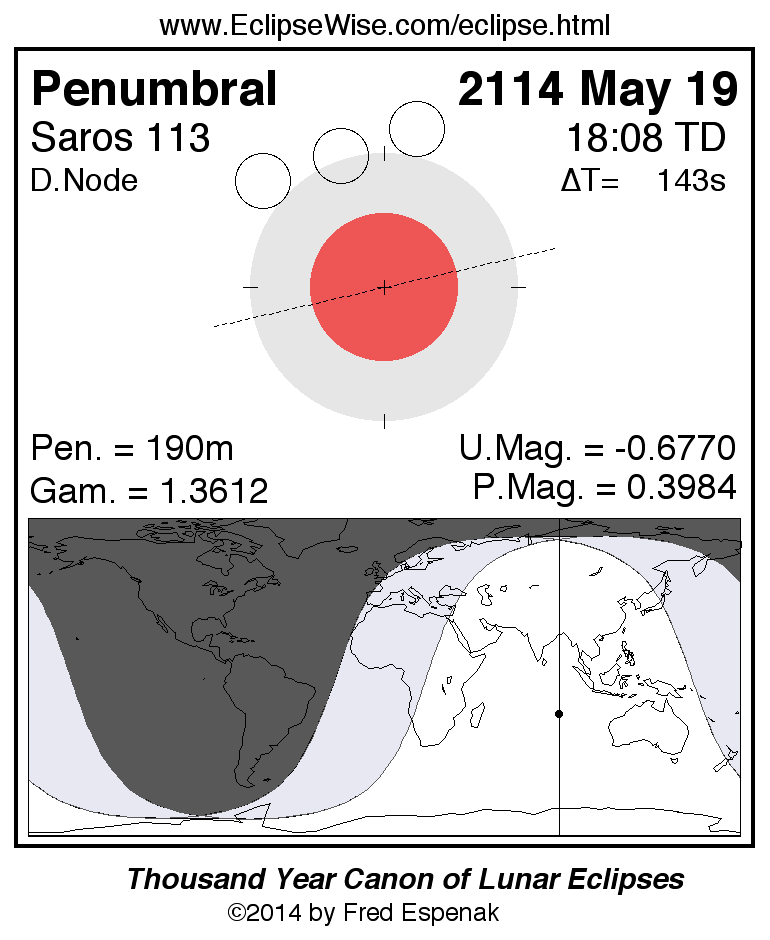

The Penumbral Lunar Eclipse of 2114 May 19 is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2114 May 19 at 18:07:34 TD (18:05:11 UT1). This is 0.1 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2367.

The eclipse belongs to Saros 113 and is number 69 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The penumbral lunar eclipse of 2114 May 19 is followed two weeks later by a total solar eclipse on 2114 Jun 03.

Another lunar eclipse occurs one synodic month after the 2114 May 19 eclipse. It is the penumbral lunar eclipse of 2114 Jun 18.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 142.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 2114 May 19 .


Eclipse Data: Penumbral Lunar Eclipse of 2114 May 19

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 0.39842
Umbral Magnitude-0.67697
Gamma 1.36121
Epsilon 1.2243°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2114 May 19 at 18:07:34.0 TD (18:05:11.3 UT1) 2493321.253603
Ecliptic Opposition 2114 May 19 at 17:51:43.3 TD (17:49:20.6 UT1) 2493321.242599
Equatorial Opposition 2114 May 19 at 17:13:49.9 TD (17:11:27.2 UT1) 2493321.216287
Geocentric Coordinates of Sun and Moon
2114 May 19 at 18:07:34.0 TD (18:05:11.3 UT1)
Coordinate Sun Moon
Right Ascension03h45m04.7s15h46m42.2s
Declination+19°48'55.1"-18°39'09.4"
Semi-Diameter 15'48.9" 14'42.4"
Eq. Hor. Parallax 08.7" 0°53'58.4"
Geocentric Libration of Moon
Angle Value
l -0.2°
b -1.6°
c 11.1°
Earth's Shadows
Parameter Value
Penumbral Radius 1.1745°
Umbral Radius 0.6474°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 142.7 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 113 (69/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 2114 May 19

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP116:32:27.816:30:05.118°24.8'S111°19.2'E 347.9° 1.4196°
Greatest EclipseGreatest18:07:34.018:05:11.318°39.2'S088°15.8'E 18.3° 1.2243°
Penumbral EndsP419:42:40.319:40:17.618°53.4'S065°12.6'E 48.7° 1.4197°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)03h10m12.5s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 2114 May 19

Polynomial Besselian Elements
2114 May 19 at 18:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.33099 1.18013 0.3458 1.17454 0.64737 0.24511
1 0.43018 -0.14261 0.0002 0.00001 0.00001 0.00000
2 0.00003 0.00006 -0.0000 0.00000 0.00000 0.00000
3 -0.00000 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 18.000

Explanation of Besselian Elements

Links for the Penumbral Lunar Eclipse of 2114 May 19

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 2114 May 19 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 142.7 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
