Partial Solar Eclipse of 2098 Apr 01

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Partial Solar Eclipse of 2098 Apr 01 is visible from the following geographic regions:

  • Partial Eclipse: Antarctica, South America

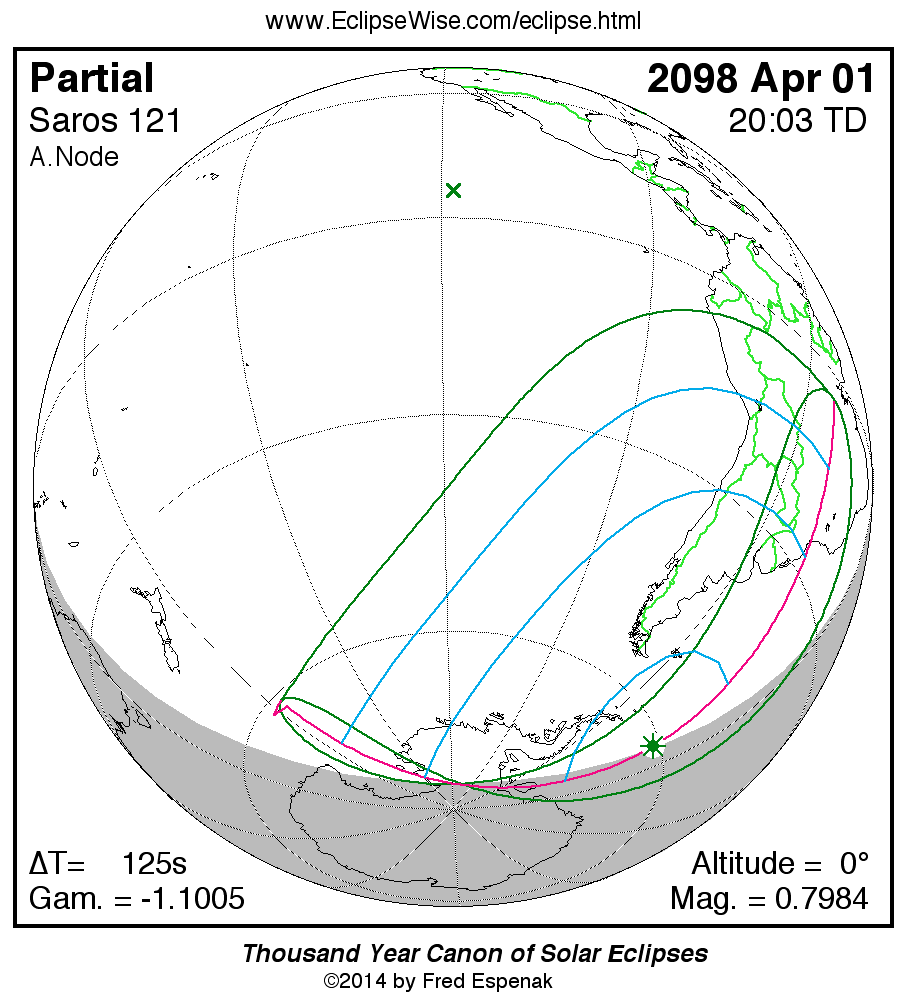

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2098 Apr 01 at 20:02:31 TD (20:00:29 UT1). This is 6.1 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Pisces. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2168.

The eclipse belongs to Saros 121 and is number 65 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.7984, while Gamma has a value of -1.1005.

The partial solar eclipse of 2098 Apr 01 is followed two weeks later by a total lunar eclipse on 2098 Apr 15.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 121.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Partial Solar Eclipse of 2098 Apr 01 shows the path of the Moon's penumbral shadow as it sweeps across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.

The Moon's large penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra.

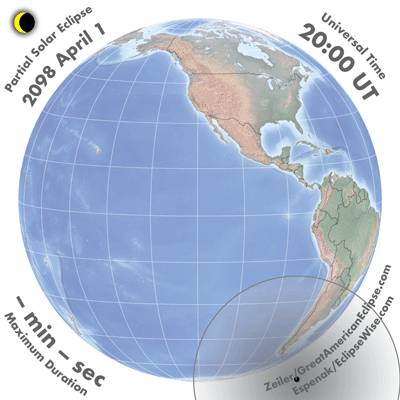

The map to the right shows a single frame from the medium size animation for the Partial Solar Eclipse of 2098 Apr 01 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner is not used for partial solar eclipses. To the lower right is the credit for the animation.

Animations for the Partial Solar Eclipse of 2098 Apr 01 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Partial Solar Eclipse of 2098 Apr 01

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.79844
Eclipse Obscuration 0.73374
Gamma-1.10049
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2098 Apr 01 at 20:02:30.8 TD (20:00:29.0 UT1) 2487430.333669
Ecliptic Conjunction 2098 Apr 01 at 19:50:13.0 TD (19:48:11.1 UT1) 2487430.325128
Equatorial Conjunction 2098 Apr 01 at 18:54:45.1 TD (18:52:43.2 UT1) 2487430.286611
Geocentric Coordinates of Sun and Moon
2098 Apr 01 at 20:02:30.8 TD (20:00:29.0 UT1)
Coordinate Sun Moon
Right Ascension00h46m32.1s00h48m30.7s
Declination+04°59'38.4"+04°05'18.4"
Semi-Diameter 16'00.4" 15'21.2"
Eq. Hor. Parallax 08.8" 0°56'20.9"
Geocentric Libration of Moon
Angle Value
l -5.0°
b 1.4°
c -21.4°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 121.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 121 (65/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2098 Apr 01

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP117:58:11.517:56:09.672°59.0'S161°39.3'W
Last External ContactP422:07:11.422:05:09.516°26.0'S061°53.8'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:30:03.718:28:01.861°16.8'S176°58.5'W
South Extreme Path Limit 1S121:35:17.721:33:15.904°20.4'S052°49.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2098 Apr 01

Polynomial Besselian Elements
2098 Apr 01 at 20:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.50660 -0.97720 4.9957 0.55801 0.01180 119.1124
1 0.46586 0.25358 0.0154 -0.00012 -0.00012 15.0042
2 0.00001 0.00002 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046801
Tan ƒ2 0.0046568

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements
