Solar Eclipse Prime Page
Total Solar Eclipse of 2093 Jan 27
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Total Solar Eclipse of 2093 Jan 27 is visible from the following geographic regions:
- Partial Eclipse: Indies, Australia, Antarctica, New Zealand
- Total Eclipse: Australia
The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 2093 Jan 27 at 03:22:16 TD (03:20:19 UT1). This is 1.4 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2104.
The eclipse belongs to Saros 142 and is number 27 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.
The total solar eclipse of 2093 Jan 27 is preceded two weeks earlier by a penumbral lunar eclipse on 2093 Jan 12.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 116.9 seconds for this eclipse.
The following links provide maps and data for the eclipse.
- Orthographic Map: Total Solar Eclipse of 2093 Jan 27 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Total Solar Eclipse of 2093 Jan 27 - interactive map of the eclipse path
- Path Table: Total Solar Eclipse of 2093 Jan 27 - coordinates of the central line and path limits
- Circumstances Table: Total Solar Eclipse of 2093 Jan 27 - eclipse times for hundreds of cities
- Saros 142 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Global Map Animation of Solar Eclipse
Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com
have created a series of eclipse animations - one for every solar eclipse during the 21st Century.
The animation of the Total Solar Eclipse of 2093 Jan 27 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.
The Moon's umbral shadow appears as a small black disk and tracks along the path of totality (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while a total eclipse is visible inside the umbra.

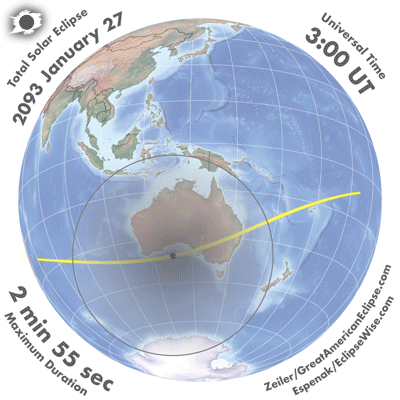

The map to the right shows a single frame from the medium size animation for the Total Solar Eclipse of 2093 Jan 27 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of totality. To the lower right is the credit for the animation.
Animations for the Total Solar Eclipse of 2093 Jan 27 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:
- Small Animation (size 300 x 300 pixels)
- Medium Animation (size 400 x 400 pixels)
- Large Animation (size 800 x 800 pixels)
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by
Fred Espenak and Michael Zeiler
is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Based on work at EclipseWise.com
and GreatAmericanEclipse.com
Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".
- Global Map Animations of Solar Eclipsess: 2001 - 2100 - animations of every solar eclipse during the 21st Century
Eclipse Data: Total Solar Eclipse of 2093 Jan 27
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 1.03403 |
| Eclipse Obscuration | 1.06923 |
| Gamma | -0.27372 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 2093 Jan 27 at 03:22:16.1 TD (03:20:19.1 UT1) | 2485539.639110 |
| Ecliptic Conjunction | 2093 Jan 27 at 03:25:06.9 TD (03:23:09.9 UT1) | 2485539.641087 |
| Equatorial Conjunction | 2093 Jan 27 at 03:17:37.4 TD (03:15:40.5 UT1) | 2485539.635885 |
| Geocentric Coordinates of Sun and Moon | ||
| 2093 Jan 27 at 03:22:16.1 TD (03:20:19.1 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 20h41m22.6s | 20h41m33.8s |
| Declination | -18°16'28.3" | -18°32'48.9" |
| Semi-Diameter | 16'14.6" | 16'31.4" |
| Eq. Hor. Parallax | 08.9" | 1°00'38.7" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | 2.7° |
| b | 0.4° |
| c | -16.4° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 116.9 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 142 (27/72) |
Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2093 Jan 27
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 00:43:54.5 | 00:41:57.6 | 18°30.5'S | 076°18.7'E |
| First Internal Contact | P2 | 02:44:05.0 | 02:42:08.1 | 43°16.2'S | 034°30.5'E |
| Last Internal Contact | P3 | 04:00:33.7 | 03:58:36.7 | 26°08.1'S | 137°10.3'W |
| Last External Contact | P4 | 06:00:43.1 | 05:58:46.2 | 00°54.8'S | 176°13.8'W |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 01:33:21.2 | 01:31:24.2 | 05°43.4'N | 072°12.4'E |
| South Extreme Path Limit 1 | S1 | 02:26:10.7 | 02:24:13.8 | 58°36.4'S | 024°19.2'E |
| North Extreme Path Limit 2 | N2 | 05:11:07.1 | 05:09:10.1 | 23°17.8'N | 172°17.8'W |
| South Extreme Path Limit 2 | S2 | 04:18:31.9 | 04:16:35.0 | 42°40.5'S | 133°16.3'W |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2093 Jan 27
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 01:41:24.0 | 01:39:27.1 | 23°48.4'S | 059°54.6'E |
| First Internal Contact | U2 | 01:42:24.1 | 01:40:27.1 | 23°56.9'S | 059°36.2'E |
| Last Internal Contact | U3 | 05:02:13.3 | 05:00:16.4 | 06°24.1'S | 159°47.2'W |
| Last External Contact | U4 | 05:03:10.2 | 05:01:13.3 | 06°16.0'S | 160°04.1'W |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 01:41:42.1 | 01:39:45.2 | 23°37.3'S | 059°54.5'E |
| South Extreme Path Limit 1 | S1 | 01:42:06.2 | 01:40:09.2 | 24°08.1'S | 059°36.2'E |
| North Extreme Path Limit 2 | N2 | 05:02:53.0 | 05:00:56.1 | 06°05.3'S | 160°03.4'W |
| South Extreme Path Limit 2 | S2 | 05:02:30.3 | 05:00:33.4 | 06°34.8'S | 159°47.9'W |
Central Line Extremes and Duration: Total Solar Eclipse of 2093 Jan 27
| Extreme Limits of the Central Line | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| Extreme Central Line Limit 1 | C1 | 01:41:54.0 | 01:39:57.1 | 23°52.7'S | 059°45.4'E |
| Extreme Central Line Limit 2 | C2 | 05:02:41.8 | 05:00:44.8 | 06°20.0'S | 159°55.7'W |
Explanation of Central Line Extremes Table
| Greatest Eclipse and Greatest Duration | ||||||||
| Event | Time TD |
Time UT1 |
Latitude | Longitude | Sun Altitude |
Sun Azimuth |
Path Width | Central Duration |
| Greatest Eclipse | 03:22:16.1 | 03:20:19.1 | 34°07.3'S | 136°07.0'E | 73.9° | 349.5° | 119.3 km | 02m58.03s |
| Greatest Duration | 03:19:14.3 | 03:17:17.4 | 34°25.2'S | 134°53.8'E | 73.8° | 356.4° | 119.2 km | 02m58.13s |
Polynomial Besselian Elements: Total Solar Eclipse of 2093 Jan 27
| Polynomial Besselian Elements | ||||||
| 2093 Jan 27 at 03:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | -0.16663 | -0.30437 | -18.2778 | 0.54166 | -0.00448 | 221.8416 |
| 1 | 0.56729 | 0.09209 | 0.0107 | 0.00008 | 0.00008 | 14.9994 |
| 2 | -0.00002 | 0.00014 | 0.0000 | -0.00001 | -0.00001 | 0.0000 |
| 3 | -0.00001 | -0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0047483 |
| Tan ƒ2 | 0.0047246 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 3.000
