Solar Eclipse Prime Page

Annular Solar Eclipse of 2077 Nov 15

Fred Espenak

Introduction

The Annular Solar Eclipse of 2077 Nov 15 is visible from the following geographic regions:

Partial Eclipse: Americas
Annular Eclipse: U.S., Carribean, Colombia, Venezuela, Brazil, Guyana, Suriname, French Guiana

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2077 Nov 15 at 17:07:56 TD (17:06:13 UT1). This is 4.0 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1916.

The eclipse belongs to Saros 134 and is number 47 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 2077 Nov 15 is a relatively long annular eclipse with a duration at greatest eclipse of 07m54s. It has an eclipse magnitude of 0.9371.

The annular solar eclipse of 2077 Nov 15 is followed two weeks later by a partial lunar eclipse on 2077 Nov 29.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 103.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Annular Solar Eclipse of 2077 Nov 15 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 2077 Nov 15 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 2077 Nov 15 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 2077 Nov 15 - eclipse times for hundreds of cities
Saros 134 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Annular Solar Eclipse of 2077 Nov 15 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.

The Moon's antumbral shadow appears as a small black disk and tracks along the path of annularity (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while an annular eclipse is visible inside the antumbra. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

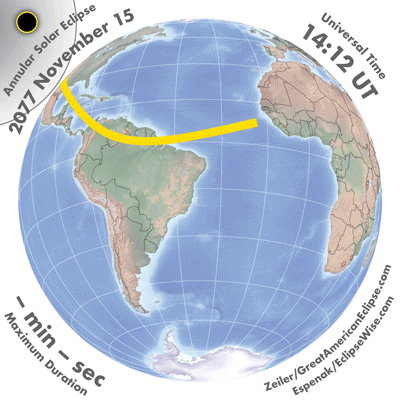

The map to the right shows a single frame from the medium size animation for the Annular Solar Eclipse of 2077 Nov 15 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of annularity. To the lower right is the credit for the animation.

Animations for the Annular Solar Eclipse of 2077 Nov 15 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:

Small Animation (size 300 x 300 pixels)

Medium Animation (size 400 x 400 pixels)

Large Animation (size 800 x 800 pixels)

These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Global Map Animations of Solar Eclipsess: 2001 - 2100 - animations of every solar eclipse during the 21st Century

Eclipse Data: Annular Solar Eclipse of 2077 Nov 15

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.93707
Eclipse Obscuration	0.87810
Gamma	0.47047

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	2077 Nov 15 at 17:07:56.2 TD (17:06:12.6 UT1)	2479988.212645
Ecliptic Conjunction	2077 Nov 15 at 17:02:23.8 TD (17:00:40.1 UT1)	2479988.208798
Equatorial Conjunction	2077 Nov 15 at 16:47:52.0 TD (16:46:08.3 UT1)	2479988.198707

Geocentric Coordinates of Sun and Moon
2077 Nov 15 at 17:07:56.2 TD (17:06:12.6 UT1)
Coordinate	Sun	Moon
Right Ascension	15h26m24.3s	15h27m01.5s
Declination	-18°45'33.3"	-18°21'22.3"
Semi-Diameter	16'10.1"	14'56.9"
Eq. Hor. Parallax	08.9"	0°54'51.8"

Geocentric Libration of Moon
Angle	Value
l	-3.3°
b	-0.6°
c	12.7°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	103.7 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	134 (47/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2077 Nov 15

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	14:13:10.5	14:11:26.8	35°24.4'N	112°45.0'W
Last External Contact	P4	20:02:45.4	20:01:01.7	02°26.7'S	033°15.4'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	15:22:01.7	15:20:18.0	14°06.6'N	139°01.0'W
South Extreme Path Limit 1	S1	18:53:45.8	18:52:02.1	23°57.3'S	008°09.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2077 Nov 15

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	15:22:03.8	15:20:20.1	44°26.8'N	124°28.7'W
First Internal Contact	U2	15:28:03.6	15:26:20.0	45°40.9'N	125°05.0'W
Last Internal Contact	U3	18:48:03.6	18:46:19.9	08°18.7'N	018°15.8'W
Last External Contact	U4	18:53:58.6	18:52:14.9	07°00.8'N	019°17.5'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	15:26:05.4	15:24:21.7	46°21.0'N	124°05.3'W
South Extreme Path Limit 1	S1	15:24:05.9	15:22:22.2	43°45.6'N	125°27.9'W
North Extreme Path Limit 2	N2	18:50:01.0	18:48:17.3	09°01.1'N	018°59.9'W
South Extreme Path Limit 2	S2	18:51:57.6	18:50:14.0	06°17.5'N	018°32.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2077 Nov 15

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	15:25:03.1	15:23:19.5	45°03.0'N	124°47.7'W
Extreme Central Line Limit 2	C2	18:51:01.7	18:49:18.0	07°38.8'N	018°46.4'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	17:07:56.2	17:06:12.6	07°47.5'N	071°00.9'W	61.9°	199.1°	262.5 km	07m53.90s
Greatest Duration	17:21:02.7	17:19:19.0	05°48.5'N	068°06.8'W	61.0°	211.6°	267.6 km	07m55.90s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2077 Nov 15

Polynomial Besselian Elements
2077 Nov 15 at 17:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.09753	0.46523	-18.7590	0.56877	0.02250	78.8349
1	0.48230	-0.17610	-0.0099	-0.00008	-0.00008	14.9994
2	0.00005	0.00009	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0047278
Tan ƒ2	0.0047043

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 17.000

Explanation of Polynomial Besselian Elements
