Annular Solar Eclipse of 2043 Oct 03

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Annular Solar Eclipse of 2043 Oct 03 is visible from the following geographic regions:

  • Partial Eclipse: Antarctica, southwest Australia, Indian Ocean
  • Annular Eclipse: south Indian Ocean

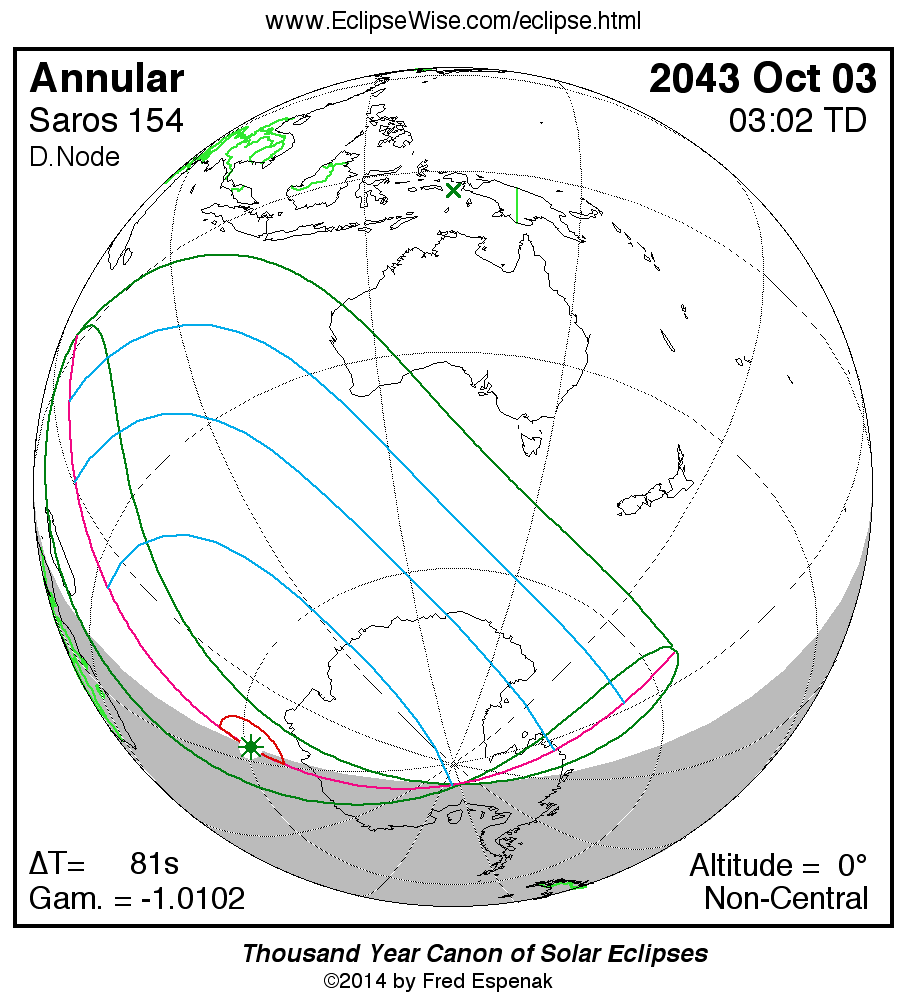

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2043 Oct 03 at 03:01:49 TD (03:00:28 UT1). This is 4.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1494.

The eclipse belongs to Saros 154 and is number 8 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This annular eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a southern path limit. Instead , over half of the antumbral shadow falls off into space throughout the eclipse. Gamma has a value of -1.0102.

The annular solar eclipse of 2043 Oct 03 is preceded two weeks earlier by a total lunar eclipse on 2043 Sep 19.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 80.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Annular Solar Eclipse of 2043 Oct 03 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.

The Moon's antumbral shadow appears as a small black disk and tracks along the path of annularity (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while an annular eclipse is visible inside the antumbra. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

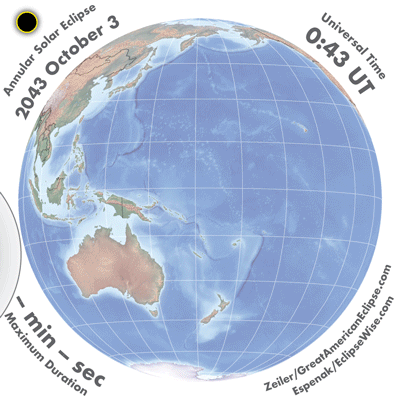

The map to the right shows a single frame from the medium size animation for the Annular Solar Eclipse of 2043 Oct 03 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of annularity. To the lower right is the credit for the animation.

Animations for the Annular Solar Eclipse of 2043 Oct 03 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Annular Solar Eclipse of 2043 Oct 03

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94968
Eclipse Obscuration -
Gamma-1.01019
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2043 Oct 03 at 03:01:48.9 TD (03:00:28.4 UT1) 2467525.625329
Ecliptic Conjunction 2043 Oct 03 at 03:13:23.8 TD (03:12:03.2 UT1) 2467525.633371
Equatorial Conjunction 2043 Oct 03 at 04:05:54.0 TD (04:04:33.5 UT1) 2467525.669832
Geocentric Coordinates of Sun and Moon
2043 Oct 03 at 03:01:48.9 TD (03:00:28.4 UT1)
Coordinate Sun Moon
Right Ascension12h36m02.9s12h34m15.0s
Declination-03°53'04.6"-04°41'56.9"
Semi-Diameter 15'58.8" 15'05.1"
Eq. Hor. Parallax 08.8" 0°55'21.7"
Geocentric Libration of Moon
Angle Value
l 4.3°
b 1.3°
c 21.6°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 80.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 154 ( 8/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2043 Oct 03

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP100:44:16.800:42:56.211°31.3'S075°46.9'E
Last External ContactP405:19:01.105:17:40.568°55.4'S161°54.1'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:16:33.101:15:12.602°12.1'N068°39.3'E
South Extreme Path Limit 1S104:46:48.104:45:27.655°26.1'S158°23.2'W

Non-Central Annular Solar Eclipse

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2043 Oct 03

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU102:51:37.402:50:16.956°10.9'S038°54.7'E
Last External ContactU403:11:24.203:10:03.765°44.9'S031°06.3'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:51:41.802:50:21.256°08.4'S038°54.1'E
South Extreme Path Limit 1S103:11:19.603:09:59.165°47.1'S031°06.5'E

Non-Central Annular Solar Eclipse

Explanation of Umbral Shadow Contacts and Extremes Tables

Non-Central Annular Solar Eclipse

Explanation of Central Line Extremes Table

Non-Central Annular Solar Eclipse

Polynomial Besselian Elements: Annular Solar Eclipse of 2043 Oct 03

Polynomial Besselian Elements
2043 Oct 03 at 03:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.50047 -0.87765 -3.8820 0.56261 0.01637 227.7096
1 0.45564 -0.25051 -0.0155 0.00010 0.00010 15.0044
2 0.00002 0.00006 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046723
Tan ƒ2 0.0046490

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 3.000

Explanation of Polynomial Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing

Links for the Annular Solar Eclipse of 2043 Oct 03

Links to Additional Solar Eclipse Information

  • Home - home page of EclipseWise with predictions for both solar and lunar eclipses

Decade Tables of Solar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Solar Eclipse Publications

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg jpeg

For more visit: AstroPixels Publishing

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2043 Oct 03 were generated using the JPL DE405 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 80.5 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the books 21st Century Canon of Solar Eclipses and Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or concealed.
