Annular Solar Eclipse of 2005 Oct 03
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Annular Solar Eclipse of 2005 Oct 03 is visible from the following geographic regions:
- Partial Eclipse: Europe, Africa, south Asia
- Annular Eclipse: Portugal, Spain, Libia, Sudan, Kenya

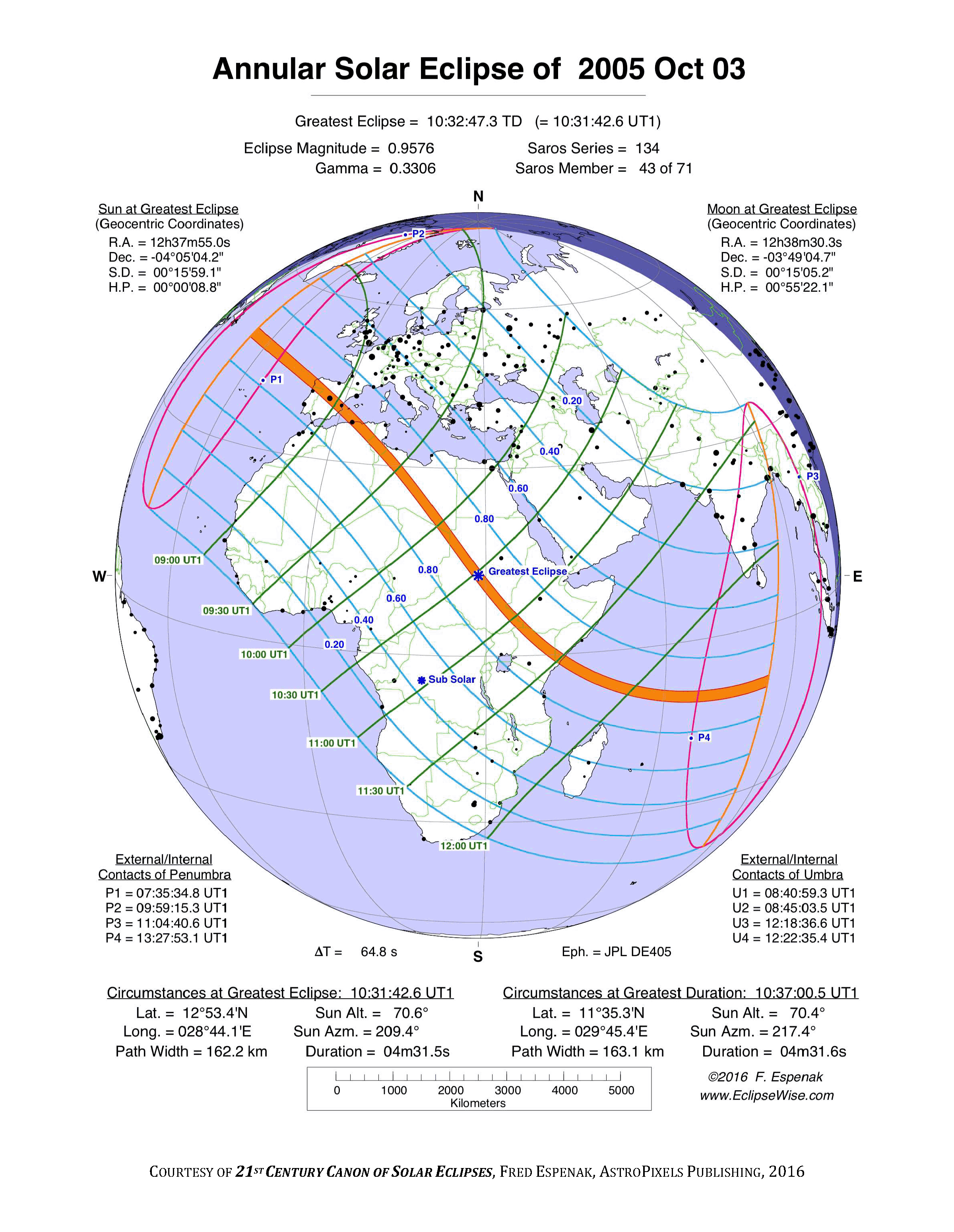

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 2005 Oct 03 at 10:32:47 TD (10:31:43 UT1). This is 4.8 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1024.
The eclipse belongs to Saros 134 and is number 43 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.
The annular solar eclipse of 2005 Oct 03 is followed two weeks later by a partial lunar eclipse on 2005 Oct 17.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 64.8 seconds for this eclipse.
The following links provide maps and data for the eclipse.
- Orthographic Map: Annular Solar Eclipse of 2005 Oct 03 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Annular Solar Eclipse of 2005 Oct 03 - interactive map of the eclipse path
- Path Table: Annular Solar Eclipse of 2005 Oct 03 - coordinates of the central line and path limits
- Circumstances Table: Annular Solar Eclipse of 2005 Oct 03 - eclipse times for hundreds of cities
- Saros 134 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Global Map Animation of Solar Eclipse
Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com
have created a series of eclipse animations - one for every solar eclipse during the 21st Century.
The animation of the Annular Solar Eclipse of 2005 Oct 03 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.
The Moon's antumbral shadow appears as a small black disk and tracks along the path of annularity (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while an annular eclipse is visible inside the antumbra. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

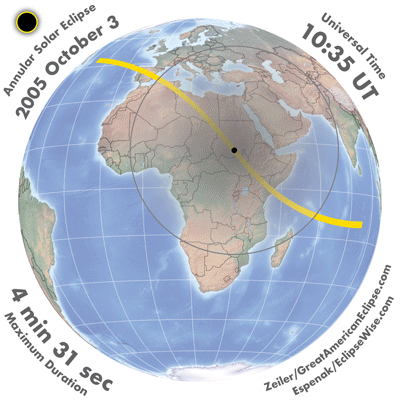

The map to the right shows a single frame from the medium size animation for the Annular Solar Eclipse of 2005 Oct 03 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of annularity. To the lower right is the credit for the animation.
Animations for the Annular Solar Eclipse of 2005 Oct 03 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:
- Small Animation (size 300 x 300 pixels)
- Medium Animation (size 400 x 400 pixels)
- Large Animation (size 800 x 800 pixels)
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by
Fred Espenak and Michael Zeiler
is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Based on work at EclipseWise.com
and GreatAmericanEclipse.com
Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".
- Global Map Animations of Solar Eclipsess: 2001 - 2100 - animations of every solar eclipse during the 21st Century
Eclipse Data: Annular Solar Eclipse of 2005 Oct 03
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 0.95759 |
| Eclipse Obscuration | 0.91698 |
| Gamma | 0.33058 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 2005 Oct 03 at 10:32:47.3 TD (10:31:42.6 UT1) | 2453646.938687 |
| Ecliptic Conjunction | 2005 Oct 03 at 10:28:57.3 TD (10:27:52.5 UT1) | 2453646.936024 |
| Equatorial Conjunction | 2005 Oct 03 at 10:11:46.9 TD (10:10:42.2 UT1) | 2453646.924099 |
| Geocentric Coordinates of Sun and Moon | ||
| 2005 Oct 03 at 10:32:47.3 TD (10:31:42.6 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 12h37m55.0s | 12h38m30.3s |
| Declination | -04°05'04.2" | -03°49'04.7" |
| Semi-Diameter | 15'59.1" | 15'05.2" |
| Eq. Hor. Parallax | 08.8" | 0°55'22.1" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | -3.9° |
| b | -0.4° |
| c | 21.5° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 64.8 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 134 (43/71) |
Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2005 Oct 03
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 07:36:39.6 | 07:35:34.8 | 41°07.9'N | 023°05.8'W |
| First Internal Contact | P2 | 10:00:20.1 | 09:59:15.3 | 77°49.9'N | 043°15.6'W |
| Last Internal Contact | P3 | 11:05:45.4 | 11:04:40.6 | 20°23.8'N | 099°33.2'E |
| Last External Contact | P4 | 13:28:57.9 | 13:27:53.1 | 16°40.8'S | 066°30.3'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 09:40:43.1 | 09:39:38.3 | 85°13.4'N | 063°54.7'E |
| South Extreme Path Limit 1 | S1 | 08:42:38.6 | 08:41:33.9 | 15°29.0'N | 042°00.5'W |
| North Extreme Path Limit 2 | N2 | 11:25:36.9 | 11:24:32.1 | 34°37.7'N | 093°16.5'E |
| South Extreme Path Limit 2 | S2 | 12:22:41.9 | 12:21:37.1 | 42°18.4'S | 085°35.4'E |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2005 Oct 03
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 08:42:04.1 | 08:40:59.3 | 47°53.1'N | 038°29.4'W |
| First Internal Contact | U2 | 08:46:08.3 | 08:45:03.5 | 48°33.1'N | 039°24.0'W |
| Last Internal Contact | U3 | 12:19:41.4 | 12:18:36.6 | 09°14.2'S | 083°15.5'E |
| Last External Contact | U4 | 12:23:40.2 | 12:22:35.4 | 09°53.5'S | 082°18.7'E |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 08:44:43.9 | 08:43:39.2 | 49°13.2'N | 038°56.3'W |
| South Extreme Path Limit 1 | S1 | 08:43:30.1 | 08:42:25.4 | 47°12.6'N | 038°57.3'W |
| North Extreme Path Limit 2 | N2 | 12:21:04.6 | 12:19:59.8 | 08°34.5'S | 082°51.8'E |
| South Extreme Path Limit 2 | S2 | 12:22:15.5 | 12:21:10.7 | 10°33.5'S | 082°42.9'E |
Central Line Extremes and Duration: Annular Solar Eclipse of 2005 Oct 03
| Extreme Limits of the Central Line | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| Extreme Central Line Limit 1 | C1 | 08:44:06.1 | 08:43:01.3 | 48°12.7'N | 038°56.8'W |
| Extreme Central Line Limit 2 | C2 | 12:21:40.9 | 12:20:36.1 | 09°34.2'S | 082°47.1'E |
Explanation of Central Line Extremes Table
| Greatest Eclipse and Greatest Duration | ||||||||
| Event | Time TD |
Time UT1 |
Latitude | Longitude | Sun Altitude |
Sun Azimuth |
Path Width | Central Duration |
| Greatest Eclipse | 10:32:47.3 | 10:31:42.6 | 12°53.4'N | 028°44.1'E | 70.6° | 209.4° | 162.2 km | 04m31.52s |
| Greatest Duration | 10:38:04.7 | 10:37:00.0 | 11°35.5'N | 029°45.3'E | 70.4° | 217.4° | 163.1 km | 04m31.57s |
Polynomial Besselian Elements: Annular Solar Eclipse of 2005 Oct 03
| Polynomial Besselian Elements | ||||||
| 2005 Oct 03 at 11:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | 0.36603 | 0.17583 | -4.0922 | 0.56268 | 0.01644 | 347.7536 |
| 1 | 0.45548 | -0.25081 | -0.0155 | -0.00010 | -0.00010 | 15.0043 |
| 2 | 0.00001 | 0.00001 | 0.0000 | -0.00001 | -0.00001 | -0.0000 |
| 3 | -0.00001 | 0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0046740 |
| Tan ƒ2 | 0.0046508 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 11.000
