Introduction


The Annular Solar Eclipse of 1992 Jan 04 is visible from the following geographic regions:

  • Partial Eclipse: north Australia, Pacific, west North America
  • Annular Eclipse: central Pacific, south California

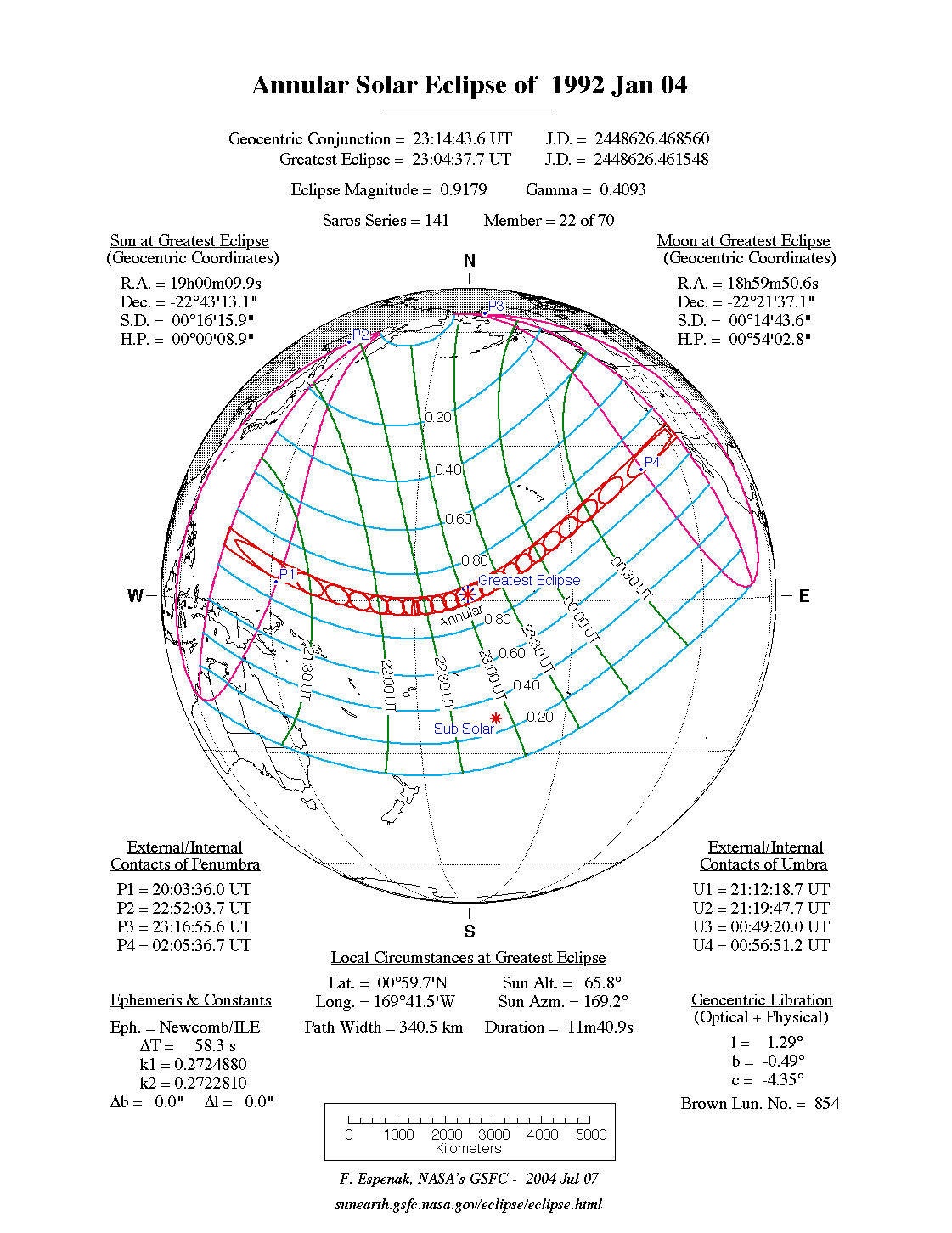

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1992 Jan 04 at 23:05:37 TD (23:04:39 UT1). This is 1.5 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 854.

The eclipse belongs to Saros 141 and is number 22 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1992 Jan 04 is an exceptionally long annular eclipse with a duration at greatest eclipse of 11m41s. It has an eclipse magnitude of 0.9179.

The annular solar eclipse of 1992 Jan 04 is preceded two weeks earlier by a partial lunar eclipse on 1991 Dec 21.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 58.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Eclipse Data: Annular Solar Eclipse of 1992 Jan 04

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.91791
Eclipse Obscuration 0.84256
Gamma 0.40908
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1992 Jan 04 at 23:05:37.0 TD (23:04:38.7 UT1) 2448626.461559
Ecliptic Conjunction 1992 Jan 04 at 23:10:33.0 TD (23:09:34.7 UT1) 2448626.464985
Equatorial Conjunction 1992 Jan 04 at 23:15:42.7 TD (23:14:44.4 UT1) 2448626.468570
Geocentric Coordinates of Sun and Moon
1992 Jan 04 at 23:05:37.0 TD (23:04:38.7 UT1)
Coordinate Sun Moon
Right Ascension19h00m10.0s18h59m50.7s
Declination-22°43'13.0"-22°21'37.6"
Semi-Diameter 16'15.9" 14'43.6"
Eq. Hor. Parallax 08.9" 0°54'02.8"
Geocentric Libration of Moon
Angle Value
l 1.3°
b -0.5°
c -4.3°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 58.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 141 (22/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1992 Jan 04

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP120:04:35.020:03:36.703°08.8'N151°38.0'E
First Internal ContactP222:52:57.922:51:59.655°53.8'N146°25.8'E
Last Internal ContactP323:18:00.023:17:01.767°08.7'N161°28.6'W
Last External ContactP402:06:36.802:05:38.524°42.7'N131°16.6'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:42:56.022:41:57.759°19.5'N155°38.8'E
South Extreme Path Limit 1S121:20:53.721:19:55.419°04.5'S122°54.6'E
North Extreme Path Limit 2N223:27:52.723:26:54.467°10.4'N176°20.8'W
South Extreme Path Limit 2S200:50:24.000:49:25.702°34.2'N102°12.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1992 Jan 04

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU121:13:17.221:12:19.010°53.5'N137°45.9'E
First Internal ContactU221:20:46.221:19:47.912°15.1'N136°29.4'E
Last Internal ContactU300:50:20.400:49:22.133°34.3'N117°14.4'W
Last External ContactU400:57:51.500:56:53.232°15.2'N118°18.3'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:17:54.821:16:56.513°11.5'N137°37.2'E
South Extreme Path Limit 1S121:16:14.421:15:16.109°55.7'N136°36.5'E
North Extreme Path Limit 2N200:53:12.000:52:13.734°28.7'N118°31.8'W
South Extreme Path Limit 2S200:54:53.900:53:55.631°19.2'N117°00.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1992 Jan 04

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C121:17:01.021:16:02.711°33.0'N137°07.2'E
Extreme Central Line Limit 2C200:54:06.600:53:08.332°53.5'N117°45.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse23:05:37.023:04:38.700°58.9'N169°41.9'W 65.8° 169.2° 340.4 km11m40.90s
Greatest Duration22:56:52.322:55:54.000°15.3'N171°39.8'W 65.4° 159.9° 342.7 km11m42.71s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1992 Jan 04

Polynomial Besselian Elements
1992 Jan 04 at 23:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.12922 0.39099 -22.7217 0.57504 0.02874 163.7745
1 0.49348 0.10226 0.0041 0.00003 0.00003 14.9966
2 -0.00003 0.00013 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047563
Tan ƒ2 0.0047326

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements
