Annular Solar Eclipse of 1990 Jan 26

Fred Espenak

Introduction

The Annular Solar Eclipse of 1990 Jan 26 is visible from the following geographic regions:

Partial Eclipse: south South America, Antarctica
Annular Eclipse: Antarctica

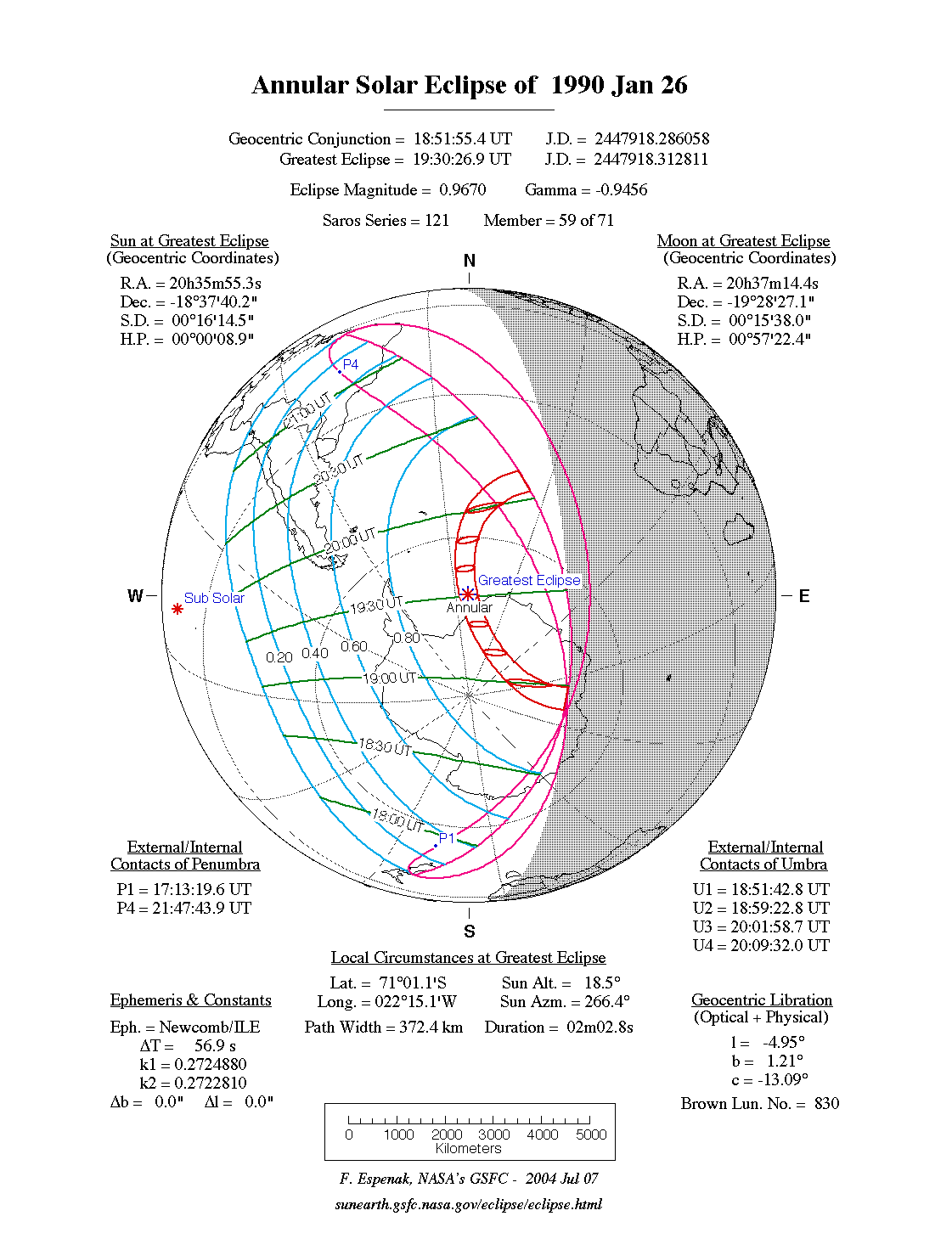

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1990 Jan 26 at 19:31:24 TD (19:30:27 UT1). This is 6.3 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 830.

The eclipse belongs to Saros 121 and is number 59 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 1990 Jan 26 is followed two weeks later by a total lunar eclipse on 1990 Feb 09.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 56.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Annular Solar Eclipse of 1990 Jan 26 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1990 Jan 26 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1990 Jan 26 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1990 Jan 26 - eclipse times for hundreds of cities
Saros 121 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1990 Jan 26

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.96698
Eclipse Obscuration	0.93506
Gamma	-0.94571

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1990 Jan 26 at 19:31:23.9 TD (19:30:27.1 UT1)	2447918.312813
Ecliptic Conjunction	1990 Jan 26 at 19:20:58.8 TD (19:20:02.0 UT1)	2447918.305578
Equatorial Conjunction	1990 Jan 26 at 18:52:52.1 TD (18:51:55.3 UT1)	2447918.286056

Geocentric Coordinates of Sun and Moon
1990 Jan 26 at 19:31:23.9 TD (19:30:27.1 UT1)
Coordinate	Sun	Moon
Right Ascension	20h35m55.4s	20h37m14.5s
Declination	-18°37'40.0"	-19°28'27.1"
Semi-Diameter	16'14.5"	15'38.0"
Eq. Hor. Parallax	08.9"	0°57'22.4"

Geocentric Libration of Moon
Angle	Value
l	-5.0°
b	1.2°
c	-13.1°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	56.9 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	121 (59/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1990 Jan 26

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	17:14:16.9	17:13:20.1	53°14.2'S	167°57.6'E
Last External Contact	P4	21:48:40.7	21:47:43.8	16°23.2'S	048°06.0'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	17:41:07.2	17:40:10.3	40°43.1'S	171°13.5'E
South Extreme Path Limit 1	S1	21:21:48.5	21:20:51.7	02°52.5'S	046°05.7'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1990 Jan 26

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	18:52:41.6	18:51:44.8	71°22.1'S	080°28.5'E
First Internal Contact	U2	19:00:22.0	18:59:25.1	71°01.5'S	066°57.5'E
Last Internal Contact	U3	20:02:53.7	20:01:56.9	49°27.1'S	004°08.6'W
Last External Contact	U4	20:10:27.5	20:09:30.6	46°11.7'S	008°39.7'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	18:52:51.4	18:51:54.5	71°22.0'S	080°46.5'E
South Extreme Path Limit 1	S1	19:00:14.1	18:59:17.2	71°00.5'S	066°43.4'E
North Extreme Path Limit 2	N2	20:10:17.9	20:09:21.0	46°05.9'S	008°41.7'W
South Extreme Path Limit 2	S2	20:03:01.6	20:02:04.7	49°31.8'S	004°06.5'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1990 Jan 26

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	18:56:20.7	18:55:23.8	71°17.7'S	074°03.4'E
Extreme Central Line Limit 2	C2	20:06:51.8	20:05:54.9	47°44.0'S	006°34.2'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	19:31:23.9	19:30:27.1	71°01.0'S	022°12.2'W	18.5°	266.3°	372.8 km	02m02.79s
Greatest Duration	18:56:20.7	18:55:23.8	71°17.7'S	074°03.4'E	0.0°	185.0°	505.8 km	02m06.37s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1990 Jan 26

Polynomial Besselian Elements
1990 Jan 26 at 20:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.56778	-0.79895	-18.6207	0.55697	0.01076	116.8497
1	0.50742	0.18644	0.0101	-0.00013	-0.00013	14.9991
2	-0.00005	0.00016	0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	-0.00000	-	-	-	-

Tan ƒ1	0.0047488
Tan ƒ2	0.0047251

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements
