Solar Eclipse Prime Page

Total Solar Eclipse of 1977 Oct 12

Fred Espenak

Introduction

The Total Solar Eclipse of 1977 Oct 12 is visible from the following geographic regions:

Partial Eclipse: North America, northwest South America
Total Eclipse: Pacific, Colombia, Venezuela

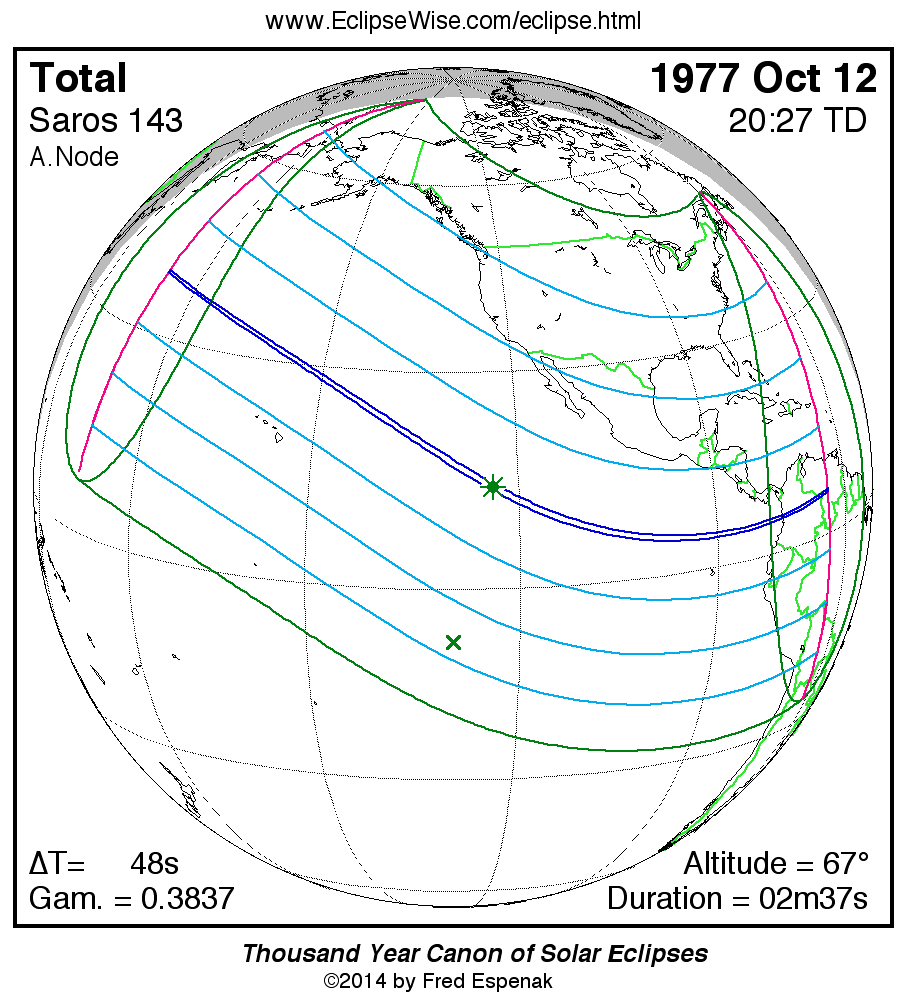

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1977 Oct 12 at 20:27:27 TD (20:26:39 UT1). This is 2.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 678.

The eclipse belongs to Saros 143 and is number 21 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 1977 Oct 12 is preceded two weeks earlier by a penumbral lunar eclipse on 1977 Sep 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 48.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

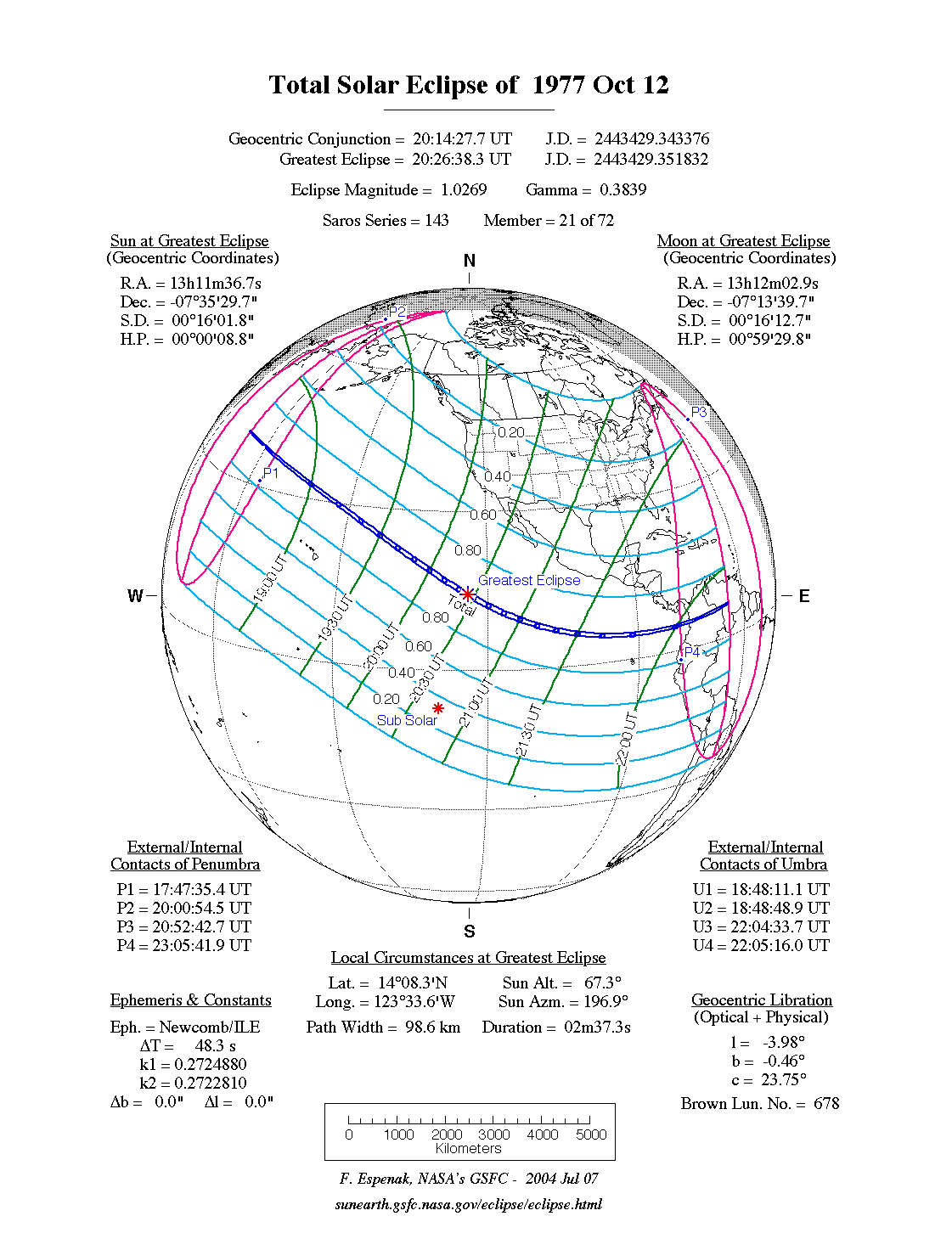

Orthographic Map: Total Solar Eclipse of 1977 Oct 12 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Total Solar Eclipse of 1977 Oct 12 - interactive map of the eclipse path
Path Table: Total Solar Eclipse of 1977 Oct 12 - coordinates of the central line and path limits
Circumstances Table: Total Solar Eclipse of 1977 Oct 12 - eclipse times for hundreds of cities
Saros 143 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Total Solar Eclipse of 1977 Oct 12

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	1.02694
Eclipse Obscuration	1.05462
Gamma	0.38363

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1977 Oct 12 at 20:27:27.3 TD (20:26:39.0 UT1)	2443429.351840
Ecliptic Conjunction	1977 Oct 12 at 20:31:29.7 TD (20:30:41.4 UT1)	2443429.354646
Equatorial Conjunction	1977 Oct 12 at 20:15:17.1 TD (20:14:28.8 UT1)	2443429.343389

Geocentric Coordinates of Sun and Moon
1977 Oct 12 at 20:27:27.3 TD (20:26:39.0 UT1)
Coordinate	Sun	Moon
Right Ascension	13h11m36.7s	13h12m03.0s
Declination	-07°35'30.0"	-07°13'40.8"
Semi-Diameter	16'01.8"	16'12.7"
Eq. Hor. Parallax	08.8"	0°59'29.8"

Geocentric Libration of Moon
Angle	Value
l	-4.0°
b	-0.4°
c	23.7°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	48.3 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	143 (21/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1977 Oct 12

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	17:48:24.0	17:47:35.7	30°52.2'N	175°44.1'W
First Internal Contact	P2	20:01:41.4	20:00:53.1	72°43.9'N	171°45.5'E
Last Internal Contact	P3	20:53:33.8	20:52:45.5	40°33.7'N	053°08.4'W
Last External Contact	P4	23:06:31.5	23:05:43.2	02°11.1'S	079°32.3'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	19:47:01.3	19:46:13.0	80°56.9'N	153°15.9'W
South Extreme Path Limit 1	S1	18:45:41.9	18:44:53.6	07°26.4'N	166°23.1'E
North Extreme Path Limit 2	N2	21:08:21.0	21:07:32.7	51°09.9'N	059°49.5'W
South Extreme Path Limit 2	S2	22:09:05.8	22:08:17.5	25°37.2'S	061°47.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1977 Oct 12

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	18:48:59.6	18:48:11.3	38°54.2'N	170°43.3'E
First Internal Contact	U2	18:49:37.3	18:48:49.0	39°01.9'N	170°35.6'E
Last Internal Contact	U3	22:05:23.4	22:04:35.1	06°01.7'N	065°21.2'W
Last External Contact	U4	22:06:05.6	22:05:17.4	05°53.0'N	065°30.6'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	18:49:24.8	18:48:36.5	39°08.0'N	170°40.1'E
South Extreme Path Limit 1	S1	18:49:12.2	18:48:23.9	38°48.0'N	170°38.8'E
North Extreme Path Limit 2	N2	22:05:37.4	22:04:49.2	06°08.7'N	065°25.6'W
South Extreme Path Limit 2	S2	22:05:51.4	22:05:03.1	05°46.0'N	065°26.1'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1977 Oct 12

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	18:49:18.4	18:48:30.1	38°58.0'N	170°39.5'E
Extreme Central Line Limit 2	C2	22:05:44.5	22:04:56.2	05°57.3'N	065°25.9'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	20:27:27.3	20:26:39.0	14°07.5'N	123°34.1'W	67.3°	196.9°	98.6 km	02m37.28s
Greatest Duration	20:30:55.5	20:30:07.2	13°34.8'N	122°35.6'W	67.3°	201.8°	99.0 km	02m37.40s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1977 Oct 12

Polynomial Besselian Elements
1977 Oct 12 at 20:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.13762	0.44133	-7.5856	0.54333	-0.00282	123.3902
1	0.54020	-0.16101	-0.0152	-0.00009	-0.00009	15.0039
2	0.00003	0.00002	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046861
Tan ƒ2	0.0046627

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements
