Solar Eclipse Prime Page

Annular Solar Eclipse of 1972 Jan 16

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Annular Solar Eclipse of 1972 Jan 16 is visible from the following geographic regions:

  • Partial Eclipse: south South America, Antarctica
  • Annular Eclipse: Antarctica

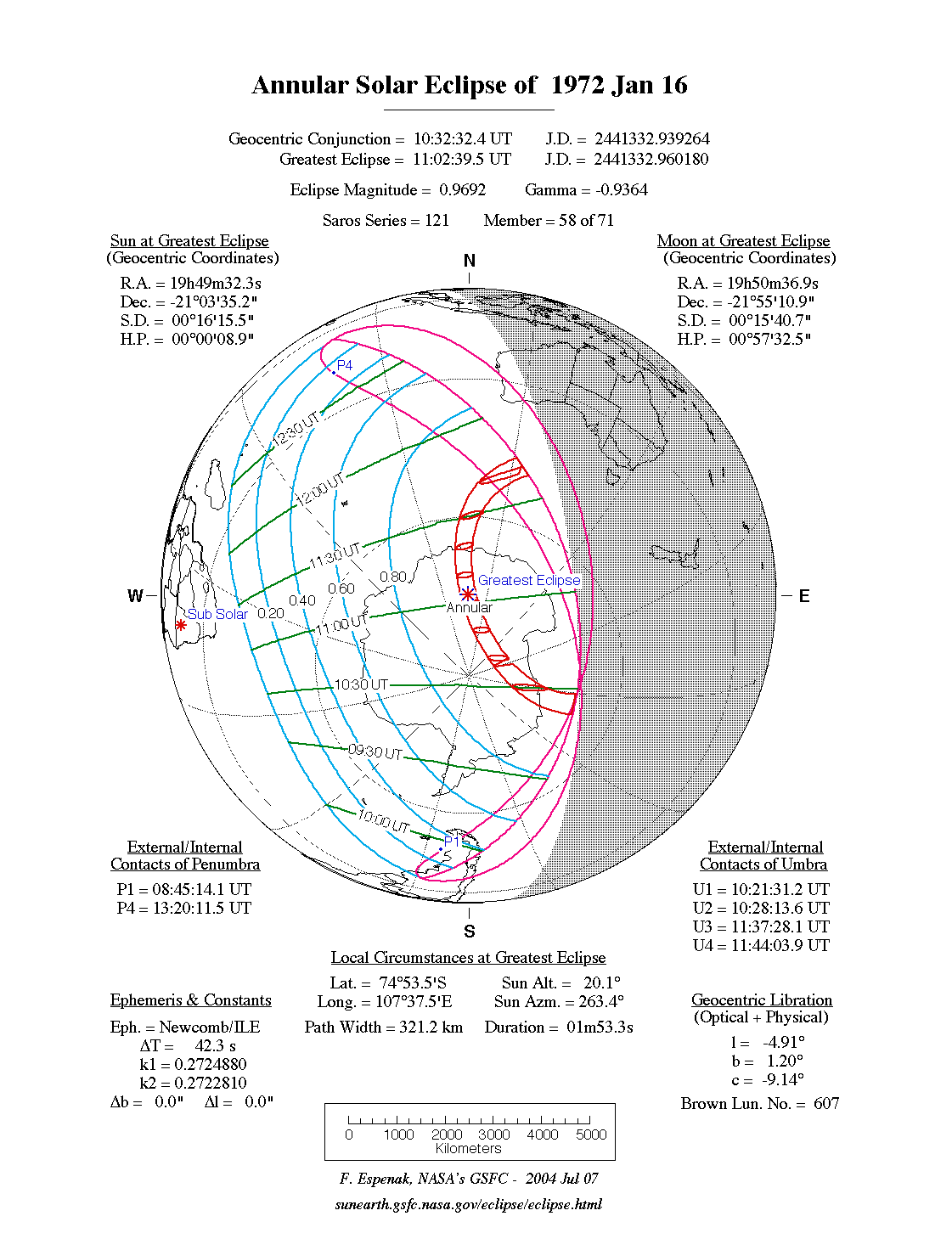

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1972 Jan 16 at 11:03:22 TD (11:02:40 UT1). This is 5.8 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 607.

The eclipse belongs to Saros 121 and is number 58 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 1972 Jan 16 is followed two weeks later by a total lunar eclipse on 1972 Jan 30.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 42.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Eclipse Data: Annular Solar Eclipse of 1972 Jan 16

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96925
Eclipse Obscuration 0.93945
Gamma-0.93651
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1972 Jan 16 at 11:03:22.3 TD (11:02:40.1 UT1) 2441332.960186
Ecliptic Conjunction 1972 Jan 16 at 10:53:05.1 TD (10:52:22.8 UT1) 2441332.953042
Equatorial Conjunction 1972 Jan 16 at 10:33:15.2 TD (10:32:32.9 UT1) 2441332.939270
Geocentric Coordinates of Sun and Moon
1972 Jan 16 at 11:03:22.3 TD (11:02:40.1 UT1)
Coordinate Sun Moon
Right Ascension19h49m32.3s19h50m37.0s
Declination-21°03'34.9"-21°55'10.9"
Semi-Diameter 16'15.5" 15'40.7"
Eq. Hor. Parallax 08.9" 0°57'32.6"
Geocentric Libration of Moon
Angle Value
l -4.9°
b 1.2°
c -9.1°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 42.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 121 (58/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1972 Jan 16

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP108:45:57.208:45:14.948°28.8'S064°43.8'W
Last External ContactP413:20:54.113:20:11.819°25.0'S080°08.3'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N109:12:06.709:11:24.536°02.0'S061°44.6'W
South Extreme Path Limit 1S112:54:43.312:54:01.006°05.9'S081°14.7'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1972 Jan 16

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU110:22:15.310:21:33.068°17.1'S138°14.9'W
First Internal ContactU210:28:57.810:28:15.568°50.0'S148°42.7'W
Last Internal ContactU311:38:09.611:37:27.350°10.8'S125°31.4'E
Last External ContactU411:44:45.611:44:03.347°29.5'S121°12.5'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N110:22:24.910:21:42.668°15.5'S137°59.9'W
South Extreme Path Limit 1S110:28:49.710:28:07.468°50.6'S148°56.2'W
North Extreme Path Limit 2N211:44:36.211:43:53.947°23.9'S121°09.6'E
South Extreme Path Limit 2S211:38:17.611:37:35.350°15.5'S125°34.4'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1972 Jan 16

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C110:25:28.810:24:46.568°36.2'S143°10.8'W
Extreme Central Line Limit 2C211:41:35.311:40:53.048°46.7'S123°13.9'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse11:03:22.311:02:40.174°53.5'S107°39.7'E 20.1° 263.4° 321.4 km01m53.27s
Greatest Duration10:25:28.810:24:46.568°36.2'S143°10.8'W 0.0° 170.1° 450.1 km01m58.11s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1972 Jan 16

Polynomial Besselian Elements
1972 Jan 16 at 11:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.23215 -0.90779 -21.0579 0.55650 0.01029 342.6110
1 0.52077 0.15137 0.0074 -0.00012 -0.00012 14.9977
2 -0.00003 0.00019 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047537
Tan ƒ2 0.0047300

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Polynomial Besselian Elements
