Total Solar Eclipse of 1966 Nov 12

Fred Espenak

Introduction

The Total Solar Eclipse of 1966 Nov 12 is visible from the following geographic regions:

Partial Eclipse: Central America, South America, south Africa
Total Eclipse: Peru, Chile, Bolivia, Argentina, Uruguay, Brazil

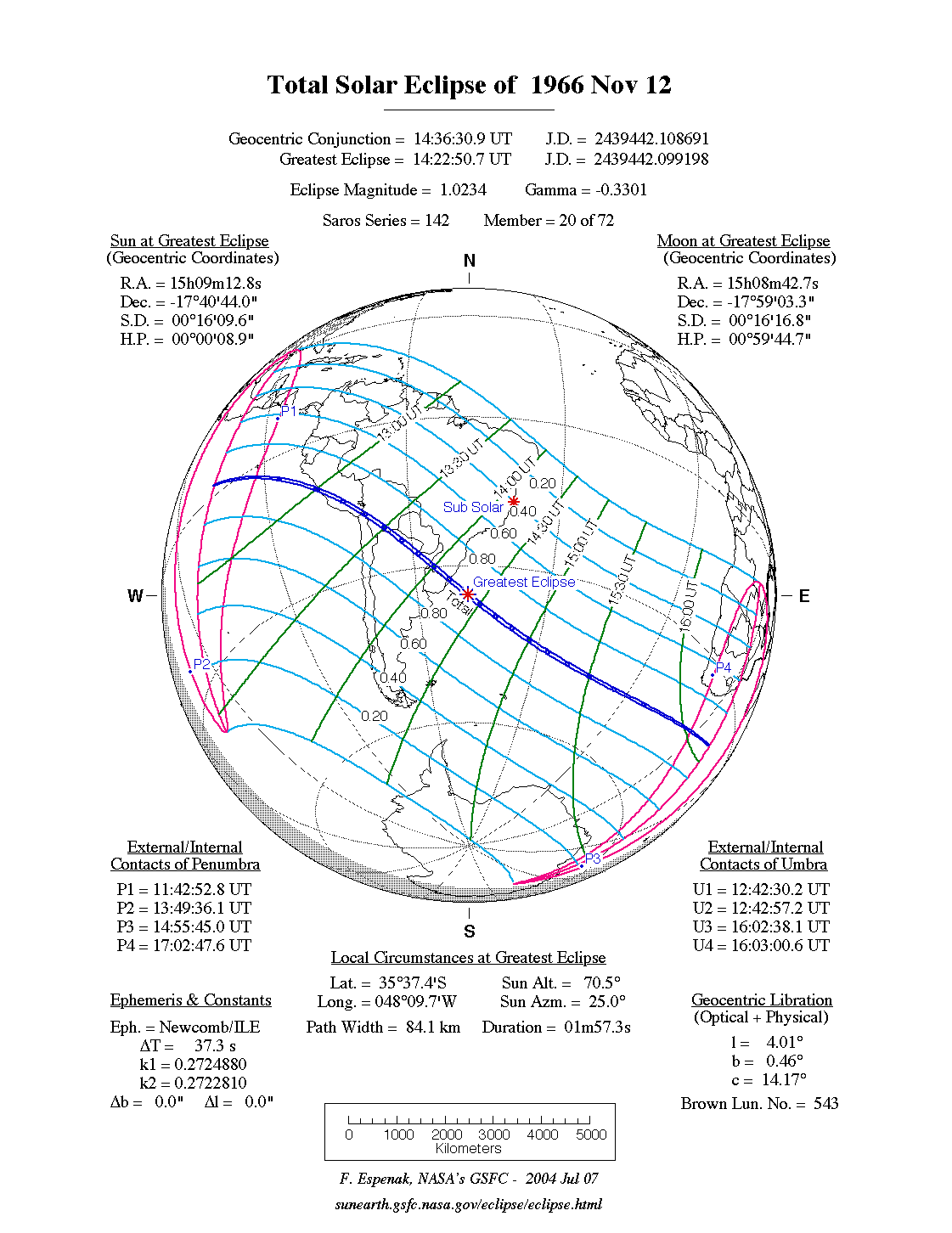

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1966 Nov 12 at 14:23:28 TD (14:22:50 UT1). This is 2.2 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 543.

The eclipse belongs to Saros 142 and is number 20 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total solar eclipse of 1966 Nov 12 is preceded two weeks earlier by a penumbral lunar eclipse on 1966 Oct 29.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 37.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

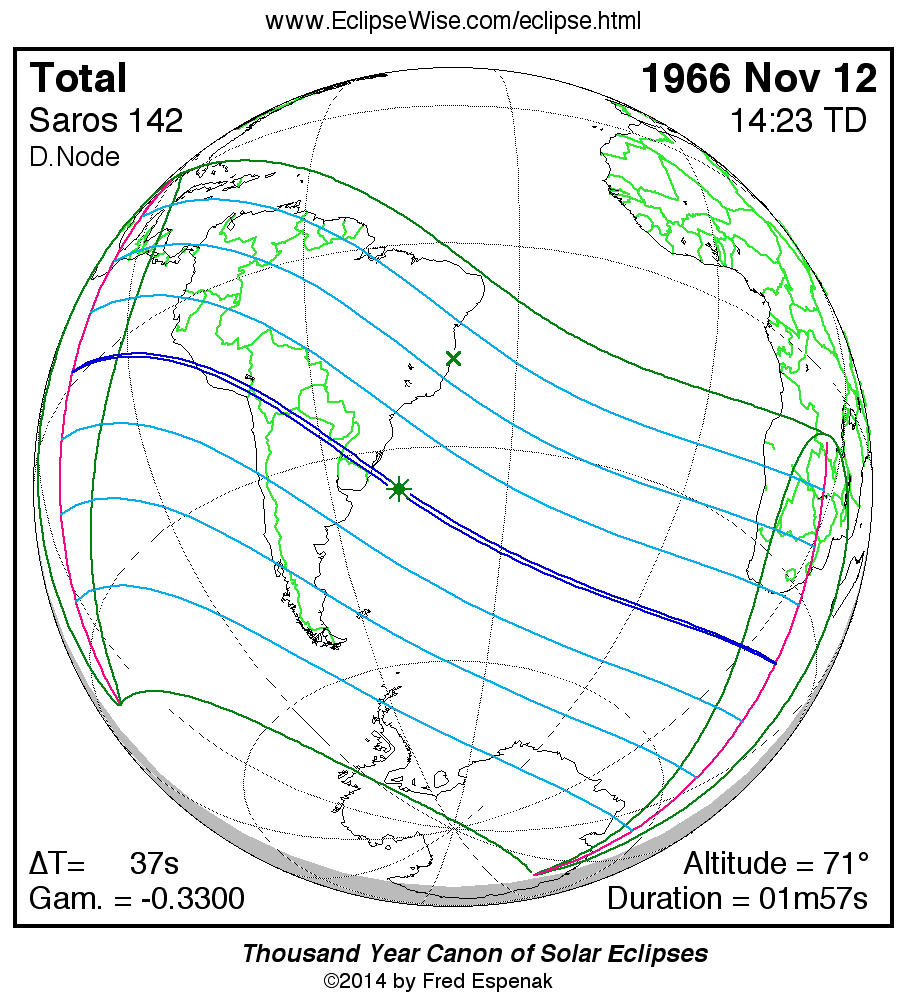

Orthographic Map: Total Solar Eclipse of 1966 Nov 12 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Total Solar Eclipse of 1966 Nov 12 - interactive map of the eclipse path
Path Table: Total Solar Eclipse of 1966 Nov 12 - coordinates of the central line and path limits
Circumstances Table: Total Solar Eclipse of 1966 Nov 12 - eclipse times for hundreds of cities
Saros 142 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Total Solar Eclipse of 1966 Nov 12

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	1.02336
Eclipse Obscuration	1.04727
Gamma	-0.33001

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1966 Nov 12 at 14:23:27.6 TD (14:22:50.3 UT1)	2439442.099193
Ecliptic Conjunction	1966 Nov 12 at 14:26:56.5 TD (14:26:19.2 UT1)	2439442.101612
Equatorial Conjunction	1966 Nov 12 at 14:37:07.7 TD (14:36:30.4 UT1)	2439442.108685

Geocentric Coordinates of Sun and Moon
1966 Nov 12 at 14:23:27.6 TD (14:22:50.3 UT1)
Coordinate	Sun	Moon
Right Ascension	15h09m12.8s	15h08m42.7s
Declination	-17°40'44.2"	-17°59'03.2"
Semi-Diameter	16'09.6"	16'16.8"
Eq. Hor. Parallax	08.9"	0°59'44.7"

Geocentric Libration of Moon
Angle	Value
l	4.0°
b	0.5°
c	14.2°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	37.3 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	142 (20/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1966 Nov 12

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	11:43:29.6	11:42:52.3	08°39.2'N	086°54.2'W
First Internal Contact	P2	13:50:12.8	13:49:35.5	23°59.7'S	129°30.7'W
Last Internal Contact	P3	14:56:22.2	14:55:44.9	62°12.7'S	079°20.0'E
Last External Contact	P4	17:03:24.9	17:02:47.6	32°00.3'S	021°51.0'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	12:31:39.0	12:31:01.7	31°48.0'N	090°20.1'W
South Extreme Path Limit 1	S1	13:35:29.7	13:34:52.4	37°34.9'S	131°52.2'W
North Extreme Path Limit 2	N2	16:15:26.4	16:14:49.1	08°51.7'S	025°11.2'E
South Extreme Path Limit 2	S2	15:10:59.4	15:10:22.1	70°51.1'S	105°08.0'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1966 Nov 12

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	12:43:07.1	12:42:29.8	02°02.4'N	103°56.1'W
First Internal Contact	U2	12:43:34.2	12:42:56.9	01°57.8'N	104°04.4'W
Last Internal Contact	U3	16:03:15.2	16:02:37.9	38°30.7'S	040°05.4'E
Last External Contact	U4	16:03:37.7	16:03:00.4	38°26.9'S	039°57.7'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	12:43:14.6	12:42:37.3	02°07.1'N	103°56.5'W
South Extreme Path Limit 1	S1	12:43:26.7	12:42:49.4	01°53.2'N	104°03.9'W
North Extreme Path Limit 2	N2	16:03:31.5	16:02:54.2	38°23.2'S	039°57.3'E
South Extreme Path Limit 2	S2	16:03:21.4	16:02:44.0	38°34.4'S	040°05.8'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1966 Nov 12

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	12:43:20.6	12:42:43.3	02°00.1'N	104°00.2'W
Extreme Central Line Limit 2	C2	16:03:26.4	16:02:49.1	38°28.8'S	040°01.5'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	14:23:27.6	14:22:50.3	35°37.2'S	048°09.3'W	70.5°	25.0°	84.1 km	01m57.28s
Greatest Duration	14:24:40.6	14:24:03.3	35°54.0'S	047°43.6'W	70.5°	22.7°	84.0 km	01m57.29s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1966 Nov 12

Polynomial Besselian Elements
1966 Nov 12 at 14:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.32613	-0.22689	-17.6740	0.54430	-0.00184	33.9615
1	0.52700	-0.20595	-0.0108	0.00011	0.00011	15.0001
2	0.00005	0.00013	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0047242
Tan ƒ2	0.0047006

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 14.000

Explanation of Polynomial Besselian Elements
