Annular Solar Eclipse of 1954 Dec 25
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Annular Solar Eclipse of 1954 Dec 25 is visible from the following geographic regions:
- Partial Eclipse: south Africa, Indian Ocean, southeast Asia, Australia
- Annular Eclipse: Namibia, South Africa, Indian Ocean, Indonesia

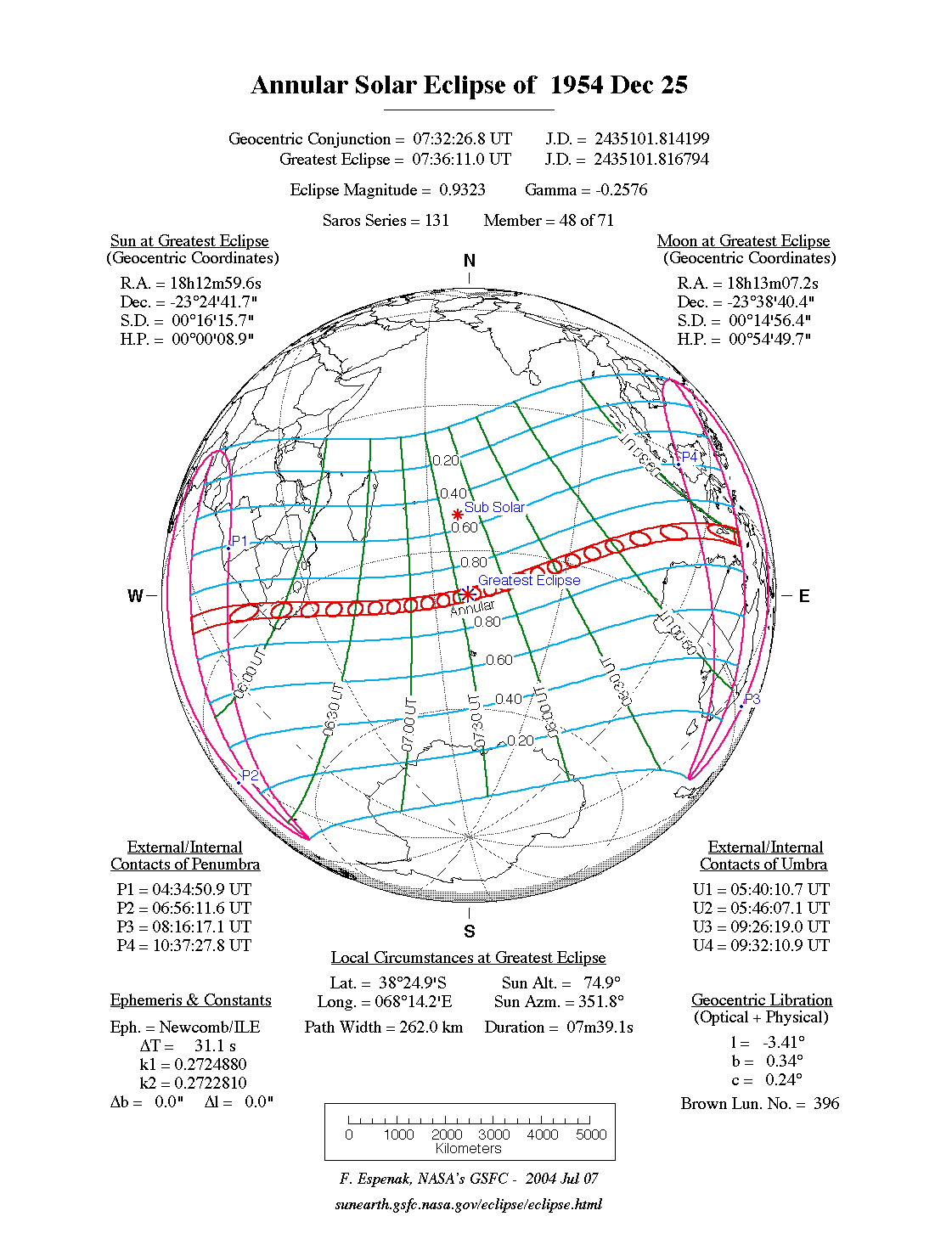

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 1954 Dec 25 at 07:36:42 TD (07:36:11 UT1). This is 3.9 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 396.
The eclipse belongs to Saros 131 and is number 47 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.
The solar eclipse of 1954 Dec 25 is a relatively long annular eclipse with a duration at greatest eclipse of 07m39s. It has an eclipse magnitude of 0.9323.
The annular solar eclipse of 1954 Dec 25 is followed two weeks later by a penumbral lunar eclipse on 1955 Jan 08.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 31.1 seconds for this eclipse.
The following links provide maps and data for the eclipse.

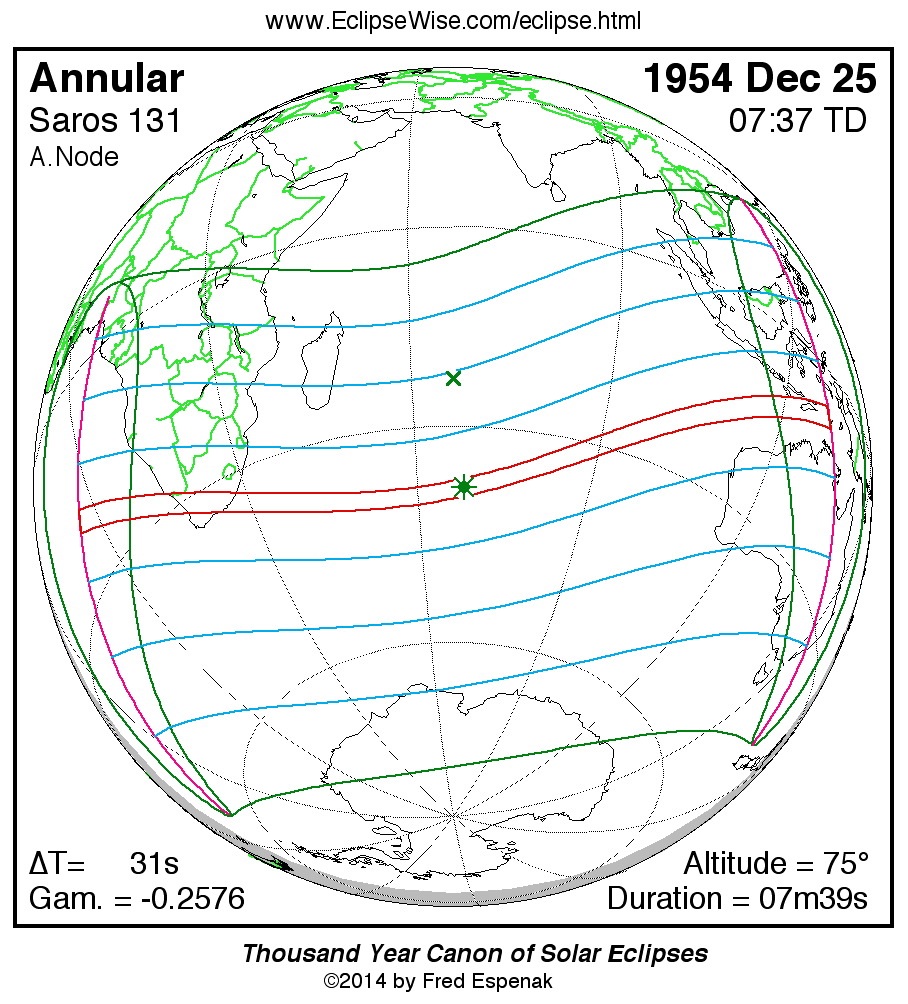

- Orthographic Map: Annular Solar Eclipse of 1954 Dec 25 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Annular Solar Eclipse of 1954 Dec 25 - interactive map of the eclipse path
- Path Table: Annular Solar Eclipse of 1954 Dec 25 - coordinates of the central line and path limits
- Circumstances Table: Annular Solar Eclipse of 1954 Dec 25 - eclipse times for hundreds of cities
- Saros 131 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Eclipse Data: Annular Solar Eclipse of 1954 Dec 25
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 0.93233 |
| Eclipse Obscuration | 0.86925 |
| Gamma | -0.25762 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 1954 Dec 25 at 07:36:42.4 TD (07:36:11.4 UT1) | 2435101.816798 |
| Ecliptic Conjunction | 1954 Dec 25 at 07:33:39.3 TD (07:33:08.2 UT1) | 2435101.814678 |
| Equatorial Conjunction | 1954 Dec 25 at 07:32:58.2 TD (07:32:27.2 UT1) | 2435101.814204 |
| Geocentric Coordinates of Sun and Moon | ||
| 1954 Dec 25 at 07:36:42.4 TD (07:36:11.4 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 18h12m59.7s | 18h13m07.2s |
| Declination | -23°24'41.6" | -23°38'40.4" |
| Semi-Diameter | 16'15.7" | 14'56.4" |
| Eq. Hor. Parallax | 08.9" | 0°54'49.7" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | -3.4° |
| b | 0.4° |
| c | 0.2° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 31.1 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 131 (47/70) |
Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1954 Dec 25
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 04:35:22.0 | 04:34:51.0 | 15°08.5'S | 014°30.6'E |
| First Internal Contact | P2 | 06:56:43.3 | 06:56:12.2 | 39°48.1'S | 035°14.2'W |
| Last Internal Contact | P3 | 08:16:48.3 | 08:16:17.2 | 27°18.7'S | 158°48.8'E |
| Last External Contact | P4 | 10:37:59.4 | 10:37:28.4 | 02°08.4'S | 111°32.0'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 05:31:26.0 | 05:30:55.0 | 09°40.7'N | 011°27.7'E |
| South Extreme Path Limit 1 | S1 | 06:37:34.9 | 06:37:03.8 | 54°52.2'S | 047°17.2'W |
| North Extreme Path Limit 2 | N2 | 09:41:52.7 | 09:41:21.6 | 22°35.3'N | 114°15.3'E |
| South Extreme Path Limit 2 | S2 | 08:35:59.2 | 08:35:28.2 | 43°42.8'S | 165°33.1'E |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1954 Dec 25
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 05:40:42.2 | 05:40:11.1 | 19°50.6'S | 004°04.8'W |
| First Internal Contact | U2 | 05:46:38.6 | 05:46:07.5 | 20°31.7'S | 005°54.3'W |
| Last Internal Contact | U3 | 09:26:50.4 | 09:26:19.3 | 07°34.2'S | 131°41.3'E |
| Last External Contact | U4 | 09:32:42.2 | 09:32:11.2 | 06°53.2'S | 129°55.3'E |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 05:42:24.8 | 05:41:53.7 | 18°52.8'S | 004°02.0'W |
| South Extreme Path Limit 1 | S1 | 05:44:59.0 | 05:44:27.9 | 21°28.9'S | 005°58.3'W |
| North Extreme Path Limit 2 | N2 | 09:31:00.8 | 09:30:29.7 | 05°55.5'S | 129°55.3'E |
| South Extreme Path Limit 2 | S2 | 09:28:29.0 | 09:27:57.9 | 08°31.6'S | 131°42.0'E |
Central Line Extremes and Duration: Annular Solar Eclipse of 1954 Dec 25
| Extreme Limits of the Central Line | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| Extreme Central Line Limit 1 | C1 | 05:43:40.3 | 05:43:09.2 | 20°10.6'S | 004°59.3'W |
| Extreme Central Line Limit 2 | C2 | 09:29:46.5 | 09:29:15.4 | 07°13.2'S | 130°48.0'E |
Explanation of Central Line Extremes Table
| Greatest Eclipse and Greatest Duration | ||||||||
| Event | Time TD |
Time UT1 |
Latitude | Longitude | Sun Altitude |
Sun Azimuth |
Path Width | Central Duration |
| Greatest Eclipse | 07:36:42.4 | 07:36:11.4 | 38°24.9'S | 068°13.9'E | 74.9° | 351.8° | 262.0 km | 07m39.03s |
| Greatest Duration | 07:29:49.2 | 07:29:18.2 | 38°51.1'S | 065°40.4'E | 74.5° | 6.7° | 261.9 km | 07m39.55s |
Polynomial Besselian Elements: Annular Solar Eclipse of 1954 Dec 25
| Polynomial Besselian Elements | ||||||
| 1954 Dec 25 at 08:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | 0.22925 | -0.23115 | -23.4106 | 0.57064 | 0.02436 | 300.0353 |
| 1 | 0.50889 | 0.06321 | 0.0008 | -0.00009 | -0.00009 | 14.9962 |
| 2 | -0.00002 | 0.00017 | 0.0000 | -0.00001 | -0.00001 | 0.0000 |
| 3 | -0.00001 | -0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0047552 |
| Tan ƒ2 | 0.0047315 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 8.000
