Annular Solar Eclipse of 1952 Aug 20

Fred Espenak

Introduction

The Annular Solar Eclipse of 1952 Aug 20 is visible from the following geographic regions:

Partial Eclipse: Central America, South America
Annular Eclipse: Peru, Chile, Bolivia, Argentina, Uruguay

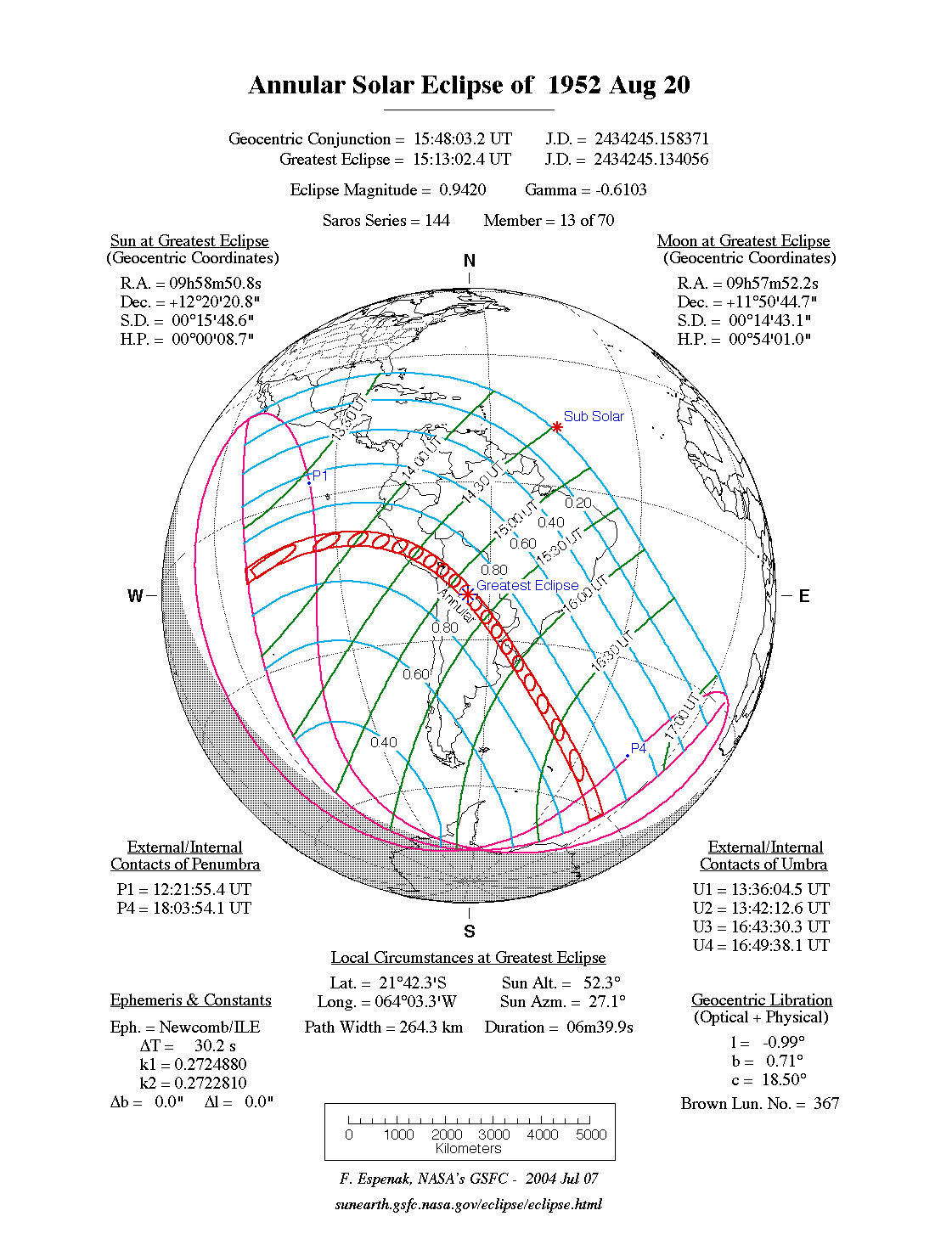

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1952 Aug 20 at 15:13:35 TD (15:13:05 UT1). This is 1.2 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 367.

The eclipse belongs to Saros 144 and is number 13 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1952 Aug 20 is a relatively long annular eclipse with a duration at greatest eclipse of 06m40s. It has an eclipse magnitude of 0.9420.

The annular solar eclipse of 1952 Aug 20 is preceded two weeks earlier by a partial lunar eclipse on 1952 Aug 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 30.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

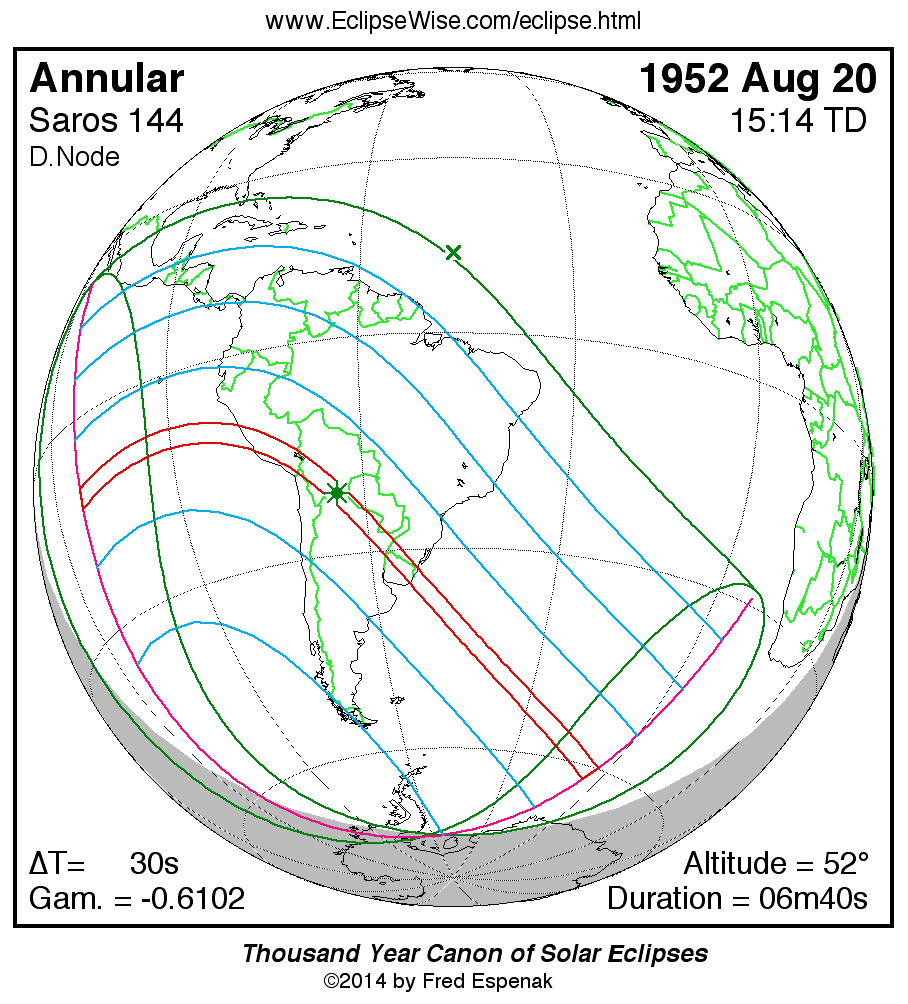

Orthographic Map: Annular Solar Eclipse of 1952 Aug 20 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1952 Aug 20 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1952 Aug 20 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1952 Aug 20 - eclipse times for hundreds of cities
Saros 144 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1952 Aug 20

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.94203
Eclipse Obscuration	0.88742
Gamma	-0.61023

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1952 Aug 20 at 15:13:35.2 TD (15:13:04.9 UT1)	2434245.134085
Ecliptic Conjunction	1952 Aug 20 at 15:20:50.2 TD (15:20:20.0 UT1)	2434245.139120
Equatorial Conjunction	1952 Aug 20 at 15:48:35.8 TD (15:48:05.6 UT1)	2434245.158399

Geocentric Coordinates of Sun and Moon
1952 Aug 20 at 15:13:35.2 TD (15:13:04.9 UT1)
Coordinate	Sun	Moon
Right Ascension	09h58m50.8s	09h57m52.3s
Declination	+12°20'20.6"	+11°50'44.7"
Semi-Diameter	15'48.6"	14'43.1"
Eq. Hor. Parallax	08.7"	0°54'01.0"

Geocentric Libration of Moon
Angle	Value
l	-1.0°
b	0.7°
c	18.5°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	30.2 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	144 (13/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1952 Aug 20

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	12:22:27.8	12:21:57.5	02°49.7'N	095°17.1'W
Last External Contact	P4	18:04:27.3	18:03:57.1	47°28.6'S	013°56.4'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	13:22:29.4	13:21:59.2	22°40.9'N	114°55.9'W
South Extreme Path Limit 1	S1	17:04:40.3	17:04:10.0	27°57.2'S	008°06.8'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1952 Aug 20

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	13:36:36.8	13:36:06.6	10°44.0'S	110°49.5'W
First Internal Contact	U2	13:42:44.8	13:42:14.6	12°30.6'S	111°57.1'W
Last Internal Contact	U3	16:44:03.7	16:43:33.5	61°58.0'S	004°17.8'W
Last External Contact	U4	16:50:11.3	16:49:41.1	60°20.7'S	004°10.0'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	13:38:04.2	13:37:34.0	10°09.9'S	111°19.1'W
South Extreme Path Limit 1	S1	13:41:20.9	13:40:50.7	13°03.6'S	111°28.5'W
North Extreme Path Limit 2	N2	16:48:44.5	16:48:14.3	59°49.4'S	003°18.6'W
South Extreme Path Limit 2	S2	16:45:26.7	16:44:56.5	62°27.8'S	005°11.4'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1952 Aug 20

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	13:39:39.7	13:39:09.4	11°35.9'S	111°23.4'W
Extreme Central Line Limit 2	C2	16:47:08.7	16:46:38.5	61°08.2'S	004°11.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	15:13:35.2	15:13:04.9	21°42.0'S	064°04.0'W	52.3°	27.1°	264.3 km	06m39.88s
Greatest Duration	15:00:09.1	14:59:38.9	18°50.6'S	066°57.1'W	51.5°	37.6°	273.6 km	06m41.21s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1952 Aug 20

Polynomial Besselian Elements
1952 Aug 20 at 15:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.36888	-0.49944	12.3434	0.56671	0.02045	44.1837
1	0.45544	-0.22031	-0.0133	-0.00002	-0.00002	15.0036
2	-0.00001	-0.00004	-0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046227
Tan ƒ2	0.0045997

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 15.000

Explanation of Polynomial Besselian Elements
