Total Solar Eclipse of 1938 May 29

Fred Espenak

Introduction

The Total Solar Eclipse of 1938 May 29 is visible from the following geographic regions:

Partial Eclipse: south South America, south Africa
Total Eclipse: South Atlantic

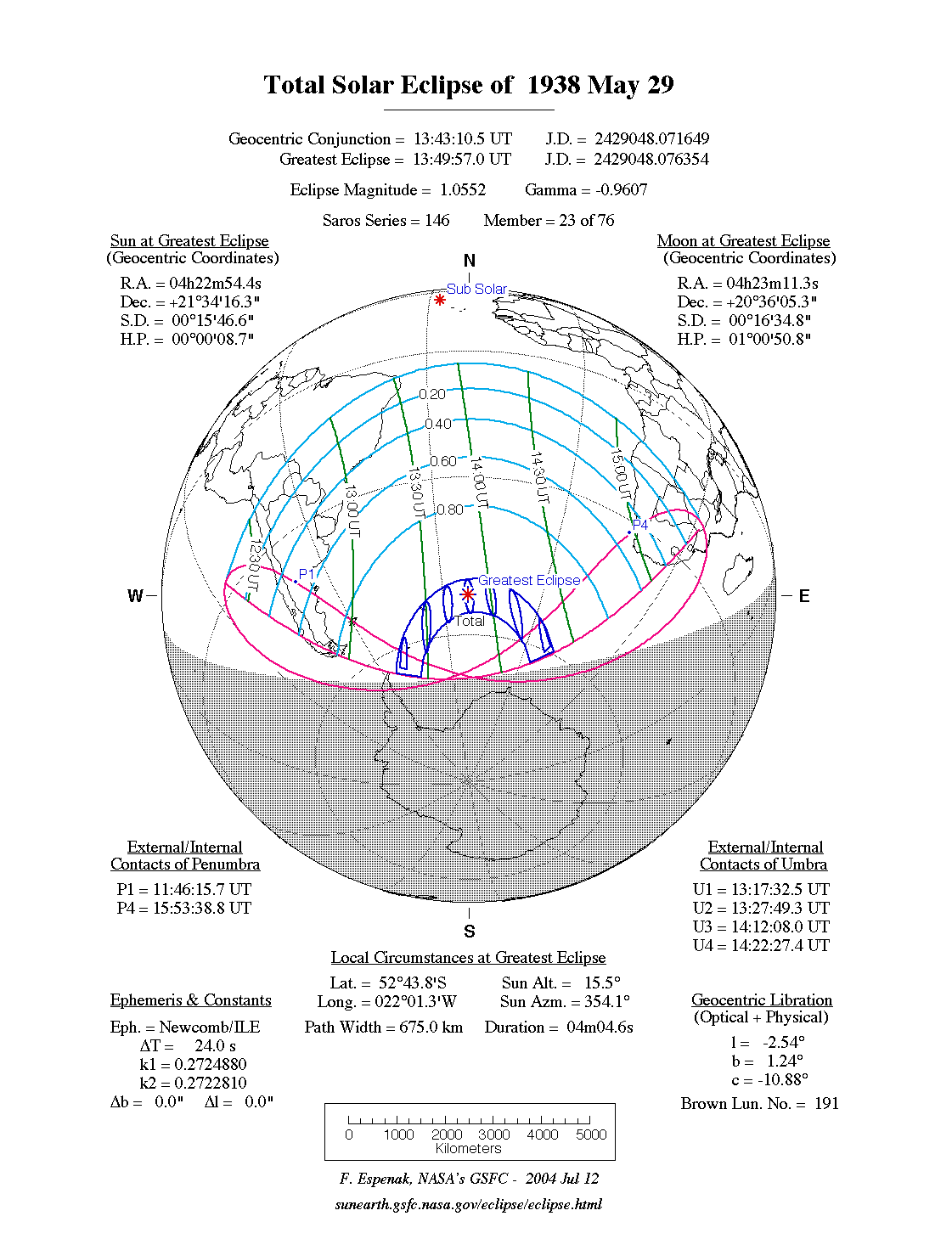

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1938 May 29 at 13:50:18 TD (13:49:55 UT1). This is 1.1 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 191.

The eclipse belongs to Saros 146 and is number 23 of 76 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1938 May 29 is a relatively long total eclipse with a duration at greatest eclipse of 04m05s. It has an eclipse magnitude of 1.0552.

The total solar eclipse of 1938 May 29 is preceded two weeks earlier by a total lunar eclipse on 1938 May 14.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 24.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Total Solar Eclipse of 1938 May 29 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Total Solar Eclipse of 1938 May 29 - interactive map of the eclipse path
Path Table: Total Solar Eclipse of 1938 May 29 - coordinates of the central line and path limits
Circumstances Table: Total Solar Eclipse of 1938 May 29 - eclipse times for hundreds of cities
Saros 146 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Total Solar Eclipse of 1938 May 29

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	1.05523
Eclipse Obscuration	1.11351
Gamma	-0.96068

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1938 May 29 at 13:50:18.5 TD (13:49:54.5 UT1)	2429048.076325
Ecliptic Conjunction	1938 May 29 at 13:59:56.4 TD (13:59:32.5 UT1)	2429048.083015
Equatorial Conjunction	1938 May 29 at 13:43:32.0 TD (13:43:08.1 UT1)	2429048.071621

Geocentric Coordinates of Sun and Moon
1938 May 29 at 13:50:18.5 TD (13:49:54.5 UT1)
Coordinate	Sun	Moon
Right Ascension	04h22m54.3s	04h23m11.2s
Declination	+21°34'16.3"	+20°36'05.3"
Semi-Diameter	15'46.6"	16'34.8"
Eq. Hor. Parallax	08.7"	1°00'50.8"

Geocentric Libration of Moon
Angle	Value
l	-2.5°
b	1.3°
c	-10.9°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	24.0 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	146 (23/76)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1938 May 29

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	11:46:36.9	11:46:12.9	39°17.6'S	068°23.6'W
Last External Contact	P4	15:54:00.6	15:53:36.6	32°20.6'S	016°23.0'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	12:25:43.2	12:25:19.2	27°31.9'S	085°08.7'W
South Extreme Path Limit 1	S1	15:14:54.3	15:14:30.4	20°23.2'S	032°12.9'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1938 May 29

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	13:17:53.5	13:17:29.5	64°26.3'S	054°20.0'W
First Internal Contact	U2	13:28:10.1	13:27:46.1	66°51.4'S	044°59.0'W
Last Internal Contact	U3	14:12:30.3	14:12:06.3	63°09.6'S	004°52.3'E
Last External Contact	U4	14:22:49.5	14:22:25.5	59°40.0'S	011°10.1'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	13:18:11.8	13:17:47.8	64°22.7'S	054°38.0'W
South Extreme Path Limit 1	S1	13:27:57.5	13:27:33.5	66°53.1'S	044°44.5'W
North Extreme Path Limit 2	N2	14:22:31.0	14:22:07.0	59°35.3'S	011°24.6'E
South Extreme Path Limit 2	S2	14:12:42.9	14:12:18.9	63°12.4'S	004°40.5'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1938 May 29

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	13:22:34.9	13:22:10.9	65°38.5'S	050°25.2'W
Extreme Central Line Limit 2	C2	14:18:06.8	14:17:42.8	61°18.6'S	008°35.8'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	13:50:18.5	13:49:54.5	52°43.4'S	022°01.0'W	15.5°	354.1°	674.9 km	04m04.63s
Greatest Duration	13:50:38.6	13:50:14.7	52°42.3'S	021°47.8'W	15.5°	353.8°	675.2 km	04m04.64s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1938 May 29

Polynomial Besselian Elements
1938 May 29 at 14:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.15843	-0.95213	21.5745	0.53303	-0.01306	30.7047
1	0.57730	0.03923	0.0064	-0.00007	-0.00007	15.0002
2	0.00001	-0.00010	-0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	-0.00000	-	-	-	-

Tan ƒ1	0.0046117
Tan ƒ2	0.0045887

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 14.000

Explanation of Polynomial Besselian Elements
