Total Solar Eclipse of 1930 Oct 21

Fred Espenak

Introduction

The Total Solar Eclipse of 1930 Oct 21 is visible from the following geographic regions:

Partial Eclipse: Australia, New Guinea, New Zealand
Total Eclipse: South Pacific

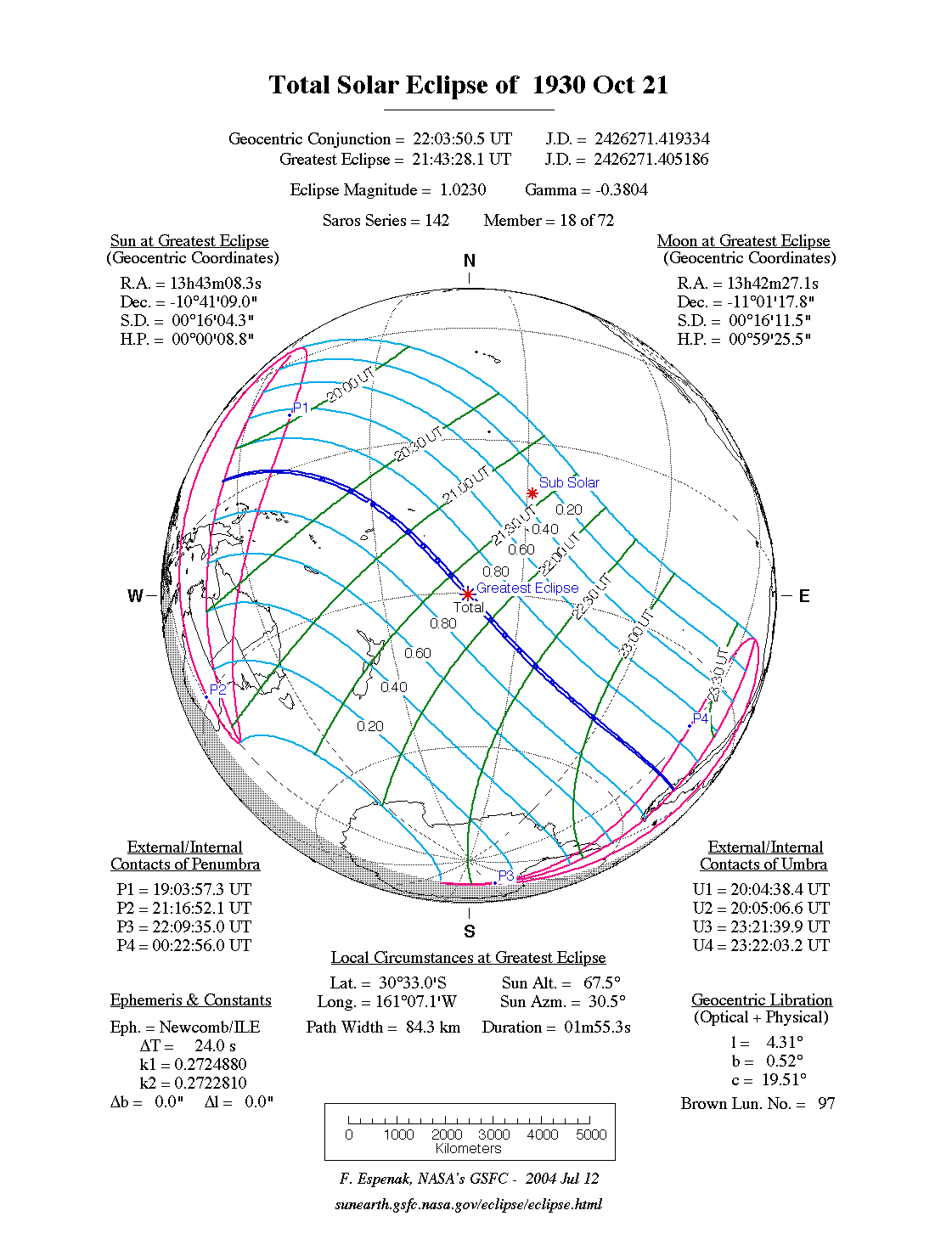

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1930 Oct 21 at 21:43:53 TD (21:43:29 UT1). This is 2.6 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 97.

The eclipse belongs to Saros 142 and is number 18 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total solar eclipse of 1930 Oct 21 is preceded two weeks earlier by a partial lunar eclipse on 1930 Oct 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 24.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Total Solar Eclipse of 1930 Oct 21 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Total Solar Eclipse of 1930 Oct 21 - interactive map of the eclipse path
Path Table: Total Solar Eclipse of 1930 Oct 21 - coordinates of the central line and path limits
Circumstances Table: Total Solar Eclipse of 1930 Oct 21 - eclipse times for hundreds of cities
Saros 142 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Total Solar Eclipse of 1930 Oct 21

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	1.02304
Eclipse Obscuration	1.04660
Gamma	-0.38038

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1930 Oct 21 at 21:43:53.4 TD (21:43:29.5 UT1)	2426271.405202
Ecliptic Conjunction	1930 Oct 21 at 21:47:55.4 TD (21:47:31.4 UT1)	2426271.408002
Equatorial Conjunction	1930 Oct 21 at 22:04:15.8 TD (22:03:51.8 UT1)	2426271.419349

Geocentric Coordinates of Sun and Moon
1930 Oct 21 at 21:43:53.4 TD (21:43:29.5 UT1)
Coordinate	Sun	Moon
Right Ascension	13h43m08.4s	13h42m27.1s
Declination	-10°41'09.2"	-11°01'17.9"
Semi-Diameter	16'04.3"	16'11.5"
Eq. Hor. Parallax	08.8"	0°59'25.5"

Geocentric Libration of Moon
Angle	Value
l	4.3°
b	0.5°
c	19.5°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	24.0 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	142 (18/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1930 Oct 21

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	19:04:22.4	19:03:58.5	12°17.7'N	162°32.5'E
First Internal Contact	P2	21:17:17.4	21:16:53.4	29°38.5'S	120°47.9'E
Last Internal Contact	P3	22:10:00.4	22:09:36.4	77°43.4'S	006°02.8'W
Last External Contact	P4	00:23:21.5	00:22:57.5	40°14.4'S	090°20.8'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	19:53:43.8	19:53:19.8	35°27.6'N	155°33.4'E
South Extreme Path Limit 1	S1	21:05:18.0	21:04:54.0	40°24.7'S	120°43.2'E
North Extreme Path Limit 2	N2	23:34:13.4	23:33:49.4	17°07.7'S	083°56.4'W
South Extreme Path Limit 2	S2	22:21:52.9	22:21:28.9	78°20.0'S	044°39.1'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1930 Oct 21

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	20:05:03.7	20:04:39.7	04°20.0'N	145°50.1'E
First Internal Contact	U2	20:05:31.9	20:05:07.9	04°14.3'N	145°42.0'E
Last Internal Contact	U3	23:22:05.3	23:21:41.3	48°08.4'S	072°03.8'W
Last External Contact	U4	23:22:28.7	23:22:04.7	48°03.8'S	072°11.7'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	20:05:11.5	20:04:47.5	04°24.6'N	145°49.1'E
South Extreme Path Limit 1	S1	20:05:24.2	20:05:00.2	04°09.6'N	145°43.0'E
North Extreme Path Limit 2	N2	23:22:22.3	23:21:58.3	48°00.1'S	072°11.7'W
South Extreme Path Limit 2	S2	23:22:11.7	23:21:47.7	48°12.1'S	072°03.8'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1930 Oct 21

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	20:05:17.8	20:04:53.8	04°17.1'N	145°46.1'E
Extreme Central Line Limit 2	C2	23:22:17.0	23:21:53.0	48°06.1'S	072°07.8'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	21:43:53.4	21:43:29.5	30°32.9'S	161°07.3'W	67.5°	30.5°	84.3 km	01m55.28s
Greatest Duration	21:44:03.4	21:43:39.4	30°35.7'S	161°04.4'W	67.5°	30.3°	84.3 km	01m55.28s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1930 Oct 21

Polynomial Besselian Elements
1930 Oct 21 at 22:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.03573	-0.40773	-10.6889	0.54435	-0.00180	153.8223
1	0.50295	-0.25264	-0.0142	0.00010	0.00010	15.0029
2	0.00002	0.00009	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046984
Tan ƒ2	0.0046750

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 22.000

Explanation of Polynomial Besselian Elements
