Annular Solar Eclipse of 1923 Mar 17

Fred Espenak

Introduction

The Annular Solar Eclipse of 1923 Mar 17 is visible from the following geographic regions:

Partial Eclipse: south South America, south Africa, Antarctica
Annular Eclipse: Chile, Argentina, Nambia, Botswana, Zimbabwe, Mozambique, Madagascar

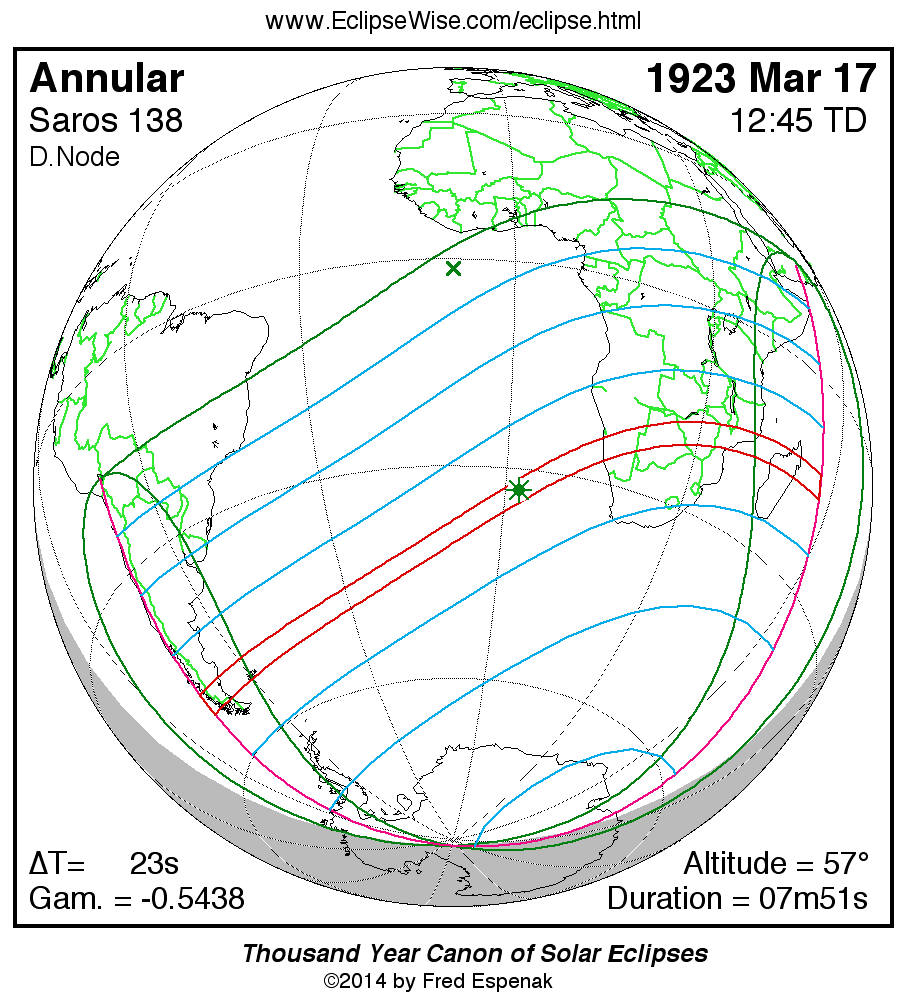

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1923 Mar 17 at 12:44:58 TD (12:44:35 UT1). This is 2.3 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Pisces. The synodic month in which the eclipse takes place has a Brown Lunation Number of 3.

The eclipse belongs to Saros 138 and is number 26 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1923 Mar 17 is a relatively long annular eclipse with a duration at greatest eclipse of 07m51s. It has an eclipse magnitude of 0.9310.

The annular solar eclipse of 1923 Mar 17 is preceded two weeks earlier by a partial lunar eclipse on 1923 Mar 03.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 23.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

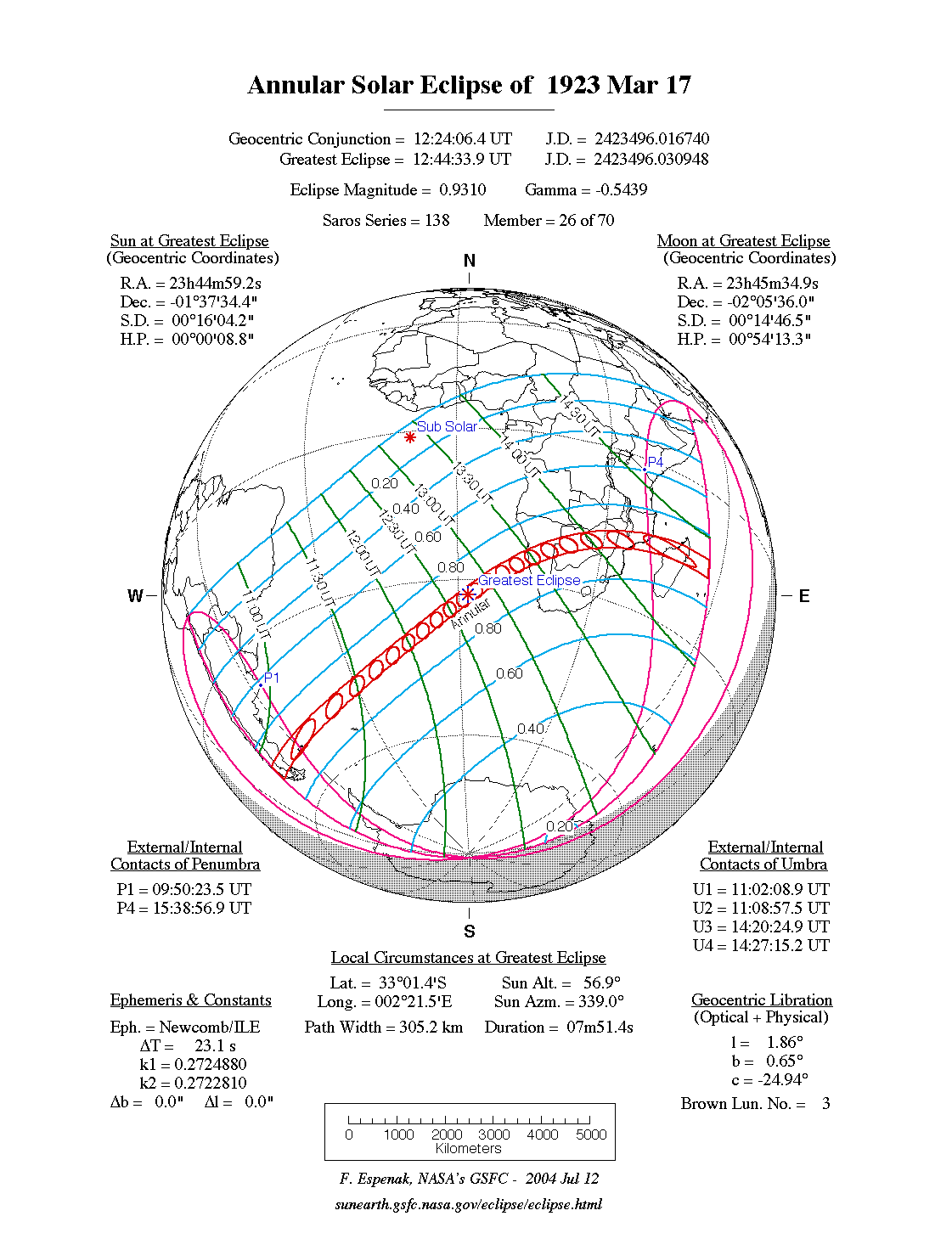

Orthographic Map: Annular Solar Eclipse of 1923 Mar 17 - detailed global map of eclipse visibility (Key to Figure)
Google Map: Annular Solar Eclipse of 1923 Mar 17 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1923 Mar 17 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1923 Mar 17 - eclipse times for hundreds of cities
Saros 138 Table - data for all eclipses in the Saros series

Additional Tables and Data - for this event

Eclipse Data: Annular Solar Eclipse of 1923 Mar 17

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.93100
Eclipse Obscuration	0.86676
Gamma	-0.54381

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1923 Mar 17 at 12:44:57.7 TD (12:44:34.6 UT1)	2423496.030956
Ecliptic Conjunction	1923 Mar 17 at 12:51:27.3 TD (12:51:04.2 UT1)	2423496.035466
Equatorial Conjunction	1923 Mar 17 at 12:24:30.3 TD (12:24:07.2 UT1)	2423496.016750

Geocentric Coordinates of Sun and Moon
1923 Mar 17 at 12:44:57.7 TD (12:44:34.6 UT1)
Coordinate	Sun	Moon
Right Ascension	23h44m59.2s	23h45m34.9s
Declination	-01°37'34.5"	-02°05'35.9"
Semi-Diameter	16'04.2"	14'46.5"
Eq. Hor. Parallax	08.8"	0°54'13.4"

Geocentric Libration of Moon
Angle	Value
l	1.8°
b	0.7°
c	-24.9°

Prediction Parameters
Paramater	Value
Ephemerides	JPL DE405
ΔT	23.1 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	138 (26/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1923 Mar 17

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	09:50:46.8	09:50:23.7	38°04.3'S	056°43.1'W
Last External Contact	P4	15:39:20.9	15:38:57.8	02°37.9'S	037°30.0'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	10:45:31.3	10:45:08.2	16°12.5'S	069°34.7'W
South Extreme Path Limit 1	S1	14:44:22.0	14:43:58.8	19°16.6'N	050°37.0'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1923 Mar 17

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	11:02:32.4	11:02:09.3	49°56.0'S	075°19.1'W
First Internal Contact	U2	11:09:20.9	11:08:57.8	51°43.9'S	077°09.0'W
Last Internal Contact	U3	14:20:49.0	14:20:25.9	16°20.2'S	057°32.0'E
Last External Contact	U4	14:27:39.2	14:27:16.1	14°31.5'S	055°46.1'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	11:04:04.8	11:03:41.7	49°10.4'S	075°39.1'W
South Extreme Path Limit 1	S1	11:07:52.9	11:07:29.8	52°28.1'S	076°50.3'W
North Extreme Path Limit 2	N2	14:26:06.0	14:25:42.9	13°45.4'S	056°08.0'E
South Extreme Path Limit 2	S2	14:22:18.0	14:21:54.9	17°05.1'S	057°11.1'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1923 Mar 17

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	11:05:55.6	11:05:32.5	50°48.4'S	076°13.6'W
Extreme Central Line Limit 2	C2	14:24:15.1	14:23:52.0	15°24.3'S	056°38.7'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	12:44:57.7	12:44:34.6	33°01.2'S	002°21.2'E	56.9°	339.0°	305.2 km	07m51.30s
Greatest Duration	12:44:57.5	12:44:34.4	33°01.2'S	002°21.2'E	56.9°	339.0°	305.2 km	07m51.30s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1923 Mar 17

Polynomial Besselian Elements
1923 Mar 17 at 13:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.28584	-0.47976	-1.6209	0.57045	0.02417	12.8227
1	0.48318	0.15361	0.0161	0.00004	0.00004	15.0042
2	-0.00002	0.00003	0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	-0.00000	-	-	-	-

Tan ƒ1	0.0046991
Tan ƒ2	0.0046757

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 13.000

Explanation of Polynomial Besselian Elements
