Solar Eclipse Prime Page
Partial Solar Eclipse of 1920 May 18
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Partial Solar Eclipse of 1920 May 18 is visible from the following geographic regions:
- Partial Eclipse: Australia, Antarctica, south Indian Ocean

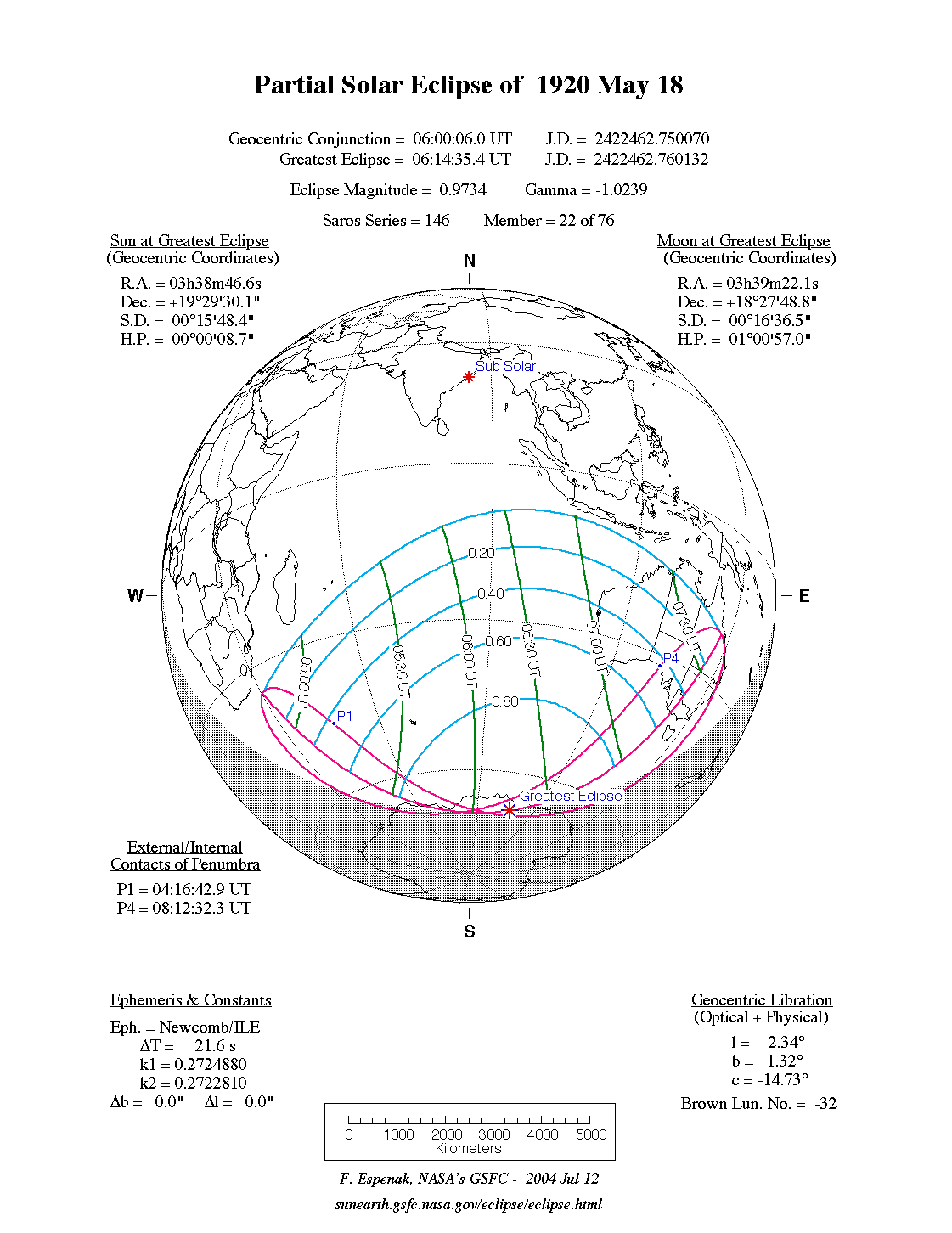

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 1920 May 18 at 06:14:55 TD (06:14:33 UT1). This is 1.0 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -32.
The eclipse belongs to Saros 146 and is number 22 of 76 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.
This is a very deep partial eclipse. It has an eclipse magnitude of 0.9734, while Gamma has a value of -1.0239.
The partial solar eclipse of 1920 May 18 is preceded two weeks earlier by a total lunar eclipse on 1920 May 03.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 21.6 seconds for this eclipse.
The following links provide maps and data for the eclipse.
- Orthographic Map: Partial Solar Eclipse of 1920 May 18 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Partial Solar Eclipse of 1920 May 18 - interactive map of the eclipse path
- Circumstances Table: Partial Solar Eclipse of 1920 May 18 - eclipse times for hundreds of cities
- Saros 146 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Eclipse Data: Partial Solar Eclipse of 1920 May 18
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 0.97341 |
| Eclipse Obscuration | 0.97587 |
| Gamma | -1.02391 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 1920 May 18 at 06:14:55.0 TD (06:14:33.4 UT1) | 2422462.760109 |
| Ecliptic Conjunction | 1920 May 18 at 06:25:08.5 TD (06:24:47.0 UT1) | 2422462.767210 |
| Equatorial Conjunction | 1920 May 18 at 06:00:25.5 TD (06:00:04.0 UT1) | 2422462.750046 |
| Geocentric Coordinates of Sun and Moon | ||
| 1920 May 18 at 06:14:55.0 TD (06:14:33.4 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 03h38m46.6s | 03h39m22.1s |
| Declination | +19°29'30.0" | +18°27'48.5" |
| Semi-Diameter | 15'48.4" | 16'36.5" |
| Eq. Hor. Parallax | 08.7" | 1°00'57.1" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | -2.4° |
| b | 1.4° |
| c | -14.7° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 21.6 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 146 (22/76) |
Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 1920 May 18
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 04:17:02.5 | 04:16:40.9 | 46°10.4'S | 046°30.9'E |
| Last External Contact | P4 | 08:12:51.9 | 08:12:30.3 | 32°06.7'S | 133°05.1'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 04:52:47.9 | 04:52:26.4 | 35°13.7'S | 030°25.3'E |
| South Extreme Path Limit 1 | S1 | 07:37:05.6 | 07:36:44.1 | 20°46.2'S | 147°09.4'E |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Polynomial Besselian Elements: Partial Solar Eclipse of 1920 May 18
| Polynomial Besselian Elements | ||||||
| 1920 May 18 at 06:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | -0.00407 | -1.03400 | 19.4919 | 0.53310 | -0.01299 | 270.9368 |
| 1 | 0.57422 | 0.07854 | 0.0090 | -0.00005 | -0.00005 | 15.0011 |
| 2 | 0.00003 | -0.00007 | -0.0000 | -0.00001 | -0.00001 | -0.0000 |
| 3 | -0.00001 | -0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0046205 |
| Tan ƒ2 | 0.0045975 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 6.000
