Total Solar Eclipse of 1904 Sep 09
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Total Solar Eclipse of 1904 Sep 09 is visible from the following geographic regions:
- Partial Eclipse: Atlantic, northwest South America
- Total Eclipse: central Atlantic, Chile

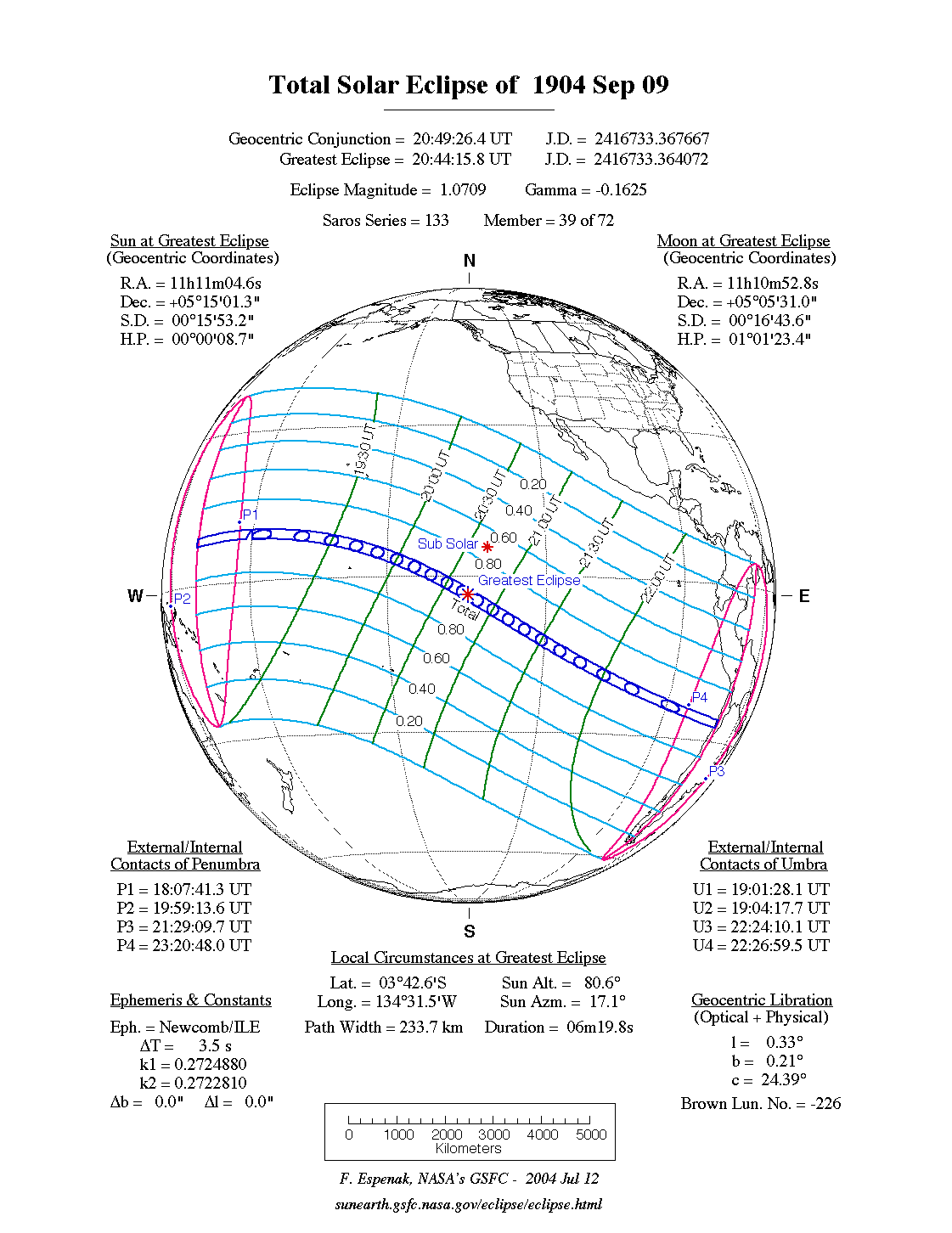

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 1904 Sep 09 at 20:44:21 TD (20:44:17 UT1). This is 0.1 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -226.
The eclipse belongs to Saros 133 and is number 39 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.
The solar eclipse of 1904 Sep 09 is an exceptionally long total eclipse with a duration at greatest eclipse of 06m20s. It has an eclipse magnitude of 1.0709.
The total solar eclipse of 1904 Sep 09 is followed two weeks later by a penumbral lunar eclipse on 1904 Sep 24.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3.4 seconds for this eclipse.
The following links provide maps and data for the eclipse.

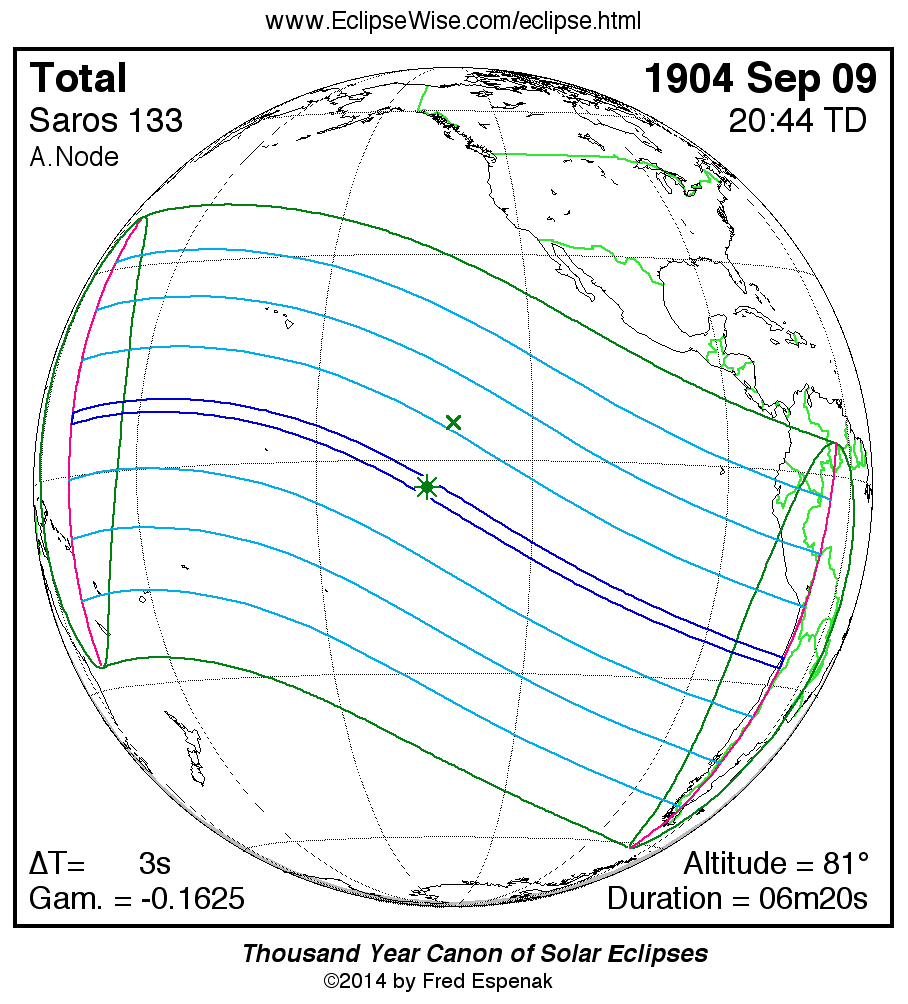

- Orthographic Map: Total Solar Eclipse of 1904 Sep 09 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Total Solar Eclipse of 1904 Sep 09 - interactive map of the eclipse path
- Path Table: Total Solar Eclipse of 1904 Sep 09 - coordinates of the central line and path limits
- Circumstances Table: Total Solar Eclipse of 1904 Sep 09 - eclipse times for hundreds of cities
- Saros 133 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Eclipse Data: Total Solar Eclipse of 1904 Sep 09
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 1.07094 |
| Eclipse Obscuration | 1.14691 |
| Gamma | -0.16252 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 1904 Sep 09 at 20:44:20.7 TD (20:44:17.3 UT1) | 2416733.364089 |
| Ecliptic Conjunction | 1904 Sep 09 at 20:42:41.4 TD (20:42:38.0 UT1) | 2416733.362940 |
| Equatorial Conjunction | 1904 Sep 09 at 20:49:31.5 TD (20:49:28.0 UT1) | 2416733.367685 |
| Geocentric Coordinates of Sun and Moon | ||
| 1904 Sep 09 at 20:44:20.7 TD (20:44:17.3 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 11h11m04.6s | 11h10m52.8s |
| Declination | +05°15'01.3" | +05°05'30.9" |
| Semi-Diameter | 15'53.2" | 16'43.6" |
| Eq. Hor. Parallax | 08.7" | 1°01'23.4" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | 0.4° |
| b | 0.2° |
| c | 24.4° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 3.4 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 133 (39/72) |
Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1904 Sep 09
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 18:07:46.2 | 18:07:42.7 | 11°09.5'N | 176°20.7'E |
| First Internal Contact | P2 | 19:59:18.7 | 19:59:15.3 | 03°07.6'S | 149°47.1'E |
| Last Internal Contact | P3 | 21:29:14.6 | 21:29:11.1 | 37°38.0'S | 057°02.9'W |
| Last External Contact | P4 | 23:20:53.1 | 23:20:49.7 | 23°21.7'S | 083°10.3'W |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 19:10:59.8 | 19:10:56.4 | 38°56.3'N | 157°18.0'E |
| South Extreme Path Limit 1 | S1 | 19:28:46.3 | 19:28:42.8 | 26°51.1'S | 159°48.6'E |
| North Extreme Path Limit 2 | N2 | 22:17:52.7 | 22:17:49.2 | 04°28.5'N | 064°44.8'W |
| South Extreme Path Limit 2 | S2 | 21:59:34.9 | 21:59:31.4 | 61°06.6'S | 070°07.9'W |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1904 Sep 09
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 19:01:33.0 | 19:01:29.6 | 08°01.0'N | 163°11.8'E |
| First Internal Contact | U2 | 19:04:22.7 | 19:04:19.2 | 07°45.6'N | 162°30.8'E |
| Last Internal Contact | U3 | 22:24:15.2 | 22:24:11.7 | 26°45.3'S | 069°23.6'W |
| Last External Contact | U4 | 22:27:04.6 | 22:27:01.2 | 26°30.0'S | 070°04.2'W |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 19:02:48.3 | 19:02:44.9 | 08°40.6'N | 162°49.2'E |
| South Extreme Path Limit 1 | S1 | 19:03:08.9 | 19:03:05.4 | 07°05.9'N | 162°53.0'E |
| North Extreme Path Limit 2 | N2 | 22:25:49.7 | 22:25:46.3 | 25°50.4'S | 069°41.0'W |
| South Extreme Path Limit 2 | S2 | 22:25:28.5 | 22:25:25.1 | 27°24.8'S | 069°46.5'W |
Central Line Extremes and Duration: Total Solar Eclipse of 1904 Sep 09
| Extreme Limits of the Central Line | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| Extreme Central Line Limit 1 | C1 | 19:02:57.8 | 19:02:54.4 | 07°53.4'N | 162°51.3'E |
| Extreme Central Line Limit 2 | C2 | 22:25:39.9 | 22:25:36.4 | 26°37.6'S | 069°43.9'W |
Explanation of Central Line Extremes Table
| Greatest Eclipse and Greatest Duration | ||||||||
| Event | Time TD |
Time UT1 |
Latitude | Longitude | Sun Altitude |
Sun Azimuth |
Path Width | Central Duration |
| Greatest Eclipse | 20:44:20.7 | 20:44:17.3 | 03°42.6'S | 134°31.8'W | 80.6° | 17.1° | 233.7 km | 06m19.83s |
| Greatest Duration | 20:42:32.1 | 20:42:28.6 | 03°24.6'S | 135°02.7'W | 80.6° | 23.3° | 233.8 km | 06m19.88s |
Polynomial Besselian Elements: Total Solar Eclipse of 1904 Sep 09
| Polynomial Besselian Elements | ||||||
| 1904 Sep 09 at 21:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | 0.09738 | -0.20036 | 5.2467 | 0.53256 | -0.01353 | 135.6949 |
| 1 | 0.55773 | -0.17297 | -0.0153 | -0.00000 | -0.00000 | 15.0049 |
| 2 | -0.00002 | -0.00002 | -0.0000 | -0.00001 | -0.00001 | 0.0000 |
| 3 | -0.00001 | 0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0046437 |
| Tan ƒ2 | 0.0046206 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 21.000
