Annular Solar Eclipse of 1677 May 31

Fred Espenak

Introduction

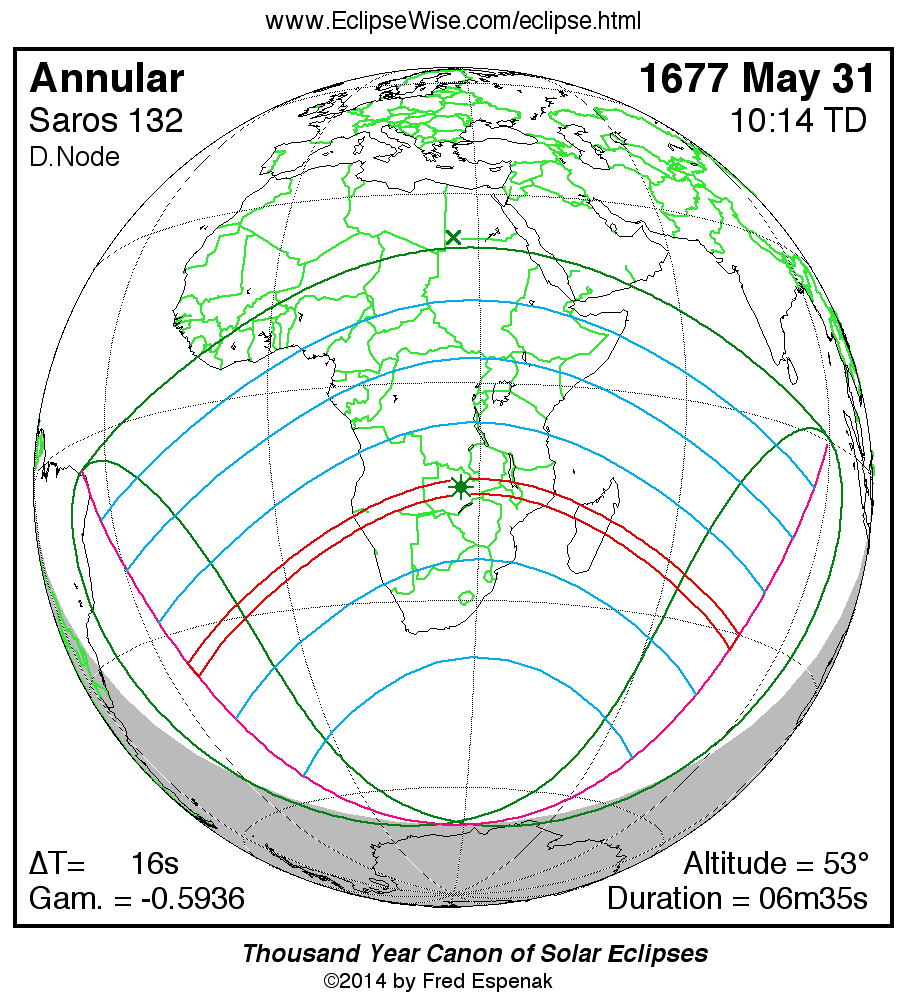

The Annular Solar Eclipse of 1677 May 31 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1677 May 31 at 10:13:52 TD (10:13:36 UT1). This is 2.7 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -3037.

The eclipse belongs to Saros 132 and is number 27 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1677 May 31 is a relatively long annular eclipse with a duration at greatest eclipse of 06m35s. It has an eclipse magnitude of 0.9510.

The annular solar eclipse of 1677 May 31 is preceded two weeks earlier by a partial lunar eclipse on 1677 May 17.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 16.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Annular Solar Eclipse of 1677 May 31 - global map of eclipse visibility
Google Map: Annular Solar Eclipse of 1677 May 31 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1677 May 31 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1677 May 31 - eclipse times for hundreds of cities
Saros 132 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1677 May 31 .

Eclipse Data: Annular Solar Eclipse of 1677 May 31

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.95096
Eclipse Obscuration	0.90432
Gamma	-0.59353

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1677 May 31 at 10:13:52.5 TD (10:13:36.4 UT1)	2333722.926115
Ecliptic Conjunction	1677 May 31 at 10:20:53.1 TD (10:20:36.9 UT1)	2333722.930983
Equatorial Conjunction	1677 May 31 at 10:10:43.3 TD (10:10:27.2 UT1)	2333722.923925

Geocentric Coordinates of Sun and Moon
1677 May 31 at 10:13:52.5 TD (10:13:36.4 UT1)
Coordinate	Sun	Moon
Right Ascension	04h34m53.4s	04h34m59.6s
Declination	+22°02'14.5"	+21°30'06.7"
Semi-Diameter	15'45.4"	14'48.3"
Eq. Hor. Parallax	08.7"	0°54'20.1"

Geocentric Libration of Moon
Angle	Value
l	2.3°
b	0.7°
c	-9.8°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE406
ΔT	16.1 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	132 (27/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1677 May 31

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	07:23:38.2	07:23:22.1	23°07.2'S	011°37.6'W
Last External Contact	P4	13:04:11.4	13:03:55.2	18°21.4'S	065°33.9'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	08:28:48.0	08:28:31.9	04°33.3'S	036°00.9'W
South Extreme Path Limit 1	S1	11:58:57.4	11:58:41.3	00°16.3'N	089°42.7'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1677 May 31

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	08:36:44.0	08:36:27.8	35°14.1'S	023°14.4'W
First Internal Contact	U2	08:41:54.9	08:41:38.8	36°33.9'S	023°40.5'W
Last Internal Contact	U3	11:45:51.1	11:45:35.0	31°56.8'S	078°14.8'E
Last External Contact	U4	11:51:05.0	11:50:48.8	30°35.0'S	077°43.1'E

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	08:38:10.9	08:37:54.8	34°47.3'S	023°52.9'W
South Extreme Path Limit 1	S1	08:40:30.6	08:40:14.5	36°59.8'S	023°02.4'W
North Extreme Path Limit 2	N2	11:49:37.1	11:49:21.0	30°07.7'S	078°20.4'E
South Extreme Path Limit 2	S2	11:47:16.3	11:47:00.2	32°23.2'S	077°38.1'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1677 May 31

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	08:39:18.6	08:39:02.5	35°53.1'S	023°28.1'W
Extreme Central Line Limit 2	C2	11:48:28.8	11:48:12.7	31°15.0'S	077°59.5'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	10:13:52.5	10:13:36.4	14°26.2'S	027°23.1'E	53.5°	357.5°	223.2 km	06m35.47s
Greatest Duration	10:16:31.7	10:16:15.6	14°23.3'S	028°07.3'E	53.5°	355.5°	223.5 km	06m35.56s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1677 May 31

Polynomial Besselian Elements
1677 May 31 at 10:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.09097	-0.59825	22.0375	0.56401	0.01776	330.7295
1	0.50909	0.02303	0.0057	0.00006	0.00006	14.9998
2	0.00000	-0.00011	-0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	-0.00000	-	-	-	-

Tan ƒ1	0.0046074
Tan ƒ2	0.0045844

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 10.000

Explanation of Polynomial Besselian Elements
