Saros 116

Panorama of Lunar Eclipses of Saros 116

Fred Espenak

Introduction

A lunar eclipse occurs whenever the Moon passes through Earth's shadow. At least two lunar eclipses and as many as five occur every year.

The periodicity and recurrence of lunar eclipses is governed by the Saros cycle, a period of approximately 6,585.3 days (18 years 11 days 8 hours). When two eclipses are separated by a period of one Saros, they share a very similar geometry. The two eclipses occur at the same node with the Moon at nearly the same distance from Earth and the same time of year due to a harmonic in three cycles of the Moon's orbit. Thus, the Saros is useful for organizing eclipses into families or series. Each series typically lasts 12 to 15 centuries and contains about 70 to 80 eclipses. Every saros series begins with a number of penumbral lunar eclipses. The series will then produce several dozen partial eclipses, followed by several dozen total eclipses. The later portion of the series produces another set of partial eclipses before ending with a final group of penumbral eclipses. The exact numbers vary from one series to the next, but the overall sequence remains the same. For more information, see Periodicity of Lunar Eclipses.

Panorama of Lunar Eclipses of Saros 116

A panorama of all lunar eclipses belonging to Saros 116 is presented here. Each figure shows the Moon's path with respect to Earth's penumbral and umbral shadows. Below the path is a map depicting the geographic region of visibility for the eclipse. The date and time are given for the instant of Greatest Eclipse. Every figure serves as a hyperlink to the EclipseWise Prime page for that eclipse with a larger figure and complete details for the eclipse. Visit the Key to Lunar Eclipse Figures for a detailed explanation of these diagrams. Near the bottom of this page are a series of hyperlinks for more on lunar eclipses.

The exeligmos is a period of three Saros cycles and is equal to approximately 54 years 33 days. Because it is nearly an integral number of days in length, two eclipses separated by 1 exeligmos (= 3 Saroses) not only share all the characterists of a Saros, but also take place in approximately the same geographic location.

The Saros panorama below is arranged in horizontal rows of 3 eclipses. So one eclipse to the left or right is a difference of 1 Saros cycle, and one eclipse above or below is a difference of 1 exeligmos. By scanning a column of the table, it reveals how the geographic visibility of eclipses separated by an exeligmos slowly changes.

  • Click on any figure to go directly to the EclipseWise Prime Page for more information, tables, diagrams and maps. Key to Lunar Eclipse Figures explains the features in these diagrams.

For more information on this series see Statistics for Lunar Eclipses of Saros 116 .

Panorama of Lunar Eclipses of Saros 116
Penumbral Lunar Eclipse
0993 Mar 11

Penumbral Lunar Eclipse
1011 Mar 22

Penumbral Lunar Eclipse

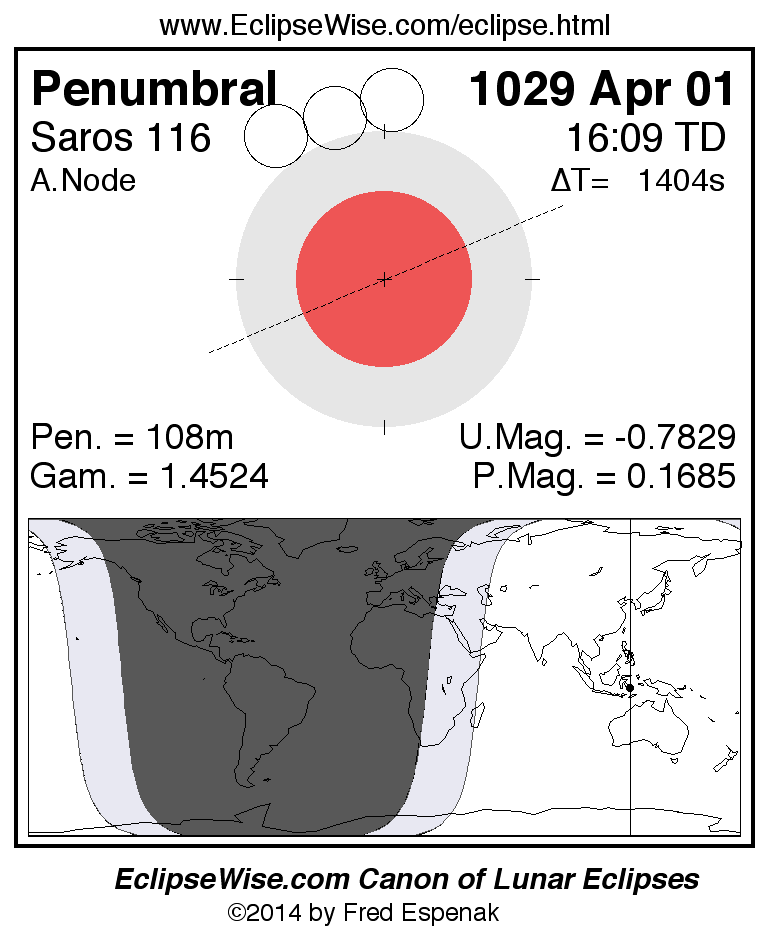

1029 Apr 01

Penumbral Lunar Eclipse
1047 Apr 13

Penumbral Lunar Eclipse

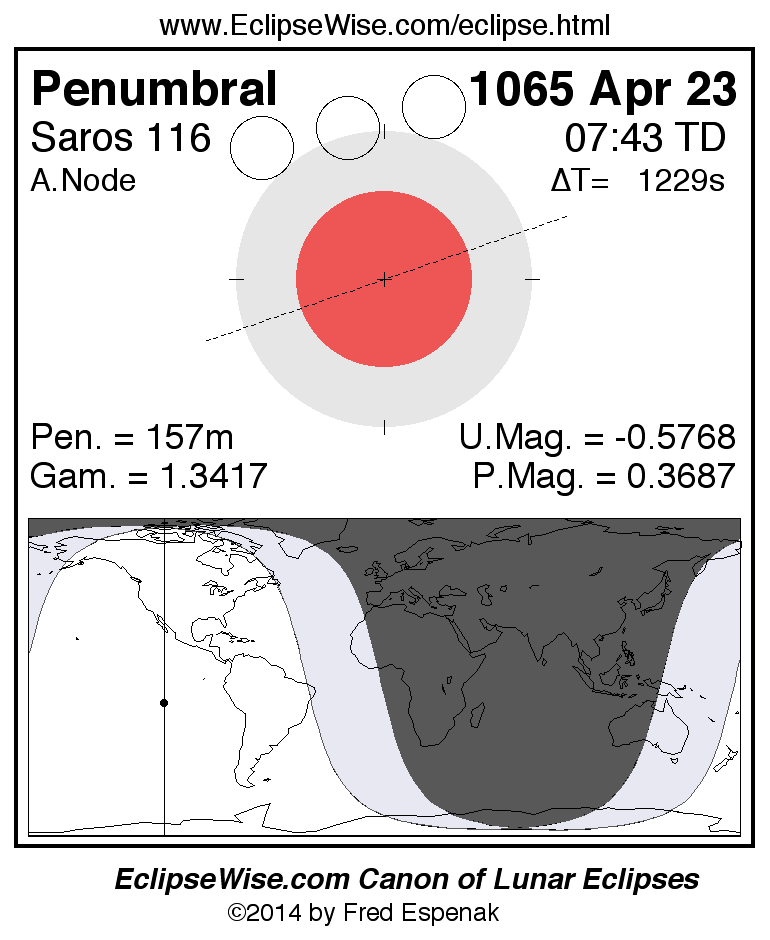

1065 Apr 23

Penumbral Lunar Eclipse
1083 May 04

Penumbral Lunar Eclipse

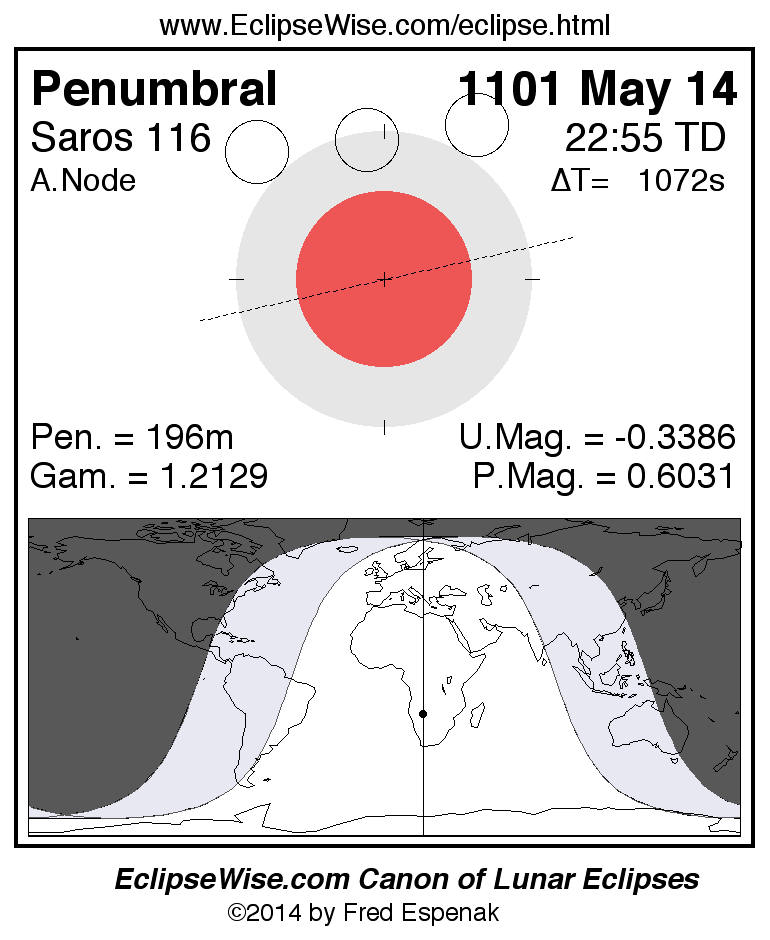

1101 May 14

Penumbral Lunar Eclipse
1119 May 26

Penumbral Lunar Eclipse
1137 Jun 05

Partial Lunar Eclipse

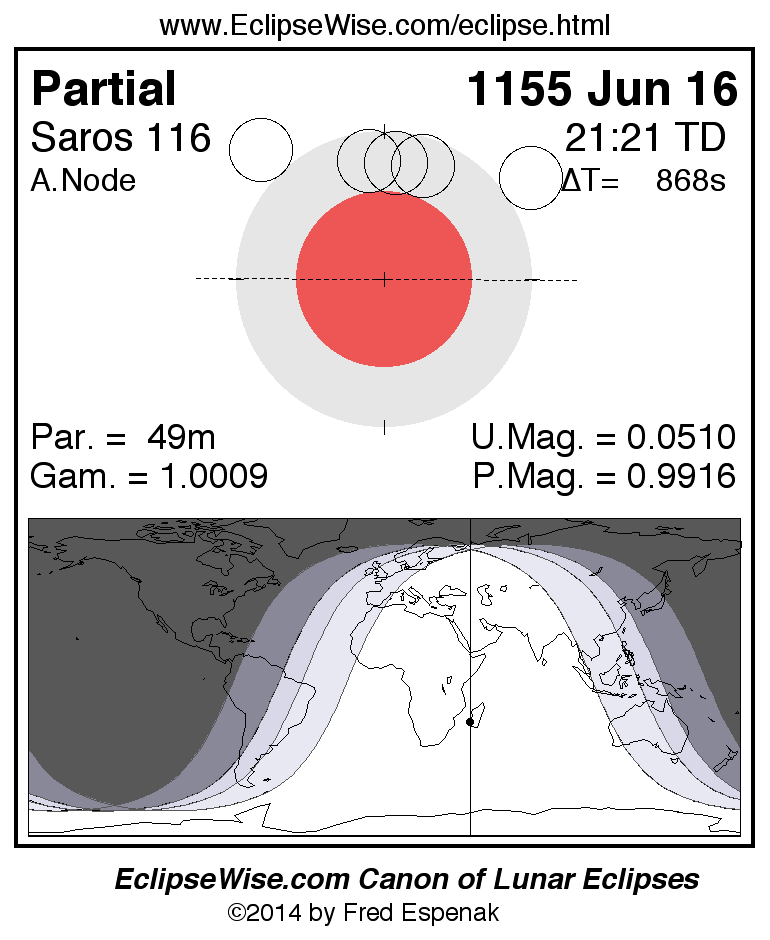

1155 Jun 16

Partial Lunar Eclipse

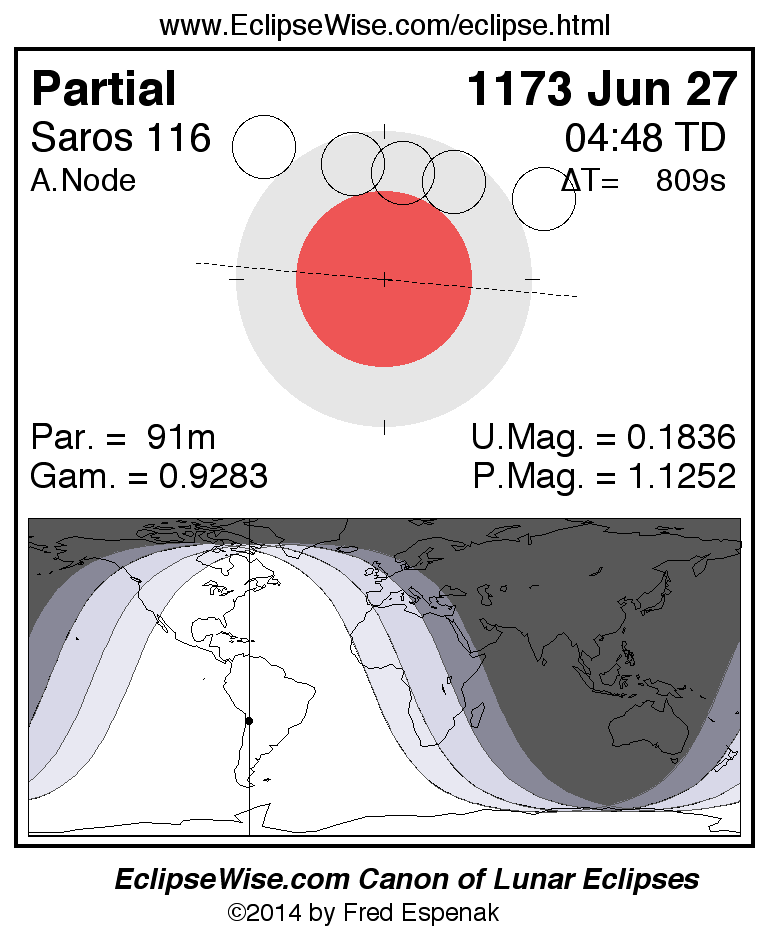

1173 Jun 27

Partial Lunar Eclipse

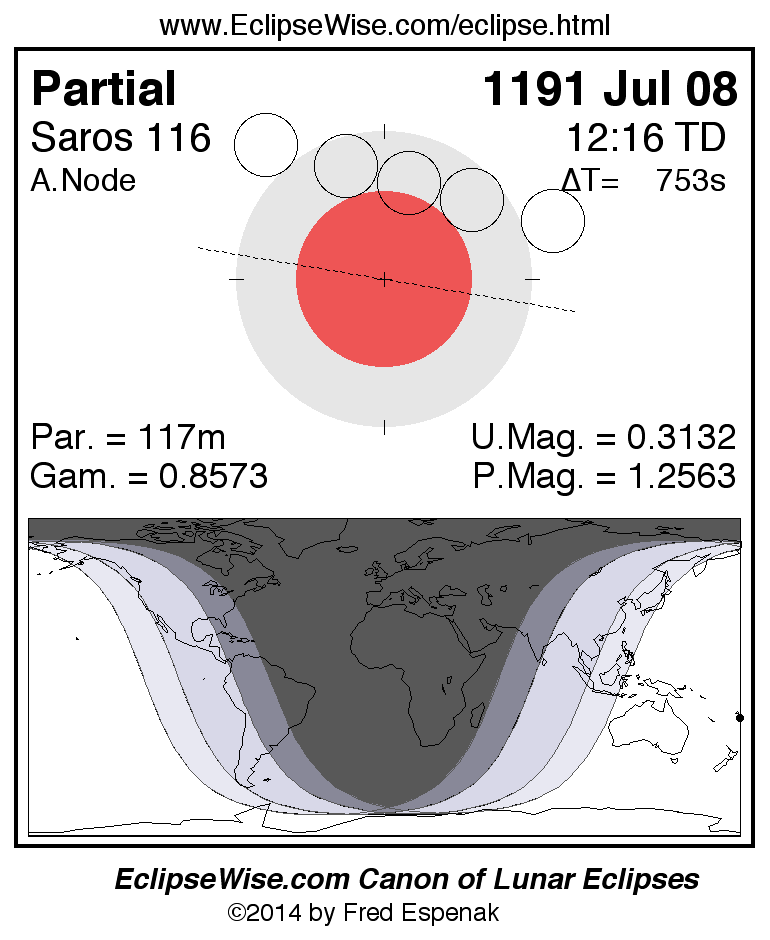

1191 Jul 08

Partial Lunar Eclipse

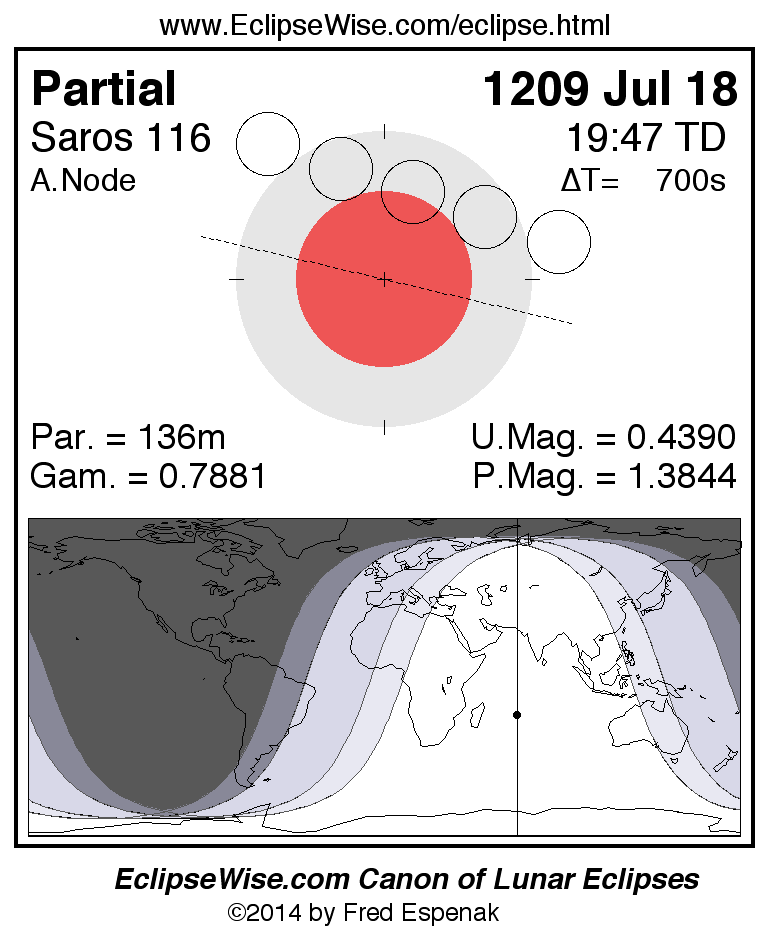

1209 Jul 18

Partial Lunar Eclipse

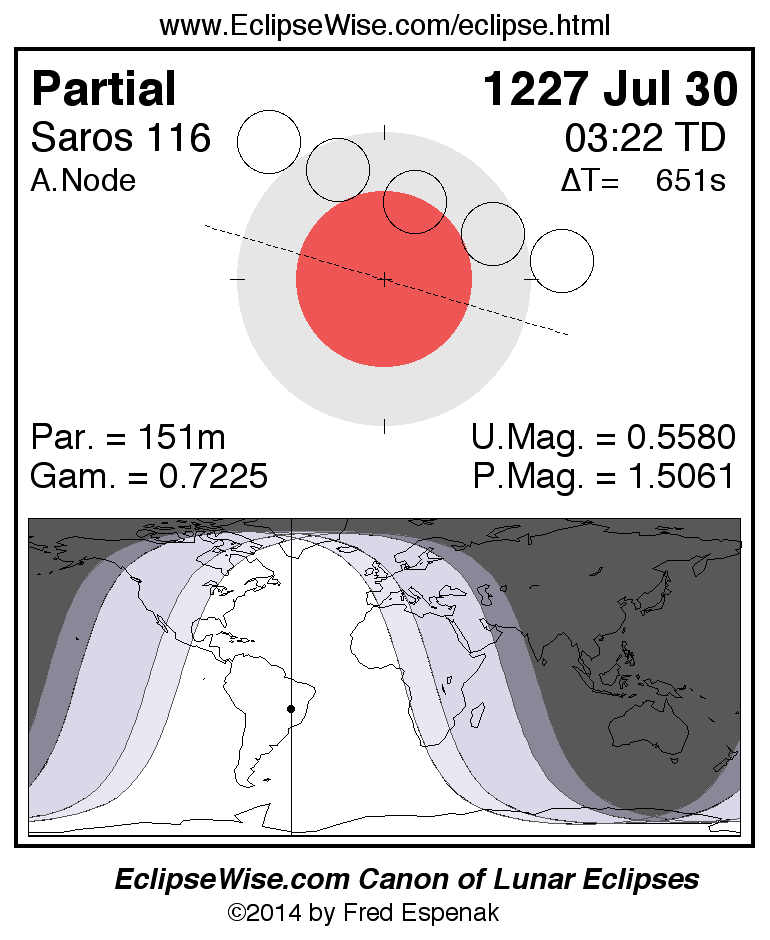

1227 Jul 30

Partial Lunar Eclipse

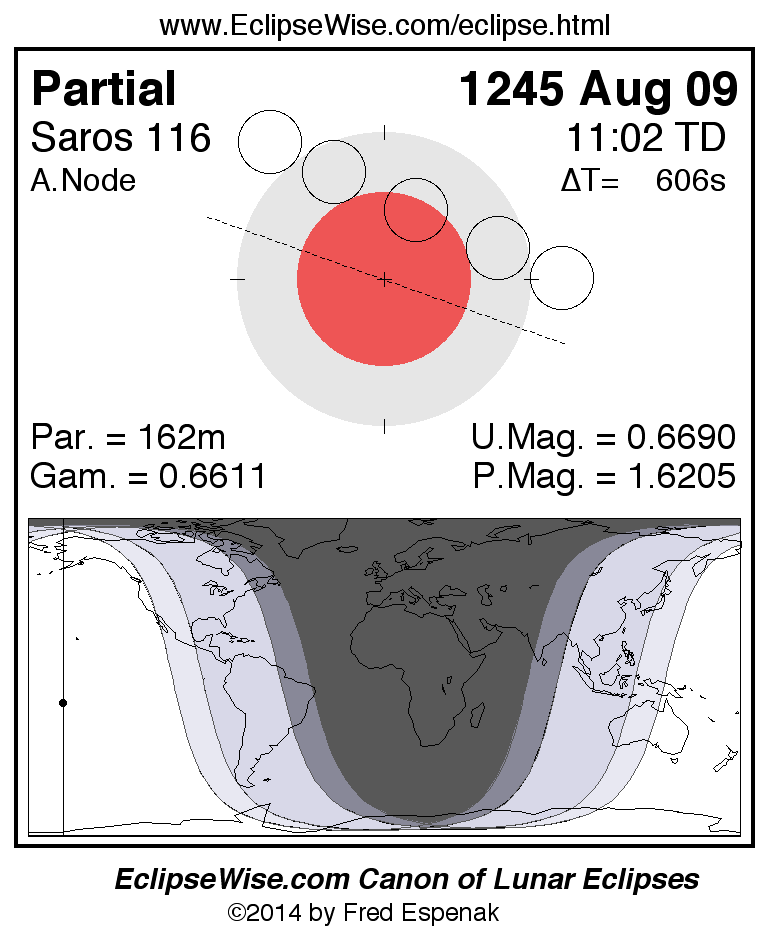

1245 Aug 09

Partial Lunar Eclipse

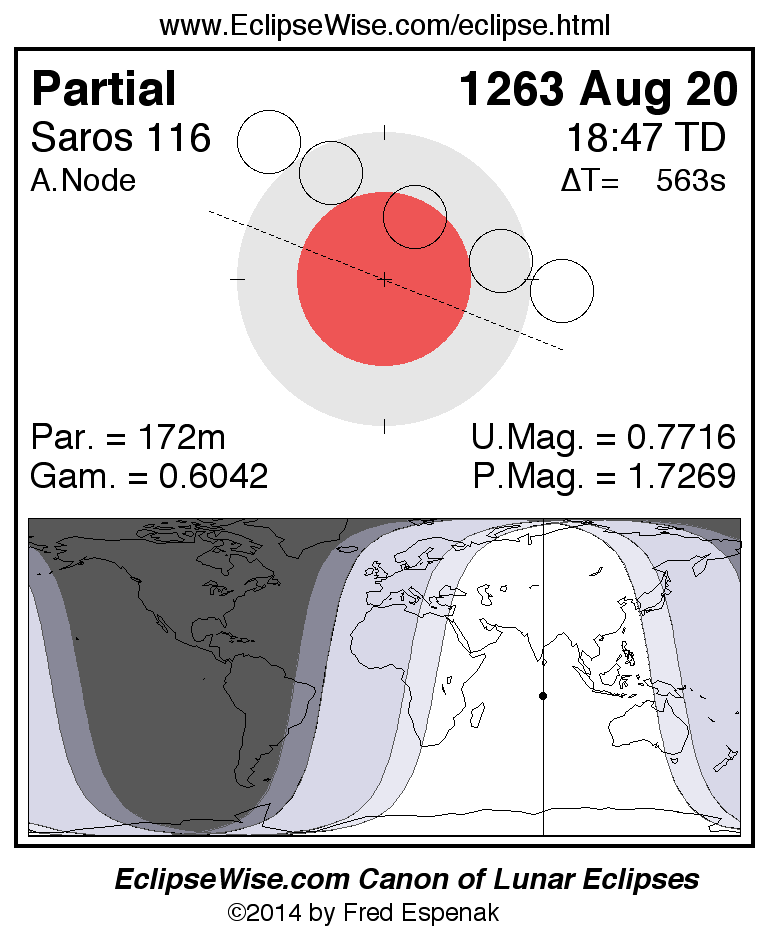

1263 Aug 20

Partial Lunar Eclipse

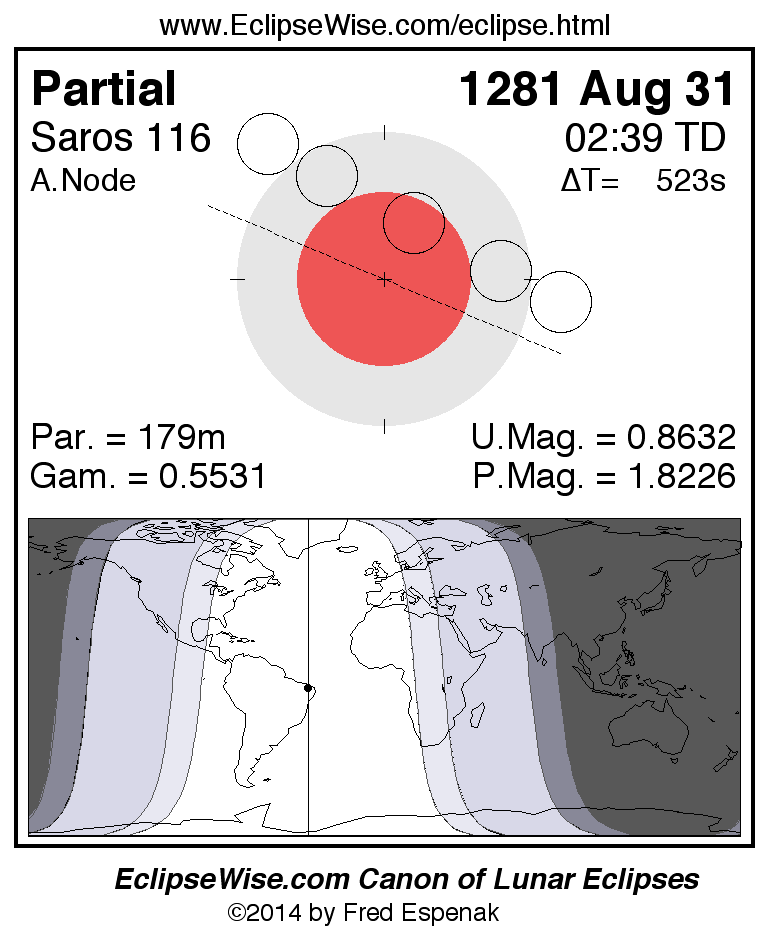

1281 Aug 31

Partial Lunar Eclipse
1299 Sep 11

Total Lunar Eclipse

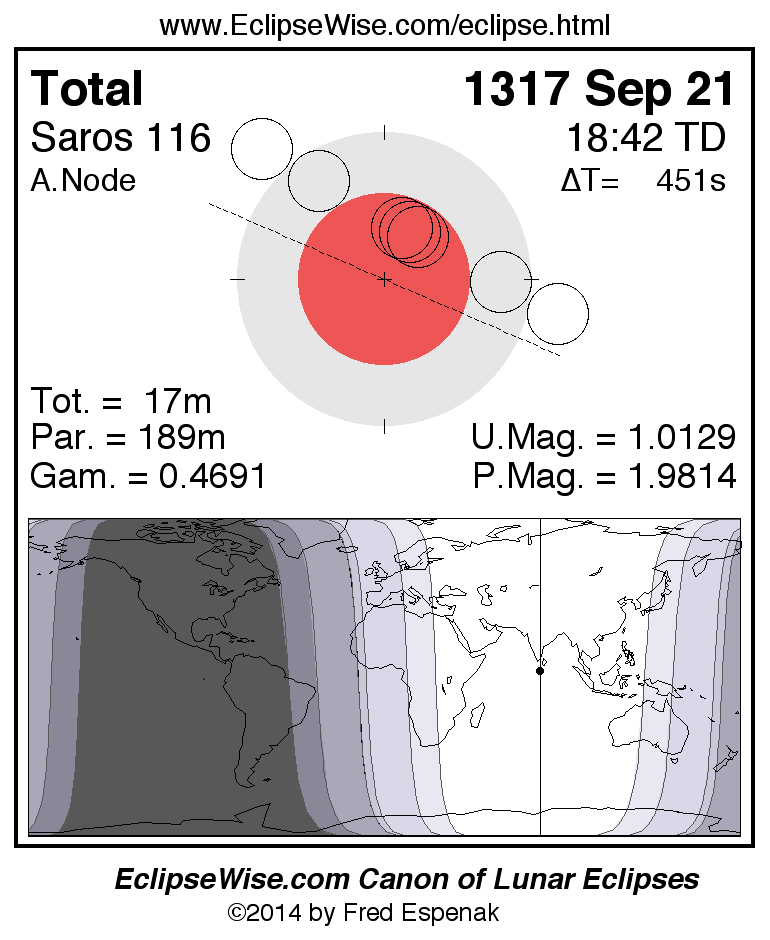

1317 Sep 21

Total Lunar Eclipse

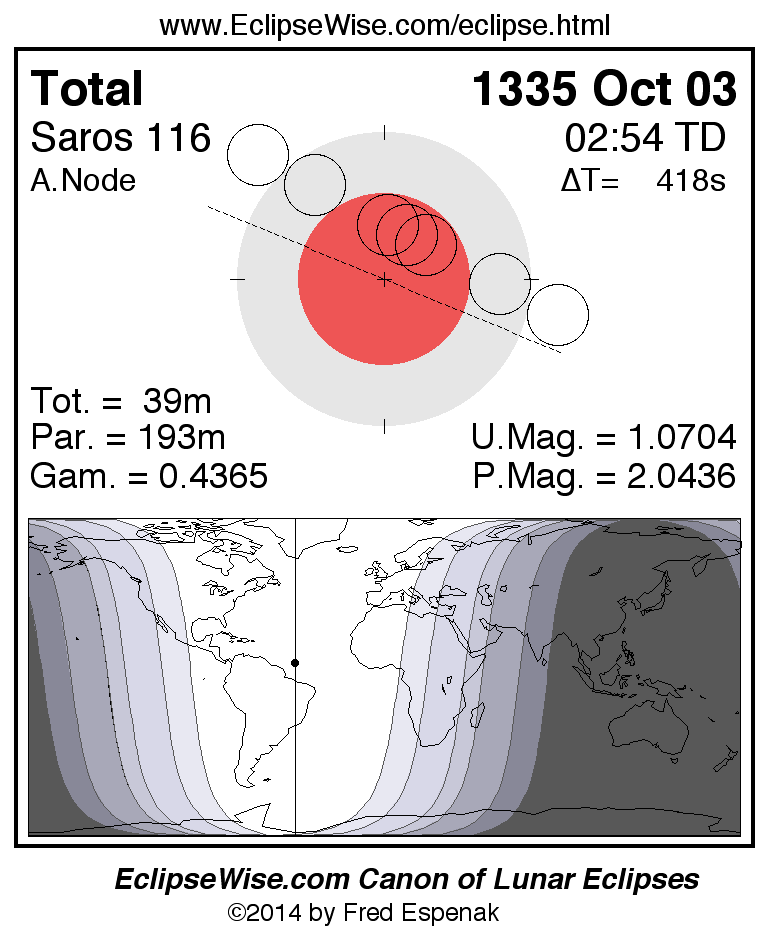

1335 Oct 03

Total Lunar Eclipse

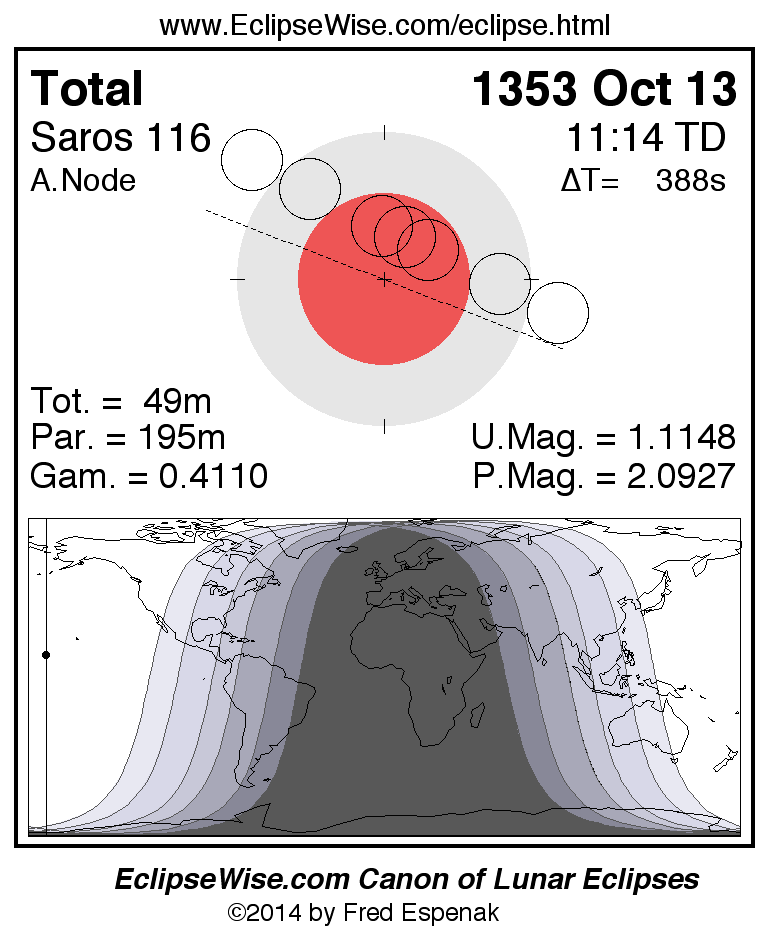

1353 Oct 13

Total Lunar Eclipse

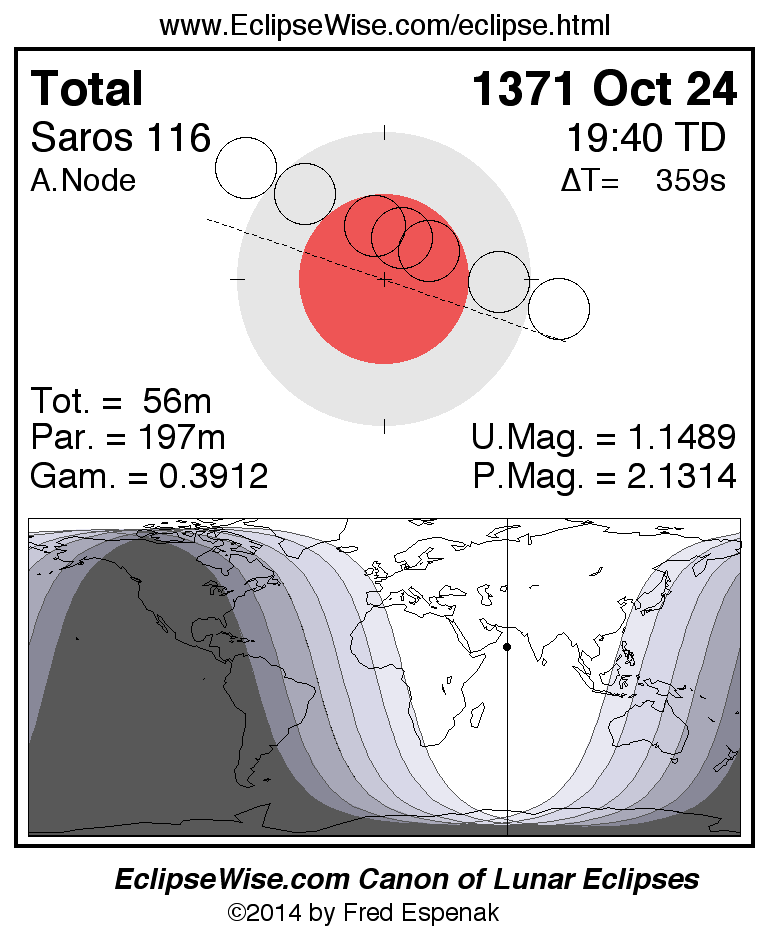

1371 Oct 24

Total Lunar Eclipse

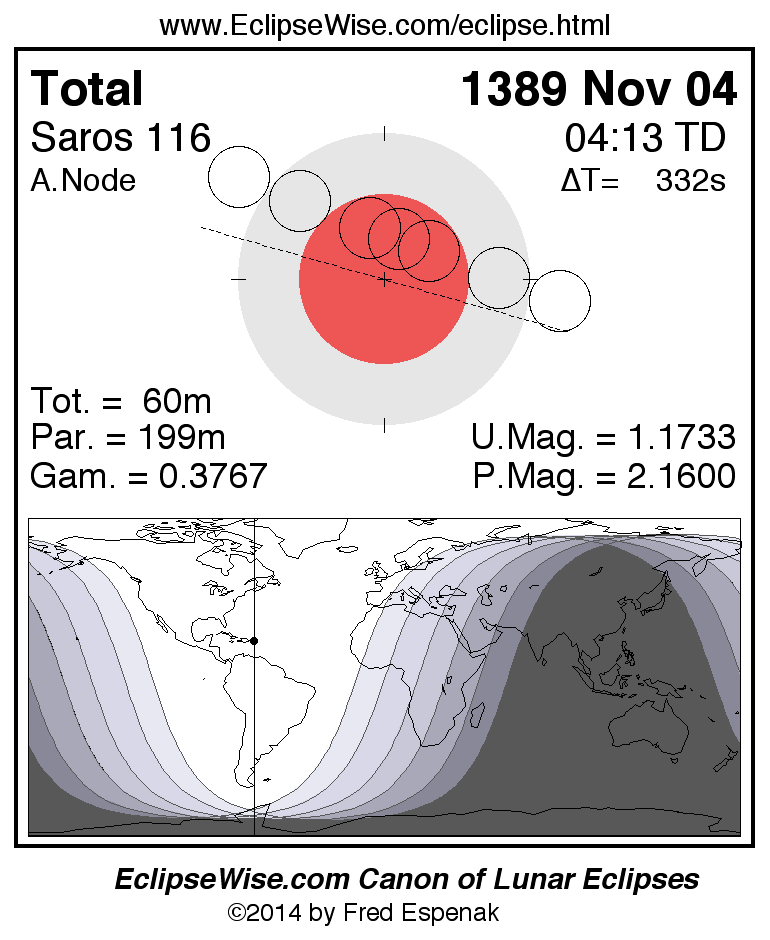

1389 Nov 04

Total Lunar Eclipse

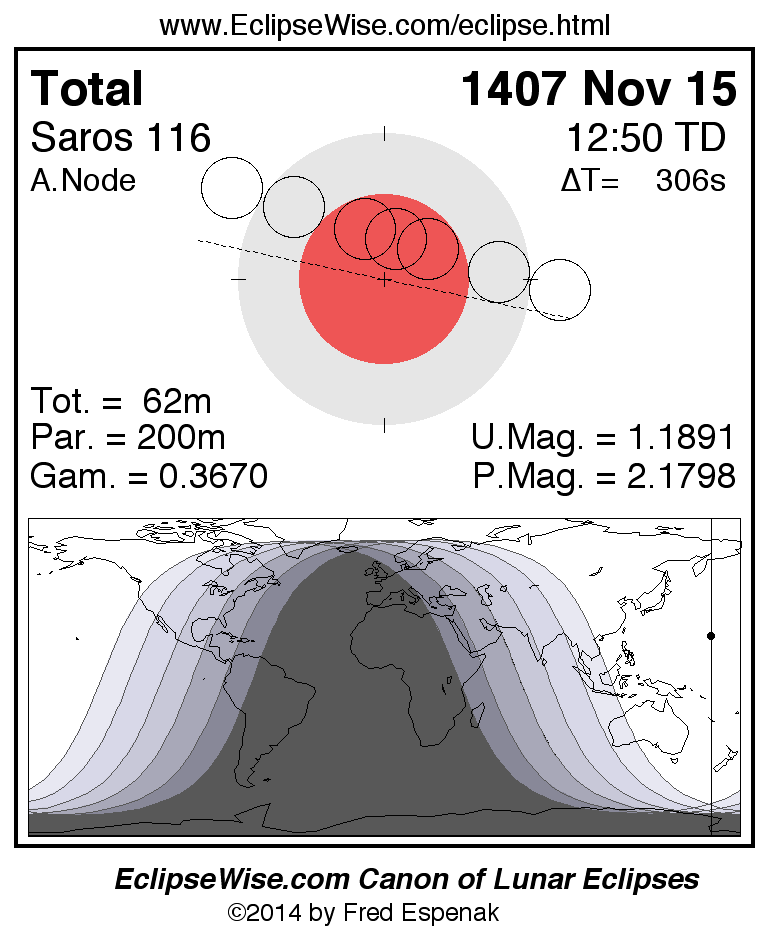

1407 Nov 15

Total Lunar Eclipse

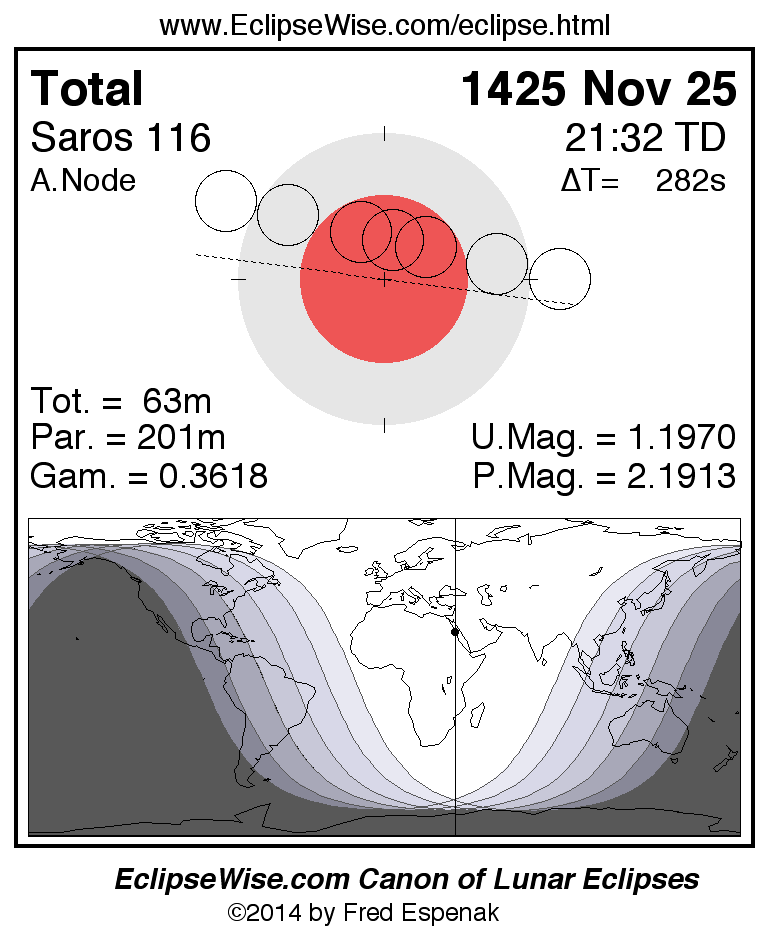

1425 Nov 25

Total Lunar Eclipse

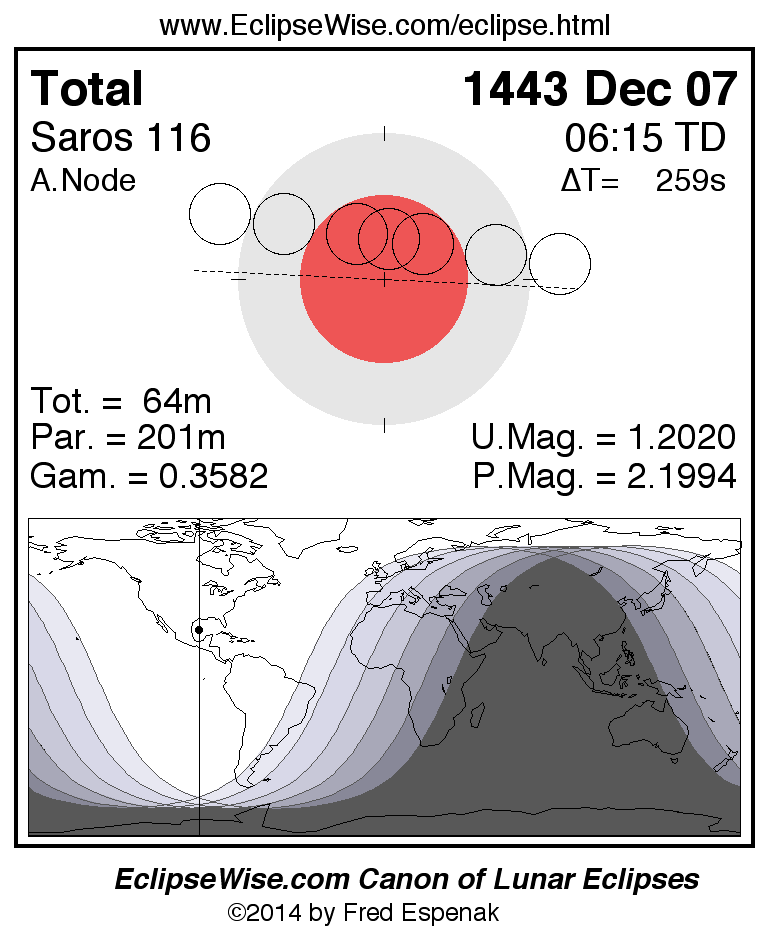

1443 Dec 07

Total Lunar Eclipse
1461 Dec 17

Total Lunar Eclipse

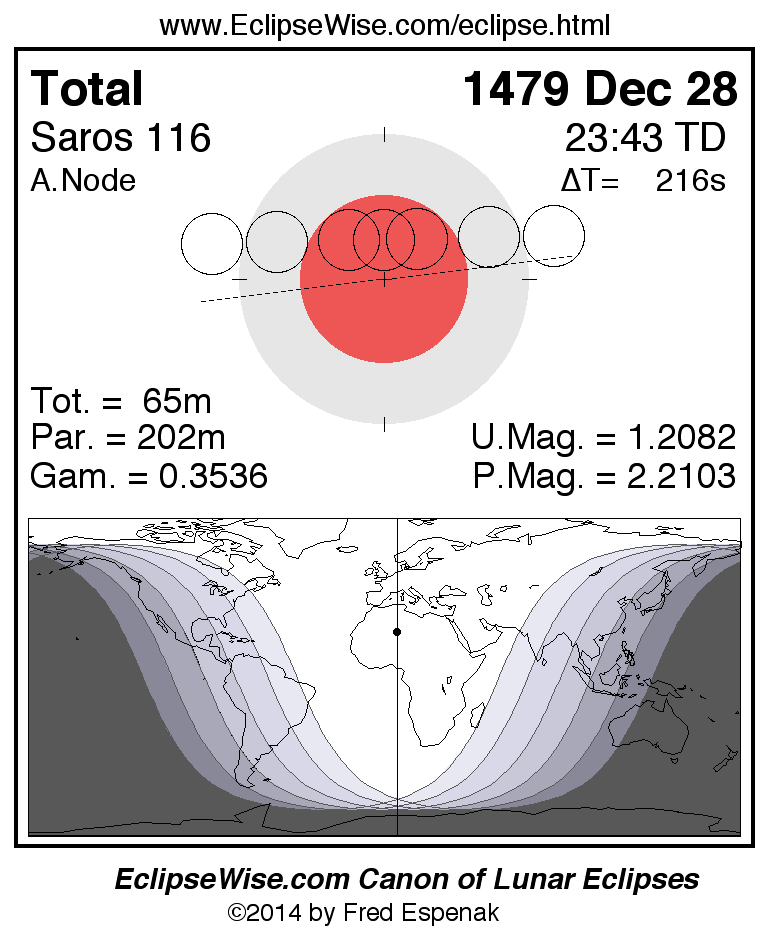

1479 Dec 28

Total Lunar Eclipse

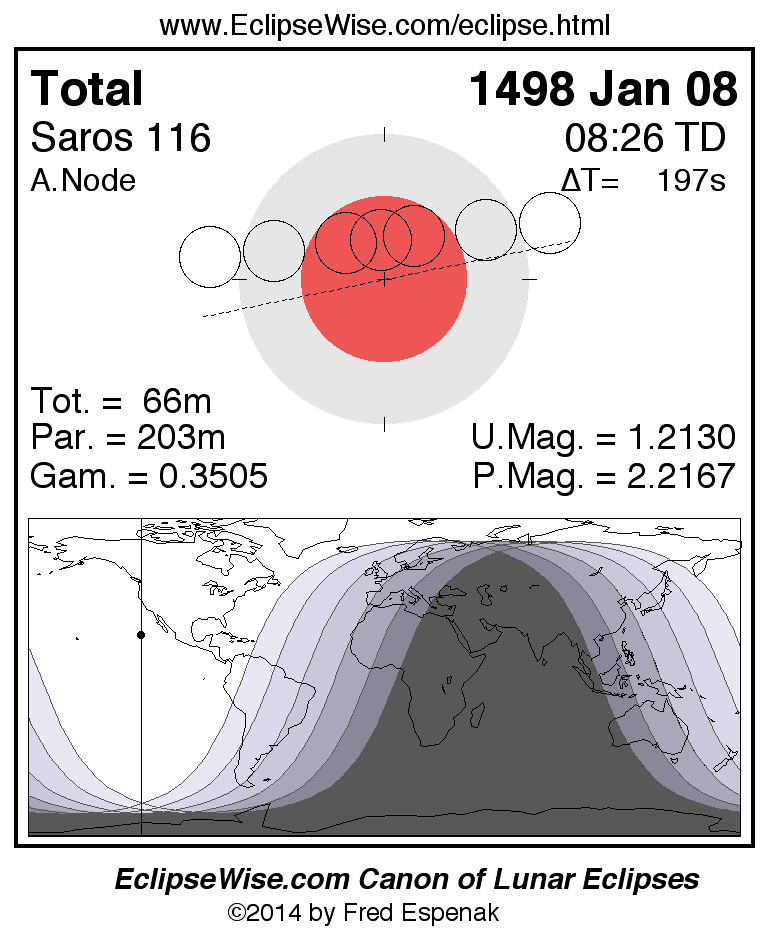

1498 Jan 08

Total Lunar Eclipse
1516 Jan 19

Total Lunar Eclipse

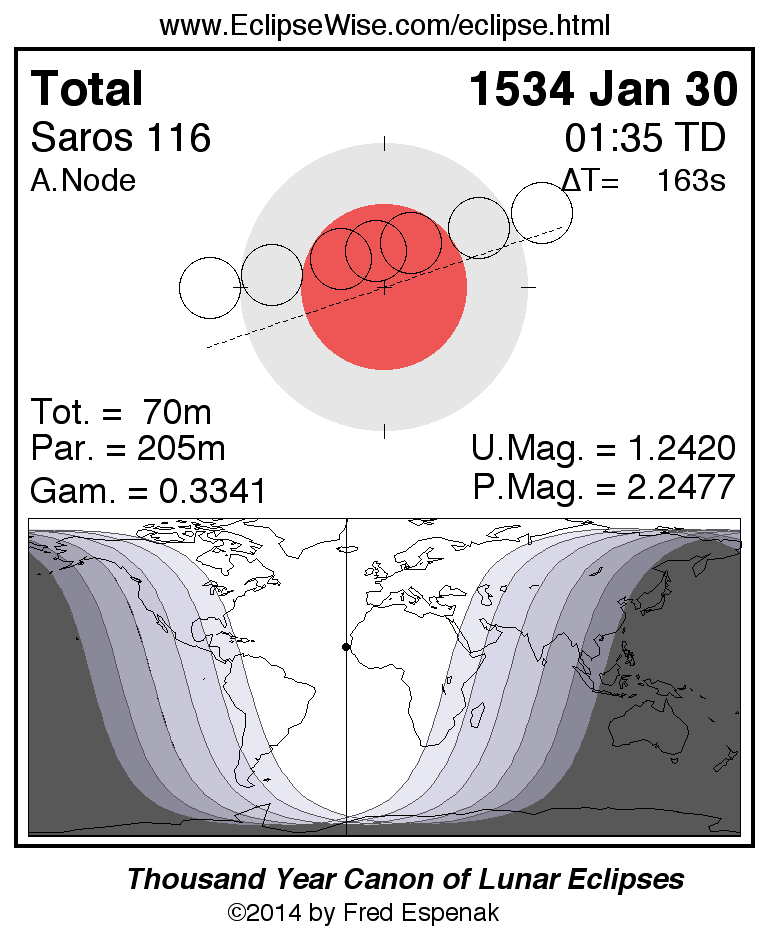

1534 Jan 30

Total Lunar Eclipse
1552 Feb 10

Total Lunar Eclipse

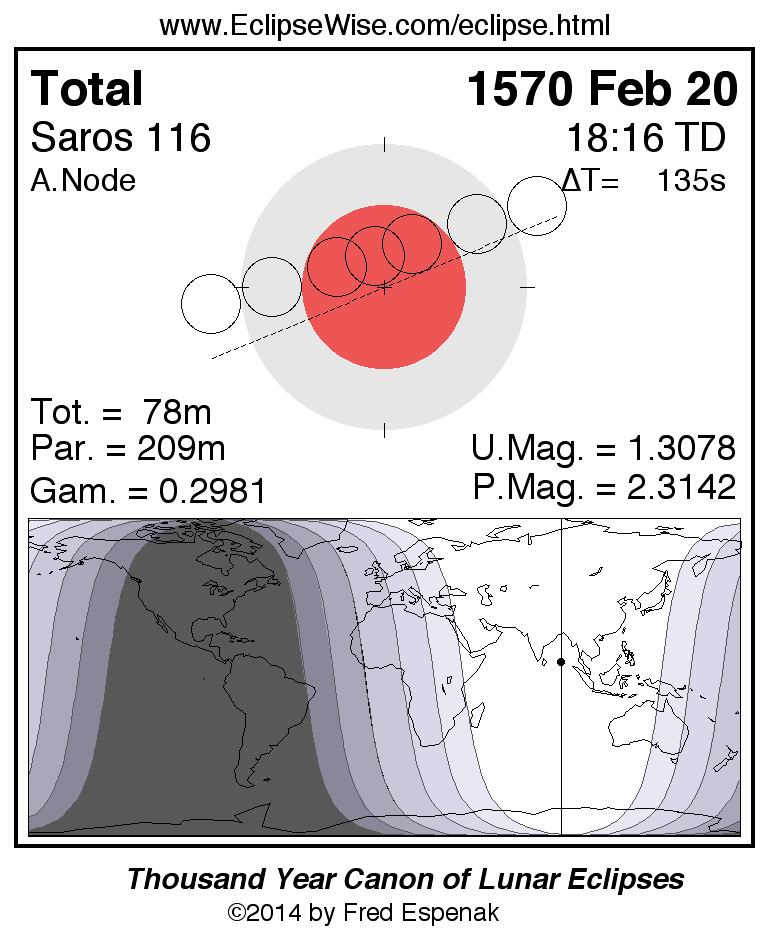

1570 Feb 20

Total Lunar Eclipse
1588 Mar 13

Total Lunar Eclipse

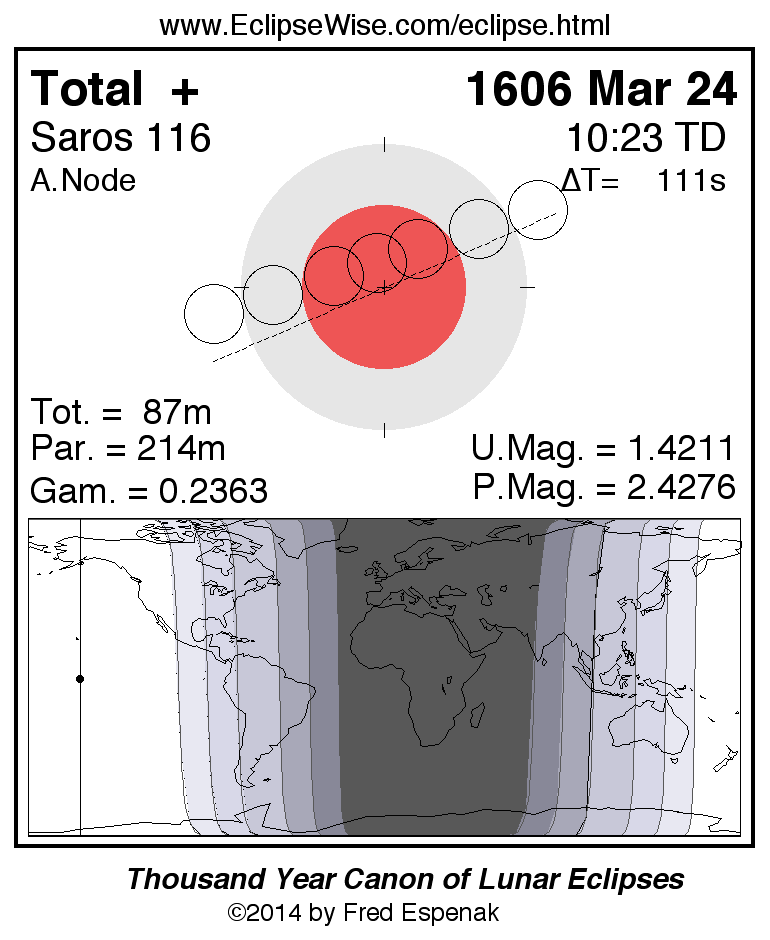

1606 Mar 24

Total Lunar Eclipse

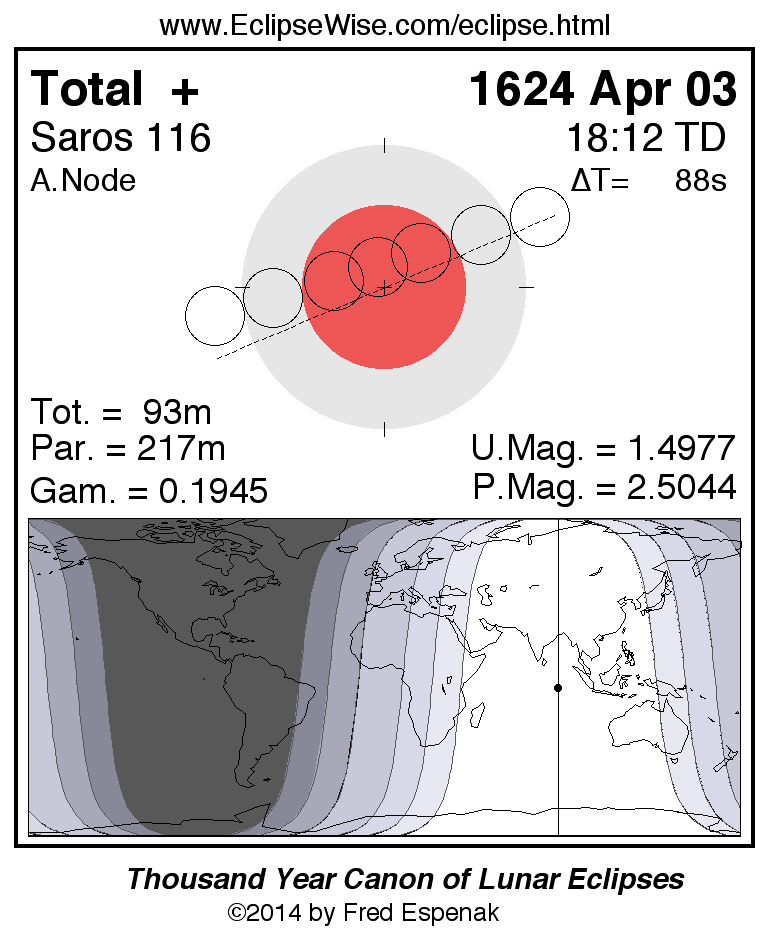

1624 Apr 03

Total Lunar Eclipse
1642 Apr 15

Total Lunar Eclipse

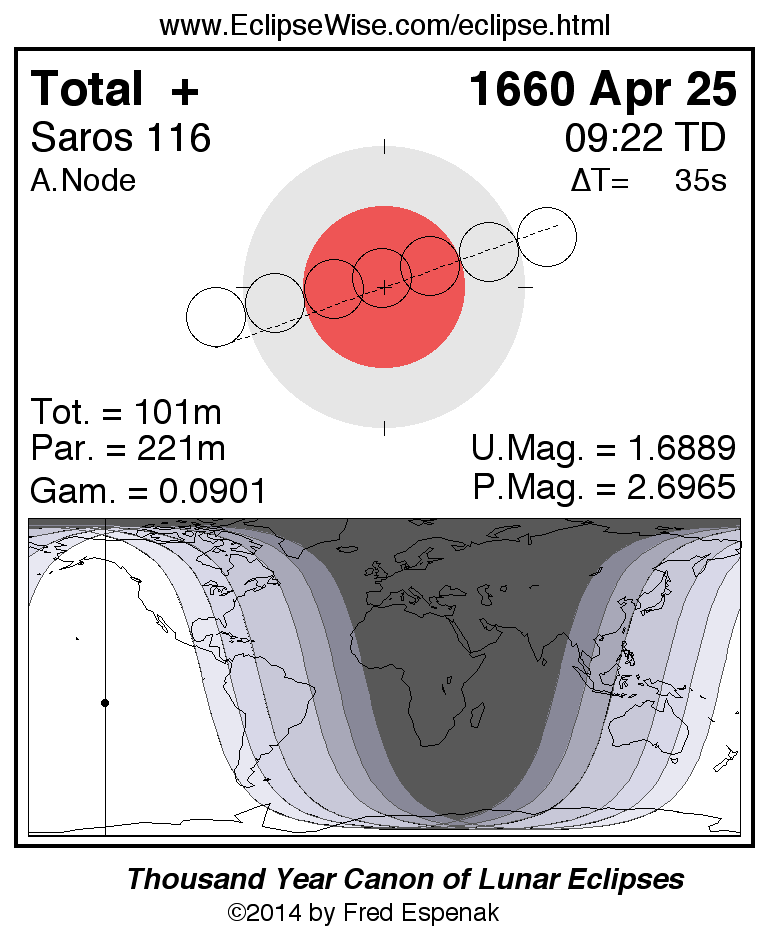

1660 Apr 25

Total Lunar Eclipse

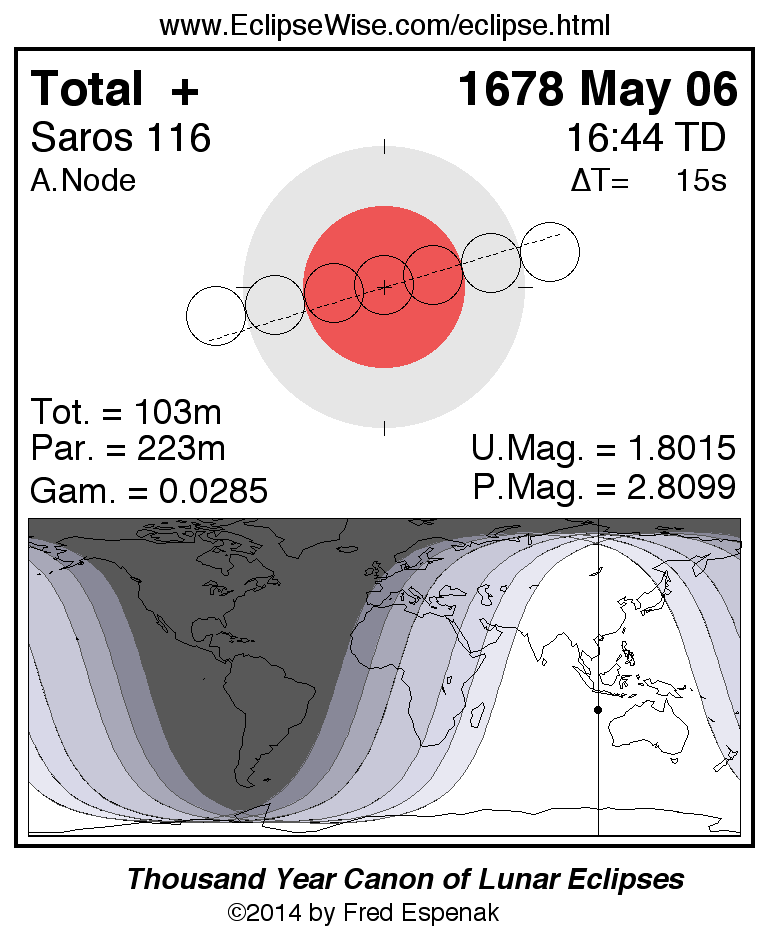

1678 May 06

Total Lunar Eclipse

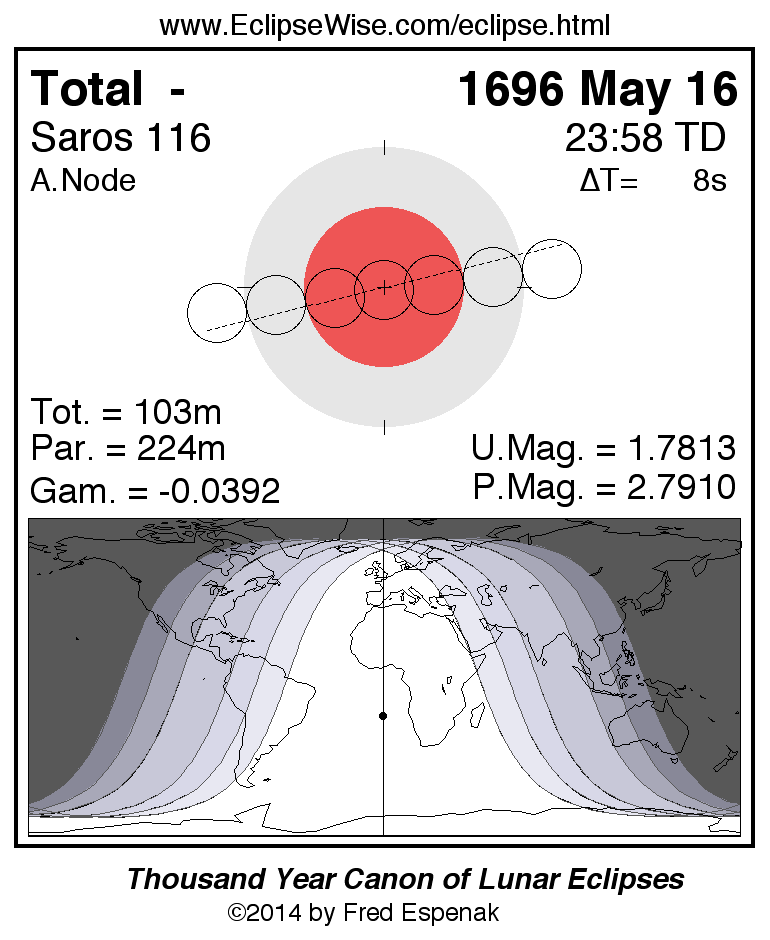

1696 May 16

Total Lunar Eclipse
1714 May 29

Total Lunar Eclipse
1732 Jun 08

Total Lunar Eclipse

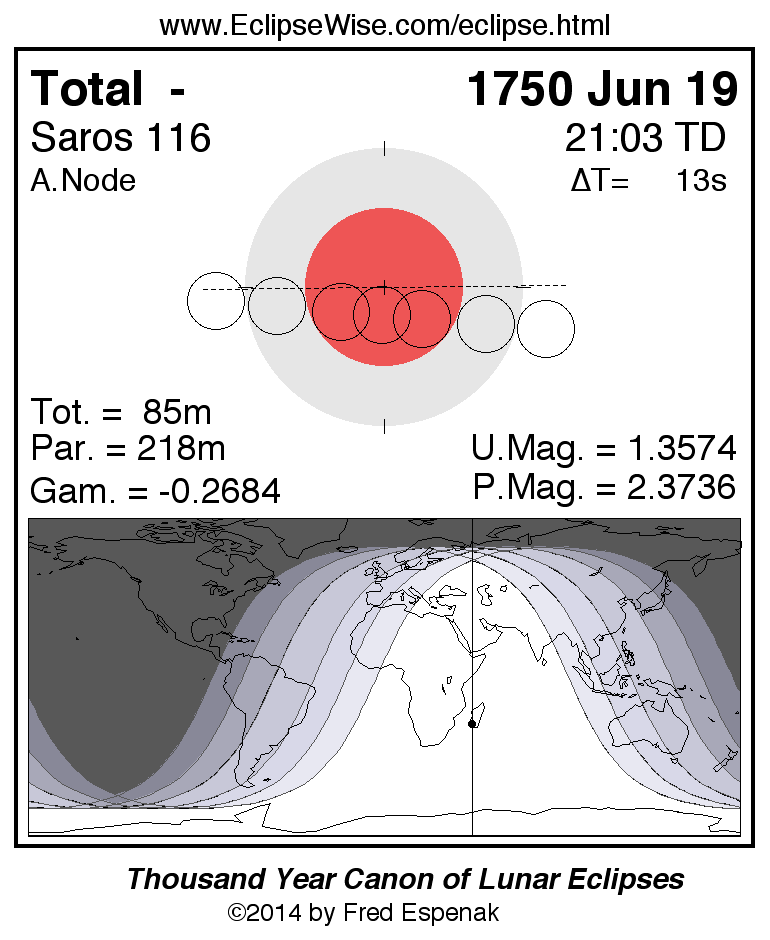

1750 Jun 19

Total Lunar Eclipse
1768 Jun 30

Total Lunar Eclipse
1786 Jul 11

Partial Lunar Eclipse

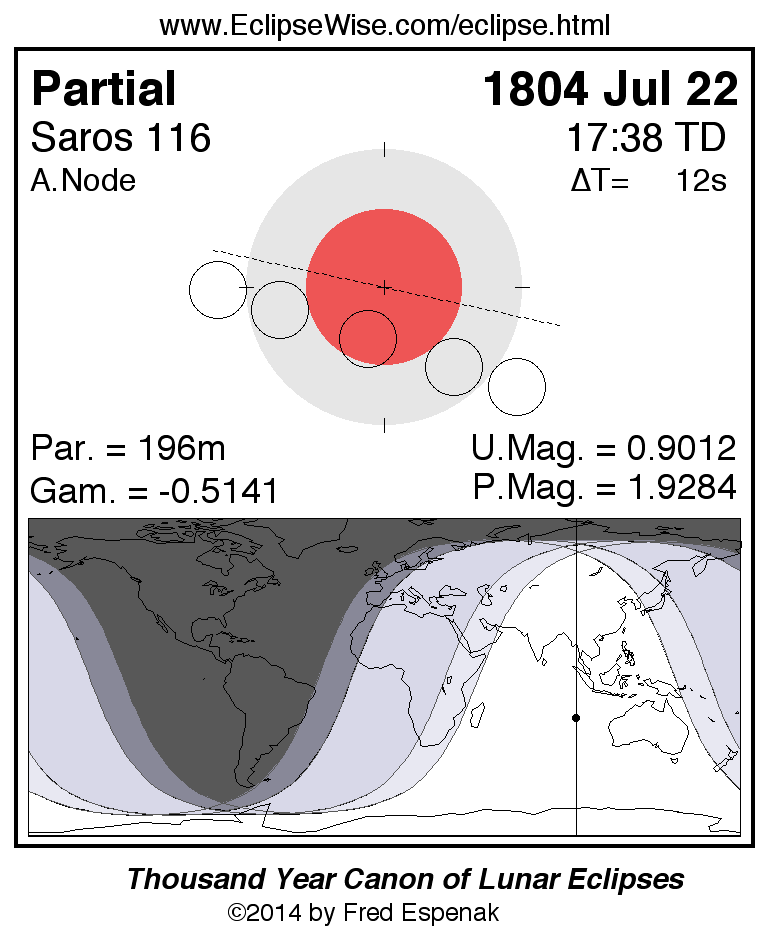

1804 Jul 22

Partial Lunar Eclipse

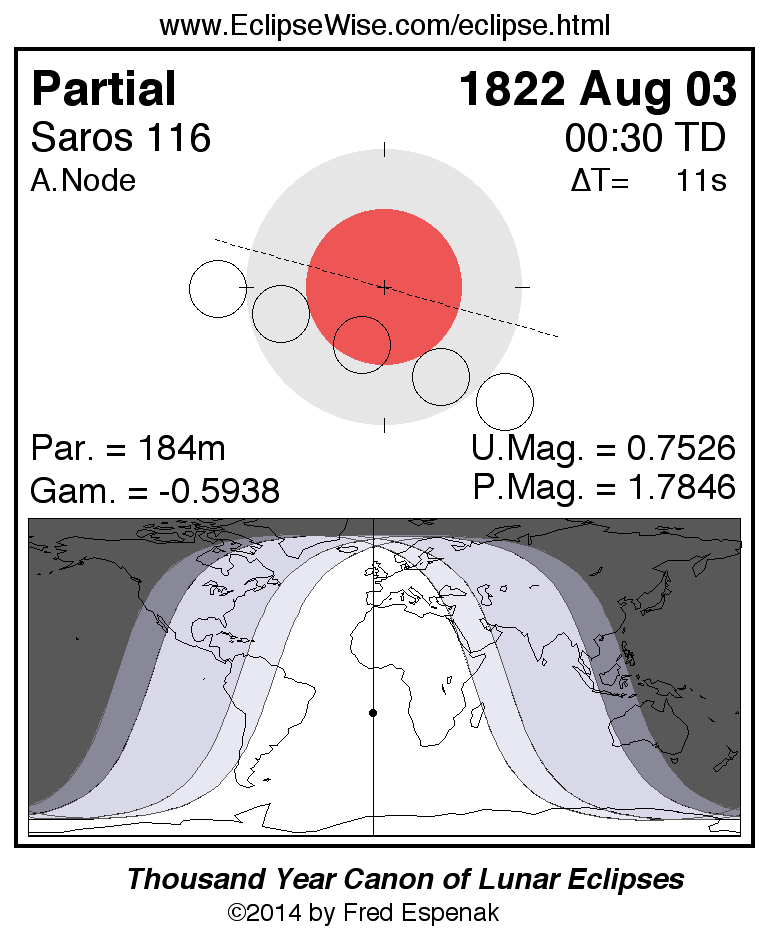

1822 Aug 03

Partial Lunar Eclipse
1840 Aug 13

Partial Lunar Eclipse

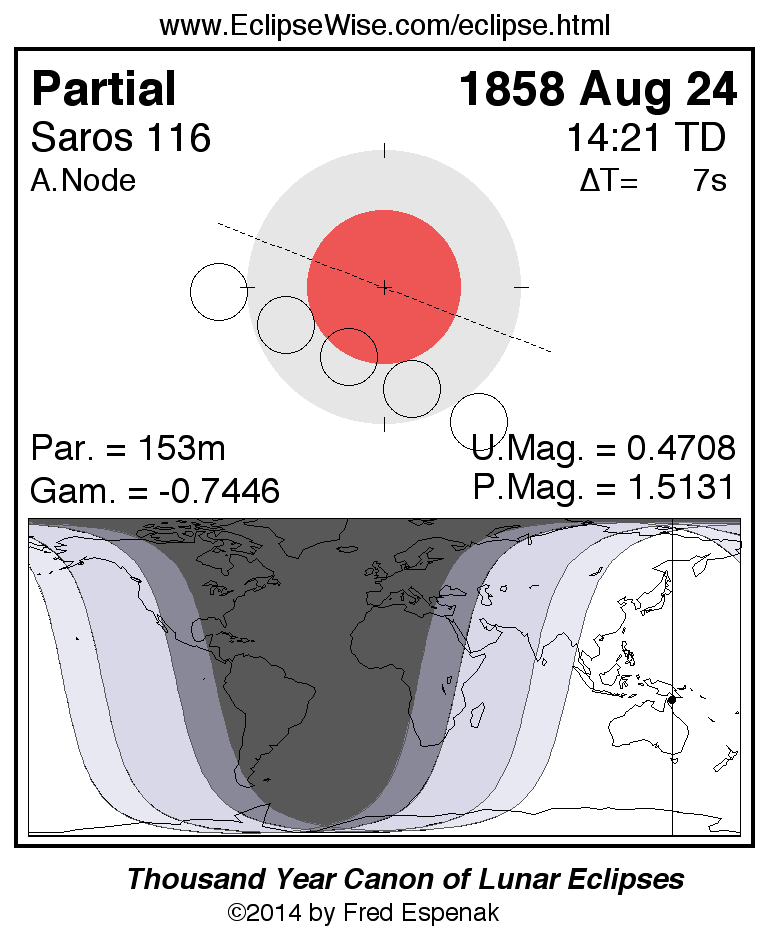

1858 Aug 24

Partial Lunar Eclipse
1876 Sep 03

Partial Lunar Eclipse
1894 Sep 15

Partial Lunar Eclipse
1912 Sep 26

Partial Lunar Eclipse
1930 Oct 07

Penumbral Lunar Eclipse
1948 Oct 18

Penumbral Lunar Eclipse

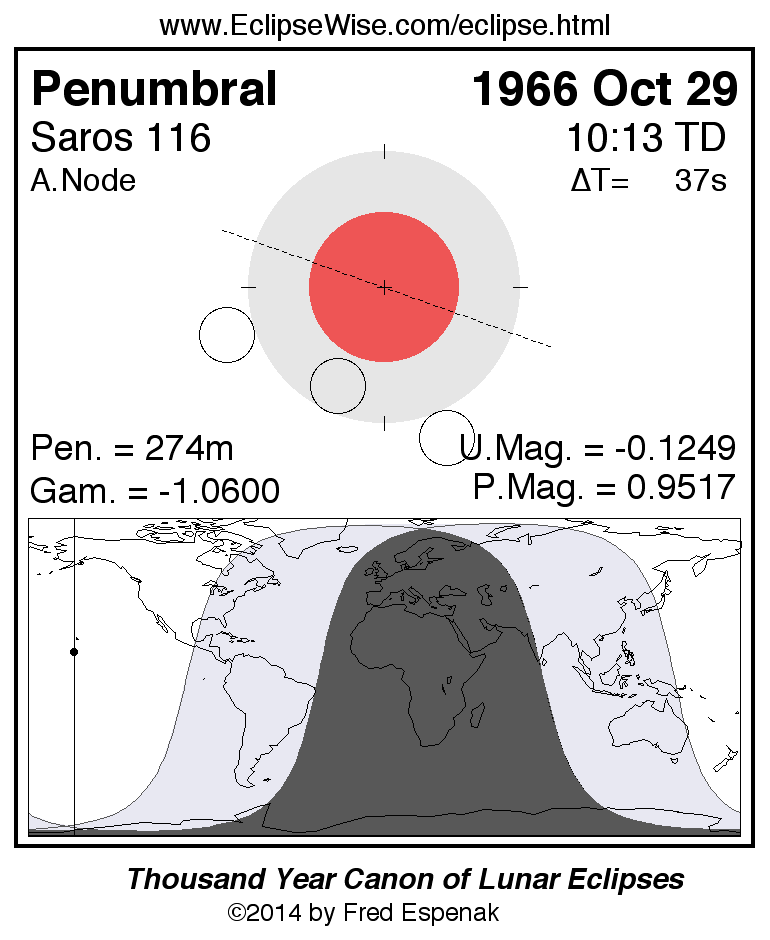

1966 Oct 29

Penumbral Lunar Eclipse
1984 Nov 08

Penumbral Lunar Eclipse
2002 Nov 20

Penumbral Lunar Eclipse
2020 Nov 30

Penumbral Lunar Eclipse
2038 Dec 11

Penumbral Lunar Eclipse

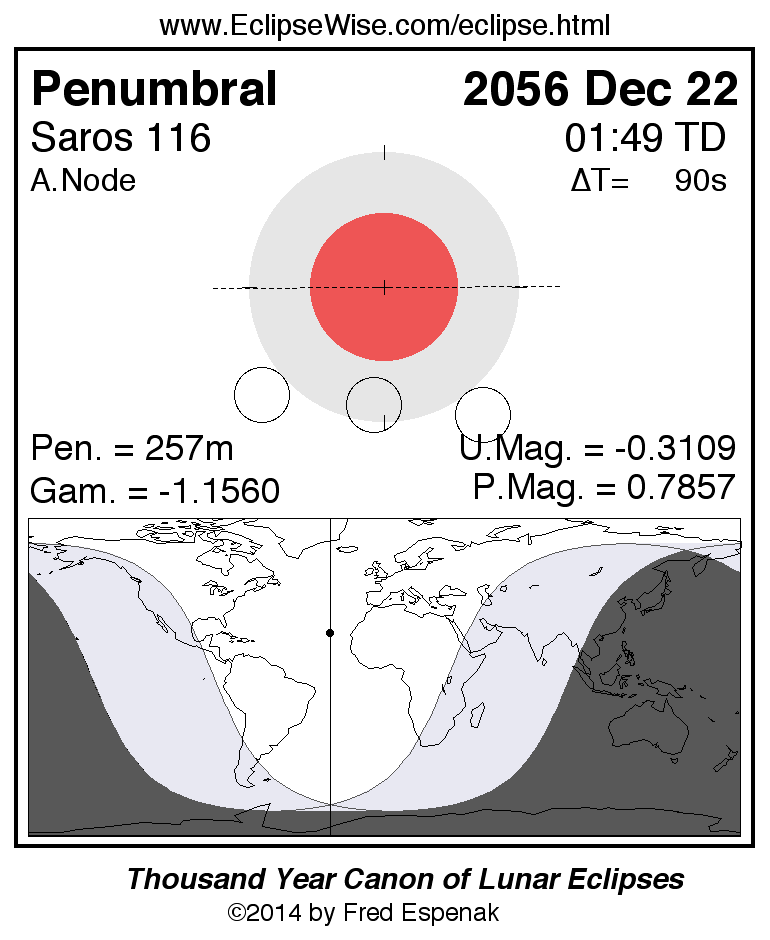

2056 Dec 22

Penumbral Lunar Eclipse
2075 Jan 02

Penumbral Lunar Eclipse
2093 Jan 12

Penumbral Lunar Eclipse
2111 Jan 25

Penumbral Lunar Eclipse

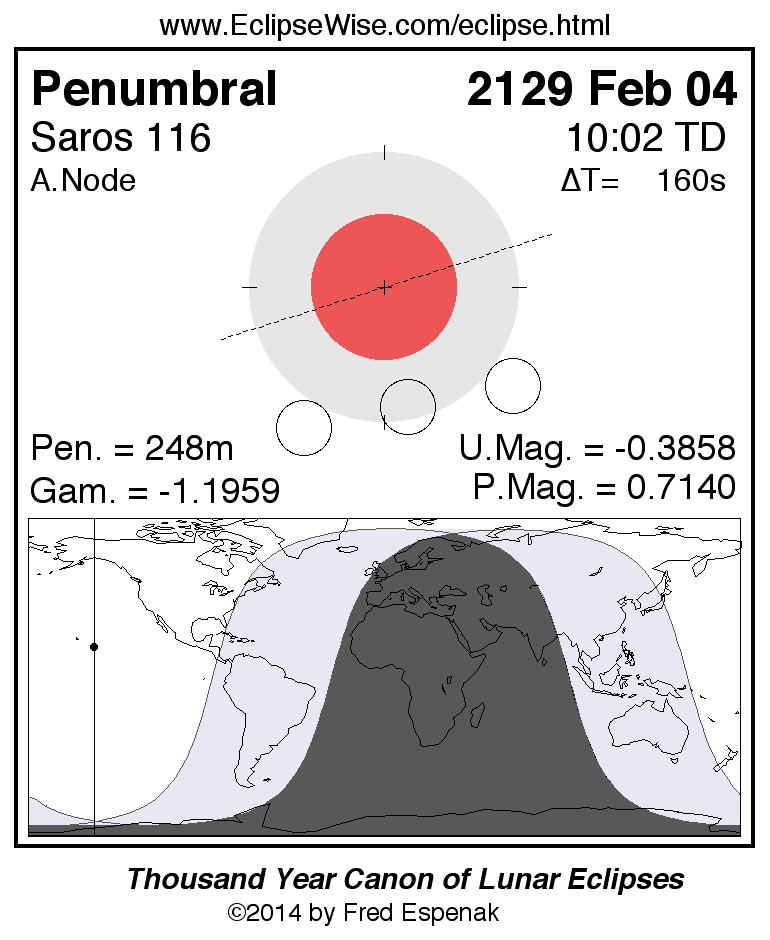

2129 Feb 04

Penumbral Lunar Eclipse

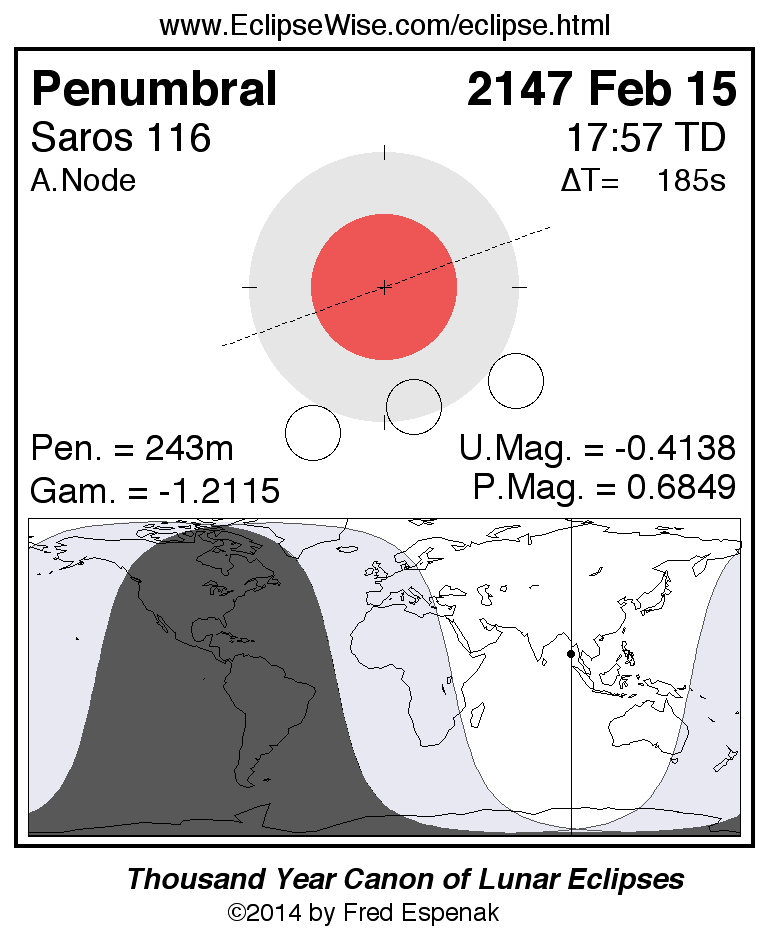

2147 Feb 15

Penumbral Lunar Eclipse

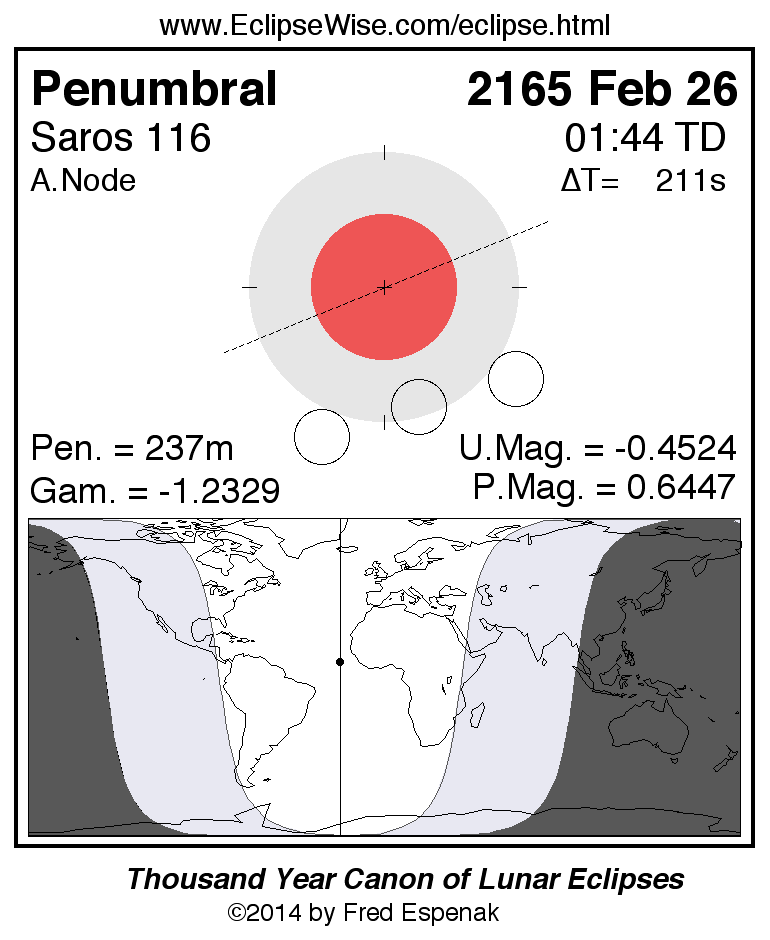

2165 Feb 26

Penumbral Lunar Eclipse

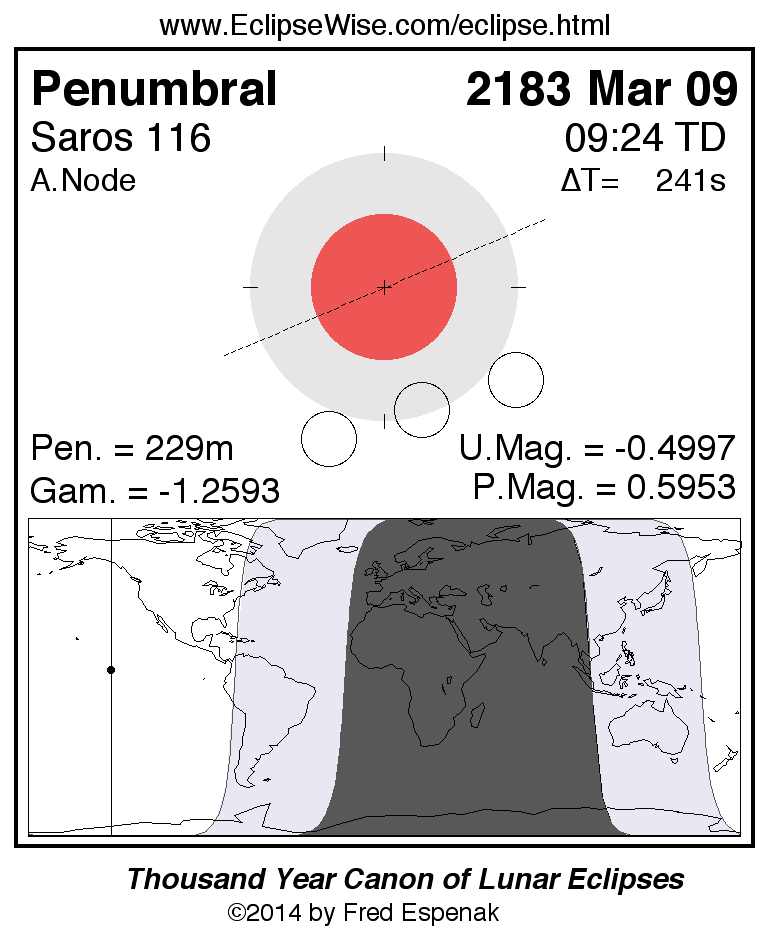

2183 Mar 09

Penumbral Lunar Eclipse
2201 Mar 20

Penumbral Lunar Eclipse
2219 Apr 01

Penumbral Lunar Eclipse

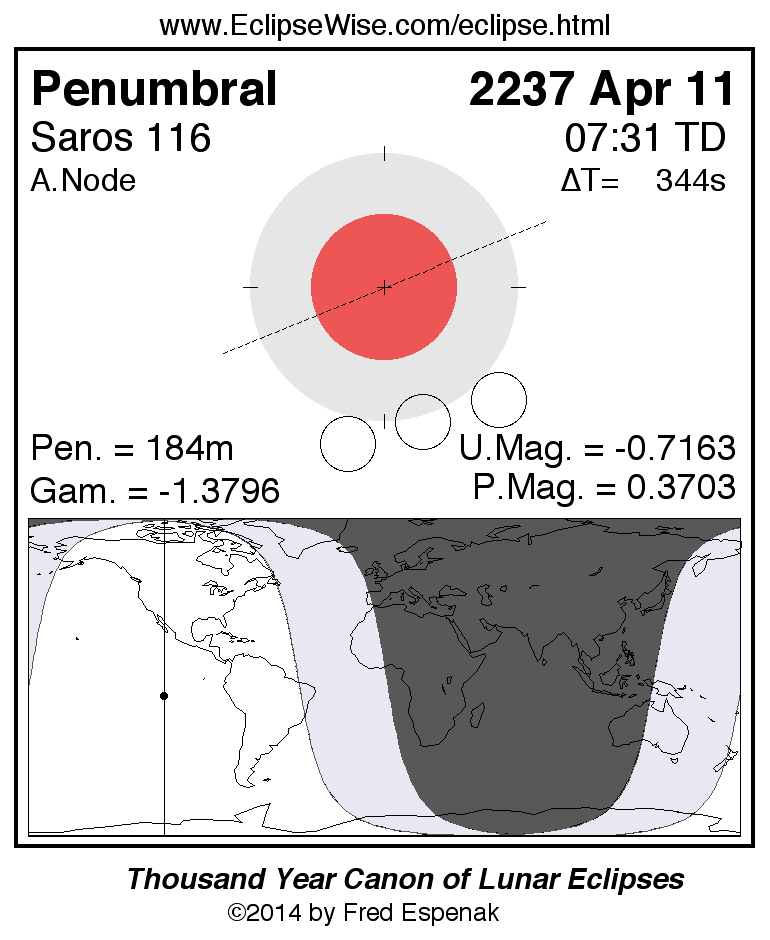

2237 Apr 11

Penumbral Lunar Eclipse

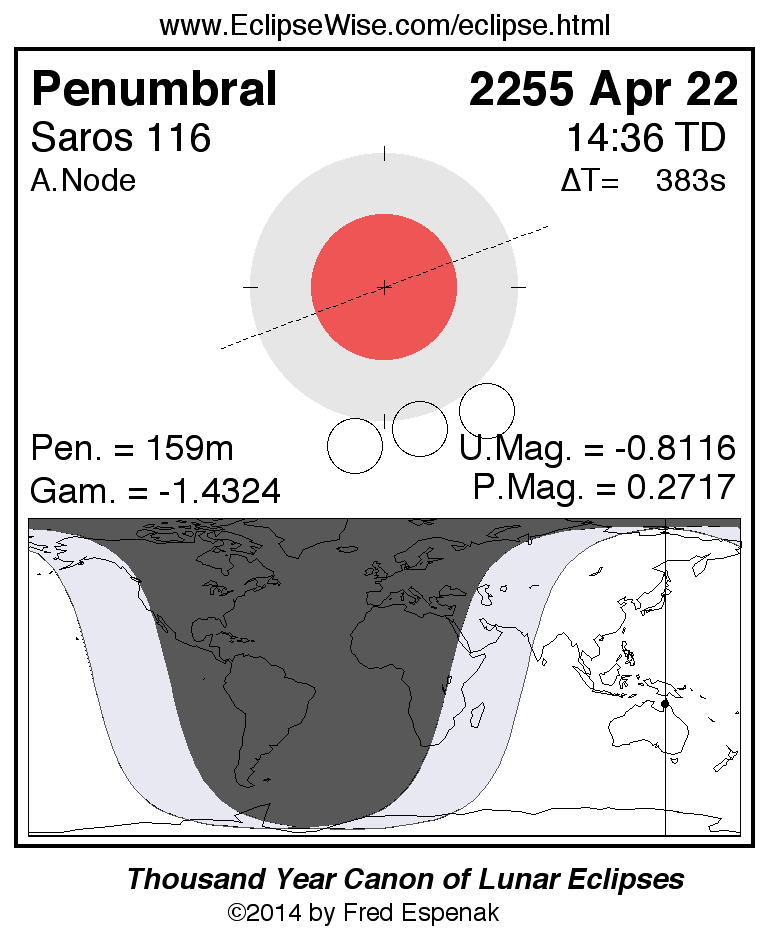

2255 Apr 22

Penumbral Lunar Eclipse

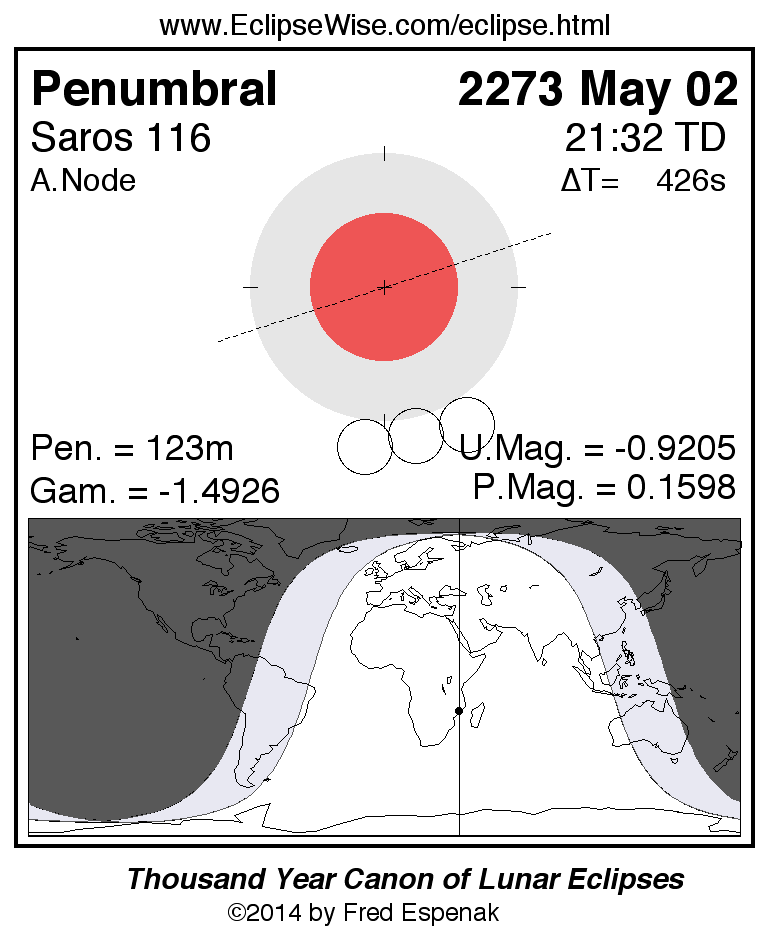

2273 May 02

Penumbral Lunar Eclipse

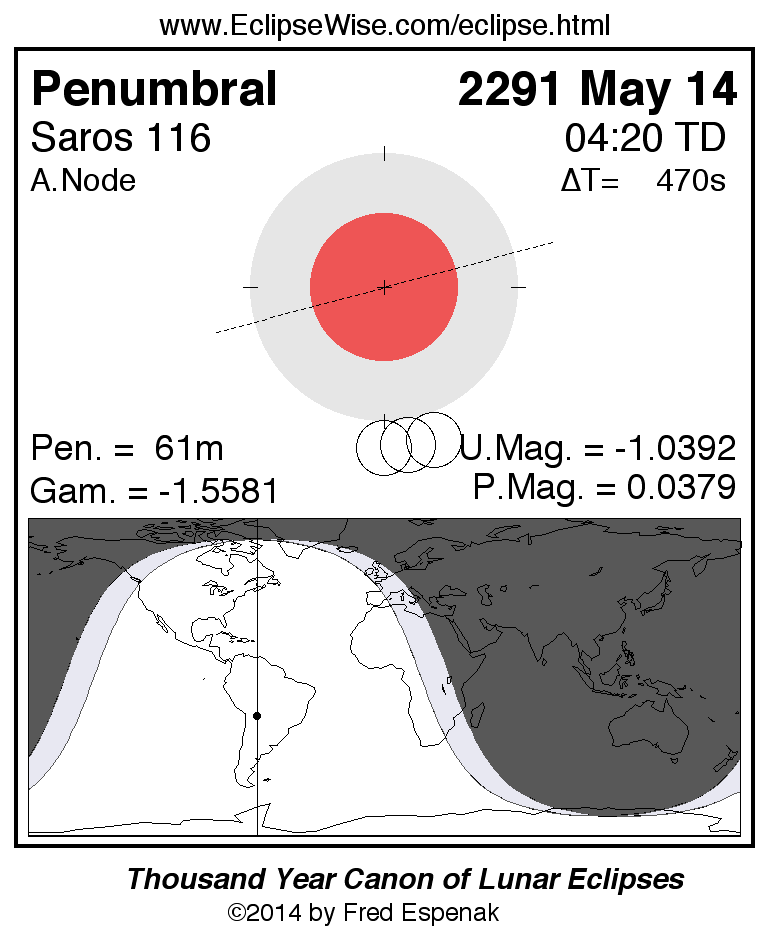

2291 May 14

Statistics for Lunar Eclipses of Saros 116

Lunar eclipses of Saros 116 all occur at the Moon’s ascending node and the Moon moves southward with each eclipse. The series will begin with a penumbral eclipse near the northern edge of the penumbra on 0993 Mar 11. The series will end with a penumbral eclipse near the southern edge of the penumbra on 2291 May 14. The total duration of Saros series 116 is 1298.17 years.

Summary of Saros 116
First Eclipse 0993 Mar 11
Last Eclipse 2291 May 14
Series Duration 1298.17 Years
No. of Eclipses 73
Sequence 9N 9P 27T 8P 20N

Saros 116 is composed of 73 lunar eclipses as follows:

Lunar Eclipses of Saros 116
Eclipse Type Symbol Number Percent
All Eclipses - 73100.0%
PenumbralN 29 39.7%
PartialP 17 23.3%
TotalT 27 37.0%

The 73 lunar eclipses of Saros 116 occur in the order of 9N 9P 27T 8P 20N which corresponds to the following.

Sequence Order of Lunar Eclipses in Saros 116
Eclipse Type Symbol Number
Penumbral N 9
Partial P 9
Total T 27
Partial P 8
Penumbral N 20

The 73 eclipses in Saros 116 occur in the following order : 9N 9P 27T 8P 20N

The longest and shortest eclipses of Saros 116 as well as largest and smallest partial eclipses appear below.

Extreme Durations and Magnitudes of Lunar Eclipses of Saros 116
Extrema Type Date Duration Magnitude
Longest Total Lunar Eclipse 1696 May 1601h42m40s -
Shortest Total Lunar Eclipse 1317 Sep 2100h17m02s -
Longest Partial Lunar Eclipse 1804 Jul 2203h15m49s -
Shortest Partial Lunar Eclipse 1930 Oct 0700h38m21s -
Longest Penumbral Lunar Eclipse 1948 Oct 1804h39m46s -
Shortest Penumbral Lunar Eclipse 0993 Mar 1100h26m35s -
Largest Partial Lunar Eclipse 1299 Sep 11 - 0.94429
Smallest Partial Lunar Eclipse 1930 Oct 07 - 0.02525

Eclipse Publications

by Fred Espenak

jpeg jpeg
jpeg jpeg
jpeg jpeg

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

The eclipse predictions presented here were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates have been calculated with respect to the Moon's Center of Mass.

The largest uncertainty in the eclipse predictions is caused by fluctuations in Earth's rotation due primarily to tidal friction of the Moon. The resultant drift in apparent clock time is expressed as ΔT and is determined as follows:

  1. pre-1950's: ΔT calculated from empirical fits to historical records derived by Morrison and Stephenson (2004)
  2. 1955-present: ΔT obtained from published observations
  3. future: ΔT is extrapolated from current values weighted by the long term trend from tidal effects

A series of polynomial expressions have been derived to simplify the evaluation of ΔT for any time from -2999 to +3000. The uncertainty in ΔT over this period can be estimated from scatter in the measurements.
