Penumbral Lunar Eclipse of 2013 May 25

Fred Espenak

Introduction

The Penumbral Lunar Eclipse of 2013 May 25 is visible from the following geographic regions:

Americas, Africa

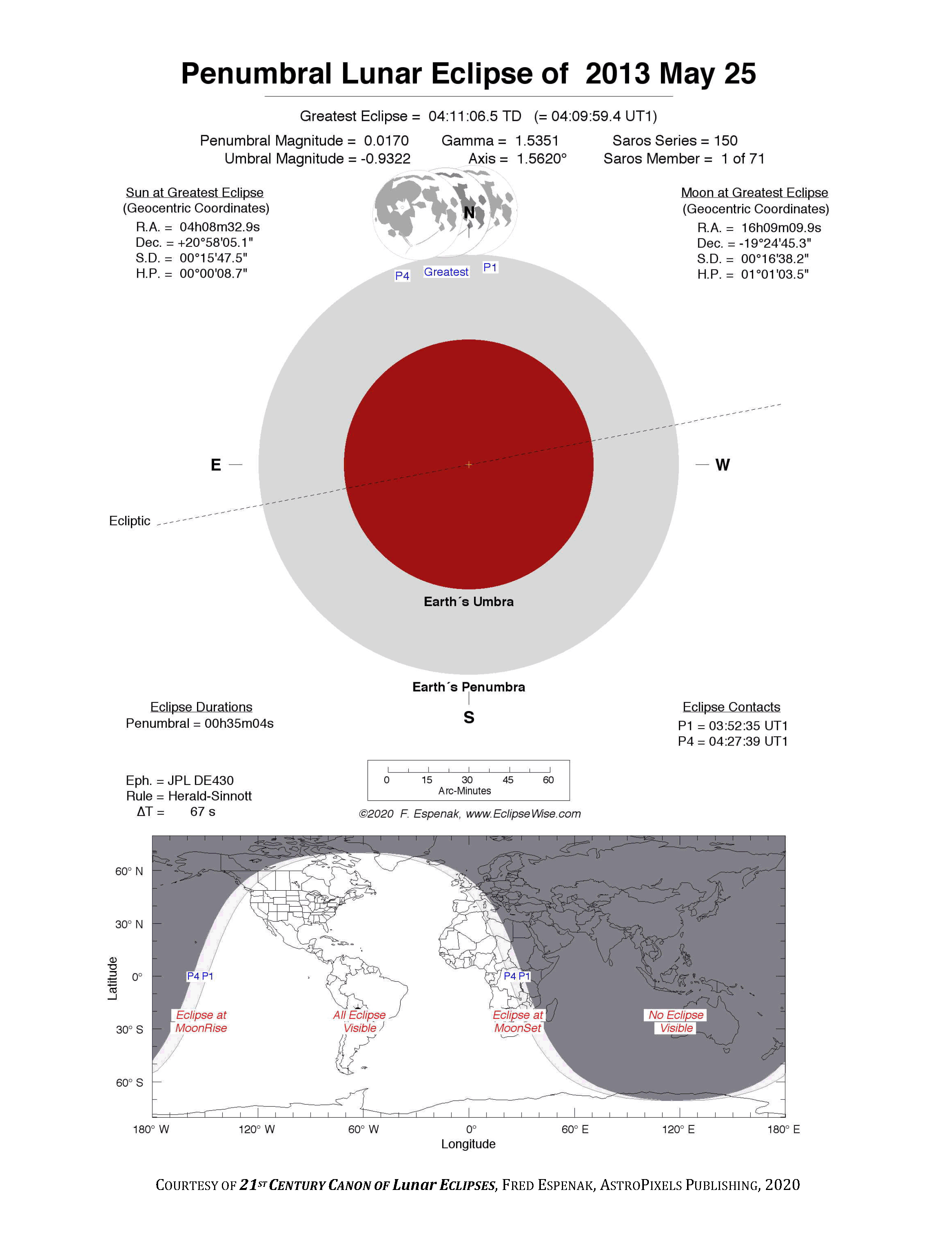

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2013 May 25 at 04:11:07 TD (04:09:59 UT1). This is 0.9 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Scorpius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1118.

The eclipse belongs to Saros 150 and is number 1 of 71 eclipses in the series. Thus, the 2013 May 25 event is the very first eclipse of the series . All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very shallow penumbral eclipse. It has a penumbral eclipse magnitude of only 0.0170 and a penumbral eclipse duration of 35.1 minutes. Gamma has a value of 1.5351.

The penumbral lunar eclipse of 2013 May 25 is preceded two weeks earlier by a annular solar eclipse on 2013 May 10.

Another lunar eclipse occurs one synodic month before the 2013 May 25 eclipse. It is the partial lunar eclipse of 2013 Apr 25.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 67.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Detailed Lunar Eclipse Figure - eclipse geometry diagram and map of eclipse visibility (Key to Figure)
Saros 150 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 2013 May 25 .

Eclipse Data: Penumbral Lunar Eclipse of 2013 May 25

Eclipse Characteristics
Parameter	Value
Penumbral Magnitude	0.01702
Umbral Magnitude	-0.93215
Gamma	1.53512
Epsilon	1.5620°

Opposition Times
Event	Calendar Date & Time	Julian Date
Greatest Eclipse	2013 May 25 at 04:11:06.5 TD (04:09:59.4 UT1)	2456437.673605
Ecliptic Opposition	2013 May 25 at 04:26:03.1 TD (04:24:56.0 UT1)	2456437.683982
Equatorial Opposition	2013 May 25 at 03:56:14.5 TD (03:55:07.4 UT1)	2456437.663280

Geocentric Coordinates of Sun and Moon
2013 May 25 at 04:11:06.5 TD (04:09:59.4 UT1)
Coordinate	Sun	Moon
Right Ascension	04h08m32.9s	16h09m09.9s
Declination	+20°58'05.1"	-19°24'45.3"
Semi-Diameter	15'47.5"	16'38.2"
Eq. Hor. Parallax	08.7"	1°01'03.5"

Geocentric Libration of Moon
Angle	Value
l	-2.2°
b	-2.0°
c	12.1°

Earth's Shadows
Parameter	Value
Penumbral Radius	1.2971°
Umbral Radius	0.7707°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE430
ΔT	67.1 s
Shadow Rule	Herald/Sinnott
Shadow Enlargement	1.000
Saros Series	150 ( 1/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 2013 May 25

Lunar Eclipse Contacts
Eclipse Event	Contact	Time TD	Time UT1	Zenith Latitude	Zenith Longitude	Position Angle	Axis Distance
Penumbral Begins	P1	03:53:41.7	03:52:34.6	19°23.7'S	058°56.7'W	359.1°	1.5713°
Greatest Eclipse	Greatest	04:11:06.5	04:09:59.4	19°24.8'S	063°07.1'W	5.3°	1.5620°
Penumbral Ends	P4	04:28:46.1	04:27:39.0	19°25.8'S	067°21.0'W	11.7°	1.5716°

Eclipse Durations
Eclipse Phase	Duration
Penumbral (P4 - P1)	00h35m04.4s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 2013 May 25

Polynomial Besselian Elements
2013 May 25 at 04:00:00.0 TD (=t0)
n	x	y	d	f1	f2	f3
0	0.03676	1.56537	0.3659	1.29708	0.77070	0.27727
1	0.58678	-0.05488	0.0001	0.00020	0.00020	0.00005
2	0.00013	0.00005	-0.0000	-0.00000	-0.00000	-0.00000
3	-0.00001	0.00000	-	-	-	-

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Besselian Elements

Eclipse Publications

For more visit: AstroPixels Publishing

Links for the Penumbral Lunar Eclipse of 2013 May 25

Detailed Lunar Eclipse Figure - eclipse geometry figure and map of eclipse visibility using new Herald/Sinnott method

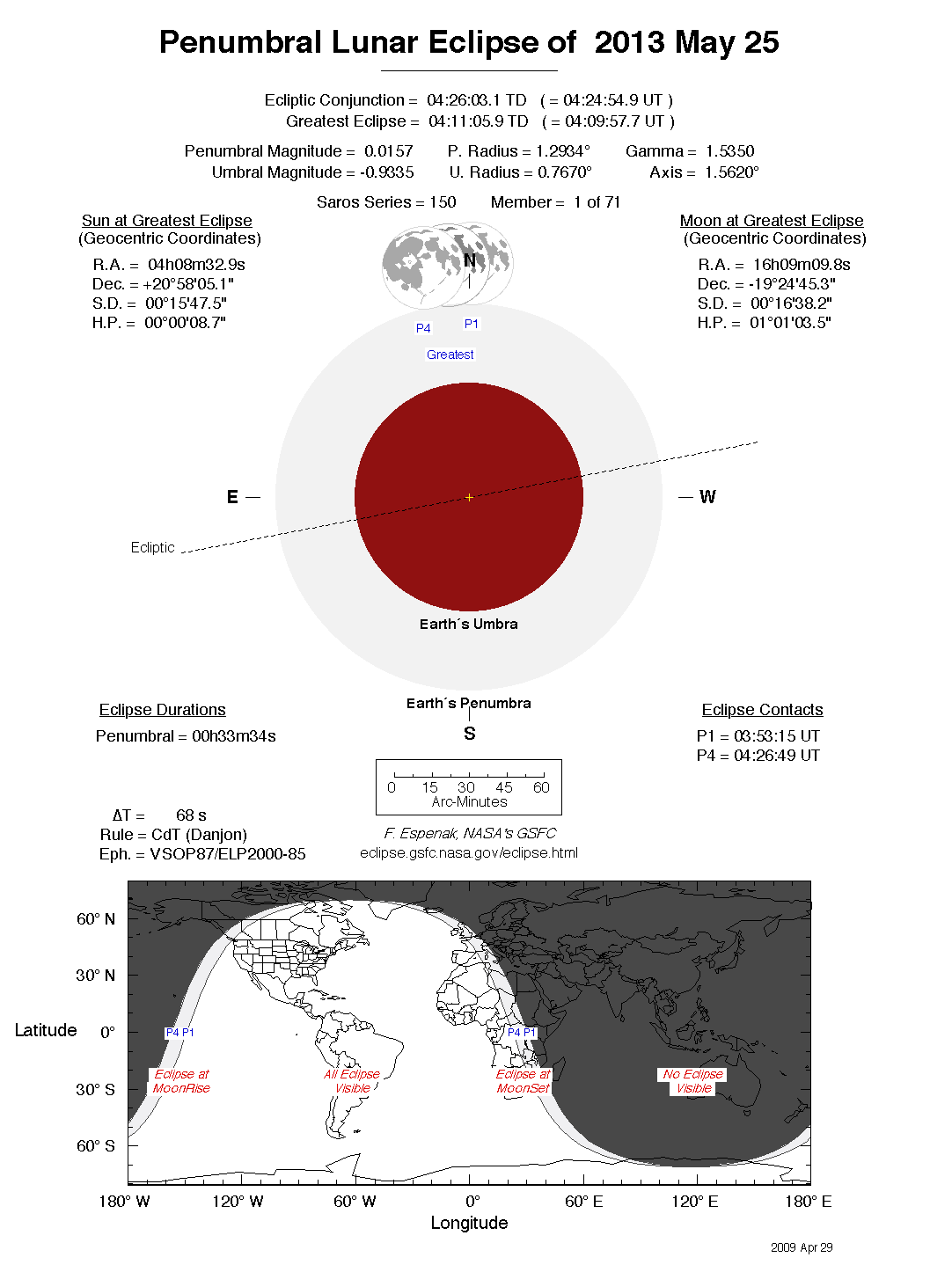

Detailed Lunar Eclipse Figure - eclipse geometry figure and map of eclipse visibility using older Danjon method
