Partial Lunar Eclipse of 2013 Apr 25

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction

The Partial Lunar Eclipse of 2013 Apr 25 is visible from the following geographic regions:

  • Europe, Africa, Asia, Australia

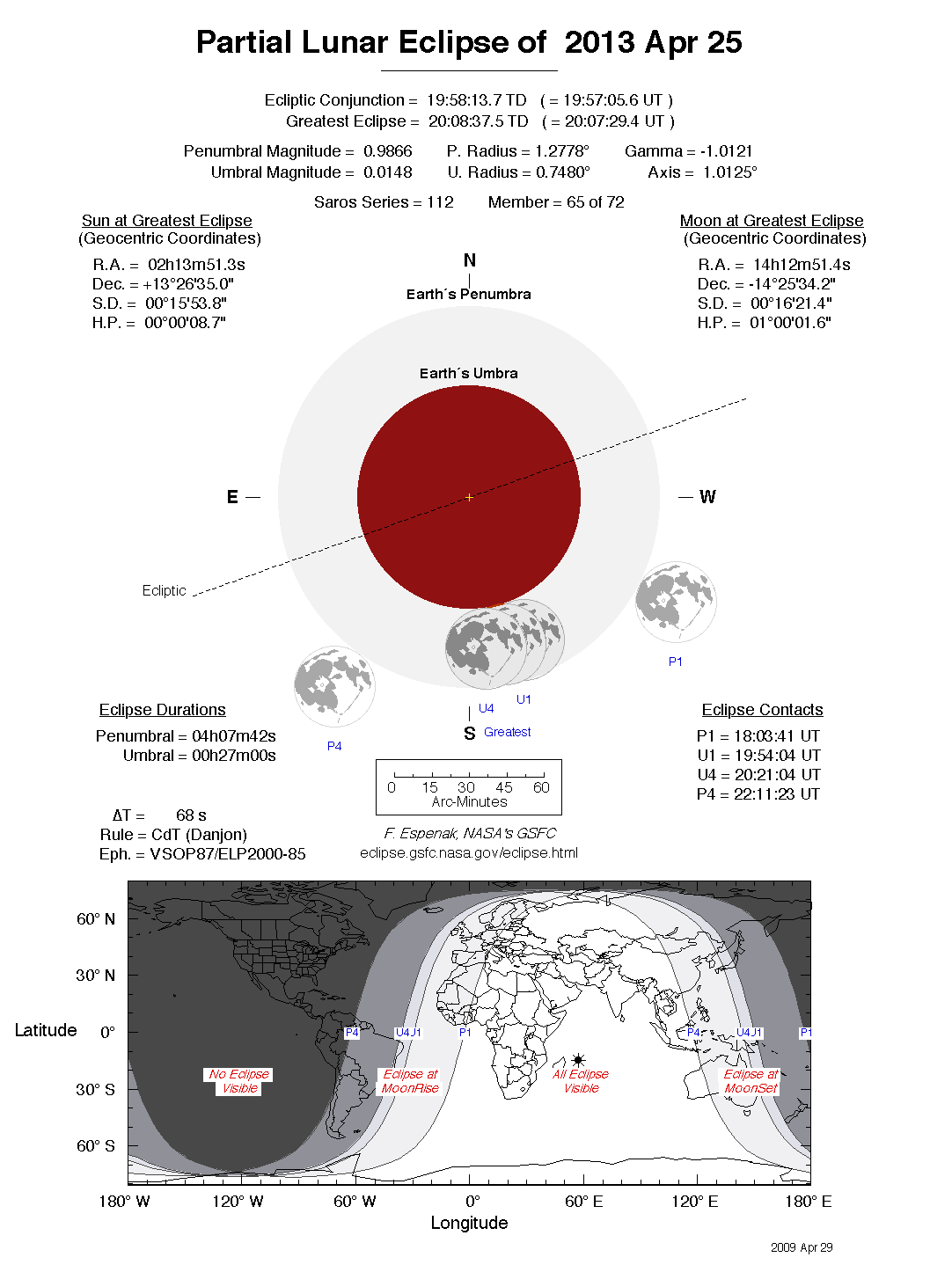

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2013 Apr 25 at 20:08:37 TD (20:07:30 UT1). This is 2.0 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1117.

The eclipse belongs to Saros 112 and is number 65 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very shallow partial eclipse. It has an umbral eclipse magnitude of only 0.0160 and a partial eclipse duration of 28.1 minutes. Gamma has a value of -1.0121.

The partial lunar eclipse of 2013 Apr 25 is followed two weeks later by a annular solar eclipse on 2013 May 10.

Another lunar eclipse occurs one synodic month after the 2013 Apr 25 eclipse. It is the penumbral lunar eclipse of 2013 May 25.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 67.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 2013 Apr 25 .

Eclipse Data: Partial Lunar Eclipse of 2013 Apr 25

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 0.98783
Umbral Magnitude 0.01596
Gamma-1.01214
Epsilon 1.0125°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2013 Apr 25 at 20:08:37.1 TD (20:07:30.0 UT1) 2456408.338542
Ecliptic Opposition 2013 Apr 25 at 19:58:13.8 TD (19:57:06.7 UT1) 2456408.331328
Equatorial Opposition 2013 Apr 25 at 20:34:53.4 TD (20:33:46.3 UT1) 2456408.356786
Geocentric Coordinates of Sun and Moon
2013 Apr 25 at 20:08:37.1 TD (20:07:30.0 UT1)
Coordinate Sun Moon
Right Ascension02h13m51.3s14h12m51.4s
Declination+13°26'35.0"-14°25'34.1"
Semi-Diameter 15'53.7" 16'21.4"
Eq. Hor. Parallax 08.7" 1°00'01.6"
Geocentric Libration of Moon
Angle Value
l -3.7°
b 1.4°
c 20.9°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2815°
Umbral Radius 0.7516°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 67.1 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 112 (65/72)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 2013 Apr 25

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD		 Time
UT1		 Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP118:04:20.118:03:13.014°06.7'S087°14.2'E 243.1° 1.5525°
Partial BeginsU119:54:28.319:53:21.314°23.4'S060°44.6'E 201.4° 1.0213°
Greatest EclipseGreatest20:08:37.120:07:30.014°25.6'S057°20.5'E 193.8° 1.0125°
Partial EndsU420:22:37.220:21:30.214°27.7'S053°58.4'E 186.4° 1.0211°
Penumbral EndsP422:12:45.722:11:38.614°44.0'S027°29.1'E 144.5° 1.5528°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h08m25.5s
Partial (U4 - U1)00h28m08.9s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 2013 Apr 25

Polynomial Besselian Elements
2013 Apr 25 at 20:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.32127 -0.96362 0.2346 1.28141 0.75155 0.27258
1 0.55235 -0.13596 0.0002 0.00035 0.00035 0.00009
2 0.00024 0.00009 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Partial Lunar Eclipse of 2013 Apr 25

Links to Additional Lunar Eclipse Information

• Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 2013 Apr 25 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 67.1 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
