Solar Eclipse Prime Page

Annular Solar Eclipse of 2911 Feb 20

Fred Espenak

Introduction

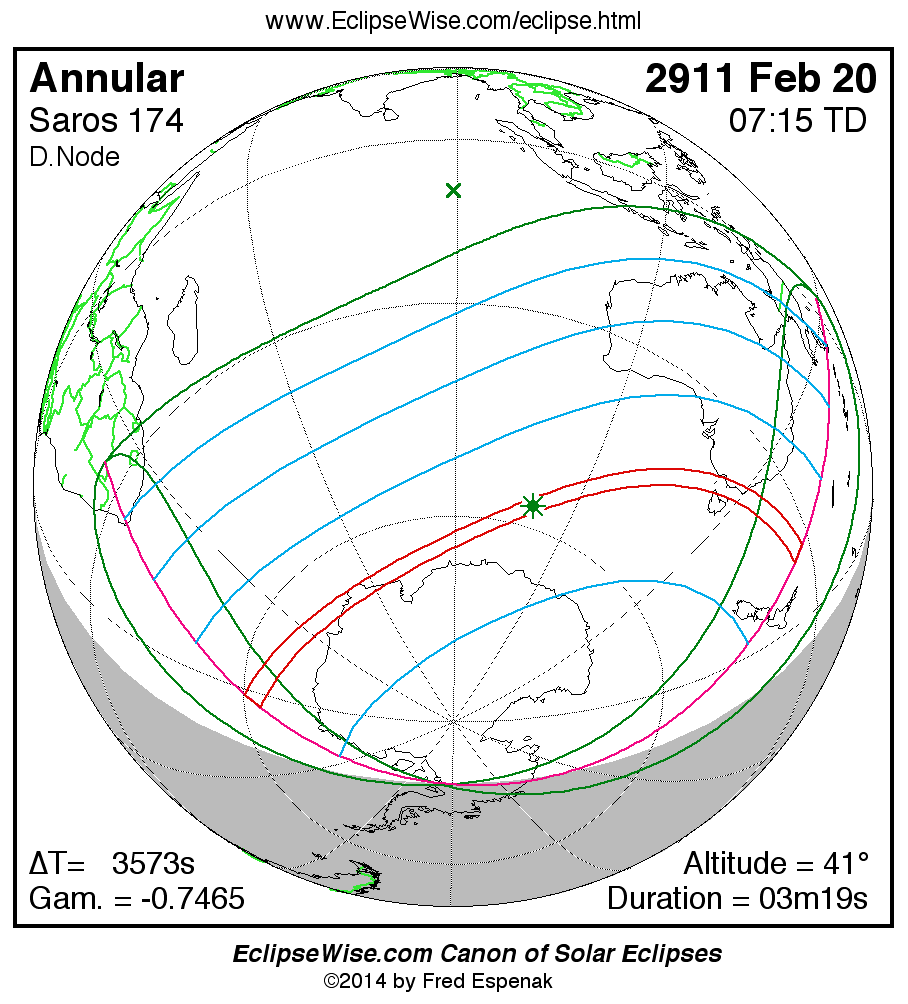

eclipse map


The Annular Solar Eclipse of 2911 Feb 20 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2911 Feb 20 at 07:14:59 TD (06:15:27 UT1). This is 6.3 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 12222.

The eclipse belongs to Saros 174 and is number 22 of 69 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2911 Feb 20 is preceded two weeks earlier by a partial lunar eclipse on 2911 Feb 04.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3572.4 seconds for this eclipse. The uncertainty in ΔT is 793.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.32°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2911 Feb 20 .


Eclipse Data: Annular Solar Eclipse of 2911 Feb 20

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96042
Eclipse Obscuration 0.92240
Gamma-0.74646
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2911 Feb 20 at 07:14:58.9 TD (06:15:26.6 UT1) 2784330.760724
Ecliptic Conjunction 2911 Feb 20 at 07:23:18.1 TD (06:23:45.7 UT1) 2784330.766502
Equatorial Conjunction 2911 Feb 20 at 06:52:25.8 TD (05:52:53.4 UT1) 2784330.745063
Geocentric Coordinates of Sun and Moon
2911 Feb 20 at 07:14:58.9 TD (06:15:26.6 UT1)
Coordinate Sun Moon
Right Ascension22h11m47.3s22h12m31.8s
Declination-11°05'32.7"-11°46'13.9"
Semi-Diameter 16'13.1" 15'25.1"
Eq. Hor. Parallax 08.9" 0°56'35.0"
Geocentric Libration of Moon
Angle Value
l -5.0°
b 0.9°
c -22.2°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 3572.4 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 174 (22/69)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2911 Feb 20

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP104:40:32.303:40:59.942°44.0'S027°20.0'E
Last External ContactP409:49:29.708:49:57.313°23.1'S143°13.1'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N105:18:20.104:18:47.725°27.0'S022°59.2'E
South Extreme Path Limit 1S109:11:37.708:12:05.304°06.1'N149°13.1'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2911 Feb 20

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU105:57:54.404:58:22.060°39.4'S001°59.1'W
First Internal ContactU206:02:51.505:03:19.162°22.7'S004°49.0'W
Last Internal ContactU308:27:25.607:27:53.233°43.2'S168°34.7'E
Last External ContactU408:32:16.107:32:43.831°55.4'S166°51.9'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N105:58:26.704:58:54.460°21.7'S001°51.9'W
South Extreme Path Limit 1S106:02:20.805:02:48.462°39.4'S004°58.0'W
North Extreme Path Limit 2N208:31:44.507:32:12.131°36.9'S166°54.8'E
South Extreme Path Limit 2S208:27:55.807:28:23.434°00.9'S168°32.2'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2911 Feb 20

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C106:00:21.605:00:49.261°29.9'S003°21.3'W
Extreme Central Line Limit 2C208:29:52.307:30:19.932°48.1'S167°42.5'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse07:14:58.906:15:26.656°59.1'S094°58.6'E 41.4° 332.4° 215.3 km03m18.73s
Greatest Duration07:02:11.306:02:38.959°55.8'S101°57.9'E 40.6° 347.6° 213.6 km03m19.11s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2911 Feb 20

Polynomial Besselian Elements
2911 Feb 20 at 07:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.06485 -0.75540 -11.0943 0.56064 0.01441 281.9927
1 0.51397 0.13766 0.0145 -0.00011 -0.00011 15.0021
2 -0.00001 0.00011 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047421
Tan ƒ2 0.0047185

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 7.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2911 Feb 20

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2911 Feb 20 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3572.4 seconds for this eclipse. The uncertainty in ΔT is 793.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.32°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
