Solar Eclipse Prime Page

Hybrid Solar Eclipse of 1423 Jul 08

Fred Espenak

Introduction

eclipse map

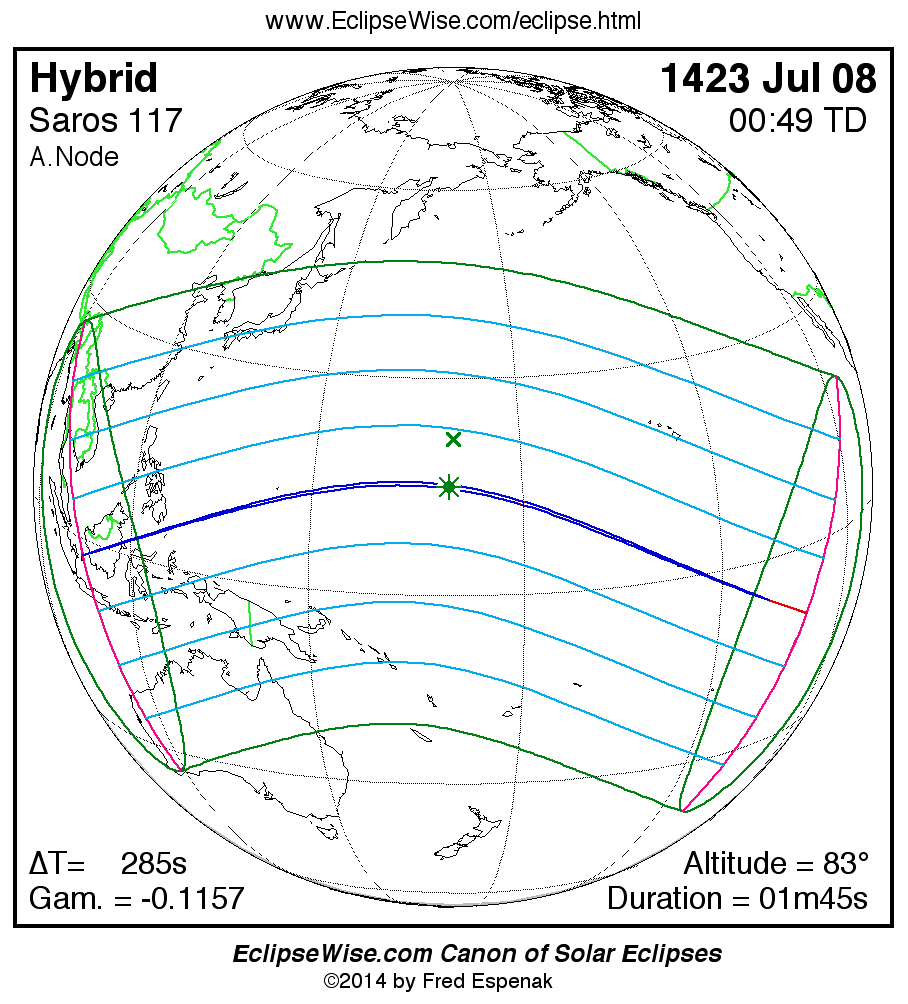

The Hybrid Solar Eclipse of 1423 Jul 08 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1423 Jul 08 at 00:48:38 TD (00:43:54 UT1). This is 5.2 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of -6177.

The eclipse belongs to Saros 117 and is number 36 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1423 Jul 08 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as total but later changes to annular. It is a relatively long hybrid eclipse with a duration at greatest eclipse of 01m45s. The eclipse magnitude is 1.0161, while Gamma has a value of -0.1157.

The hybrid solar eclipse of 1423 Jul 08 is preceded two weeks earlier by a penumbral lunar eclipse on 1423 Jun 24, and it is followed two weeks later by a penumbral lunar eclipse on 1423 Jul 23.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 284.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of 1423 Jul 08 .


Eclipse Data: Hybrid Solar Eclipse of 1423 Jul 08

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.01606
Eclipse Obscuration 1.03238
Gamma-0.11573
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1423 Jul 08 at 00:48:38.2 TD (00:43:53.5 UT1) 2240996.530480
Ecliptic Conjunction 1423 Jul 08 at 00:47:22.6 TD (00:42:37.9 UT1) 2240996.529605
Equatorial Conjunction 1423 Jul 08 at 00:49:32.4 TD (00:44:47.7 UT1) 2240996.531108
Geocentric Coordinates of Sun and Moon
1423 Jul 08 at 00:48:38.2 TD (00:43:53.5 UT1)
Coordinate Sun Moon
Right Ascension07h40m24.0s07h40m21.9s
Declination+21°30'15.7"+21°23'36.6"
Semi-Diameter 15'44.6" 15'44.5"
Eq. Hor. Parallax 08.7" 0°57'46.5"
Geocentric Libration of Moon
Angle Value
l 5.1°
b 0.1°
c 11.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 284.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 117 (36/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1423 Jul 08

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP121:59:31.321:54:46.600°14.7'S122°34.7'E
First Internal ContactP200:00:31.523:55:46.810°01.4'S096°13.5'E
Last Internal ContactP301:36:42.401:31:57.717°36.8'S119°00.0'W
Last External ContactP403:37:51.003:33:06.307°51.6'S145°13.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:18:06.323:13:21.627°07.2'N091°11.2'E
South Extreme Path Limit 1S123:17:00.023:12:15.334°10.4'S118°38.1'E
North Extreme Path Limit 2N202:19:13.402:14:28.719°38.9'N114°21.8'W
South Extreme Path Limit 2S202:20:11.702:15:27.041°26.1'S143°01.8'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1423 Jul 08

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU122:59:40.622:54:55.902°26.0'S108°24.1'E
First Internal ContactU222:59:40.922:54:56.202°26.0'S108°24.0'E
Last Internal ContactU302:37:33.102:32:48.410°02.8'S131°01.7'W
Last External ContactU402:37:38.502:32:53.810°02.5'S131°02.9'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:59:40.722:54:56.002°26.0'S108°24.1'E
South Extreme Path Limit 1S122:59:40.822:54:56.102°25.9'S108°24.0'E
North Extreme Path Limit 2N202:37:35.602:32:50.910°01.4'S131°01.7'W
South Extreme Path Limit 2S202:37:36.002:32:51.310°04.0'S131°02.9'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of 1423 Jul 08

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C122:59:40.822:54:56.102°26.0'S108°24.1'E
Extreme Central Line Limit 2C202:37:35.802:32:51.110°02.7'S131°02.3'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse00:48:38.200:43:53.514°58.2'N168°31.5'E 83.4° 4.0° 55.4 km01m45.33s
Greatest Duration00:44:48.100:40:03.415°05.7'N168°36.2'E 83.1° 20.4° 55.5 km01m45.46s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of 1423 Jul 08

Polynomial Besselian Elements
1423 Jul 08 at 01:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.09510 -0.12279 21.5034 0.54641 0.00025 193.8287
1 0.54554 -0.03888 -0.0066 0.00012 0.00012 15.0003
2 -0.00003 -0.00013 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046026
Tan ƒ2 0.0045797

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 1.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of 1423 Jul 08

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of 1423 Jul 08 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 284.7 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
