Total Solar Eclipse of 0994 Aug 09

Fred Espenak

Introduction

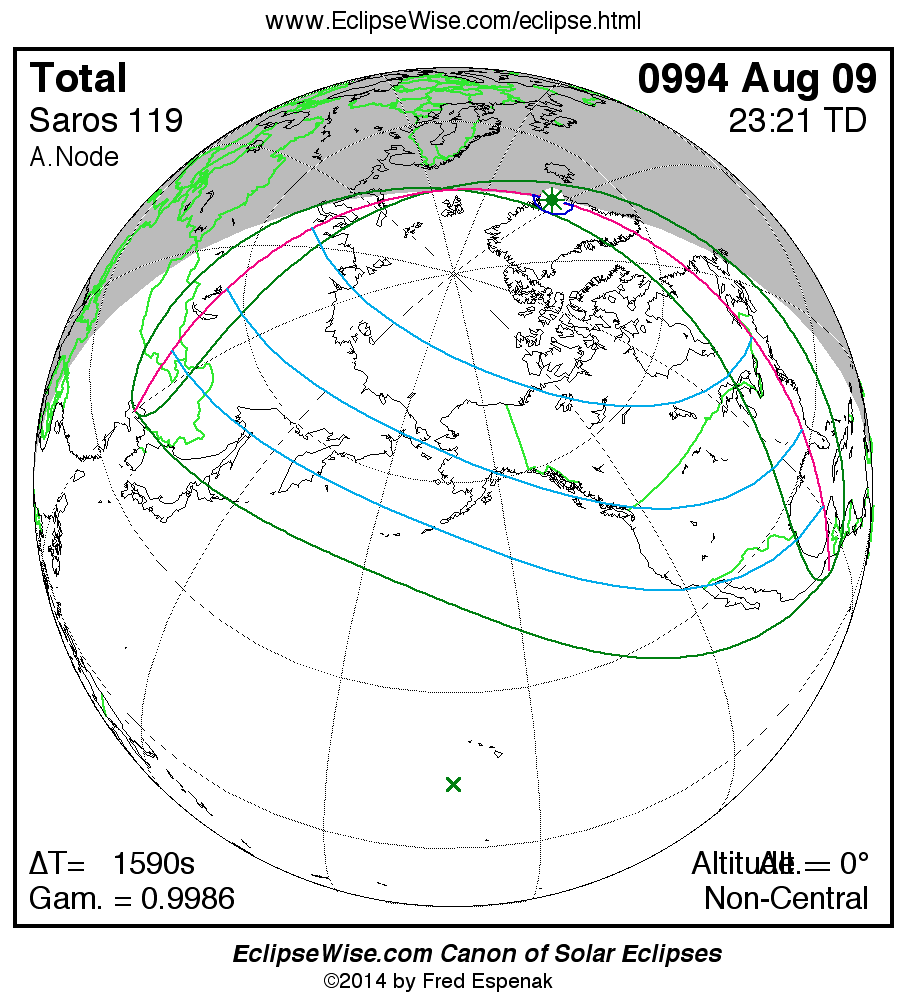

eclipse map


The Total Solar Eclipse of 0994 Aug 09 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0994 Aug 09 at 23:21:10 TD (22:54:40 UT1). This is 3.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -11482.

The eclipse belongs to Saros 119 and is number 9 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This total eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a northern path limit. Instead , over half of the umbral shadow falls off into space throughout the eclipse. Gamma has a value of 0.9986.

The total solar eclipse of 0994 Aug 09 is preceded two weeks earlier by a total lunar eclipse on 0994 Jul 25.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1589.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 0994 Aug 09 .


Eclipse Data: Total Solar Eclipse of 0994 Aug 09

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.00160
Eclipse Obscuration -
Gamma 0.99858
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 0994 Aug 09 at 23:21:10.0 TD (22:54:40.2 UT1) 2084337.454632
Ecliptic Conjunction 0994 Aug 09 at 23:31:34.6 TD (23:05:04.8 UT1) 2084337.461861
Equatorial Conjunction 0994 Aug 09 at 22:55:33.1 TD (22:29:03.3 UT1) 2084337.436844
Geocentric Coordinates of Sun and Moon
0994 Aug 09 at 23:21:10.0 TD (22:54:40.2 UT1)
Coordinate Sun Moon
Right Ascension09h36m30.3s09h37m26.4s
Declination+14°20'21.8"+15°17'15.0"
Semi-Diameter 15'50.7" 15'59.8"
Eq. Hor. Parallax 08.7" 0°58'42.7"
Geocentric Libration of Moon
Angle Value
l -4.5°
b -1.2°
c 20.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 1589.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 119 ( 9/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 0994 Aug 09

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP121:14:26.220:47:56.551°30.1'N120°01.1'E
Last External ContactP401:28:00.701:01:30.926°09.7'N097°24.5'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:39:32.721:13:02.939°16.2'N120°26.4'E
South Extreme Path Limit 1S101:02:53.200:36:23.413°29.1'N094°48.9'W

Non-Central Total Solar Eclipse

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 0994 Aug 09

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU123:16:50.122:50:20.371°59.5'N019°58.0'W
Last External ContactU423:25:50.822:59:21.068°48.3'N032°49.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:19:47.722:53:17.971°42.3'N026°41.9'W
South Extreme Path Limit 1S123:22:50.722:56:20.970°35.1'N031°04.5'W

Non-Central Total Solar Eclipse

Explanation of Umbral Shadow Contacts and Extremes Tables

Non-Central Total Solar Eclipse

Explanation of Central Line Extremes Table

Non-Central Total Solar Eclipse

Polynomial Besselian Elements: Total Solar Eclipse of 0994 Aug 09

Polynomial Besselian Elements
0994 Aug 09 at 23:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.04014 1.01689 14.3415 0.54375 -0.00239 164.2384
1 0.54143 -0.12872 -0.0127 -0.00010 -0.00010 15.0030
2 -0.00001 -0.00015 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046322
Tan ƒ2 0.0046091

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 0994 Aug 09

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 0994 Aug 09 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1589.8 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
