Annular Solar Eclipse of 0899 Sep 08

Fred Espenak

Introduction

eclipse map

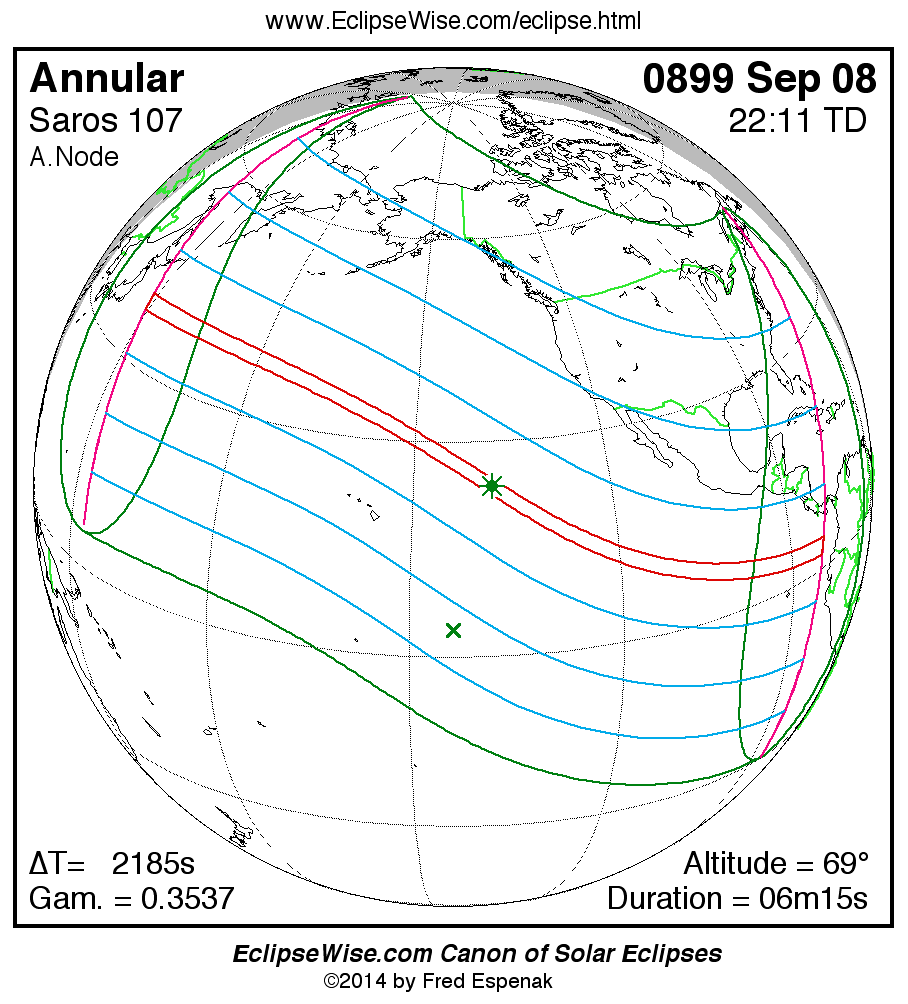

The Annular Solar Eclipse of 0899 Sep 08 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0899 Sep 08 at 22:11:23 TD (21:34:59 UT1). This is 3.7 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -12656.

The eclipse belongs to Saros 107 and is number 20 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 0899 Sep 08 is a relatively long annular eclipse with a duration at greatest eclipse of 06m15s. It has an eclipse magnitude of 0.9465.

The annular solar eclipse of 0899 Sep 08 is preceded two weeks earlier by a partial lunar eclipse on 0899 Aug 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2184.8 seconds for this eclipse. The uncertainty in ΔT is 67.8 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.28°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 0899 Sep 08 .


Eclipse Data: Annular Solar Eclipse of 0899 Sep 08

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94654
Eclipse Obscuration 0.89593
Gamma 0.35364
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 0899 Sep 08 at 22:11:23.5 TD (21:34:58.7 UT1) 2049668.399290
Ecliptic Conjunction 0899 Sep 08 at 22:15:33.0 TD (21:39:08.2 UT1) 2049668.402178
Equatorial Conjunction 0899 Sep 08 at 21:58:20.0 TD (21:21:55.2 UT1) 2049668.390222
Geocentric Coordinates of Sun and Moon
0899 Sep 08 at 22:11:23.5 TD (21:34:58.7 UT1)
Coordinate Sun Moon
Right Ascension11h23m06.4s11h23m29.7s
Declination+04°00'06.5"+04°18'30.7"
Semi-Diameter 15'58.7" 14'54.6"
Eq. Hor. Parallax 08.8" 0°54'43.2"
Geocentric Libration of Moon
Angle Value
l -3.1°
b -0.4°
c 24.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 2184.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 107 (20/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 0899 Sep 08

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP119:12:59.718:36:34.930°38.8'N167°20.9'E
First Internal ContactP221:42:35.521:06:10.772°20.1'N119°37.8'E
Last Internal ContactP322:40:34.522:04:09.637°21.3'N059°06.3'W
Last External ContactP401:09:49.000:33:24.204°29.9'S099°47.6'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:27:18.620:50:53.883°29.8'N098°11.1'E
South Extreme Path Limit 1S120:14:33.519:38:08.705°17.3'N153°58.9'E
North Extreme Path Limit 2N222:55:58.522:19:33.749°37.6'N061°18.4'W
South Extreme Path Limit 2S200:08:02.923:31:38.129°51.3'S086°19.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 0899 Sep 08

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU120:19:38.419:43:13.637°54.1'N149°56.4'E
First Internal ContactU220:24:37.119:48:12.338°45.9'N148°35.8'E
Last Internal ContactU323:58:21.123:21:56.303°37.9'N081°21.4'W
Last External ContactU400:03:15.423:26:50.602°46.7'N082°38.6'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:23:06.919:46:42.139°32.7'N148°52.9'E
South Extreme Path Limit 1S120:21:11.019:44:46.237°06.7'N149°38.6'E
North Extreme Path Limit 2N223:59:50.523:23:25.704°24.4'N081°40.5'W
South Extreme Path Limit 2S200:01:43.723:25:18.901°59.7'N082°19.0'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 0899 Sep 08

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C120:22:07.519:45:42.738°19.4'N149°16.2'E
Extreme Central Line Limit 2C200:00:48.523:24:23.703°11.8'N082°00.1'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse22:11:23.521:34:58.723°50.2'N147°18.6'W 69.1° 199.0° 209.6 km06m15.44s
Greatest Duration22:05:40.621:29:15.824°45.5'N139°39.3'W 68.9° 190.5° 208.8 km06m15.67s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 0899 Sep 08

Polynomial Besselian Elements
0899 Sep 08 at 22:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.01359 0.36655 4.0040 0.56604 0.01978 151.1413
1 0.48916 -0.15440 -0.0158 -0.00007 -0.00007 15.0045
2 0.00000 -0.00004 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046720
Tan ƒ2 0.0046487

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 22.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 0899 Sep 08

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 0899 Sep 08 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2184.8 seconds for this eclipse. The uncertainty in ΔT is 67.8 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.28°.
