Total Solar Eclipse of -1645 May 30 (1646 May 30 BCE)

Fred Espenak

Introduction

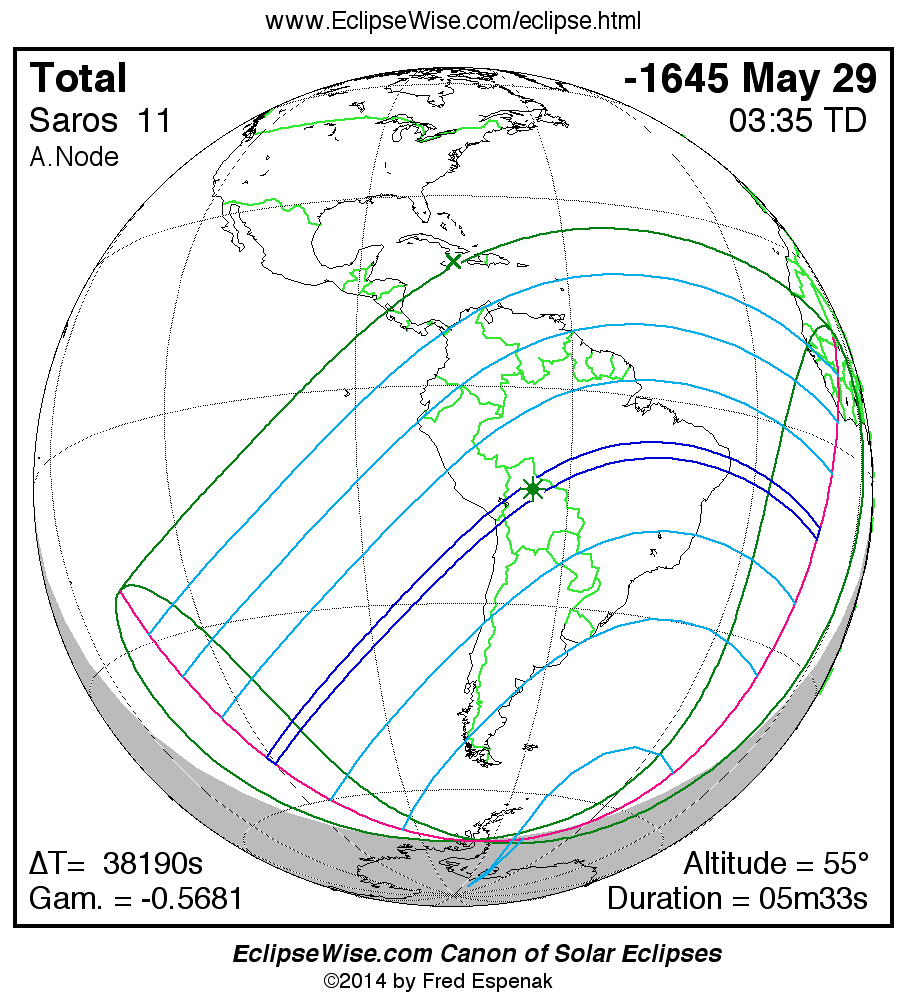

eclipse map


The Total Solar Eclipse of -1645 May 30 (1646 May 30 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1645 May 30 at 03:34:37 TD (16:58:11 UT1). This is 1.6 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of -44125.

The eclipse belongs to Saros 11 and is number 48 of 76 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -1645 May 30 is a relatively long total eclipse with a duration at greatest eclipse of 05m33s. It has an eclipse magnitude of 1.0619.

The total solar eclipse of -1645 May 30 is followed two weeks later by a partial lunar eclipse on -1645 Jun 13.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38185.5 seconds for this eclipse. The uncertainty in ΔT is 2374.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 9.92°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of -1645 May 30 .


Eclipse Data: Total Solar Eclipse of -1645 May 30

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.06193
Eclipse Obscuration 1.12770
Gamma-0.56804
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1645 May 30 at 03:34:36.8 TD (16:58:11.3 UT1) 1120370.207075
Ecliptic Conjunction -1645 May 30 at 03:28:46.0 TD (16:52:20.5 UT1) 1120370.203015
Equatorial Conjunction -1645 May 30 at 03:11:57.7 TD (16:35:32.2 UT1) 1120370.191345
Geocentric Coordinates of Sun and Moon
-1645 May 30 at 03:34:36.8 TD (16:58:11.3 UT1)
Coordinate Sun Moon
Right Ascension03h17m46.5s03h18m37.8s
Declination+18°35'54.1"+18°03'54.7"
Semi-Diameter 15'42.9" 16'27.6"
Eq. Hor. Parallax 08.6" 1°00'24.4"
Geocentric Libration of Moon
Angle Value
l -2.3°
b 0.7°
c -13.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 38185.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 11 (48/76)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of -1645 May 30

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:05:56.814:29:31.340°08.2'S113°31.0'W
Last External ContactP406:03:22.719:26:57.200°49.5'S024°37.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:58:16.715:21:51.222°01.3'S135°14.7'W
South Extreme Path Limit 1S105:10:56.218:34:30.717°41.7'N005°03.8'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of -1645 May 30

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU102:07:23.815:30:58.351°11.3'S120°37.8'W
First Internal ContactU202:10:28.315:34:02.852°00.7'S120°36.3'W
Last Internal ContactU304:58:57.818:22:32.313°33.0'S012°53.7'W
Last External ContactU405:02:05.318:25:39.812°37.5'S013°20.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:08:14.315:31:48.850°52.8'S121°07.8'W
South Extreme Path Limit 1S102:09:39.315:33:13.852°18.9'S120°06.1'W
North Extreme Path Limit 2N205:01:13.718:24:48.212°16.7'S013°00.5'W
South Extreme Path Limit 2S204:59:47.818:23:22.313°53.6'S013°13.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of -1645 May 30

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C102:08:55.815:32:30.351°35.7'S120°37.6'W
Extreme Central Line Limit 2C205:00:31.818:24:06.313°04.9'S013°07.2'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse03:34:36.816:58:11.314°00.7'S135°21.7'E 55.3° 339.7° 244.3 km05m33.19s
Greatest Duration03:40:07.517:03:42.012°59.0'S063°32.8'W 55.1° 334.6° 246.7 km05m33.73s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of -1645 May 30

Polynomial Besselian Elements
-1645 May 30 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.42972 -0.44399 18.6039 0.53390 -0.01220 243.0379
1 0.53674 0.20485 0.0099 -0.00009 -0.00009 15.0021
2 0.00003 -0.00009 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0045936
Tan ƒ2 0.0045707

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of -1645 May 30 (1646 May 30 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of -1645 May 30 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38185.5 seconds for this eclipse. The uncertainty in ΔT is 2374.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 9.92°.
