Total Solar Eclipse of -1522 Apr 20 (1523 Apr 20 BCE)

Fred Espenak

Introduction

eclipse map

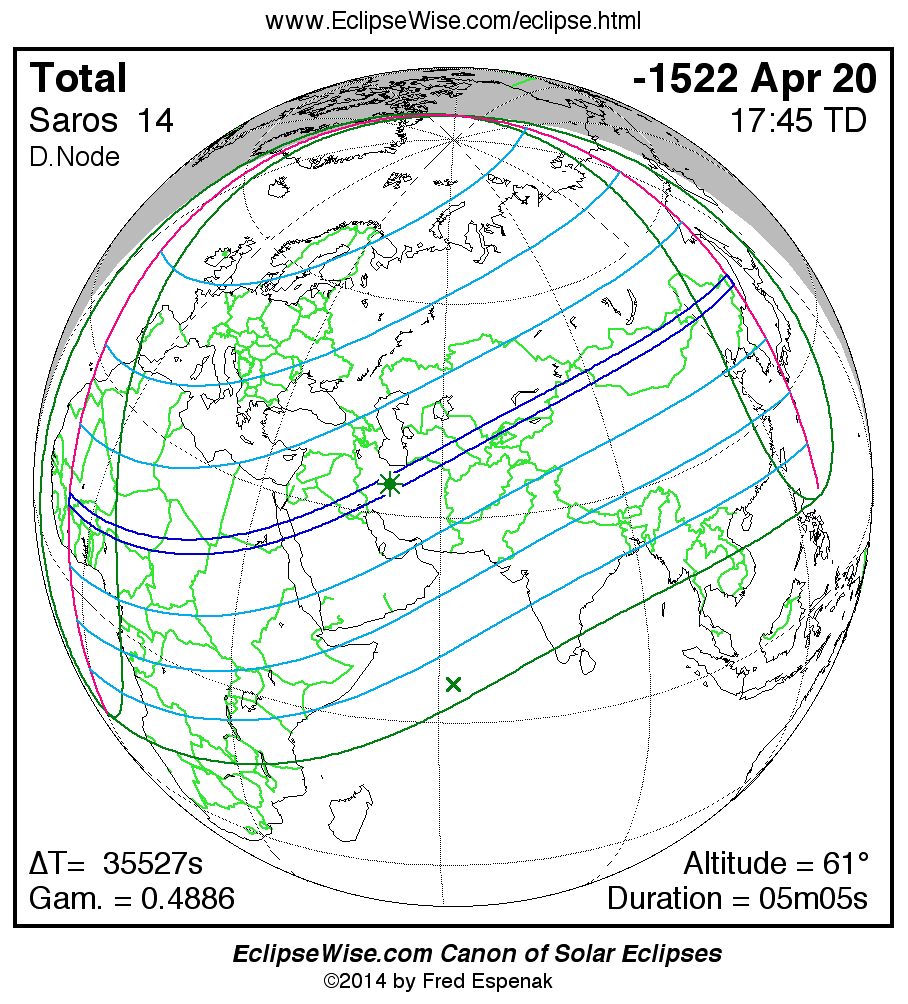

The Total Solar Eclipse of -1522 Apr 20 (1523 Apr 20 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1522 Apr 20 at 17:45:12 TD (07:53:10 UT1). This is 1.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -42605.

The eclipse belongs to Saros 14 and is number 58 of 85 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of -1522 Apr 20 is a relatively long total eclipse with a duration at greatest eclipse of 05m05s. It has an eclipse magnitude of 1.0625.

The total solar eclipse of -1522 Apr 20 is followed two weeks later by a partial lunar eclipse on -1522 May 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 35522.7 seconds for this eclipse. The uncertainty in ΔT is 1968.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 8.22°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of -1522 Apr 20 .


Eclipse Data: Total Solar Eclipse of -1522 Apr 20

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.06251
Eclipse Obscuration 1.12894
Gamma 0.48853
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1522 Apr 20 at 17:45:12.4 TD (07:53:09.7 UT1) 1165256.828585
Ecliptic Conjunction -1522 Apr 20 at 17:40:10.2 TD (07:48:07.5 UT1) 1165256.825087
Equatorial Conjunction -1522 Apr 20 at 18:01:12.3 TD (08:09:09.6 UT1) 1165256.839695
Geocentric Coordinates of Sun and Moon
-1522 Apr 20 at 17:45:12.4 TD (07:53:09.7 UT1)
Coordinate Sun Moon
Right Ascension00h57m28.5s00h56m52.9s
Declination+06°16'04.4"+06°44'11.7"
Semi-Diameter 15'44.5" 16'29.0"
Eq. Hor. Parallax 08.7" 1°00'29.6"
Geocentric Libration of Moon
Angle Value
l -2.3°
b -0.6°
c -24.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 35522.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 14 (58/85)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of -1522 Apr 20

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP115:13:32.005:21:29.301°07.0'N009°29.6'E
Last External ContactP420:16:41.810:24:39.135°56.1'N118°23.4'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N115:58:11.206:06:08.520°01.1'S000°43.9'E
South Extreme Path Limit 1S119:32:15.009:40:12.314°52.2'N126°35.6'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of -1522 Apr 20

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU116:12:47.906:20:45.211°25.7'N006°28.4'W
First Internal ContactU216:15:40.006:23:37.312°11.9'N007°16.7'W
Last Internal ContactU319:14:31.209:22:28.546°56.6'N136°07.2'E
Last External ContactU419:17:26.809:25:24.146°09.9'N135°12.4'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N116:14:59.806:22:57.112°35.9'N007°09.5'W
South Extreme Path Limit 1S116:13:29.306:21:26.611°01.4'N006°36.0'W
North Extreme Path Limit 2N219:15:11.909:23:09.247°20.8'N136°02.8'E
South Extreme Path Limit 2S219:16:44.809:24:42.145°45.4'N135°17.3'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of -1522 Apr 20

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C116:14:13.806:22:11.111°48.5'N006°52.5'W
Extreme Central Line Limit 2C219:15:59.109:23:56.446°32.9'N135°39.7'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse17:45:12.407:53:09.734°09.9'N096°54.8'W 60.6° 159.1° 234.0 km05m05.09s
Greatest Duration17:47:16.907:55:14.234°34.6'N052°16.3'E 60.5° 161.8° 233.5 km05m05.15s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of -1522 Apr 20

Polynomial Besselian Elements
-1522 Apr 20 at 18:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.01103 0.50859 6.2705 0.53400 -0.01209 90.4334
1 0.54901 0.17239 0.0152 -0.00008 -0.00008 15.0056
2 0.00002 -0.00006 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046018
Tan ƒ2 0.0045788

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 18.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of -1522 Apr 20 (1523 Apr 20 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of -1522 Apr 20 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 35522.7 seconds for this eclipse. The uncertainty in ΔT is 1968.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 8.22°.
