Annular Solar Eclipse of -1127 Jul 30 (1128 Jul 30 BCE)

Fred Espenak

Introduction

eclipse map

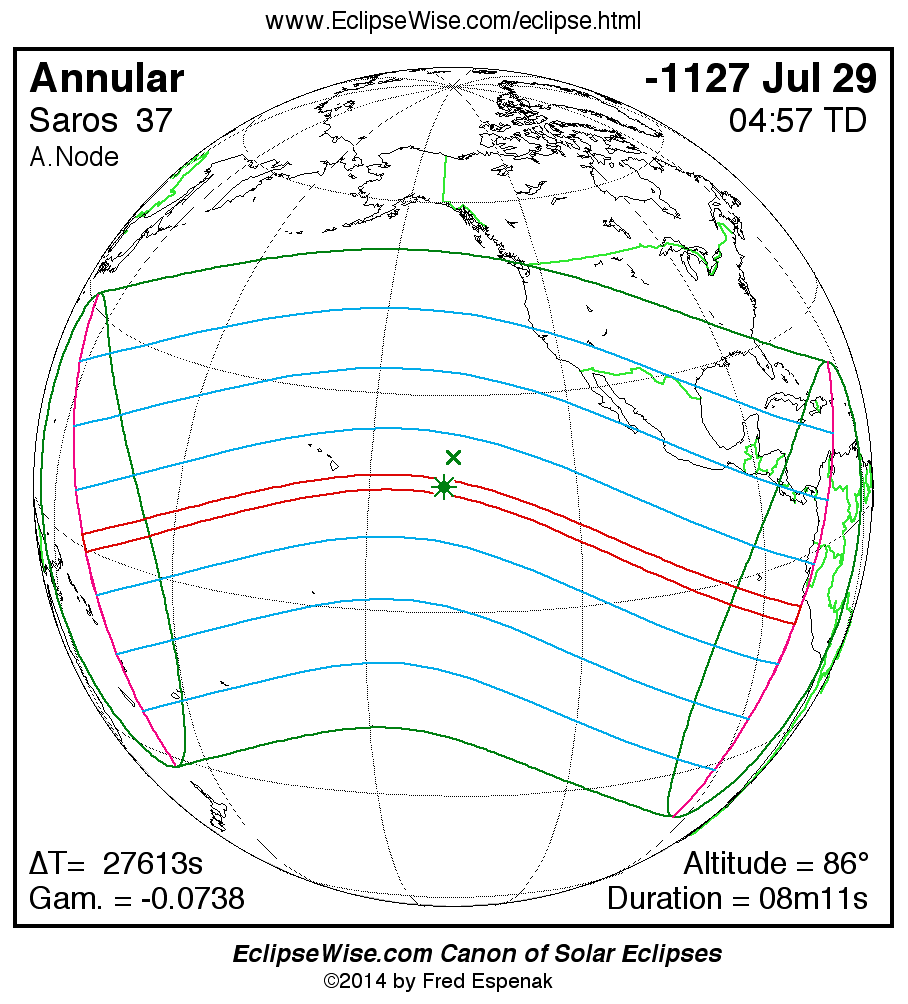

The Annular Solar Eclipse of -1127 Jul 30 (1128 Jul 30 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1127 Jul 30 at 04:56:44 TD (21:16:33 UT1). This is 0.5 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -37716.

The eclipse belongs to Saros 37 and is number 38 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -1127 Jul 30 is a relatively long annular eclipse with a duration at greatest eclipse of 08m11s. It has an eclipse magnitude of 0.9398.

The annular solar eclipse of -1127 Jul 30 is preceded two weeks earlier by a penumbral lunar eclipse on -1127 Jul 15, and it is followed two weeks later by a penumbral lunar eclipse on -1127 Aug 13.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 27610.0 seconds for this eclipse. The uncertainty in ΔT is 890.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.72°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -1127 Jul 30 .


Eclipse Data: Annular Solar Eclipse of -1127 Jul 30

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.93979
Eclipse Obscuration 0.88320
Gamma-0.07378
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1127 Jul 30 at 04:56:43.5 TD (21:16:33.5 UT1) 1309631.386499
Ecliptic Conjunction -1127 Jul 30 at 04:55:50.5 TD (21:15:40.4 UT1) 1309631.385884
Equatorial Conjunction -1127 Jul 30 at 04:57:27.9 TD (21:17:17.8 UT1) 1309631.387012
Geocentric Coordinates of Sun and Moon
-1127 Jul 30 at 04:56:43.5 TD (21:16:33.5 UT1)
Coordinate Sun Moon
Right Ascension07h48m13.8s07h48m12.3s
Declination+21°28'10.2"+21°24'12.9"
Semi-Diameter 15'52.8" 14'42.1"
Eq. Hor. Parallax 08.7" 0°53'57.3"
Geocentric Libration of Moon
Angle Value
l 1.1°
b 0.1°
c 12.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 27610.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 37 (38/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1127 Jul 30

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:50:35.118:10:25.001°56.7'N176°59.7'E
First Internal ContactP204:06:11.820:26:01.704°42.7'S145°43.0'E
Last Internal ContactP305:47:13.922:07:03.913°43.0'S066°54.4'W
Last External ContactP408:02:52.600:22:42.507°04.6'S098°06.3'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N103:23:11.219:43:01.131°32.5'N140°37.9'E
South Extreme Path Limit 1S103:13:44.019:33:34.032°02.5'S171°14.0'E
North Extreme Path Limit 2N206:30:20.122:50:10.122°43.7'N062°41.9'W
South Extreme Path Limit 2S206:39:36.022:59:25.940°40.0'S094°13.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1127 Jul 30

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU102:55:36.219:15:26.200°36.5'N161°16.0'E
First Internal ContactU203:00:51.419:20:41.300°26.1'N160°01.3'E
Last Internal ContactU306:52:34.823:12:24.808°35.0'S081°08.3'W
Last External ContactU406:57:50.823:17:40.808°24.6'S082°23.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:58:33.419:18:23.301°41.3'N160°06.2'E
South Extreme Path Limit 1S102:57:56.819:17:46.700°38.4'S161°10.3'E
North Extreme Path Limit 2N206:54:53.423:14:43.407°19.8'S081°12.7'W
South Extreme Path Limit 2S206:55:29.723:15:19.709°39.6'S082°18.0'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -1127 Jul 30

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C102:58:13.819:18:03.700°31.4'N160°38.6'E
Extreme Central Line Limit 2C206:55:12.823:15:02.808°29.7'S081°45.6'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse04:56:43.521:16:33.517°21.7'N105°29.9'E 85.9° 4.8° 223.9 km08m10.79s
Greatest Duration04:52:40.421:12:30.317°30.6'N140°10.5'W 85.4° 29.5° 223.9 km08m11.03s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -1127 Jul 30

Polynomial Besselian Elements
-1127 Jul 30 at 05:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.02127 -0.07583 21.4693 0.56837 0.02211 254.9488
1 0.50318 -0.04245 -0.0073 0.00001 0.00001 14.9996
2 -0.00001 -0.00013 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046433
Tan ƒ2 0.0046201

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 5.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -1127 Jul 30 (1128 Jul 30 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -1127 Jul 30 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 27610.0 seconds for this eclipse. The uncertainty in ΔT is 890.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.72°.
