Annular Solar Eclipse of -1105 Nov 22 (1106 Nov 22 BCE)

Fred Espenak

Introduction

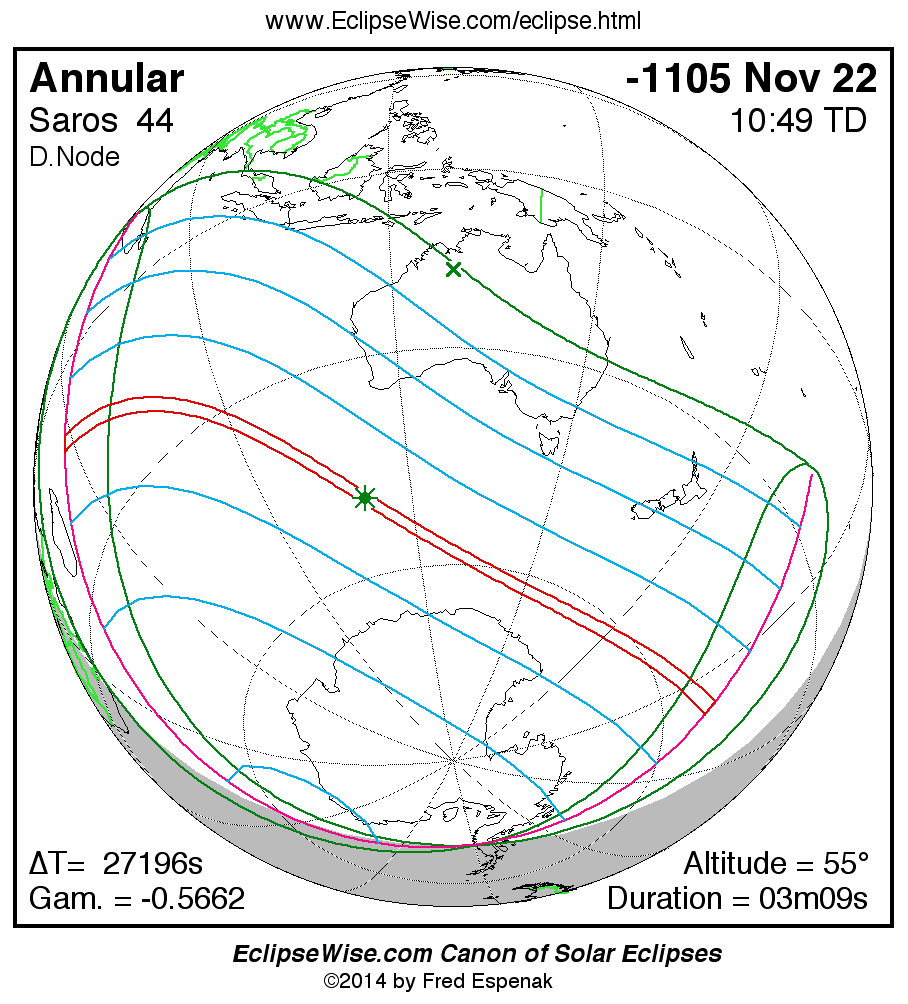

eclipse map


The Annular Solar Eclipse of -1105 Nov 22 (1106 Nov 22 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1105 Nov 22 at 10:48:44 TD (03:15:31 UT1). This is 6.6 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -37440.

The eclipse belongs to Saros 44 and is number 20 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of -1105 Nov 22 is preceded two weeks earlier by a partial lunar eclipse on -1105 Nov 08.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 27193.0 seconds for this eclipse. The uncertainty in ΔT is 840.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.51°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -1105 Nov 22 .


Eclipse Data: Annular Solar Eclipse of -1105 Nov 22

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96320
Eclipse Obscuration 0.92775
Gamma-0.56617
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1105 Nov 22 at 10:48:43.7 TD (03:15:30.7 UT1) 1317781.635773
Ecliptic Conjunction -1105 Nov 22 at 10:55:06.0 TD (03:21:53.0 UT1) 1317781.640197
Equatorial Conjunction -1105 Nov 22 at 11:13:46.7 TD (03:40:33.7 UT1) 1317781.653167
Geocentric Coordinates of Sun and Moon
-1105 Nov 22 at 10:48:43.7 TD (03:15:30.7 UT1)
Coordinate Sun Moon
Right Ascension15h10m39.4s15h09m49.7s
Declination-18°04'49.9"-18°34'40.5"
Semi-Diameter 16'17.1" 15'29.0"
Eq. Hor. Parallax 09.0" 0°56'49.4"
Geocentric Libration of Moon
Angle Value
l 5.3°
b 0.8°
c 14.2°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 27193.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 44 (20/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1105 Nov 22

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP108:05:27.200:32:14.200°15.6'N079°43.8'E
Last External ContactP413:31:56.705:58:43.740°20.4'S165°50.9'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N108:46:54.501:13:41.519°52.0'N076°02.9'E
South Extreme Path Limit 1S112:50:37.405:17:24.421°07.7'S164°23.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1105 Nov 22

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU109:14:15.501:41:02.511°51.6'S058°31.1'E
First Internal ContactU209:18:06.601:44:53.612°55.3'S057°11.5'E
Last Internal ContactU312:19:02.504:45:49.552°41.1'S138°21.7'W
Last External ContactU412:23:00.104:49:47.151°41.8'S140°18.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N109:14:55.501:41:42.511°27.4'S058°29.3'E
South Extreme Path Limit 1S109:17:27.601:44:14.613°19.1'S057°13.0'E
North Extreme Path Limit 2N212:22:19.104:49:06.151°19.2'S140°28.6'W
South Extreme Path Limit 2S212:19:42.204:46:29.253°03.0'S138°09.9'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -1105 Nov 22

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C109:16:10.601:42:57.612°22.9'S057°51.6'E
Extreme Central Line Limit 2C212:21:01.704:47:48.752°11.0'S139°20.7'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse10:48:43.703:15:30.749°24.9'S003°21.2'W 55.3° 32.1° 160.6 km03m09.14s
Greatest Duration11:22:50.403:49:37.457°53.9'S128°24.4'E 49.7° 348.0° 162.6 km03m11.05s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -1105 Nov 22

Polynomial Besselian Elements
-1105 Nov 22 at 11:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.11417 -0.56354 -18.0813 0.56058 0.01435 347.6034
1 0.49720 -0.19586 -0.0111 0.00012 0.00011 14.9993
2 0.00003 0.00014 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047613
Tan ƒ2 0.0047375

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -1105 Nov 22 (1106 Nov 22 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -1105 Nov 22 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 27193.0 seconds for this eclipse. The uncertainty in ΔT is 840.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.51°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.
