Annular Solar Eclipse of -0676 Oct 20 (0677 Oct 20 BCE)

Fred Espenak

Introduction

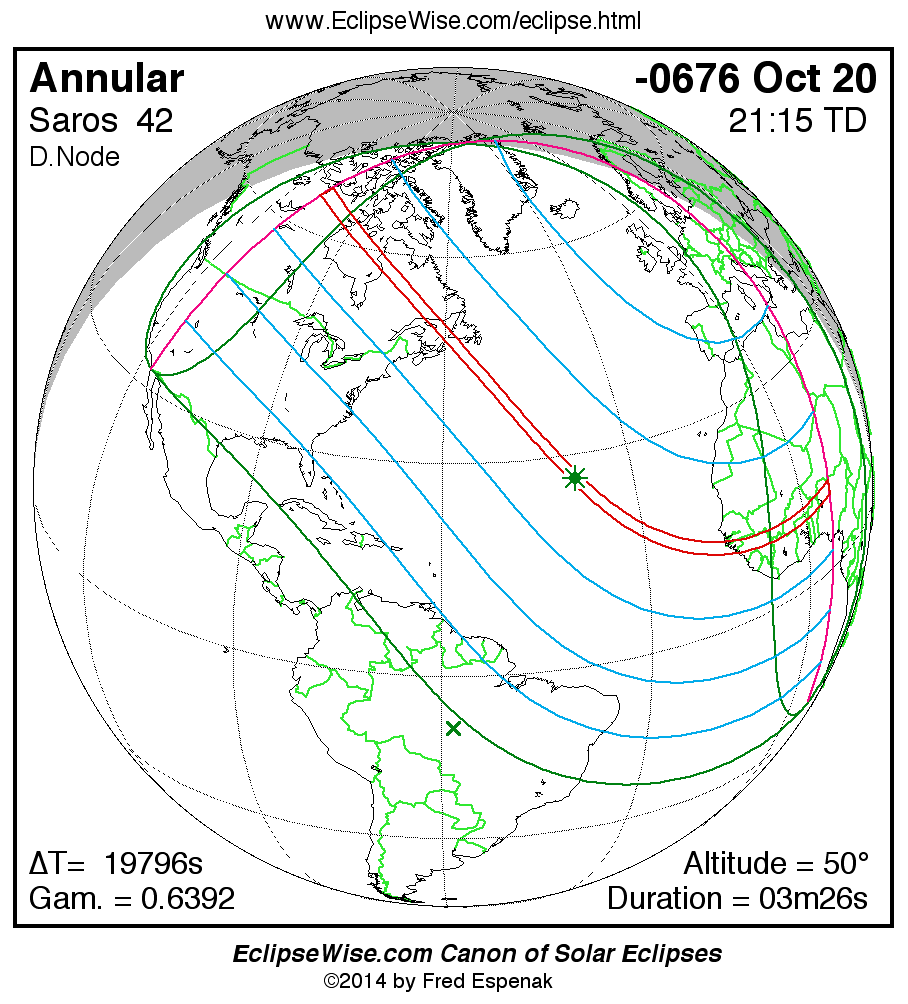

eclipse map


The Annular Solar Eclipse of -0676 Oct 20 (0677 Oct 20 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0676 Oct 20 at 21:15:04 TD (15:45:11 UT1). This is 6.5 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of -32135.

The eclipse belongs to Saros 42 and is number 51 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of -0676 Oct 20 is followed two weeks later by a partial lunar eclipse on -0676 Nov 03.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 19793.6 seconds for this eclipse. The uncertainty in ΔT is 498.1 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.08°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -0676 Oct 20 .


Eclipse Data: Annular Solar Eclipse of -0676 Oct 20

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96483
Eclipse Obscuration 0.93089
Gamma 0.63916
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0676 Oct 20 at 21:15:04.2 TD (15:45:10.7 UT1) 1474442.156373
Ecliptic Conjunction -0676 Oct 20 at 21:07:53.1 TD (15:37:59.6 UT1) 1474442.151384
Equatorial Conjunction -0676 Oct 20 at 20:36:44.2 TD (15:06:50.6 UT1) 1474442.129752
Geocentric Coordinates of Sun and Moon
-0676 Oct 20 at 21:15:04.2 TD (15:45:10.7 UT1)
Coordinate Sun Moon
Right Ascension13h16m56.2s13h18m05.0s
Declination-08°15'32.9"-07°43'36.8"
Semi-Diameter 16'13.6" 15'28.1"
Eq. Hor. Parallax 08.9" 0°56'46.3"
Geocentric Libration of Moon
Angle Value
l -4.4°
b -0.8°
c 20.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 19793.6 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 42 (51/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0676 Oct 20

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP118:35:22.813:05:29.351°44.2'N098°28.2'W
Last External ContactP423:54:54.518:25:00.903°52.1'S008°21.3'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:27:27.013:57:33.532°30.2'N116°45.2'W
South Extreme Path Limit 1S123:02:40.717:32:47.223°18.9'S007°44.4'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0676 Oct 20

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU119:47:03.014:17:09.566°03.5'N107°54.8'W
First Internal ContactU219:51:04.714:21:11.167°17.0'N107°43.0'W
Last Internal ContactU322:39:30.117:09:36.512°15.0'N008°07.4'E
Last External ContactU422:43:25.217:13:31.610°58.7'N007°20.2'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:50:17.014:20:23.567°37.1'N107°10.0'W
South Extreme Path Limit 1S119:47:52.314:17:58.865°42.7'N108°26.2'W
North Extreme Path Limit 2N222:40:17.017:10:23.412°36.1'N007°52.5'E
South Extreme Path Limit 2S222:42:37.017:12:43.510°37.0'N007°35.6'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -0676 Oct 20

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C119:49:03.314:19:09.766°39.6'N107°50.3'W
Extreme Central Line Limit 2C222:41:28.217:11:34.711°36.2'N007°43.8'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse21:15:04.215:45:10.726°46.1'N121°58.1'W 50.1° 211.3° 161.3 km03m26.49s
Greatest Duration21:22:47.015:52:53.424°44.9'N037°26.4'W 49.9° 217.6° 164.5 km03m26.54s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -0676 Oct 20

Polynomial Besselian Elements
-0676 Oct 20 at 21:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.18262 0.62703 -8.2567 0.55984 0.01361 137.8837
1 0.47102 -0.25139 -0.0155 -0.00011 -0.00011 15.0027
2 0.00003 0.00001 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047445
Tan ƒ2 0.0047209

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -0676 Oct 20 (0677 Oct 20 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -0676 Oct 20 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 19793.6 seconds for this eclipse. The uncertainty in ΔT is 498.1 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.08°.
