Partial Lunar Eclipse of 0308 Dec 14

Fred Espenak

Introduction

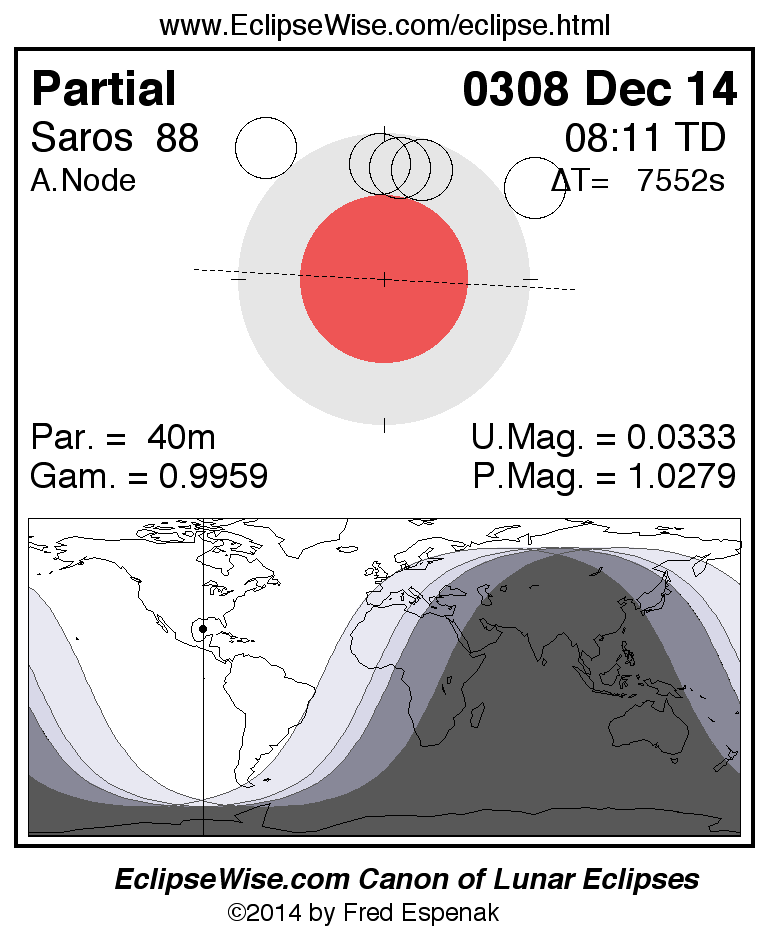

The Partial Lunar Eclipse of 0308 Dec 14 is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 0308 Dec 14 at 08:10:45 TD (06:04:53 UT1). This is 1.9 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of -19963.

The eclipse belongs to Saros 88 and is number 16 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very shallow partial eclipse. It has an umbral eclipse magnitude of only 0.0333 and a partial eclipse duration of 40.4 minutes. Gamma has a value of 0.9959.

The partial lunar eclipse of 0308 Dec 14 is preceded two weeks earlier by a annular solar eclipse on 0308 Nov 30.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 7551.2 seconds for this eclipse. The uncertainty in ΔT is 182.7 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.76°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 0308 Dec 14 .


Eclipse Data: Partial Lunar Eclipse of 0308 Dec 14

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.02789
Umbral Magnitude 0.03329
Gamma 0.99593
Epsilon 0.9966°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 0308 Dec 14 at 08:10:44.7 TD (06:04:53.4 UT1) 1833902.753396
Ecliptic Opposition 0308 Dec 14 at 08:21:02.1 TD (06:15:10.9 UT1) 1833902.760542
Equatorial Opposition 0308 Dec 14 at 08:26:19.5 TD (06:20:28.2 UT1) 1833902.764216
Geocentric Coordinates of Sun and Moon
0308 Dec 14 at 08:10:44.7 TD (06:04:53.4 UT1)
Coordinate Sun Moon
Right Ascension17h31m39.8s05h31m01.3s
Declination-23°29'46.2"+24°28'55.2"
Semi-Diameter 16'16.4" 16'21.7"
Eq. Hor. Parallax 08.9" 1°00'02.8"
Geocentric Libration of Moon
Angle Value
l 3.6°
b -1.3°
c -1.3°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2845°
Umbral Radius 0.7421°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 7551.2 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 88 (16/72)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 0308 Dec 14

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP106:04:09.003:58:17.824°17.7'N061°14.9'W 301.3° 1.5581°
Partial BeginsU107:50:27.105:44:35.824°27.2'N086°43.3'W 340.7° 1.0149°
Greatest EclipseGreatest08:10:44.706:04:53.424°28.9'N091°35.1'W 351.6° 0.9966°
Partial EndsU408:30:52.606:25:01.324°30.6'N096°24.6'W 2.4° 1.0146°
Penumbral EndsP410:17:16.808:11:25.524°39.4'N121°54.4'W 41.8° 1.5562°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h13m07.7s
Partial (U4 - U1)00h40m25.5s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 0308 Dec 14

Polynomial Besselian Elements
0308 Dec 14 at 08:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.24637 0.97099 -0.4101 1.28455 0.74212 0.27270
1 0.56163 0.08315 -0.0000 -0.00035 -0.00035 -0.00009
2 -0.00017 -0.00027 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 8.000

Explanation of Besselian Elements

Links for the Partial Lunar Eclipse of 0308 Dec 14

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 0308 Dec 14 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 7551.2 seconds for this eclipse. The uncertainty in ΔT is 182.7 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.76°.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
