Total Lunar Eclipse of -1704 Feb 08 (1705 Feb 08 BCE)

Fred Espenak

Introduction

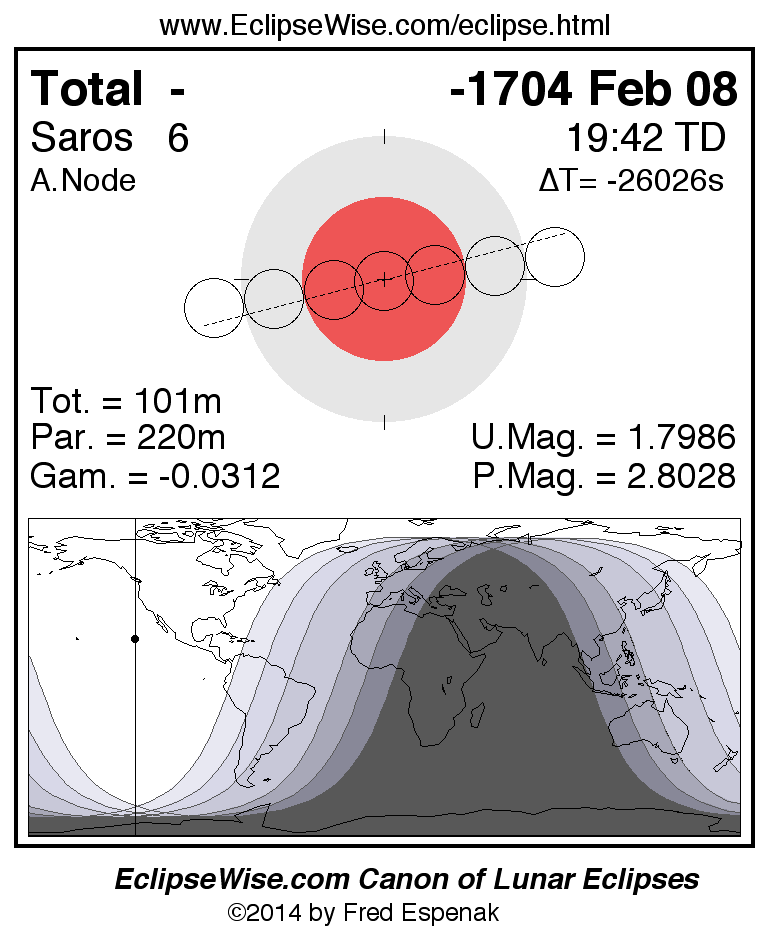

The Total Lunar Eclipse of -1704 Feb 08 (1705 Feb 08 BCE) is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on -1704 Feb 08 at 19:42:11 TD (08:43:46 UT1). This is 3.7 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -44859.

The eclipse belongs to Saros 6 and is number 53 of 87 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This total eclipse is central meaning the Moon’s disk actually passes through the axis of Earth’s umbral shadow. It has an umbral eclipse magnitude of 1.7986, and Gamma has a value of -0.0312. Because they are so deep, such eclipses typically have the longest total phases. In this case, the duration of totality lasts 101.1 minutes. That qualifies the eclipse as a member of a select class of exceptionally long total eclipses with durations exceeding 100 minutes.

The total lunar eclipse of -1704 Feb 08 is preceded two weeks earlier by a partial solar eclipse on -1704 Jan 24, and it is followed two weeks later by a partial solar eclipse on -1704 Feb 22.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 39504.9 seconds for this eclipse. The uncertainty in ΔT is 2582.0 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 10.79°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of -1704 Feb 08 .


Eclipse Data: Total Lunar Eclipse of -1704 Feb 08

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.80283
Umbral Magnitude 1.79858
Gamma-0.03121
Epsilon 0.0305°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse -1704 Feb 08 at 19:42:10.6 TD (08:43:45.7 UT1) 1098709.863723
Ecliptic Opposition -1704 Feb 08 at 19:41:50.3 TD (08:43:25.4 UT1) 1098709.863489
Equatorial Opposition -1704 Feb 08 at 19:42:41.2 TD (08:44:16.3 UT1) 1098709.864078
Geocentric Coordinates of Sun and Moon
-1704 Feb 08 at 19:42:10.6 TD (08:43:45.7 UT1)
Coordinate Sun Moon
Right Ascension20h29m46.2s08h29m45.0s
Declination-19°22'33.0"+19°20'44.6"
Semi-Diameter 16'01.5" 15'57.4"
Eq. Hor. Parallax 08.8" 0°58'33.6"
Geocentric Libration of Moon
Angle Value
l -4.2°
b 0.0°
c 16.0°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2553°
Umbral Radius 0.7211°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 39504.9 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 6 (53/87)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of -1704 Feb 08

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP116:52:53.805:54:28.919°35.6'N085°23.2'W 277.4° 1.5197°
Partial BeginsU117:52:25.406:54:00.519°30.5'N099°42.4'W 276.8° 0.9861°
Total BeginsU218:51:39.307:53:14.419°25.3'N113°57.3'W 274.7° 0.4549°
Greatest EclipseGreatest19:42:10.608:43:45.719°20.7'N126°06.5'W 188.6° 0.0305°
Total EndsU320:32:43.009:34:18.119°16.1'N138°15.9'W 102.4° 0.4555°
Partial EndsU421:31:57.810:33:32.919°10.6'N152°31.1'W 100.4° 0.9881°
Penumbral EndsP422:31:21.111:32:56.219°04.9'N166°48.3'W 99.8° 1.5227°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h38m27.3s
Partial (U4 - U1)03h39m32.3s
Total (U3 - U2)01h41m03.7s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of -1704 Feb 08

Polynomial Besselian Elements
-1704 Feb 08 at 20:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.15390 -0.05400 -0.3381 1.25541 0.72127 0.26597
1 0.53342 -0.08044 0.0002 0.00041 0.00042 0.00011
2 0.00022 -0.00017 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Besselian Elements

Links for the Total Lunar Eclipse of -1704 Feb 08 (1705 Feb 08 BCE)

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Lunar Eclipse of -1704 Feb 08 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 39504.9 seconds for this eclipse. The uncertainty in ΔT is 2582.0 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 10.79°.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce this data when accompanied by an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
